INSTALLATION MANUAL

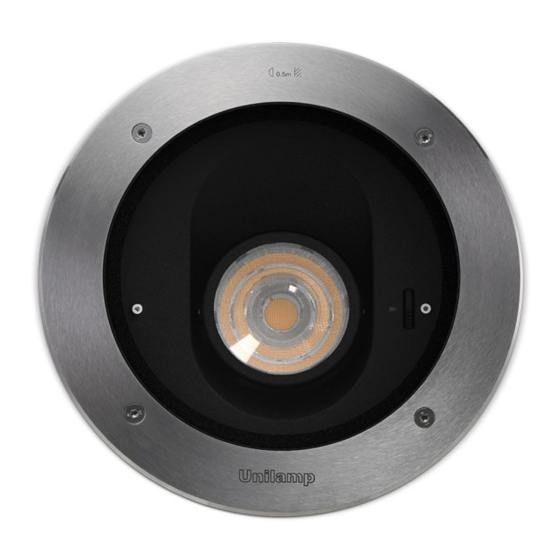

PRODUCT NAME : ARC
No.
Input voltage
1.
220-240V 50-60Hz
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
1
3.A
Cable pipe
·‹ Í ÊÒÂä¿
Water drainage pipe
·‹ Í ¹é í Ò ·Ô é §
Last Revised On : 07/10/2021 REV.01
Ordering Code
9060-B/C-3/4/5-506-91
9060-B/C-3/4/5-887-91
9060-B/C-3/4/5-891-91
9060-A-3/4/5-767-91
9060-A-3/4/5-768-91
9060-A-3/4/5-769-91
9060-B/C-3/4/5-505-91
9060-B/C-3/4/5-902-91
9060-B/C-3/4/5-905-91
9060-A-3/4/5-710-91
9060-A-3/4/5-719-91
9060-A-3/4/5-720-91
û240
û260
360°
Cable length
330
Ø
200 mm.
ÊÒÂä¿ÂÒÇ
200 ÁÁ.
204
25
200-300
IP67
Glass Temperature
84°C at Ta 50°C
84°C at Ta 50°C
84°C at Ta 50°C
64.5°C at Ta 40°C
64.5°C at Ta 40°C
64.5°C at Ta 40°C
71.5°C at Ta 30°C
71.5°C at Ta 30°C
71.5°C at Ta 30°C
69°C at Ta 25°C
69°C at Ta 25°C
69°C at Ta 25°C
2
2.1
2.3
2.4
2.5
Wood /äÁŒ
1/5
1-12
Light Emitting Diodes
(LED)
2.2
2.6
FR-DM-17 REV.03 EFF 15/09/17
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Unilamp ARC
Summary of Contents for Unilamp ARC

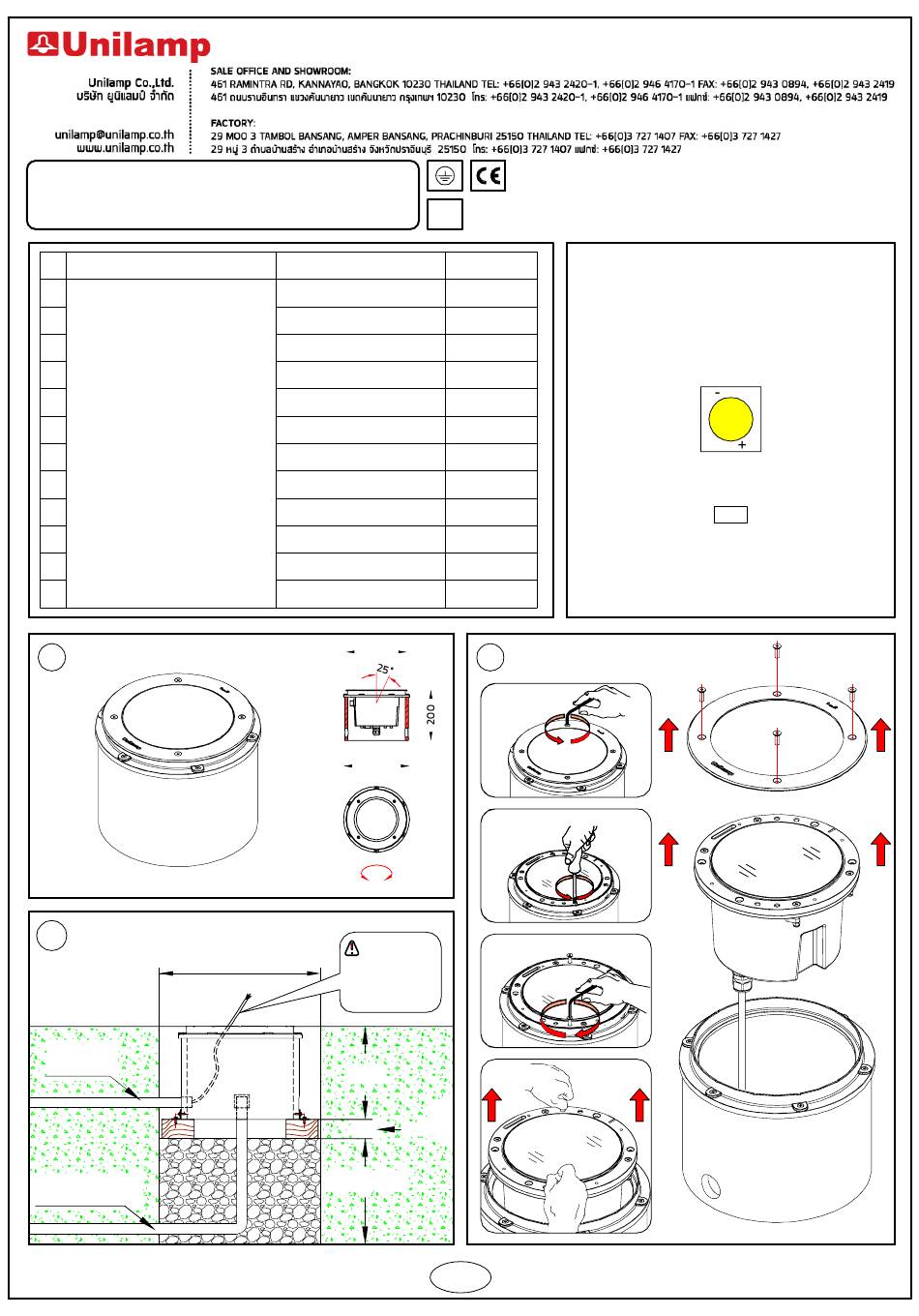

- Page 1 INSTALLATION MANUAL PRODUCT NAME : ARC IP67 Input voltage Ordering Code Glass Temperature 220-240V 50-60Hz 9060-B/C-3/4/5-506-91 84°C at Ta 50°C 9060-B/C-3/4/5-887-91 84°C at Ta 50°C 9060-B/C-3/4/5-891-91 84°C at Ta 50°C 9060-A-3/4/5-767-91 64.5°C at Ta 40°C 9060-A-3/4/5-768-91 64.5°C at Ta 40°C 9060-A-3/4/5-769-91 64.5°C at Ta 40°C...
-
Page 2: Installation Complete
For on-off system. /Êí Ò ËÃÑ º Ãкºà» ´ -» ´ IP68 water tight connecting device 3 Pole. 3.B.5 Cable Diameter 5.0-9.5mm. Available Separately concrete ªØ ´ ¢Œ Í µ‹ Í ÊÒÂä¿¡Ñ ¹ ¹é í Ò IP68, Êí Ò ËÃÑ º ÊÒÂä¿ 3ÊҠᡨí... - Page 3 Remark : Warning : ËÁÒÂà赯 ¢Œ Í ¤ÇÃÃÐÇÑ § The manufacturer will not be liable or held responsible Installation should be carried out by a qualified for any incorrect installation, misuse or improper use electrician in accordance with appropriate national and unauthorised modification to the fittings.
- Page 4 Our products are installed with electronic components with the protection against overvoltage according to IEC 61547. The customers have to install the additional overvoltage protection devices (against surge, transients, etc) in their electrical system to avoid the risk of damage. Failing to do so can cause the end of products warranty.
- Page 5 GENERAL INSTALLATION GUIDE (HIGHLY RECOMMENDED) ¢Œ Í á¹Ð¹í Ò ã¹¡ÒÃµÔ ´ µÑ é § Pic-1 ÃÙ » -1 Place the gravel 200-300 mm.depth underneath the casing for water drainage (Pic-1).Then do the testing by filling water into the casing and let it drain.The water should be drained out by 30 minutes. 200-300 If not,the additional drainage pipe or other system must be applied (Pic-2)
