Ledino Porz 3 Quick Start Manual

Technical Data:

Ledino LED Ceiling Light „Porz 3"
11200184003320
220-240 V AC 50/60 Hz
18 watts LED chip, PF > 0.5
1450 lumens, neutral white light 4000 K
1450 lumens correspond approx. 120 W incandescent lamps
CRI > 80 Ra, SDCM < 6, not dimmable
120° beam angle
operating temp. -20 bis 40 ° C
lifetime 30,000 h
30,000 switching cycles
with fast connection terminal
metal base plate
diffusor made of PMMA
impact resistance IK 02 - withstands 0,2 joules
isolation class 1
IP44 - protected against splashing water
Ø: 328 mm, H: 77 mm, 0.54 kg
warranty 2 years*

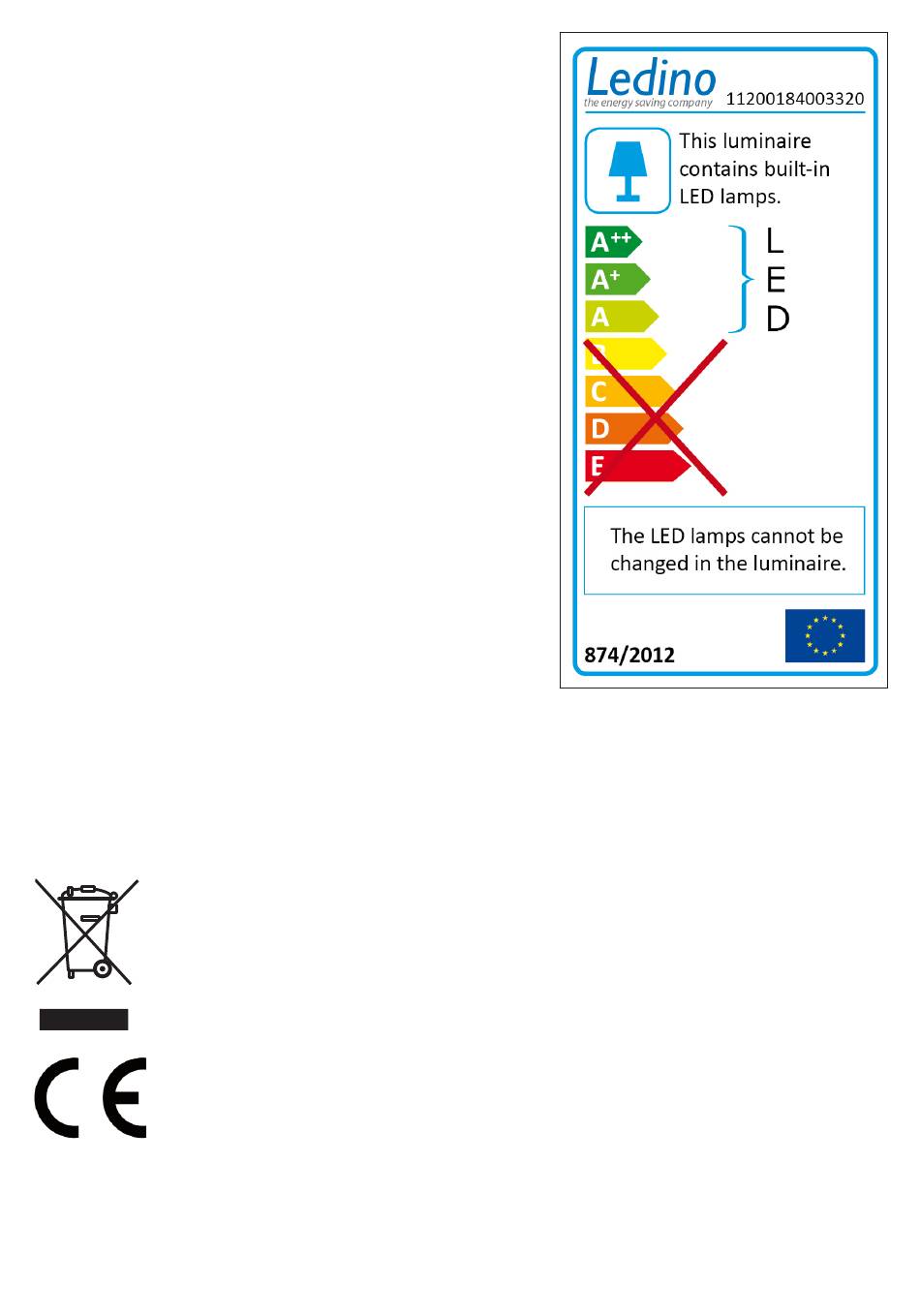

Energy class A+, 18 kWh/1000
For the professional installation of LED lights, please
also read the attached sheet: „Important information
for the installation of LED luminaires!"
*) The conditions of our functional warranty can be found on enclosed sheet and on the internet at
„http://ledino.com/garantiebestimmungen/"
Used units must not be disposed of with household waste!
If the unit is no longer operational, every consumer is required by law to dispose
of used devices separate from household waste, e. g. at a collection point run by
the communal authority borough. In this way, used devices can be recycled and
waste materials disposed of in an environmentally friendly manner.
For this reason, electrical equipment is labelled with the displayed symbol.
We hereby confirm that the products are in line with the regulations – and in
particular with the protection requirements – of the European Union's directive
on the harmonisation of the legislation relating to electromagnetic compability
(2014/30/EU), the low voltage directive 2014/35/EU, the directive for Energy-rela-
ted Products 2009/125/EG and the RoHS directive 2011/65/EC.
Ledino
the energy saving company
8
Deutschland GmbH
IK02
Spitzahornweg 1
14974 Ludwigsfelde/ Berlin
Germany
IP44
