Ledino Eckenheim 300 Instruction Manual

Technical Data:
Ledino LED Lightbar „Eckenheim"
220-240 V AC 50/60 Hz, Epistar LED chip
CRI > 80 Ra, SDCM 6, 120° beam angle
operating temp. -20 up to 40 ° C, not dimmable
PC housing/ diffusor, isolation class 2
lifetime 25000 h, 20000 switching cycles
IP20 - no protection against water
statutory warranty 2 years
11300043001020 = Eckenheim 300
4 watts, 320 lm, warm white light 3000 K
maximum consumption 4 W, PF > 0.5
4 W LED light correspond approx. 25 W incandescent lamps
energy class A+, 4 kWh/1000
L: 324 mm, H: 32 mm, W: 22 mm, 0.08 kg
11300083001020 = Eckenheim 600
8 watts, 640 lm, warm white light 3000 K
maximum consumption
8 W, PF > 0.5
8 W LED light correspond approx. 50 W incandescent lamps
energy class A+, 8 kWh/1000
L: 584 mm, H: 32 mm, W: 22 mm, 0.13 kg
11300113001020 = Eckenheim 900
11 watts, 900 lm, warm white light 3000 K
maximum consumption
11 W, PF > 0.5
11 W LED light correspond approx. 72 W incandescent lamps
energy class A+, 11 kWh/1000
L: 884 mm, H: 32 mm, W: 22 mm, 0.18 kg
11300143001020 = Eckenheim 1200
14 watts, 1200 lm, warm white light 3000 K
maximum consumption 14 W, PF > 0.5
14 W LED light correspond approx. 100 W incandescent lamps
energy class A+, 14 kWh/1000
L: 1184 mm, H: 32 mm, W: 22 mm, 0.24 kg

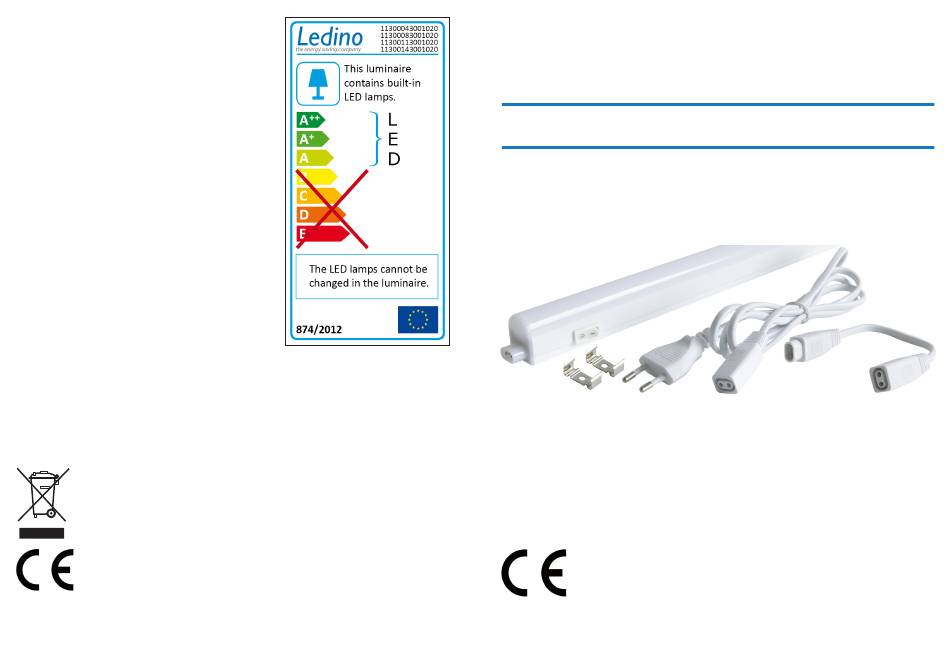

Incl. accessory: 1.4 m main power cable with euro plug, 2 holding clamps,
10 cm connecting cable e. g. across-corner installation, 1 end cap
All lightbars of series „Eckenheim" are extendable/ combinable via integrated connector
(up to 120 W max. at one power cord).
Used units must not be disposed of with household waste!
If the unit is no longer operational, every consumer is required by law to dispose
of used devices separate from household waste, e. g. at a collection point run by
the communal authority borough. In this way, used devices can be recycled and
waste materials disposed of in an environmentally friendly manner.
For this reason, electrical equipment is labelled with the displayed symbol.
We hereby confirm that the products are in line with the regulations – and in
particular with the protection requirements – of the European Union's directive
on the harmonisation of the legislation relating to electromagnetic compability
(2014/30/EU), the low voltage directive 2014/35/EU, the directive for Energyrela-
ted Products 2009/125/EG and the RoHS directive 2011/65/EC.
Ledino
Deutschland GmbH
the energy saving company
8
IP20
Spitzahornweg 1
14974 Ludwigsfelde/ Berlin
Germany
Ledino
LED LIGHTING
the energy saving company
Bedienungsanleitung
11300043001020 = Eckenheim 300 ( 4 W, 320 lm, 324 mm, 3000 K)
11300083001020 = Eckenheim 600 ( 8 W, 640 lm, 584 mm, 3000 K)
11300113001020 = Eckenheim 900 ( 11 W, 900 lm, 884 mm, 3000 K)
11300143001020 = Eckenheim 1200 ( 14 W, 1200 lm, 1184 mm, 3000 K)
Hohe Energieeinsparung • Energieklasse A+ • Lange Lebensdauer
Geringe Wärmeabstrahlung • 100 % Licht sofort • Quecksilberfrei
LED-Lichtleiste
Eckenheim
300/600/900/1200
