Page 1 VOLVO S80 Owner's manual Web Edition...
Page 3 Welcome to the world-wide family of Volvo owners. We trust that you will enjoy many years of safe driving in your Volvo, an automobile designed with your safety and comfort in mind. We encourage you to familiarize yourself with the equipment descriptions and operating instructions in this manual.
Page 4: Table Of Contents
Seat belts ... 16 Supplemental Restraint System (SRS) ... 19 Occupant Weight Sensor ... 24 Side impact protection (SIPS) airbags ... 28 Volvo Inflatable Curtain (VIC) ... 30 Whiplash Protection System – WHIPS... 31 Crash mode... 33 Child safety... 34 Child restraint systems...
Page 5 03 Your driving environment Instruments and controls... 72 Ignition modes... 80 Seats... 82 Seats S80 Executive ... 87 Steering wheel... 89 Lighting... 90 Wipers and washers... 96 Power windows... 98 Mirrors... 100 Power moonroof... 102 HomeLink® Wireless Control System*... 104 Starting the engine...
Page 6 Contents 06 Maintenance and specifications Volvo maintenance... 214 Maintaining your car... 215 Hood and engine compartment... 217 Engine oil... 218 Fluids... 220 Replacing bulbs... 222 Wiper blades and washer fluid... 230 Battery... 232 Fuses... 235 Wheels and tires... 244 Vehicle care... 266 Label information...
Page 7: Contents
Contents...
Page 8: Introduction
For this reason, it should be kept in the vehicle for ready access. • Do not export your Volvo to another coun- try before investigating that country's applicable safety and exhaust emission requirements. In some cases it may be dif- ficult or impossible to comply with these requirements.
Page 9 • Volvo reserves the right to make model changes at any time, or to change specifi- cations or design without notice and with- out incurring obligation. Vehicle event data (Black box)
Page 10: Important Warnings
Driver distraction results from driver activities that are not directly related to controlling the vehicle in the driving environment. Your new Volvo is, or can be, equipped with many fea- ture-rich entertainment and communication systems. These include hands-free cellular tel- ephones, navigation systems, and multipur- pose audio systems.
Page 11: Environment
Volvo and the environment Volvo is committed to the well being of its cus- tomers. As a natural part of this commitment, we care about the environment in which we all live. Caring for the environment means an everyday involvement in reducing our environ- mental impact.
Page 12 Seat belts ... 16 Supplemental Restraint System (SRS) ... 19 Occupant Weight Sensor ... 24 Side impact protection (SIPS) airbags ... 28 Volvo Inflatable Curtain (VIC) ... 30 Whiplash Protection System – WHIPS... 31 Crash mode... 33 Child safety... 34 Child restraint systems...
Page 13 S A F E T Y...
Page 14: 01 Safety
Occupant safety Volvo's concern for safety Safety is Volvo's cornerstone. Our concern dates back to 1927 when the first Volvo rolled off the production line. Three-point seat belts (a Volvo invention), safety cages, and energy- absorbing impact zones were designed into Volvo vehicles long before it was fashionable or required by government regulation.
Page 15: Reporting Safety Defects
If you believe your vehicle has a defect that could cause a crash or could cause injury or death, you should immediately inform Trans- port Canada in addition to notifying Volvo Cars of Canada Corp. To contact Transport Canada, call (800) 333 –...
Page 16: Seat Belts
Children should be prop- erly restrained, using an infant, car, or booster seat determined by age, weight and height. Volvo also believes no child should sit in the front seat of a vehicle. Most states and provinces make it mandatory for occupants of a vehicle to use seat belts.
Page 17 WARNING • Never repair the belt yourself; have this work done by a trained and qualified Volvo service technician only. • Any device used to induce slack into the shoulder belt portion of the three-point belt system will have a detrimental effect on the amount of protection avail- able to you in the event of a collision.
Page 18 01 Safety Seat belts Seat belt use during pregnancy The seat belt should always be worn during pregnancy. But it is crucial that it be worn in the correct way. The diagonal section should wrap over the shoulder then be routed between the breasts and to the side of the belly.
Page 19: Supplemental Restraint System (Srs)
General information Warning symbols in the instrument panel As an enhancement to the three-point seat belts, your Volvo is equipped with a Supple- mental Restraint System (SRS). Volvo's SRS consists of seat belt pretensioners, front air- bags, side impact airbags, a front passenger occupant weight sensor, and inflatable cur- tains.
Page 20 01 Safety Supplemental Restraint System (SRS) Front airbags The front airbag system The front airbags supplement the three-point seat belts. For these airbags to provide the protection intended, seat belts must be worn at all times. The front airbag system includes gas genera- tors surrounded by the airbags, and decelera- tion sensors that activate the gas generators, causing the airbags to be inflated with nitrogen...
Page 21 Should you have questions about any compo- nent in the SRS system, please contact a trained and qualified Volvo service technician or Volvo Customer Support: In the USA Volvo Cars of North America, LLC...
Page 22 This is a normal characteristic and does not indicate fire. • Volvo's front airbags use special sen- sors that are integrated with the front seat buckles. The point at which the air- bag deploys is determined by whether or not the seat belt is being used, as well as the severity of the collision.
Page 23 • Never try to open the airbag cover on the steering wheel or the passenger's side dashboard. This should only be done by a trained and qualified Volvo service technician. • Failure to follow these instructions can result in injury to the vehicle occupants.
Page 24: Occupant Weight Sensor
In this case, the SRS system and Occupant Weight Sensor should be inspected by a trained and quali- fied Volvo service technician as soon as possible.
Page 25 Volvo recommends that children always be properly restrained in appropriate child restraints in the rear seats. Do not assume that the passenger's side front airbag is disabled unless the PASSENGER AIRBAG OFF indicator lamp is lit.
Page 26 01 Safety Occupant Weight Sensor In the USA Volvo Cars of North America, LLC Customer Care Center 1 Volvo Drive P.O. Box 914 Rockleigh, New Jersey 07647 1-800-458-1552 In Canada Volvo Cars of Canada Corp. National Customer Service 175 Gordon Baker Road North York, Ontario...
Page 27 WARNING • Do not place any type of object on the front passenger's seat in such a way that jamming, pressing, or squeezing occurs between the object and the front seat, other than as a direct result of the correct use of the Automatic Locking Retractor/Emergency Locking Retrac- tor (ALR/ELR) seat belt (see page 35).
Page 28: Side Impact Protection (Sips) Airbags
01 Safety Side impact protection (SIPS) airbags General information Location of the side impact (SIPS) airbags (front seats only) As an enhancement to the structural side impact protection built into your vehicle, it is also equipped with Side Impact Protection System (SIPS) airbags.
Page 29 Never try to open or repair any compo- nents of the SIPS airbag system. This should be done only by a trained and qualified Volvo service technician. • In order for the SIPS airbag to provide its best protection, both front seat occupants should sit in an upright posi- tion with the seat belt properly fastened.
Page 30: Volvo Inflatable Curtain (Vic)
2 in. (5 cm) below the upper edge of the rear side windows. Objects placed higher than this level could impede the function of the Volvo Inflatable Curtain. WARNING In order for the VIC to provide its best pro-...
Page 31: Whiplash Protection System - Whips
If your vehicle has been involved in a rear-end collision, the front seat backr- ests must be inspected by a trained and qualified Volvo service technician, even if the seats appear to be undamaged. Certain components in the WHIPS sys- tem may need to be replaced.
Page 32 01 Safety Whiplash Protection System – WHIPS WARNING • Boxes, suitcases, etc. wedged behind the front seats could impede the func- tion of the WHIPS system. • If the rear seat backrests are folded down, cargo must be secured to pre- vent it from sliding forward against the front seat backrests in the event of a collision from the rear.
Page 33: Crash Mode
• Restoring the vehicle to normal operat- ing status should only be done by a trained and qualified Volvo service tech- nician. • After SAFETY MODE SEE MANUAL has been displayed, if you detect the...
Page 34: Child Safety
Please check local regulations. A specially designed and tested booster cush- ion can be obtained from your Volvo retailer. USA: for children weighing 33 – 80 lbs. (15 – 36 kg) and 38 – 54 inches (97 – 137 cm) in height Canada: for children weighing 40 –...
Page 35 Volvo's recommendations Why does Volvo believe that no child should sit in the front seat of a vehicle? It's quite simple really. A front airbag is a very powerful device designed, by law, to help protect an adult.
Page 36: Child Restraint Systems
01 Safety Child restraint systems Child restraints Infant seat There are three main types of child restraint systems: infant seats, convertible seats, and booster cushions. They are classified accord- ing to the child's age and size. The following section provides general infor- mation on securing a child restraint using a three-point seat belt.
Page 37 • A small child's head represents a con- siderable part of its total weight and its neck is still very weak. Volvo recom- mends that children up to age 4 travel, properly restrained, facing rearward. In addition, Volvo recommends that chil- dren should ride rearward facing, prop- erly restrained, as long as possible.
Page 38: Infant Seats
01 Safety Infant seats Securing an infant seat with a seat belt Do not place the infant seat in the front passeng- er's seat NOTE Refer to page 43–44 for information on securing a child restraint using ISOFIX lower anchors and/or top tether anchorages. 1.
Page 39 Pull out the shoulder section of the seat belt 4. Pull the shoulder section of the seat belt out as far as possible to activate the belt's automatic locking function. NOTE The locking retractor will automatically release when the seat belt is unbuckled and allowed to retract fully.
Page 40: Convertible Seats
• A small child's head represents a con- siderable part of its total weight and its neck is still very weak. Volvo recom- mends that children up to age 4 travel, properly restrained, facing rearward. In addition, Volvo recommends that chil- dren should ride rearward facing, prop- erly restrained, as long as possible.
Page 41 Fasten the seat belt 3. Fasten the seat belt by inserting the latch plate into the buckle (lock) until a distinct click is audible. 4. Pull the shoulder section of the seat belt out as far as possible to activate the belt's automatic locking function.
Page 42: Booster Cushions
01 Safety Booster cushions Securing a booster cushion Position the child correctly on the booster cushion Booster cushions are recommended for chil- dren who have outgrown convertible seats. 1. Place the booster cushion in the rear seat of the vehicle. 2.
Page 43: Isofix Lower Anchors
Using the ISOFIX lower child seat anchors ISOFIX lower child restraint anchors Lower anchors for ISOFIX-equipped child seats are located in the rear, outboard seats, hidden below the backrest cushions. Symbols on the seat back upholstery mark the anchor positions as shown. To access the anchors, kneel on the seat cushion and locate the anchors by feel.
Page 44: Top Tether Anchors
01 Safety Top tether anchors Child restraint anchorages Your Volvo is equipped with child restraint top tether anchorages in the rear seat. They are located on the rear parcel shelf. Securing a child seat 1. Place the child restraint on the rear seat.
Page 45: Child Restraint Registration And Recalls
01 Safety Child restraint registration and recalls Registering a child restraint Child restraints could be recalled for safety reasons. You must register your child restraint to be reached in a recall. To stay informed about child safety seat recalls, be sure to fill out and return the registration card that comes with new child restraints.
Page 46: Integrated Booster Cushion
01 Safety Integrated booster cushion Integrated booster cushion* Volvo's optional integrated booster cushion is located in the center seating position. This booster cushion has been specially designed to help safeguard a child in the rear seat. It should be stowed (folded up into the rear seat backrest) when not in use.
Page 47 The booster cushion should also be replaced if it is badly worn or damaged in any way. This work should be performed by a trained and qualified Volvo service technician only.
Page 48: Child Safety Locks
01 Safety Child safety locks Child safety locks Manual child safety locks – rear doors The controls are located on the rear door jambs. Use the remote control's key blade or a screwdriver to adjust these controls. The rear doors can only be opened from the outside when the slot is in the horizon- tal position.
Page 49 01 Safety...
Page 50 Remote key and key blade... 52 Valet locking ... 59 Keyless drive... 60 Locks... 63 Alarm... 66...
Page 51 L O C K S A N D A L A R M...
Page 52: 02 Locks And Alarm
This code is available at an authorized Volvo retailer. Loss of a remote key If a remote key is lost, the other one must be taken with the vehicle to a trained and qualified Volvo service technician.
Page 53 If you misplace a key, take the other keys to a trained and qualified Volvo service technician for reprog- ramming as an antitheft measure. The follow- ing messages (which may appear in the instru-...
Page 54 02 Locks and alarm Remote key and key blade Canada–IC: 3659A-WFS125VO Operation is subject to the following condi- tions: (1) this device may not cause interfer- ence, and (2) this device must accept any inter- ference, including interference that may cause undesired operation of the device.
Page 55 Press once: This unlocks the trunk (but does not open it) and disarms the alarm and optional movement sensor (the alarm indicator light on the dashboard will go out). If the trunk is not opened within two minutes it will automatically relock and the alarm will be rearmed.
Page 56 NOTE If none of the indicator lights flash when the information button has been pressed sev- eral times from different places in relation to the vehicle, contact an authorized Volvo service technician. The indicator lights provide information according to the illustration: Steady green light: the vehicle is correctly locked.
Page 57 function, see page 60 for detailed informa- tion. Detachable key blade The key blade can be removed from the remote key. When removed, the key blade can be used as follows: • To lock/unlock the driver's door • To lock/unlock the glove compartment (see page 63) •...
Page 58 02 Locks and alarm Remote key and key blade Battery type CR 2430, 3 V (one battery in the remote key, two batteries in the PCC) Opening the remote key/PCC Slide the spring loaded catch to the side. Pull the key blade straight out of the remote key.
Page 59: Valet Locking
Blocking access to the trunk Normal locking/unlocking function Locking/unlocking points with valet locking acti- vated By utilizing the remote key with the key blade removed, the valet locking feature enables you to block access to the trunk and glove com- partment for e.g., valet parking or when the vehicle is brought to the retailer for service.
Page 60: Keyless Drive
02 Locks and alarm Keyless drive Keyless drive (models with Personal Car Communicator only) Keyless locking and unlocking Range of the keyless drive remote key–5 ft (1.5 meters) This system makes it possible to unlock and lock the vehicle without having to press any buttons on the Personal Car Communicators (PCC).
Page 61 NOTE If several people carrying PCCs approach the vehicle at the same time, the driver's seat and door mirrors will assume the posi- tions they were in for the person who opens the driver's door. See also page 83 for information on adjusting and storing the seat's position in the seat mem- ory.
Page 62 02 Locks and alarm Keyless drive The keyless drive system has a number of antennas located at various points in the vehi- cle. On the inside center of the rear bumper Left rear door handle Center of the parcel shelf, on the underside Ceiling, above the center of the rear seat Right rear door handle Under the rear section of the center con-...
Page 63: Locks
Locking and unlocking the vehicle From outside the vehicle The remote key locks all of the doors and the trunk. The first press on the unlock button unlocks the driver's door and a second press unlocks the other doors and the trunk (see also page 54). NOTE The vehicle cannot be locked if a door is open.
Page 64 02 Locks and alarm Locks Locking/unlocking the trunk Trunk unlock button on the remote key Unlocking the trunk with the remote key ± Press the trunk unlock button on the remote. Press once: This unlocks but does not open the trunk. The trunk can then be opened by pressing the rubber plate near the trunk lock.
Page 65 Unlocking the trunk with the key blade If the remote key is not functioning properly, the trunk can be unlocked with the detachable key blade. See page 57 for information on removing the key blade from the remote key. Pull out the cover over the trunk’s keyhole. Unlock the trunk by inserting the key blade in the keyhole and turning a half turn coun- terclockwise as shown in the illustration.
Page 66: Alarm
The siren is disconnected when the alarm is disarmed. A message will appear in the information dis- play if a fault should occur in the alarm system. Contact an authorized Volvo service techni- cian. NOTE Do not attempt to repair any of the compo- nents in the alarm system yourself.
Page 67 Disarming the alarm ± Press the Unlock button on the remote key. > Two short flashes from the car's direc- tion indicators confirm that the alarm has been deactivated and that all doors are unlocked. Turning off (stopping) the alarm If the alarm is sounding, it can be stopped by pressing the Unlock button on the remote key or by inserting the remote key in the ignition...
Page 68 02 Locks and alarm Alarm 4. Press ENTER and lock the vehicle. The next time the engine is started, the alarm system will be reset and Full guard will appear in the instrument panel display. The accessory inclination and movement alarm sensors will be reactivated.
Page 69 02 Locks and alarm...
Page 70 Instruments and controls... 72 Ignition modes... 80 Seats... 82 Seats S80 Executive ... 87 Steering wheel... 89 Lighting... 90 Wipers and washers... 96 Power windows... 98 Mirrors... 100 Power moonroof... 102 HomeLink® Wireless Control System*... 104 Starting the engine... 107 Transmission...
Page 71 Y O U R D R I V I N G E N V I R O N M E N T...
Page 72: 03 Your Driving Environment
03 Your driving environment Instruments and controls Instrument overview...
Page 73 Function Page Menus and mes- 122, 93, sages, turn signals, 90, 153 high/low beams, trip computer Cruise control Horn, airbag 89, 20 Main instrument panel Menu system, audio controls Ignition slot START/STOP ENGINE button Hazard warning flashers Door handle – In-door control pan- 98, 100, els (power win-...
Page 74 03 Your driving environment Instruments and controls More detailed information can be found in the descriptions of the functions that use the infor- mation displays. Gauges Gauges in the instrument panel Speedometer Fuel gauge. Please note that the fuel level indicator in the gauge moves from right to left as the amount of fuel in the tank decreases.
Page 75 When this happens, please have your vehicle checked by a trained and qualified Volvo serv- ice technician as soon as possible. A malfunction indicator (CHECK ENGINE) light may have many causes.
Page 76 If the oil level is nor- mal and the light stays on after restart, have the vehicle towed to the nearest trained and quali- fied Volvo service technician. This is normal, provided it goes off when the engine speed is increased.
Page 77 220. If the level in the reservoir is below MIN, the vehicle should be transported to an authorized Volvo workshop to have the brake system checked. Canadian models are equipped with this symbol.
Page 78 03 Your driving environment Instruments and controls Trip odometers Trip odometers and reset button Odometer display Button for toggling between and for resetting the odometer The trip odometers are used to measure short distances. A short press the button toggles between the two trip odometers long press (more than 2 seconds) resets an active trip odometer to zero.
Page 79 To set the clock 2: ± Press the button quickly. > The hand will move at approximately 10-second intervals. 03 Your driving environment Instruments and controls...
Page 80: Ignition Modes
03 Your driving environment Ignition modes Inserting and removing the remote key Ignition slot with remote key and START/STOP ENGINE button. Inserting the remote key Holding the end of the remote key with the base of the key blade, insert the remote key into the ignition slot, with the buttons facing up, as shown in the illustration.
Page 81 Functions with timer The audio system can be operated without a key for 15 minutes at a time by pressing the POWER button. The power windows work for several minutes after the key has been removed, although not after the door has been opened.
Page 82: Seats
03 Your driving environment Seats Front seats Lumbar support: turn the control for firmer or softer lumbar support. Front-rear adjustment: lift the bar and move the seat to the position of your choice. Raise/lower front edge of seat cushion, pump up/down. Backrest tilt: turn the control to adjust the angle of the backrest.
Page 83 Power seat Front edge of seat cushion up/down Seat forward/rearward and up/down Backrest tilt Operation The seats can be adjusted for a short period after unlocking the door with the remote con- trol without the key in the ignition slot. Seat adjustment is normally made when the ignition is on and can always be made when the engine is running.
Page 84 03 Your driving environment Seats Remote keyless entry system and the driver's seat The remote control transmitter also controls the position of the power driver's seat in the following way: 1. Adjust the seat to your preferences. 2. When you leave your vehicle, lock it using the remote control.
Page 85 Rear seats Folding down the rear seat backrests The rear seat backrests can be folded down together, or separately, to make it easier to transport long objects. 1. Pull the release control handle(s). 2. Fold the backrest forward. Adjust the cen- ter seat head restraint if necessary.
Page 86 03 Your driving environment Seats Rear center head restraint Pull the head restraint up as required. To lower, press the button at the base of the head restraint’s left support while pressing the head restrain down. WARNING The center rear seat head restraint should only be in its lowest position when this seat is NOT occupied.
Page 87: Seats S80 Executive
Front seats Button for moving the passenger's seat forward/rearward Button for massage and lumbar support 03 Your driving environment Massage Button for activating the massage function Firm massage Gentle massage Each front seat has a massage function in its backrest. The massage action is done with air cushions, which can be adjusted to a firm or gentle setting.
Page 88 03 Your driving environment Seats S80 Executive Moving the passenger's seat The front passenger's seat can be moved for- ward/rearward from the driver's seat or the rear seat. Press the front section of the button to move the seat forward or the rear section of the but- ton to move the seat rearward.
Page 89: Steering Wheel
Adjusting Adjusting the steering wheel Lever for releasing/locking the steering wheel Possible positions The steering wheel can be adjusted for both height and reach: 1. Pull the lever toward you to release the steering wheel. 2. Adjust the steering wheel to the position that suits you.
Page 90: Lighting
When the engine is started, the low beams are activated automatically (daytime running lights) if the headlight control is in position 0 or Daytime running lights can be deactivated by a trained and qualified Volvo service techni- cian. NOTE •...
Page 91 Volvo serv- ice techni- cian. Lighting Parking lights Headlight control in position for parking lights The front and rear parking lights can be turned on even when the ignition is switched off.
Page 92 03 Your driving environment Lighting Brake lights The brake lights come on automatically when the brakes are applied. Emergency brake lights (EBL) Emergency Brake Lights, EBL, activate in the event of sudden braking or if the ABS system is activated. This function causes an additional taillight on each side of the vehicle to illuminate to help alert vehicles traveling behind.
Page 93 NOTE The rear fog light is considerably brighter than the normal tail lights and should be used only when conditions such as fog, rain, snow, smoke or dust reduce visibility for other vehicles to less than 500 ft. (150 meters). Hazard warning flashers Location of the hazard warning flasher button The hazard warning flasher should be used to...
Page 94 03 Your driving environment Lighting Interior lighting, front Light switches, front roof lighting Drivers side front reading light, on/off Passenger's side front reading light, on/off Overhead courtesy lighting. The lighting in the front part of the passenger compartment is controlled with the buttons (1) and (2) in the roof console.
Page 95 03 Your driving environment Lighting The headlights, parking lights, turn signals, lights in the door mirrors, license plate lights, and footwell lighting will illuminate and remain on for 30 , 60 or 90 seconds. The time interval can be set under Car settings Light settings...
Page 96: Wipers And Washers
03 Your driving environment Wipers and washers Windshield wipers/washers Windshield wipers and washers Rain sensor* on/off Thumb wheel sensitivity/frequency CAUTION • Use ample washer fluid when washing the windshield. The windshield should be thoroughly wet when the wipers are in operation. •...
Page 97 CAUTION The rain sensor should be deactivated when washing the car in an automatic car wash, etc. If the rain sensor function is left on, the wipers will start inadvertently in the car wash and could be damaged. Windshield washing Washing function Move the lever toward the steering wheel to start the windshield and headlight washers.
Page 98: Power Windows
03 Your driving environment Power windows Power windows Driver's door control panel Switch for power child safety locks* and disengaging rear power window buttons, see page 48 Rear window controls Front window controls. WARNING • Always remove the ignition key when the vehicle is unattended.
Page 99 Laminated glass* This glass is reinforced to help pro- vide protection against break-ins and improved sound insulation in the passenger compartment. The windshield, optional monroof and other windows have laminated glass. Sun shade* Hook and lock tab The sun shade is integrated into the panels on both rear doors.
Page 100: Mirrors
03 Your driving environment Mirrors Power door mirrors Door mirror controls Adjusting 1. Press the L button for the left door mirror or the R button for the right door mirror. The light in the button comes on. 2. Adjust the position with the joystick in the center.
Page 101 to the neutral position for electric retracting/ extending to work. • Retract the mirrors with the L and R but- tons. • Fold them out again with the L and R but- tons. The mirrors are now reset in neutral position. Home safe and approach lighting The light on the door mirrors comes on when approach lighting or home safe lighting is...
Page 102: Power Moonroof
03 Your driving environment Power moonroof Introduction The moonroof controls are located in the ceil- ing console near the rearview mirror. The moonroof can be opened vertically and hori- zontally. The vehicle's must be in ignition mode I or II for the moonroof to be operated. CAUTION •...
Page 103 Tilt position Tilt position, raised at the rear edge Open by pressing the rear edge of the con- trol upward. Close by pulling the rear edge of the con- trol downward and hold it until the moon- roof has closed completely. Visor The moonroof features a sliding visor.
Page 104: Homelink® Wireless Control System
03 Your driving environment HomeLink® Wireless Control System* Introduction The HomeLink Wireless Control System pro- vides a convenient way to replace up to three hand-held radio-frequency (RF) transmitters used to activate devices such as gate opera- tors, garage door openers, entry door locks, security systems, even home lighting.
Page 105 NOTE Some devices may require you to replace this Programming Step 2 with procedures noted in the “Gate Operator / Canadian Pro- gramming” section. If the HomeLink indica- tor light does not change to a rapidly blink- ing light after performing these steps, con- tact HomeLink at www.homelink.com.
Page 106 03 Your driving environment HomeLink® Wireless Control System* Erasing HomeLink Buttons To erase programming from the three Home- Link buttons (individual buttons cannot be erased but can be “reprogrammed” as outlined below), follow the step noted: 1. Press and hold the two outer HomeLink buttons until the indicator light begins to flash-after 10 seconds.
Page 107: Starting The Engine
Start Ignition switch with remote key inserted (see page 80 for more information on ignition modes) WARNING Before starting the engine: • Fasten the seat belt. • Check that the seat, steering wheel and mirrors are adjusted properly. • Make sure the brake pedal can be depressed completely.
Page 108 03 Your driving environment Starting the engine WARNING An extra mat on the driver's floor can cause the accelerator and/or brake pedal to catch. Check that the movement of these pedals is not impeded. Not more than one protective floor covering may be used at one time. If the gear selector is in the D or R positions and the car is not moving, engine speed (rpm) will be lower and it will take longer for the engine to reach normal operating temperature.
Page 109 CAUTION • When starting in cold weather, the auto- matic transmission may shift up at slightly higher engine speeds than nor- mal until the automatic transmission fluid reaches normal operating tem- perature. • Do not race a cold engine immediately after starting.
Page 110 03 Your driving environment Starting the engine WARNING PROPOSITION 65 WARNING! Battery posts, terminals, and related acces- sories contain lead and lead compounds, chemicals known to the state of California to cause cancer and reproductive harm. Wash hands after handling. CAUTION Connect the jumper cables carefully to avoid short circuits with other components...
Page 111: Transmission
Automatic transmission Shiftgate positions Depress the button on the front of the gear selector knob to move the gear selector between the R, N, D, and P positions. The gear selector can be moved freely between the Geartronic (manual shifting) and Drive (D) positions while driving.
Page 112 03 Your driving environment Transmission NOTE On models equipped with Sport mode, the transmission will not switch to manual shift- ing mode until the gear selector is moved forward or rearward. The selected gear will then be shown in the information display (see page 73).
Page 113 All Wheel Drive – AWD Your Volvo can be equipped with permanent All Wheel Drive, which means that power is distributed automatically between the front and rear wheels. Under normal driving condi- tions, most of the engine's power is directed to the front wheels.
Page 114: Brakes
DO NOT DRIVE . Have the vehicle towed to a trained and qualified Volvo service technician and have the brake system inspected. Power brakes function only when the engine is running The power brakes utilize vacuum pressure which is only created when the engine is run- ning.
Page 115 MIN mark in the reservoir or if a brake system-related message is shown in the information dis- DO NOT DRIVE play: . Have the vehicle towed to a trained and qualified Volvo serv- ice technician and have the brake system inspected.
Page 116: Parking Brake
03 Your driving environment Parking brake Electric parking brake An electric parking brake has the same func- tion as a manual parking brake. NOTE • A faint sound from the parking brake's electric motor can be heard when the parking brake is being applied. This sound can also be heard during the automatic function check of the parking brake.
Page 117 Read the message on the infor- mation display. Messages Parking brake not fully released – A fault is preventing the parking brake from being released. Contact an authorized Volvo work- Option/accessory, for more information, see Introduction.
Page 118 Parking brake not applied – A fault is pre- venting the parking brake from being applied. Try to apply and release. Contact a Volvo work- shop if the message remains. Parking brake Service required – A fault has arisen.
Page 119 03 Your driving environment...
Page 120 Menus and messages... 122 Climate system... 126 Audio system... 133 ® Bluetooth hands-free connection... 147 Trip computer... 153 Compass... 155 Stability system... 156 Active chassis system–Four C... 158 Cruise control... 159 Collision warning with Auto-brake*... 161 Adaptive Cruise Control (ACC)*... 167 Distance alert ...
Page 121 C O M F O R T A N D D R I V I N G P L E A S U R E...
Page 122: 04 Comfort And Driving Pleasure
04 Comfort and driving pleasure Menus and messages Center console Certain functions are controlled from the center console via the menu system or from the key- pad in the steering wheel. Each function is described under its respective section. The current menu level is shown at the top right of display in the center console.
Page 123 Door mirror settings Parking camera settings (accessory) Lane departure warning* Steering force level* Information Climate settings Automatic blower adjust Recirculation timer Auto. rear defroster Reset climate settings Main menu AM HD radio Audio settings Sound stage Equalizer, front Equalizer, rear Auto.
Page 124 Message Description Stop safely Stop and switch off the engine. Serious risk of damage. Contact an author- ized Volvo work- shop. Stop and switch off Stopping the engine the engine. Serious risk of damage. Contact an author- ized Volvo work- shop.
Page 125 Volvo retailer. Time for regular Time for regular service at an author- maintenance ized Volvo work- shop. The timing is determined by the number of miles driven, number of months since the last service, engine running time.
Page 126: Climate System
Special tools and equipment are required to maintain and carry out repairs on the climate system. Work of this type should only be done by a trained and qualified Volvo service tech- nician. Refrigerant Volvo cares about the environment. The air conditioning system in your car contains a CFC-free refrigerant –...
Page 127 04 Comfort and driving pleasure NOTE Contact your Volvo retailer for IAQS air filter replacement intervals. Menu settings The default settings for three of the climate system's functions can be changed in the menu system, see page 122: •...
Page 128 04 Comfort and driving pleasure Climate system Air vents in the dashboard Open Closed Horizontal airflow Vertical airflow Direct the outer air vents toward the side win- dows to defrost. Option/accessory, for more information, see Introduction. Air vents in the door pillars Open Closed Horizontal airflow...
Page 129 Recirculation/Air quality system Temperature control, driver's side Ventilated front seats* The ventilation system consists of fans in the seats and backrests that draw air through the seat upholstery. The cooling effect increases as the air in the passenger compartment becomes cooler. The ventilation is controlled by the ECC sys- tem, which takes into account the seat tem- perature, sunlight in the passenger compart-...
Page 130 04 Comfort and driving pleasure Climate system Auto The function automatically regulates cooling, heating, blower speed, recirculation, and air distribution to main- tain the chosen temperature. If you select one or more man- ual functions, the other func- tions continue to be controlled automatically. The air quality sensor is engaged and all man- ual settings are switched off when AUTO is pressed.
Page 131 Recirculation/air quality system Recirculation This function can be used to shut out exhaust fumes, smoke, etc from the passen- ger compartment. The air in the passenger compartment is then recirculated, i.e., no air from outside the car is taken into the car when this function is activated. The indicator light in the button will illuminate when recirculation is selected.
Page 132 04 Comfort and driving pleasure Climate system Air distribution table Air distribution Air to windows. Some air flows from the dashboard air vents. The air is not recirculated. Air condition- ing is always engaged. Air to windshield and side windows. Some air flows from the air dashboard vents.
Page 133: Audio System
Introduction The audio system is available in two versions: High Performance and Premium Sound. The system version is shown in the display when the audio system is switched on. If the audio system is on when the ignition is switched off, it will come on automatically the next time the ignition is put in mode I or higher.
Page 134 04 Comfort and driving pleasure Audio system Audio functions Center console, controls for audio functions Internal audio sources: AM, FM and CD External audio source. For connection, see page 133 Push button and knob controls for making sound settings Navigation button Volume and on/off Audio volume and automatic volume control...
Page 135 2. Use ENTER to save or EXIT to close. Sound stage The sound experience can be optimized for the driver's seat, both front seats or the rear seat. Select one of the options under Audio settings Soundstage. Optimal sound reproduction The audio system is calibrated for optimal sound reproduction using digital signal pro- cessing.
Page 136 04 Comfort and driving pleasure Audio system 2. Hold in AUTO until Autostoring… appears on the display. Once Autostoring… disappears from the dis- play, the stations are stored. The radio contin- ues in Auto mode and Auto appears on the display.
Page 137 • Turn the manual tuning knob clockwise or counterclockwise • Use the right or left arrow keys on the nav- igation control to select the desired track. The arrow keys on the steering wheel key- pad can also be used in the same way. NOTE The system supports playback of files in the most common versions of formats such as...
Page 138 04 Comfort and driving pleasure Audio system It is switched off automatically when the audio system is switched off or by a long press on MODE. Scroll/search forward and backward Short presses on (2) are used to scroll between CD tracks or preset radio stations. Long presses are used to fast-wind CD tracks or to search for radio stations automatically.
Page 139 The main FM channel will be displayed as, for example, 93.9 WNYC (Volvo uses the symbol > to indicate there are sub-channels available) The sub-FM 04 Comfort and driving pleasure channels will be displayed as 93.9 – 2 WNYC, 93.9 - 3 WNYC, etc.
Page 140 04 Comfort and driving pleasure Audio system 1. Be sure the audio system is switched on and in AM or FM mode. 2. Press MENU in the center console control panel. 3. Press ENTER to turn HD off (the X will dis- appear from the box on the display screen).
Page 141 Sirius satellite radio* Listening to satellite radio The Sirius satellite system consists of a number of high elevation satellites in geosynchronous orbit. NOTE • The digital signals from the Sirius satel- lites are line-of-sight, which means that physical obstructions such as bridges, tunnels, etc, may temporarily interfere with signal reception.
Page 142 04 Comfort and driving pleasure Audio system Direct channel entry The Sirius satellite channels are in numerical order throughout all of the categories. To access a channel directly: 1. Press MENU and scroll to Direct channel entry 2. Use the numerical keypad to enter the channel's number.
Page 143 Advanced settings This menu function enables you to make set- tings on certain Sirius satellite radio functions. To access this menu: 1. Press MENU. 2. Scroll to the Sirius menu. 3. Select Advanced Sirius settings WARNING Settings should be made when the vehicle is at a standstill.
Page 144 ENTER. 2. Press and hold the ENTER button for 2 seconds. 3. The current code will be displayed. Your Volvo retailer can also provide you with assistance. SIRIUS ID This function displays the 12-digit Sirius acti- vation ID.
Page 145 NOTE The Eject all function can only be used while the vehicle is at a standstill and will be can- celled if the vehicle begins to move. Pause When the audio system volume is turned off completely, the CD player will pause and will resume playing when the volume is turned up again.
Page 146 04 Comfort and driving pleasure Audio system Disc text If title information is stored on a music CD it can be shown on the display . Activate/deactivate in CD mode under CD settings Disc Only applies to the CD changer. text.
Page 147: Bluetooth ® Hands-Free Connection
NOTE Not all cell phones are fully compatible with the hands-free system. A list of compatible phones is available at your Volvo retailer or at www.volvocars.us WARNING Never use the hands-free feature or any other device in your vehicle in a way that distracts you from the task of driving safely.
Page 148 04 Comfort and driving pleasure ® Bluetooth hands-free connection function is also available on the steering wheel keypad. Getting started Use the controls on steering wheel keypad (3) and in the center console (4) to access, navi- gate and make selections in the hands-free system’s menus (see page 152).
Page 149 3. Press ENTER. End the call by pressing EXIT. Disconnecting the cell phone The cell phone is automatically disconnected from the audio system if it is moved out of range. For more information about connec- tions, see page 148. The cell phone can be manually disconnected from the hands-free system by pressing PHONE.
Page 150 04 Comfort and driving pleasure ® Bluetooth hands-free connection Ringing volume Go to Phone settings Sounds and volume Ring volume and adjust the volume with keys on the center console. Ringing tones The hands-free system’s integrated ringing tones can be selected in Phone settings Sounds and volume Ring signal...
Page 151 Searching for contacts The easiest way to search for a contact in the phone book is to press and hold any of the buttons 2–9 (see the illustration on page 147). This starts a search based on the first letter on the button that has been pressed.
Page 152 04 Comfort and driving pleasure ® Bluetooth hands-free connection ® Bluetooth menus Missed calls Received calls Dialed calls Phone book 4.1. Search 4.2. Copy fr. mobile phone Bluetooth... 5.1. Change phone 5.2. Connect phone 5.3. Disconnect phone 5.4. Connect fr. mobile phone Phone settings 6.1.
Page 153: Trip Computer
Acknowledge a message by pressing READ. To change the unit of measure specified for distance and speed, contact an authorized Volvo workshop. Average speed The system calculates the average speed from the last resetting. Reset using RESET.
Page 154 04 Comfort and driving pleasure Trip computer seconds, Average speed and Average fuel consumption are reset simultaneously.
Page 155: Compass
Operation Rearview mirror with compass. The rearview mirror has an integrated display that shows the compass direction in which the vehicle is pointing. Eight different directions are shown with the abbreviations: (north), (north east), (east), (southeast), (south), (southwest), (west) and (northwest).
Page 156: Stability System
1. Stop the vehicle in a safe place and turn off the engine. 2. Restart the engine. If the message remains when the engine is restarted, drive to an authorized Volvo work- shop to have the system inspected. Symbols in the instrument panel If the symbols...
Page 157 • If the symbol flashes, this indicates that the stability system is actively functioning to help counteract wheel spin and/or a skid. • If the symbol remains on for approximately 2 seconds after the engine has been started, this indicates that the system is performing a self-diagnostic test.
Page 158: Active Chassis System-Four C
04 Comfort and driving pleasure Active chassis system–Four C Active chassis (Four C)* Active chassis, Four-C (Continuously Con- trolled Chassis Concept), regulates the cha- racteristics of the shock absorbers so that the car's driving characteristics can be adjusted. There are three settings: Comfort, Sport and Advanced.
Page 159: Steering Wheel-Mounted Controls And Display
Operation Steering wheel-mounted controls and display Standby mode Resume set speed Deactivating Activate/set speed Set speed indicator (parentheses indicate standby mode) Engaging the cruise control function Before a speed can be set, the cruise control system must be engaged (put in standby mode).
Page 160 04 Comfort and driving pleasure Cruise control Temporary deactivation The driver can temporarily deactivate cruise control by pressing 0. The saved speed is shown in brackets in the information display. Resume set speed If cruise control has been deactivated tempo- rarily, it can be reactivated by pressing vehicle's speed returns to the most recently set speed.
Page 161: Collision Warning With Auto-Brake
• Maintenance of the collision warning system components must only be per- formed by a trained and qualified Volvo technician. Option/accessory, for more information, see Introduction. Collision warning with Auto-brake* Function...
Page 162 04 Comfort and driving pleasure Collision warning with Auto-brake* support is activated. Brake support prepares the brake system to react quickly, and the brakes are applied slightly. This may be expe- rienced as a light tug. If the brakes are applied quickly, full braking effect will be provided, even if pressure on the brake pedal is light.
Page 163 Limitations Strong sunlight, reflections, extreme light con- trasts, the use of sunglasses, or if the driver is not looking straight ahead may make the visual warning signal in the windshield difficult to see. For this reason, always activate the audible warning signal in such conditions.
Page 164 04 Comfort and driving pleasure Collision warning with Auto-brake* WARNING • The camera has the same limitations as the human eye. In other words, its “vision is impaired” by adverse weather conditions such as heavy snowfall, dense fog, etc. These conditions may reduce the function of systems that depend on the camera or cause these systems to temporarily stop function-...
Page 165 Action Wait a short time. It may take several minutes for the camera to register visibility. Contact an authorized Volvo retailer or service technician to have this surface cleaned. Description Collision Warning is switched off. This message is displayed when the engine is started and will dis- appear after approx.
Page 166 170 for more information on the radar sensor’s limitations. Collision Warning and Auto-brake are partially or completely not functioning. Contact a trained and qualified Volvo service technician if the message remains in the display.
Page 167: Adaptive Cruise Control (Acc)
• Maintenance of cruise control compo- nents must only be performed by an authorized Volvo workshop. 04 Comfort and driving pleasure WARNING • Adaptive cruise control cannot cover all driving situations and traffic, weather and road conditions.
Page 168 04 Comfort and driving pleasure Adaptive Cruise Control (ACC)* WARNING • Adaptive cruise control is not a collision avoidance system. The driver is always responsible for applying the brakes if the system does not detect another vehicle. • Adaptive cruise control does not react to slow moving or stationary vehicles.
Page 169 Operation Controls and display Activate and resume settings, increase speed Standby mode, on/off Set time interval Activate and set a speed Set speed (parentheses indicate standby mode) Time interval while it is being set Time interval after it has been set Engaging the cruise control function Before ACC can be used, it must first be put in standby mode.
Page 170 04 Comfort and driving pleasure Adaptive Cruise Control (ACC)* WARNING • Only use a time interval that is suitable in current traffic conditions. • A short time interval gives the driver lim- ited reaction time if an unexpected sit- uation occurs in traffic. The number of bars indicating the selected time interval are shown while the setting is being made and for several seconds afterward.
Page 171 • if the radar sensor is obstructed and can- not detect other vehicles, for example in heavy rain, or if snow or other objects are obscuring the radar sensor. NOTE Keep the area in front of the radar sensor clean. •...
Page 172 04 Comfort and driving pleasure Adaptive Cruise Control (ACC)* Cause Swirling water or snow from the surface of the road may interfere with the radar signals. The surface of the radar is clean but the message remains in the display. Symbols and messages in the display Symbol Message...
Page 173 ACC has been temporarily disconnected because the radar is obstructed in some way and cannot detect other vehicles. see page 170 for information on the radar sensor’s limitations.. ACC is not functioning. Contact a trained and qualified Volvo service technician. Adaptive Cruise Control (ACC)* Option/accessory, for more information, see Introduction.
Page 174: Distance Alert
04 Comfort and driving pleasure Distance alert Introduction Distance Alert is part of Adaptive Cruise Con- trol and is a function that provides information about the time interval to the vehicle ahead. Time interval information is only given for a vehicle that is driving ahead of your vehicle, in the same lane, and in the same direction.
Page 175 also displayed when Adaptive Cruise Control is activated. NOTE • The higher your vehicle’s speed, the greater the distance to the vehicle ahead, measured in feet (meters), for a given time interval. • The set time interval is also used by Adaptive Cruise Control, see page 169.
Page 176 Distance Alert has been temporarily disconnected because the radar is obstructed in some way and cannot detect other vehicles. See page 170 for information on the radar sensor’s limitations. Distance Alert or Collision Warning with Auto-brake is not functioning properly. Contact a trained and qualified Volvo service technician.
Page 177: Driver Alert System
Introduction The Driver Alert System is designed to help a driver who may be becoming fatigued or who is inadvertently leaving the lane. The Driver Alert System consists of two differ- ent functions that can be switched on together or separately. •...
Page 178 04 Comfort and driving pleasure Driver Alert System* Operating DAC Certain settings can be made from the menu system controlled from the center instrument panel, see page 122 for more information on the menu system. The current system status can be checked on the trip computer’s display by using the but- tons on the left steering wheel lever.
Page 179 The camera is temporarily not functioning, due to snow, ice, or dirt on the windshield. Clean the area of the windshield in front of the camera. See page 163 for information on the camera’s limitations. The system is not functioning. Contact a trained and qualified Volvo service technician if the message remains in the display.
Page 180 04 Comfort and driving pleasure Driver Alert System* Lane Departure Warning (LDW)– general information This function is designed to help reduce the risk of accidents in situations where the vehicle leaves its lane and there is a risk of driving off the road or into the opposite lane.
Page 181 See page 163 for information on the camera’s limitations. The system is not functioning. Contact a trained and qualified Volvo service technician if the message remains in the display. started. Otherwise, the system will be in the mode that it was in when the engine was switched off.
Page 182: Park Assist
04 Comfort and driving pleasure Park assist* Introduction The park assist system is designed to assist you when driving into parking spaces, garages, etc. It utilizes four ultrasound sensors located in one or both bumpers to measure the dis- tance to a vehicle, object, or a person who may be close to the front or rear of your vehicle.
Page 183 NOTE Rear park assist is deactivated automati- cally when towing a trailer if Volvo genuine trailer wiring is used. Option/accessory, for more information, see Introduction.
Page 184 Consult a trained and qualified Volvo service technician. Option/accessory, for more information, see Introduction. CAUTION In certain circumstances, the park assist...
Page 185: Blind Spot Information System
"blind area." CAUTION The BLIS system should only be repaired by a trained and qualified Volvo service tech- nician. 04 Comfort and driving pleasure WARNING •...
Page 186 04 Comfort and driving pleasure Blind Spot Information System* When does BLIS function The system functions when your vehicle is moving at speeds above 6 mph (10 km/h). When you pass another vehicle: The system reacts when you pass another vehicle at a speed of up to 6 mph (10 km/h) faster than that vehicle.
Page 187 Limitations In certain situations, the BLIS indicator light(s) may illuminate even when there are no other vehicles in the area monitored by the system. NOTE If the BLIS indicator lights illuminate occa- sionally even when there are no other vehi- cles in the blind area, this does not indicate a fault in the system.
Page 188 BLIS system messages Text in the dis- System status play BLIS not functioning Blind spot syst. service required properly. Contact an authorized Volvo service technician. BLIS camera Blind spot syst. camera blocked obscured. Clean the lenses. Blind-spot info BLIS system on system ON Option/accessory, for more information, see Introduction.
Page 189: Passenger Compartment Convenience
04 Comfort and driving pleasure Passenger compartment convenience Storage spaces...
Page 190 Includes cup holder for driver and passen- ger, 12 V socket and small storage com- partment. Cigarette lighter and ashtray* Your Volvo retailer has lighters and ashtrays available as accessories. Glove compartment The owner's manual and maps can be kept here.
Page 191 Vanity mirror Vanity mirror with lighting The light comes on automatically when the cover is lifted. 04 Comfort and driving pleasure Passenger compartment convenience 12-volt sockets 12-volt socket in the front tunnel console 12-volt socket in the rear center console The electrical socket can be used for 12-volt accessories such as cell phone chargers and coolers.
Page 192: Passenger Compartment Convenience-S80 Executive
04 Comfort and driving pleasure Passenger compartment convenience–S80 Executive Refrigerator The refrigerator is located behind the rear cen- ter armrest and has a volume of 12.2 qts. (11.5 liters). It functions when the engine is run- ning or when the ignition is in mode II WARNING Bottles kept in the refrigerator should be firmly sealed and the refrigerator's door...
Page 193 04 Comfort and driving pleasure...
Page 194 Driving recommendations... 196 Refueling... 200 Loading... 204 Towing a trailer... 207 Emergency towing... 209...
Page 195 D U R I N G Y O U R T R I P...
Page 196: 05 During Your Trip
05 During your trip Driving recommendations General information Economical driving conserves natural resources Better driving economy may be obtained by thinking ahead, avoiding rapid starts and stops and adjusting the speed of your vehicle to immediate traffic conditions. Observe the following rules: •...
Page 197 Before a long distance trip It is always worthwhile to have your vehicle checked by a trained and qualified Volvo serv- ice technician before driving long distances.
Page 198 Reflective warning triangles are legally required in some states/provinces. • Have a word with a trained and qualified Volvo service technician if you intend to drive in countries where it may be difficult to obtain the correct fuel. • Consider your destination. If you will be driving through an area where snow or ice are likely to occur, consider snow tires.
Page 199 2 parts water Down to –18 °F (–28 °C): 1 part washer solvent and 1 part water. • Use Volvo Teflon Lock Spray in the locks. • Avoid using de-icing sprays as they can cause damage to the locks. 05 During your trip...
Page 200: Refueling
NOTE Volvo does not recommend the use of exter- nal fuel injector cleaning systems. Unleaded fuel Each Volvo has a three-way catalytic converter and must use only unleaded gasoline. U.S. and Canadian regulations require that pumps deliv- ering unleaded gasoline be labelled "UNLEA-...
Page 201 Octane rating Minimum octane Typical pump octane label Volvo recommends premium fuel for best per- formance, but using 87 octane or above will not affect engine reliability. Volvo engines are designed to achieve rated horsepower, torque, and fuel economy per- formance using premium 91 octane fuel.
Page 202 05 During your trip Refueling Opening/closing the fuel filler door The fuel filler door is located on the right rear fender (indicated by an arrow beside the fuel tank symbol on the information display With the ignition switched off, press the button on the lighting panel to unlock the fuel filler door.
Page 203 If the fuel filler cap is not closed tightly or if the engine is running when the vehicle is refueled, the Check Engine Light (malfunction indicator lamp) may indicate a fault. However, your vehicle's performance will not be affected. Use only Volvo original or approved fuel filler caps.
Page 204: Loading
2 in. (5 cm) below the upper edge of the rear side windows. Objects placed higher than this level could impede the function of the Volvo Inflatable Curtain. Load anchoring eyelets The load anchoring eyelets on both sides of the vehicle are used to fasten straps, etc., to help...
Page 205 WARNING • Cover sharp edges on long loads to help prevent injury to occupants. Secure the load to help prevent shifting during sud- den stops. • Always secure large and heavy objects with a seat belt or cargo retaining straps. •...
Page 206 Insert the cover in the grooves behind the upholstery and close the cover. Roof loads Using load carriers Load carriers are available as Volvo accesso- ries. Observe the following points when in use: • To avoid damaging your vehicle and to...
Page 207: Towing A Trailer
Introduction Volvo recommends the use of Volvo trailer hitches that are specially designed for the vehi- cle. NOTE See page 274 for the maximum trailer and tongue weights recommended by Volvo. • Observe the legal requirements of the state/province in which the vehicles are •...
Page 208 An adapter is required if the vehicle's trailer hitch has a 13-pin connector and the trailer has 7 pins. Use an adapter cable approved by Volvo. Make sure the cable does not drag on the ground. Detachable trailer hitch (accessory)
Page 209: Emergency Towing
Towing eyelet Attaching the towing eyelet The towing eyelet is located under the floor of the trunk, with the spare tire. This eyelet must be screwed into the positions provided on the right sides of either the front or rear bumper (see illustration).
Page 210 Consult the tow truck operator. Towing vehicles with front wheel drive/ All Wheel Drive Volvo recommends the use of flat bed equip- ment. • If wheel lift equipment must be used, please use extreme caution to help avoid damage to the vehicle.
Page 211 05 During your trip...
Page 212 Volvo maintenance... 214 Maintaining your car... 215 Hood and engine compartment... 217 Engine oil... 218 Fluids... 220 Replacing bulbs... 222 Wiper blades and washer fluid... 230 Battery... 232 Fuses... 235 Wheels and tires... 244 Vehicle care... 266 Label information... 271 Specifications...
Page 213 M A I N T E N A N C E A N D S P E C I F I C A T I O N S...
Page 214: 06 Maintenance And Specifications
The maintenance services contain several checks that require special tools and training, and therefore must be performed by a qualified technician. To keep your Volvo in top condition, specify time-tested and proven Genuine Volvo Parts and Accessories. The Federal Clean Air Act – U.S...
Page 215: Maintaining Your Car
• Visually inspect battery terminals for cor- rosion. Corrosion may indicate a loose ter- minal connector, or a battery near the end of its useful service life. Consult your Volvo retailer for additional information. 06 Maintenance and specifications As needed:...
Page 216 OBD II system to "ready" for inspection. A half-hour trip of mixed stop-and-go/high- way driving is typically needed to allow OBD II to reach readiness. Your Volvo retailer can provide you with more infor- mation on planning a trip. •...
Page 217: Hood And Engine Compartment
Opening and closing the hood Pull the lever located under the left side of the dash to release the hood lock. Lift the hood slightly. Press the release control (located under the right front edge of the hood) to the left, and lift the hood WARNING Check that the hood locks properly when closed.
Page 218: Engine Oil
• Oil that is lower than the specified qual- ity can damage the engine. • Volvo does not recommend the use of oil additives. • Always add oil of the same type and viscosity as already used.
Page 219 NOTE Synthetic oil is not used when the oil is changed at the normal maintenance inter- vals except at owner request and at addi- tional charge. Please consult your Volvo retailer. 06 Maintenance and specifications Engine oil...
Page 220: Fluids
Location of the coolant reservoir Normally, the coolant does not need to be changed. If the system must be drained, con- sult a trained and qualified Volvo service tech- nician. See page 278 for information on cooling sys- tem capacities.
Page 221 If the fluid level is below the MIN mark in the reservoir or if a brake-related message is shown in the information display: DO NOT DRIVE. Have the car towed to a trained and qualified Volvo service technician and have the brake system inspected. •...
Page 222: Replacing Bulbs
Active Bending Lights and LED bulbs NOTE For information regarding any other bulbs not mentioned in this section, please con- tact your Volvo retailer or a trained and authorized Volvo service technician. Option/accessory, for more information, see Introduction. WARNING •...
Page 223 • The optional Active Bending Light bulbs contain trace amounts of mercury. These bulbs should always be disposed of by a trained and qualified Volvo serv- ice technician. Removing the headlight housing 1. Switch off the ignition by pressing quickly...
Page 224 06 Maintenance and specifications Replacing bulbs Low beam, Halogen 1. Remove the headlight housing from the vehicle (see page 222). 2. Remove the cover over the bulbs. 3. Detach the bulb by pressing the upper sec- tion of the retaining spring downward and to the side.
Page 225 6. Return the bulb holder into position in the headlight housing. 7. Put the cover back into position and rein- stall the headlight housing. Parking lights 1. Remove the headlight housing from the vehicle (see page 222). 2. Remove the cover over the bulbs (see page 223).
Page 226 Rear fog light (driver’s side only) Backup light NOTE If an error message remains in the display after a faulty bulb has been replaced, con- tact an authorized Volvo workshop. Taillight bulb holder, right side Turn signal Brake lights Rear fog light (driver’s side only)
Page 227 Taillight housing The bulbs in the taillight cluster are replaced from inside the trunk (not the LED functions). NOTE Before starting to replace a bulb, see page 222. 1. Remove the covers in the left/right panel to access the bulbs. The bulbs are located in separate bulb holders.
Page 228 06 Maintenance and specifications Replacing bulbs Trunk lighting NOTE Before starting to replace a bulb, see page 222. The trunk lighting is located on opposite sides of the trunk. 1. Insert a screwdriver and gently turn so that the bulb housing comes loose. 2.
Page 229 Lighting Output/volt- Bulb function age (W) Footwell light- Festoon ing, trunk bulb lighting, SV5.5 license plate lighting Vanity mirror Festoon bulb SV5.5 Front parking lights Front side marker lights Glove com- Festoon partment bulb lighting SV8.5 06 Maintenance and specifications Replacing bulbs...
Page 230: Wiper Blades And Washer Fluid
06 Maintenance and specifications Wiper blades and washer fluid Wiper blades The windshield wiper blades are different lengths. The blade on the driver’s side is longer than the one on the passenger side. Service position The wiper blades must be in the service (verti- cal) position for replacement or washing.
Page 231 06 Maintenance and specifications Wiper blades and washer fluid Filling washer fluid Location of the washer fluid reservoir The windshield and headlight washers share a common reservoir. The washer fluid reservoir is located on the driver's side of the engine compartment. Dur- ing cold weather, the reservoir should be filled with windshield washer solvent containing antifreeze.
Page 232: Battery
Contains corrosive acid. Risk of explosion NOTE A used battery should be disposed of in an environmentally responsible manner. Con- sult your Volvo retailer or take the battery to a recycling station. Handling • Check that the battery cables are correctly connected and tightened.
Page 233 • Never disconnect the battery when the engine is running, or when the key is in the ignition. This could damage the vehicle's electrical system. • The battery should be disconnected from the vehicle when a battery charger is used directly on the battery.
Page 234 06 Maintenance and specifications Battery that all information in the vehicle's electrical system can be stored in the control modules. Open the clips on the front cover and remove the cover. Release the rubber moulding so that the rear cover is free. Remove the rear cover by pulling it away.
Page 235: Fuses
(written on the fuse). If fuses burn out repeatedly, have the electrical system inspected by a trained and qualified Volvo service technician. WARNING Never use metal objects or fuses with higher amperage than those stated on the follow- ing pages.
Page 236 06 Maintenance and specifications Fuses Engine compartment...
Page 237 Fuses 1 – 15, 34 and 42 – 44 are relays/ circuit breakers and should only be removed or replaced by a trained and qualified Volvo service technician. • There is a special fuse removal tool on the underside of the cover.
Page 238 06 Maintenance and specifications Fuses Function Coils Starter motor relay Ignition coils Engine Control Module (ECM), throttle Injection system Engine valves EVAP/heated oxygen sensor/ Injection Water pump (V8) Crank case ventilation heater Fuel leakage detection – Cooling fan...
Page 239 Under the glove compartment Fold aside the iupholstery covering the fuse box. 1. Press the cover's lock and fold it up. 2. The fuses are accessible. Positions Function Rain sensor* SRS system ABS brakes. Electric parking brake 06 Maintenance and specifications Function Accelerator pedal, heated seats*...
Page 240 06 Maintenance and specifications Fuses Function Overhead courtesy lighting, Control panel driver's door/ Power passenger seat* Information display Power driver's seat* – Remote key receiver, Alarm sensors Fuel pump Electric steering column lock – Lock, tank/trunk Alarm siren. ECC START/STOP ENGINE button Brake light switch Option/accessory, for more information, see Introduction.
Page 241 In the center consol – S80 Executive only NOTE If the fuse listed below needs to be replaced, please consult a trained and qualified Volvo service technician. Function Analogue clock 06 Maintenance and specifications Fuses...
Page 242 06 Maintenance and specifications Fuses Trunk The fuse box is located behind the upholstery on the left side of the trunk Positions Module A (black). Func- tion Switches in driver's door Switches in passenger's door Switches in rear door, driver's side Switches in rear door, pas- senger's side...
Page 243 Module B (white). Func- tion Front seat massage, arm rest lights, refrigerator* Active chassis system control module* Heated driver's seat* Heated passenger's seat* Rear seat heater, passenger's side* AWD control module Rear seat heater, driver's side* Folding head restraints Power passenger's seat * Keyless drive* Electric parking brake –...
Page 244: Wheels And Tires
Canadian models. CAUTION Some Volvo models are equipped with an Ultra High Performance tire and wheel com- bination designed to provide maximum dry pavement performance with consideration for hydroplaning resistance.
Page 245 Wheels and tires WARNING • The wheel and tire sizes for your Volvo are specified to meet stringent stability and handling requirements. Unap- proved wheel/tire size combinations can negatively affect your vehicle's sta- bility and handling.
Page 246 Tire rotation is not included in regularly scheduled maintenance and is performed only at customer request, at additional charge. Your Volvo retailer can also provide guidance based on your particular driving circumstan- ces. Tread wear indicator The tires have wear indicator strips running across or parallel to the tread.
Page 247 NOTE • The placards shown indicate inflation pressure for the tires installed on the vehicle at the factory only. • A certain amount of air seepage from the tires occurs naturally and tire pres- sure fluctuates with seasonal changes in temperature. Always check tire pres- sure regularly.
Page 248 06 Maintenance and specifications Wheels and tires To check inflation pressure: 1. Remove the cap from the valve on one tire, then firmly press the tire gauge onto the valve. 2. Add air to reach the recommended air pressure. 3. Replace the valve cap. 4.
Page 249 Tire inflation pressure table – U.S. models The following tire pressures are recommended by Volvo for your vehicle. Refer to the tire inflation placard for information specific to the tires installed on your vehicle at the factory. Tire size Cold tire pressure for up to 5 persons...
Page 250 Wheels and tires Tire inflation pressure table – Canadian models The following tire pressures are recommended by Volvo for your vehicle. Refer to the tire inflation placard for information specific to the tires installed on your vehicle at the factory.
Page 251 Tire designations Federal law mandates that tire manufacturers place standardized information on the sidewall of all tires (see the illustration). The following information is listed on the tire sidewall: The tire designation: NOTE Please be aware that the following tire des- ignation is an example only and that this particular tire may not be available on your vehicle.
Page 252 • Recommended tire inflation pressure: inflation pressure, established by Volvo, which is based on the type of tires that are mounted on a vehicle at the factory. This inflation pressure is affected by the number...
Page 253 Curb weight The weight of the vehicle including a full tank of fuel and all standard equipment. It does not include passengers, cargo, or optional equip- ment. Capacity weight All weight added to the curb weight, including cargo and optional equipment. When towing, trailer hitch tongue load is also part of cargo weight.
Page 254 Snow chains, snow tires, studded tires Snow chains Snow chains can be used on your Volvo with the following restrictions: • Snow chains should be installed on front wheels only. Use only Volvo approved snow chains.
Page 255 Consult your Volvo retailer for additional snow chain information. CAUTION • Check local regulations regarding the use of snow chains before installing. • Use single-sided snow chains only. • Always follow the chain manufacturer's installation instructions carefully. Install chains as tightly as possible and retighten periodically.
Page 256 06 Maintenance and specifications Wheels and tires Changing a wheel Location of jack and tools Spare wheel The spare wheel (Temporary spare) is only intended for temporary use. Replace the spare wheel with a normal wheel as soon as possible. The car's handling may be altered by the use of the spare wheel.
Page 257 nuts 1/2 – 1 turns by exerting downward pressure. 5. Turn the nuts counterclockwise to loosen. 6. There are two jack attachment points on each side of the vehicle. Position the jack correctly in the attachment (see illustration above) and crank while simultaneously guiding the base of the jack to the ground.
Page 258 120 miles (200 km). • Have the tire inspected by a trained and qualified Volvo service technician as soon as possible to determine if it can be permanently repaired or must be replaced.
Page 259 Tire sealing system–overview Speed limit sticker On/Off switch Electrical wire Bottle holder (orange cover) Protective hose cover Air release knob Hose Bottle with sealing compound Air pressure gauge 06 Maintenance and specifications WARNING Please keep the following points in mind when using the tire sealing system: •...
Page 260 Once in place, the bot- tle cannot be unscrewed. This must be done by a trained and qualified Volvo service technician. 6. Remove the valve cap from the tire’s infla- tion valve and screw the tire sealing sys- tem’s hose connector onto the valve as...
Page 261 If there is visible damage to the sidewall or the rim, the tire cannot be repaired. The vehicle should not be driven if this occurs. Contact a towing service or Volvo On Call Roadside Assistance if applicable. NOTE The air pressure gauge will temporarily...
Page 262 • If the sealing compound bottle’s expi- ration date has passed, please take it to a Volvo retailer or a recycling station that can properly dispose of harmful substances. Inflating tires The tire sealing system can be used to inflate the tires.
Page 263 7. Check the tire’s inflation pressure on the gauge. Switch off the compressor briefly to get a clear reading from the pressure gauge. 8. Refer to the tire inflation tables for the cor- rect inflation pressure. If the tire needs to be inflated, start the tire sealing system’s compressor (press the on/off switch to position I).
Page 264 20 mph (30 km/h) or faster to erase the message. • Volvo recommends that TPMS sensors be fitted on all wheels used on the vehicle. Volvo does not recommend moving sen- sors back and forth between sets of...
Page 265 If you change to tires with a different recommended inflation pressure, the TPMS system must be recalibrated to these tires. This must be done by a trained and qualified Volvo service tech- nician. • If a tire is changed, or if the TPMS sen-...
Page 266: Vehicle Care
• Never use wax on the rubber seals around the moonroof. Exterior components Volvo recommends the use of special cleaning products, available at your Volvo retailer, for cleaning colored plastic, rubber, or ornamental components such as chromed strips on the exterior of your vehicle.
Page 267 CAUTION • Avoid waxing or polishing plastic or rub- ber components • Polishing chromed strips can wear away or damage the surface • Polishes containing abrasive sub- stances should not be used Automatic car wash • We do NOT recommend washing your car in an automatic wash during the first six months (because the paint will not have hardened sufficiently).
Page 268 06 Maintenance and specifications Vehicle care CAUTION Volvo does not recommend the use of long- life or durable paint protection coatings, some of which may claim to prevent pitting, fading, oxidation, etc. These coatings have not been tested by Volvo for compatibility with your vehicle's clear coat.
Page 269 271 for the location of the model plate. 06 Maintenance and specifications gent. For best protection in winter, Volvo rec- ommends the use of Volvo rubber floor mats. Consult your Volvo retailer.
Page 270 06 Maintenance and specifications Vehicle care Minor scratches on the surface If the stone chip has not penetrated down to the metal and an undamaged layer of paint remains, the touch-up paint can be applied as soon as the spot has been cleaned. Repairing stone chips 1.
Page 271: Label Information
06 Maintenance and specifications Label information Location of labels...
Page 272 Vehicle Emission Control Information. Your Volvo is designed to meet all appli- cable emission standards, as evidenced by the certification label on the underside of the hood. For further information regarding these regulations, please consult your Volvo retailer.
Page 273: Specifications
Dimensions–S80/S80 Executive Position 06 Maintenance and specifications Dimension Wheelbase Length Load length, floor, seatback down Load length, floor Height Load height Track, front Specifications in (mm) 111.6 (2835) 191 (4851) 75.9 (1927) 43.1 (1094) 58.8 (1493) 14.5 (368) 62.5 (1588)
Page 274 06 Maintenance and specifications Specifications Position Weights Category Gross vehicle weight Capacity weight Dimension Track, rear Load width, floor Width Width, incl. door mirrors 6-cyl. FWD : 4820 lbs 6-cyl. turbo AWD : 5020 lbs 8-cyl. AWD: 5110 lbs S80 Executive 6 cyl. turbo AWD: 5020 lbs S80 Executive 8 cyl.
Page 275 Category Permissible axle weights, front Permissible axle weights, rear Curb weight Max. roof load Max. trailer weights Max. tongue weight FWD = Front Wheel Drive AWD = All Wheel Drive 06 Maintenance and specifications 6-cyl. FWD: 2690 lbs 6-cyl. turbo AWD: 2750 lbs 8-cyl.
Page 276 10.3:1 9.3:1 Depending on your driving habits, premium or synthetic oils may provide superior fuel econ- omy and engine protection. Consult your Volvo retailer for recommendations on premium or synthetic oils. Oil additives must not be used. Synthetic oil is not used when the oil is changed at the normal maintenance services.
Page 277 Viscosity chart Extreme engine operation Synthetic oils meeting SAE 0W-30 or 0W-40 and complying with oil quality requirements are Oil volume Engine model 3.2 (6-cyl.) B6324S/S2 3.0T (6 cyl.) B6304T2 B8444S 06 Maintenance and specifications recommended for driving in areas of sustained temperature extremes (hot or cold), when tow- ing a trailer over long distances, and for pro- longed driving in mountainous areas.
Page 278 Transmission fluid BOT 341 Coolant with corrosion inhibitor mixed with water (50/50 mix), see packaging. Refrigerant: R134a (HFC134a), PAG oil DOT 4+ Power steering fluid WSS M2C204-A2 or equivalent product. Use a washer antifreeze recom- mended by Volvo, mixed with water.
Page 279 Electrical system General information 12 volt system with a voltage-regulated alter- nator. Single pole system in which the chassis and engine block are used as conductors. The negative terminal is connected to the chassis. Performance, battery Engine 6-cyl./3.0T Voltage (V) Cold start 520-700 600-8...
Page 280: Volvo Programs
06 Maintenance and specifications Volvo programs Volvo On Call Roadside Assistance Your new Volvo comes with a four year ON CALL roadside assistance. Additional informa- tion, features, and benefits are described in a separate information package in your glove compartment.
Page 281 06 Maintenance and specifications...
Page 282: 07 Index
07 Index 1, 2, 3 ... 12-volt sockets... 191 ABS (anti-lock brake system)... 114 Accessory installation warning... 10 Active chassis system... 158 Active yaw control... 156 Adaptive cruise control... 167, 169 Airbags disconnecting the front passenger’s side... 24, 25 front... 20 inflatable curtain...
Page 283 specifications... 228 trunk lighting... 228 Capacity weight... 252 Catalytic converter... 203 CD player/changer... 144 Cell phone, hands-free connection... 147 Central locking system, introduction... 52 Chains... 254 Check engine light... 74 Child restraints recalls and registration... 45 Child restraint systems... 36 booster cushions...
Page 284 07 Index Emergency starting... 109 Emergency towing... 209, 210 Emission inspection readiness... 215 Engine overheating... 76 specifications... 276 starting... 107 switching off... 109 Engine compartment overview... 217 Engine oil checking... 218 low pressure warning light... 75, 76 specifications... 276 volumes... 277 Environment...
Page 285 Hood, opening/closing... 217 Horn... 89 Ignition modes... 80 Immobilizer... 52, 53 Important information... 8 Indicator lights... 73, 74, 75, 76 Infant seats... 38 Inflatable Curtain... 30 Inflation pressure... 246, 247 Inflation pressure tables... 249, 250 Information lights... 73, 74, 75, 76 Information symbol...
Page 286 07 Index retractable... 100 vanity... 191 Moonroof... 102 Motor oil checking... 218 specifications... 276 volumes... 277 Occupant safety... 14 Occupant weight sensor... 24, 25 Octane recommendations... 201 Odometer, trip... 78 specifications... 276 volumes... 277 On Call Roadside Assistance... 280 Overhead courtesy lighting... 94 Overheating, engine...
Page 287 Refueling... 200, 201 fuel filler cap... 202 fuel filler door... 202 fuel tank volume... 278 Registering child restraints... 45 Remote key... 52 approach lighting... 54 immobilizer... 52, 53 key blade... 52, 57 key memory... 52 locking the vehicle... 54 Personal Car Communicator... 54, 55 replacing the battery...
Page 288 Vehicle loading... 204, 252 roof loads... 206 Vehicle maintenance... 214 performed by the owner... 215 Vehicle weights... 274 Ventilated seats... 129 Volvo and the environment... 11 Volvo Inflatable Curtain... 30 Volvo maintenance... 214 Volvo On Call Roadside Assistance... 280 Volvo programs... 280...
Page 289 Warning flashers, hazard... 93 Warning lights... 73, 74, 75, 76 Warning symbol... 77 Warning system, collision... 161 Warranties... 214 Washer fluid... 231, 278 Washers headlight... 97 windshield... 96 Water, driving through... 197 Waxing... 267 Weights... 274 Wheels... 244 changing... 256 storing...
Page 290 07 Index...

This manual is also suitable for:

S80

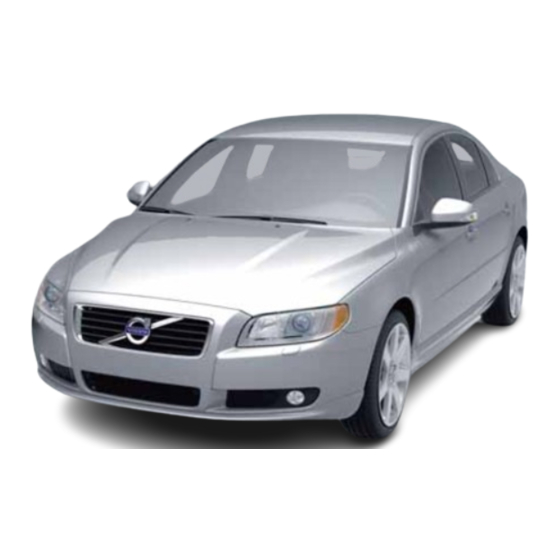

Volvo 2010 S80 Owner's Manual

Contents

Introduction

01 Safety

02 Locks and Alarm

03 Your Driving Environment

04 Comfort and Driving Pleasure

05 During Your Trip

06 Maintenance and Specifications

07 Index

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Volvo 2010 S80

Summary of Contents for Volvo 2010 S80

This manual is also suitable for:

Table of Contents
