Predator 57509 Owner's Manual & Safety Instructions page 9

Components and Controls
Economy
(ESC) Switch
Engine
Switch
parallel Kit
Terminals
USB ports
WARNING! TO pREVENT SERIOUS INJURY: Follow parallel Kit instructions for
connection and use of a parallel Kit (parallel Kit and instructions sold separately).
Fuel Valve
(on back)
Choke
Starter
Handle
ITEM 57509
Overload
Main Breaker
Low Oil
Output
Reset Button
Carbon 120 V AC Breaker
Reset Buttons
Monoxide Alarm

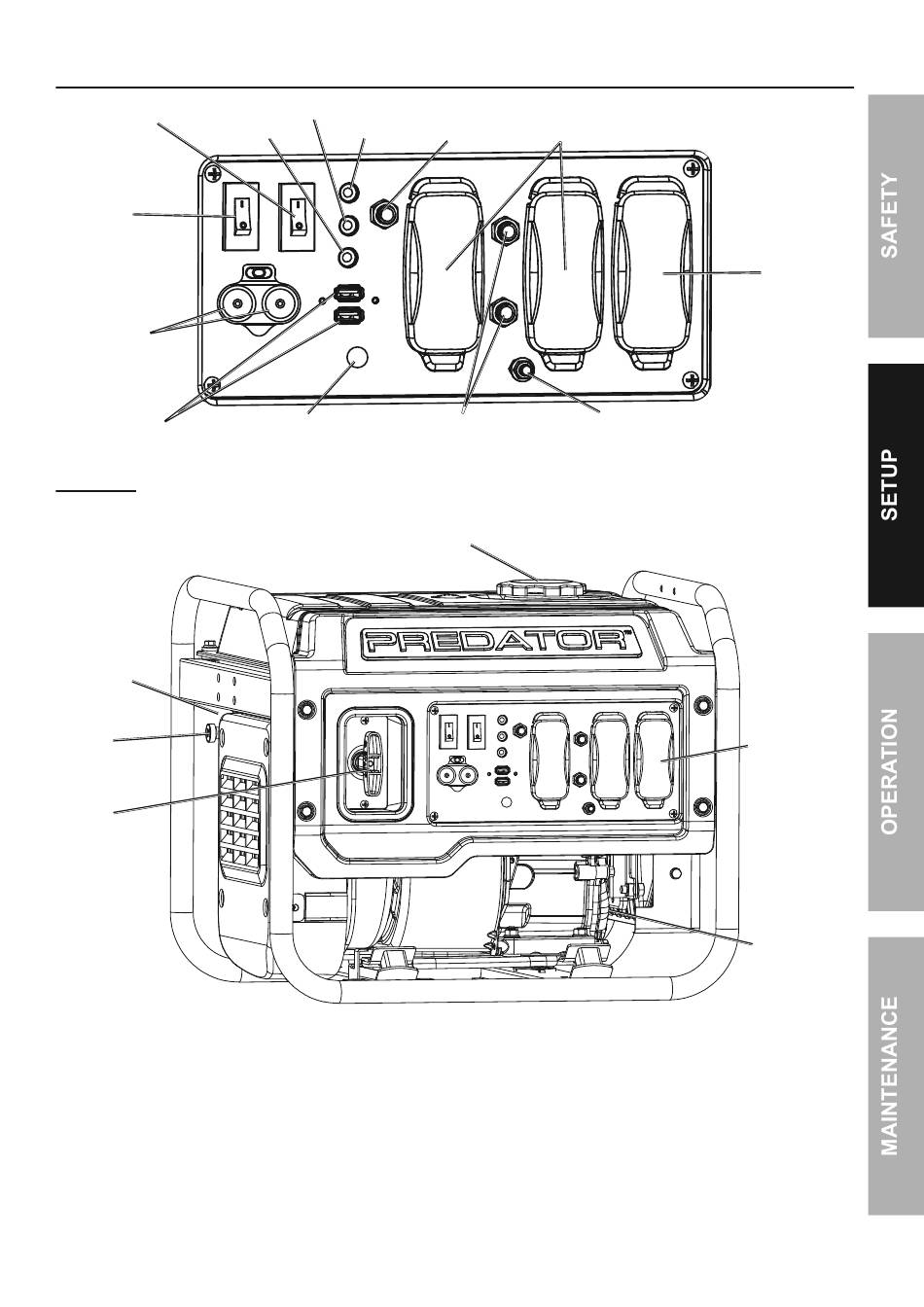

Figure A: Control panel
Figure B: Generator Front
For technical questions, please call 1-888-866-5797.
120 V AC 20 A
GFCI Receptacles
Ground
Terminal
Fuel Cap
120 V AC 30 A
Receptacle
Control panel
Oil Fill Cap
and Drain Bolt
Page 9
