Predator 59186 Owner's Manual & Safety Instructions

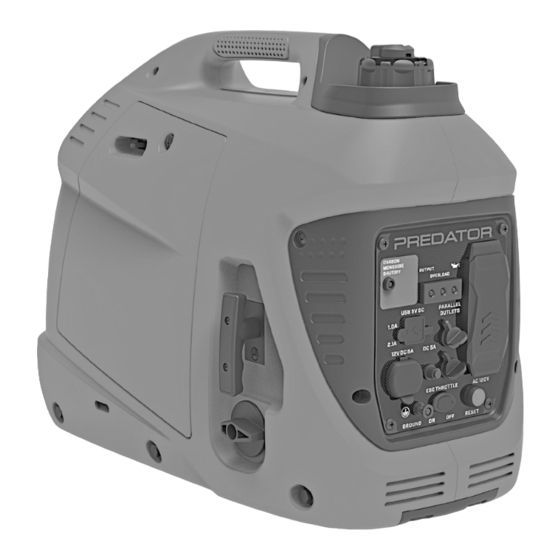

Super quiet inverter
Hide thumbs Also See for 59186:

Advertisement

Quick Links

Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual (or month and year of purchase if product has no number). Keep this manual and the
receipt in a safe and dry place for future reference.
SUPER QUIET INVERTER
1400 WATT
INVERTER
GENERATOR
1100 RUNNING WATTS
1400 MAX STARTING WATTS
using a generator indoors Can
KiLL yOu in MinuTeS.
Generator exhaust contains carbon monoxide.
This is a poison you cannot see or smell.
neVer use inside
a home or garage,
eVen iF doors and
windows are open.
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2021 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
email our technical support at: productsupport@harborfreight.com
email our engine support at: predator@harborfreight.com
Only use OuTSiDe
and far away from
windows, doors,
and vents.
®
. All rights reserved.
Do not use in
trailers, truck
beds, or tents.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
use at least 20 feet away from
people, animals, and structures
with exhaust pointed away.
20'
20'
20'
23l
59186
20'
20'
