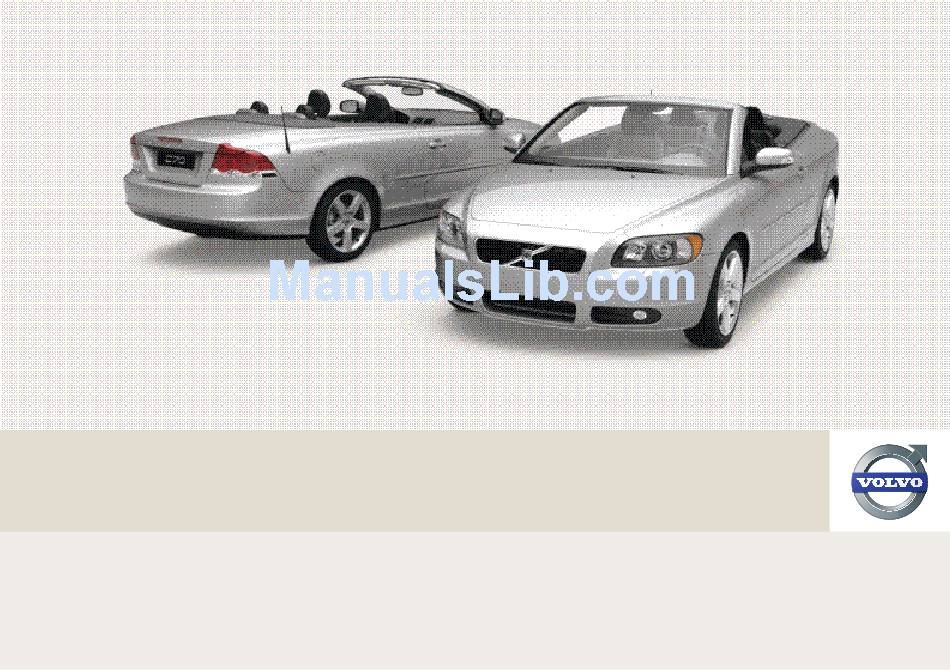

  • Page 1 VOLVO C70 Owner's manual...
  • Page 3 Welcome to the world-wide family of Volvo owners. We trust that you will enjoy many years of safe driving in your Volvo, an automobile designed with your safety and comfort in mind. We encourage you to familiarize yourself with the equipment descriptions and operating instructions in this manual.

  • Page 4: Table Of Contents

    Contents 00 Introduction General information... 10 Volvo and the environment... 12 Important warnings... 13 01 Safety Occupant safety... 16 Seat belts... 18 Supplemental Restraint System... 21 Occupant Weight Sensor (OWS)... 26 Side impact protection airbags... 29 Door Mounted Inflatable Curtain system (DMIC) ...
  • Page 5 03 Climate General information... 82 Air vents... 84 Electronic Climate Control ... 85 Air distribution... 88 04 Interior Front seats... 92 Power retractable hard top ... 96 Interior lighting... 102 Storage compartments... 104 Trunk ... 109 Contents 05 Locks and alarm Remote control and key blade...
  • Page 6 Contents 06 Starting and driving General information... 132 Fuel requirements... 136 Ignition switch... 139 Starting the vehicle... 140 Starting the vehicle with keyless drive (option as available)... 142 Manual transmission, 6-speed (certain markets only)... 143 Automatic transmission (option)... 144 Shiftlock override... 146 Brake system...
  • Page 7 09 Maintenance and servicing Volvo maintenance... 204 Maintaining your car... 206 Hood... 208 Engine compartment... 209 Engine oil... 210 Fluids... 212 Wiper blades... 214 Battery... 215 Replacing bulbs... 217 Fuses... 224 10 Audio Audio functions... 234 Radio functions... 239 CD player/CD changer... 244 Audio menu...

  • Page 8: Contents

    Contents 12 Index Index... 269...
  • Page 9 Contents...

  • Page 10: Introduction

    • Volvo reserves the right to make model changes at any time, or to change spec- ifications or design without notice and without incurring obligation.
  • Page 11 WARNING If your vehicle is involved in an accident, unseen damage may affect its driveability and safety. WARNING CALIFORNIA proposition 65 Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the state of Cali- fornia to cause cancer, and birth defects or other reproductive harm.

  • Page 12: Volvo And The Environment

    Introduction Volvo and the environment Volvo is committed to the well being of its cus- tomers. As a natural part of this commitment, we care about the environment in which we all live. Caring for the environment means an everyday involvement in reducing our environ- mental impact.

  • Page 13: Accessory Installation

    Additionally, a trained and qualified Volvo service technician knows where accessories may and may not be safely installed in your Volvo. In all cases, please consult a trained and qualified Volvo serv- ice technician before installing any acces- sory in or on your vehicle.
  • Page 14 Occupant safety... 16 Seat belts... 18 Supplemental Restraint System... 21 Occupant Weight Sensor (OWS)... 26 Side impact protection airbags... 29 Door Mounted Inflatable Curtain system (DMIC) ... 30 Roll-over Protection system (ROPS) ... 31 Crash mode... 32 Child safety... 33 Child restraint systems...
  • Page 15 S A F E T Y...

  • Page 16: 01 Safety

    Occupant safety Volvo's concern for safety Safety is Volvo's cornerstone. Our concern dates back to 1927 when the first Volvo rolled off the production line. Three-point seat belts (a Volvo invention), safety cages, and energy- absorbing impact zones were designed into Volvo cars long before it was fashionable or required by government regulation.
  • Page 17 If you believe your vehicle has a defect that could cause a crash or could cause injury or death, you should immediately inform Trans- port Canada in addition to notifying Volvo Cars of Canada Corp. To contact Transport Canada, call (800) 333-0510, or (613) 993-9851 if you are calling from the Ottawa region.

  • Page 18: Seat Belts

    Children should be prop- erly restrained, using an infant, car, or booster seat determined by age, weight and height. Volvo also believes no child should sit in the front seat of a vehicle. Most states and provinces make it mandatory for occupants of a vehicle to use seat belts.

  • Page 19: Seat Belt Use During Pregnancy

    WARNING • Never repair the belt yourself; have this work done by a trained and qualified Volvo service technician only. • Any device used to induce slack into the shoulder belt portion of the three-point belt system will have a detrimental effect on the amount of protection avail- able to you in the event of a collision.

  • Page 20: Child Seats

    01 Safety Seat belts steering wheel). Within this context, they should strive to position the seat with as large a distance as possible between their belly and the steering wheel. Child seats Please refer to page 35 for information on securing child seats with the seat belts.

  • Page 21: Supplemental Restraint System

    Supplemental Restraint System (SRS) SRS warning light As an enhancement to the three-point seat belts, your Volvo is equipped with a Supple- mental Restraint System (SRS). Volvo's SRS consists of seat belt pretensioners, front air- bags, side impact airbags, the occupant weight sensor, and door-mounted inflatable curtains.

  • Page 22: The Front Airbag System

    01 Safety Supplemental Restraint System The front airbag system The front airbags supplement the three-point seat belts. For these airbags to provide the protection intended, seat belts must be worn at all times. The front airbag system includes gas genera- tors surrounded by the airbags, and decelera- tion sensors that activate the gas generators, causing the airbags to be inflated with nitrogen...

  • Page 23: Front Airbag Deployment

    This is a normal characteristic and does not indicate fire. • Volvo's front airbags use special sen- sors that are integrated with the front seat buckles. The point at which the air- bag deploys is determined by whether or not the seat belt is being used, as well as the severity of the collision.
  • Page 24 Customer Care Center P.O. Box 914 Rockleigh, New Jersey 07647-0914 1-800-458-1552 www.volvocars.us In Canada Volvo Cars of Canada Corp. National Customer Service 175 Gordon Baker Road North York, Ontario M2H 2N7 1-800-663-8255 www.volvocanada.com See also the Occupant Weight Sensor information on page 26.
  • Page 25 • Never try to open the airbag cover on the steering wheel or the passenger's side dashboard. This should only be done by a trained and qualified Volvo service technician. • Failure to follow these instructions can result in injury to the vehicle occupants.

  • Page 26: Occupant Weight Sensor (Ows)

    Disabling the passenger's side front airbag Occupant Weight Sensor (OWS) indicator light Volvo recommends that ALL occupants (adults and children) shorter than 4 feet 7 inches (140 cm) be seated in the rear seat of any vehi- cle with a passenger's side front airbag, and be properly restrained.
  • Page 27 Volvo recommends that children always be properly restrained in appropriate child restraints in the rear seats. Do not assume that the passenger's side front airbag is disabled unless the PASSENGER AIRBAG OFF indicator lamp is lit.
  • Page 28 Occupant Weight Sensor (OWS) example by altering or adapting the driver's or front passenger's seat(s) and/or airbag sys- tems, please contact Volvo at: In the USA Volvo Cars of North America, LLC Customer Care Center P.O. Box 914 Rockleigh, New Jersey 07647-0914 1-800-458-1552 In Canada Volvo Cars of Canada Corp.

  • Page 29: Side Impact Protection Airbags

    Never try to open or repair any compo- nents of the SIPS airbag system. This should be done only by a trained and qualified Volvo service technician. • In order for the SIPS airbag to provide its best protection, both front seat occupants should sit in an upright posi- tion with the seat belt properly fastened.

  • Page 30: Door Mounted Inflatable Curtain System (Dmic)

    Never try to open or repair any compo- nents of the DMIC system. This should be done only by a trained and qualified Volvo service technician. WARNING In order for the DMIC to provide its best protection, both front seat occupants should sit in an upright position with the seat belt properly fastened;...

  • Page 31: Roll-Over Protection System (Rops)

    Volvo service technician. WARNING • The rear seat of the Volvo C70 is intended for two occupants, and only two rear seat belts are provided. The center section of the seat should never be used to seat a passenger.

  • Page 32: Crash Mode

    • Restoring the vehicle to normal operat- ing mode should only be done by a trained and qualified Volvo service tech- nician. • CRASH MODE SEE MANUAL After has been displayed, if you detect the...

  • Page 33: Child Safety

    Children should be seated safely Volvo recommends the proper use of restraint systems for all occupants including children. Remember that, regardless of age and size, a child should always be properly restrained in a car. Your car is also equipped with ISOFIX/LATCH attachments, which make it more convenient to install child seats.

  • Page 34: Automatic Locking Retractor

    Volvo's recommendations Why does Volvo believe that no child should sit in the front seat of a car? It's quite simple really. A front airbag is a very powerful device designed, by law, to help protect an adult.

  • Page 35: Child Restraint Systems

    Child restraints There are three main types of child restraint systems: infant seats, convertible seats, and booster cushions. They are classified accord- ing to the child's age and size. The following section provides general infor- mation on securing a child restraint using a three-point seat belt.
  • Page 36 • A small child's head represents a con- siderable part of its total weight and its neck is still very weak. Volvo recom- mends that children up to age 4 travel, properly restrained, facing rearward. In addition, Volvo recommends that chil- dren should ride rearward facing, prop- erly restrained, as long as possible.

  • Page 37: Infant Seats

    Securing an infant seat with a seat belt Do not place the infant seat in the front passeng- er's seat NOTE Refer to page 42 for information on secur- ing a child restraint using ISOFIX lower anchors. WARNING • An infant seat must be in the rear-facing position only.
  • Page 38 01 Safety Infant seats Pull out the shoulder section of the seat belt 4. Pull the shoulder section of the seat belt out as far as possible to activate the belt's automatic locking function. NOTE The locking retractor will automatically release when the seat belt is unbuckled and allowed to retract fully.

  • Page 39: Convertible Seats

    WARNING A small child's head represents a consider- able part of its total weight and its neck is still very weak. Volvo recommends that chil- dren up to age 4 travel, properly restrained, facing rearward. In addition, Volvo recom- mends that children should ride rearward facing, properly restrained, as long as pos- sible.
  • Page 40 01 Safety Convertible seats Fasten the seat belt 2. Attach the seat belt to the convertible seat according to the manufacturer's instruc- tions. 3. Fasten the seat belt by inserting the latch plate into the buckle (lock) until a distinct click is audible.

  • Page 41: Securing A Booster Cushion

    Securing a booster cushion Position the child correctly on the booster cushion and fasten the seat belt WARNING A child seat should never be used in the front passenger seat of any vehicle with a front passenger airbag – not even if the Passenger airbag off symbol near the rear-view mirror is illuminated (on vehicles...

  • Page 42: Isofix Lower Anchors

    01 Safety ISOFIX lower anchors Using the ISOFIX lower child seat anchors Lower anchors for ISOFIX-equipped child seats are located in both rear seating positions, hidden below the backrest cushions. Symbols on the seat back upholstery mark the anchor positions (see the illustration). To access the anchors: 1.

  • Page 43: Child Restraint Registration And Recalls

    01 Safety Child restraint registration and recalls Registering a child restraint Child restraints could be recalled for safety reasons. You must register your child restraint to be reached in a recall. To stay informed about child safety seat recalls, be sure to fill out and return the registration card that comes with new child restraints.
  • Page 44 Instrument overview... 46 Instrument panel... 49 Indicator and warning symbols... 51 Symbols – instrument panel... 53 Information display... 56 12-volt sockets... 58 Lighting panel... 59 Left-side steering wheel lever... 61 Trip computer... 63 Cruise control (option)... 65 Right-side steering wheel lever... 67 Steering wheel adjustment, Hazard warning flashers...
  • Page 45 I N S T R U M E N T S A N D C O N T R O L S...

  • Page 46: 02 Instruments And Controls

    02 Instruments and controls Instrument overview...

  • Page 47: Instrument Overview

    Steering wheel adjustment Hood opener Controls in front doors (see page 48) Left steering wheel lever Lighting panel, fuel filler door opener Door open handle and locking but- Lock indicator light Climate system air vent Side window air vent Cruise control Horn, airbag Main instrument panel Audio controls...
  • Page 48 02 Instruments and controls Instrument overview Control panel in driver's door Power windows Door mirror button, driver's side Door mirror adjustment control Door mirror button, passenger's side...

  • Page 49: Instrument Panel

    Instrument panel Speedometer Turn signal, left Warning symbol – See the following pages for additional information. Information display – The display presents information and warning messages, the ambient temperature, clock, etc. When the ambient temperature is between 23 °F and 36 °F (–5 °C and +2 °C), a snowflake sym- bol is shown in the display.
  • Page 50 02 Instruments and controls Instrument panel Function display – This window displays information on functions such as the odometer, trip odometers, optional rain sensor, and cruise control. Trip odometer reset button – The trip odometers are used to measure short dis- tances.

  • Page 51: Indicator And Warning Symbols

    2. Read the message in the information dis- play. 3. Follow the instructions provided, or con- tact a trained and qualified Volvo service technician. Erase the message by pressing READ, see page 56. Information symbol The yellow information symbol...
  • Page 52 02 Instruments and controls Indicator and warning symbols This symbol may also light up in combination with other indicator or warning symbols. NOTE The car can still be driven after the informa- tion symbol has come on. The car can be driven for 1–2 weeks after service-related information has been displayed.

  • Page 53: Symbols - Instrument Panel

    When this happens, please have your car checked by a trained and qualified Volvo serv- ice technician as soon as possible. 02 Instruments and controls A CHECK ENGINE light may have many cau- ses.
  • Page 54 Have the system(s) inspected by a trained and qualified Volvo service technician as soon as possible. 4. Oil pressure warning light If the light comes on while driving,...
  • Page 55 DO NOT DRIVE. Have the car towed to a trained and qualified Volvo service technician and have the brake sys- tem inspected. If the BRAKES and ABS warning lights come on at the same time, this could indicate a fault in the brake system.

  • Page 56: Information Display

    SAFELY prevent the risk of seri- ous damage. SERVICE Take your car to a trained and qualified URGENT Volvo service techni- cian for inspection immediately. SEE MANUAL Refer to your owner's manual. For additional information, please contact your Volvo retailer.
  • Page 57 Message Meaning TIME FOR This message is affec- REGULAR ted by the number of miles/km driven, by the MAINTE- number of months, or NANCE by the number of engine hours since the service reminder was reset at the most recent regu- larly scheduled service.

  • Page 58: 12-Volt Sockets

    Ashtrays/cigarette lighter The auxiliary socket can also be used for a cig- arette lighter , and ashtrays, which can be pur- chased from your Volvo retailer. Accessory. NOTE The cover should be kept on when the aux- iliary socket is not in use.

  • Page 59: Lighting Panel

    On Canadian models, the daytime running lights will remain on with the light switch in this position. 02 Instruments and controls Pos. Lighting All lighting off. Low beam head- lights (daytime running lights) will automatically come on if the ignition key is in position II. Front and rear parking lights and license plate lights will also be on.

  • Page 60: Instrument Panel Lighting

    02 Instruments and controls Lighting panel Rear fog light The single rear fog light is located in the driver's side taillight cluster. The rear fog light will only function in combi- nation with the high/low beam headlights or the optional front fog lights. 1.

  • Page 61: Left-Side Steering Wheel Lever

    Lever positions Turn signals, lane change position Turn signals, position for normal turns High beam flash Toggle between high and low beams, Home Safe lighting Factory setting 02 Instruments and controls Turn signals When turning – Move the lever as far up or down as pos- sible (to position 2) to start the turn signals.
  • Page 62 02 Instruments and controls Left-side steering wheel lever preferences by using the Personal Settings function, see page 75 for more information.

  • Page 63: Trip Computer

    READ (press to acknowledge/confirm/ erase a message) Thumb wheel (used to scroll among the trip computer menus) RESET The trip computer stores information gathered from several systems in your car and has four menus (five on Canadian models) that can be shown in the information display.
  • Page 64 02 Instruments and controls Trip computer ACTUAL SPEED (Canadian models only) This function provides the driver with an instan- taneous conversion of the car's current speed from km/h to mph. NOTE Trip computer readings may vary slightly depending on the circumference of the tires on the car, tire inflation, or driving style.

  • Page 65: Cruise Control (Option)

    Engaging the cruise control function The cruise control buttons are located on the left side of the steering wheel hub. NOTE This does not set the vehicle's speed. 1. Press the CRUISE button. CRUISE will appear in the function display in the center of the instrument panel.
  • Page 66 02 Instruments and controls Cruise control (option) • During wheel spin or wheel lock-up. • If the vehicle's speed is increased by using the accelerator pedal for more than 1 minute. Returning to the set speed Press the button to resume the CRUISE previously set speed.

  • Page 67: Right-Side Steering Wheel Lever

    Windshield wipers Windshield/headlight washers Rain sensor (option) – on/of, see page 67 Thumb wheel Windshield wipers off The windshield wipers are off when the lever is in position 0. 02 Instruments and controls Manual wiper function From position 0, move the lever upward.
  • Page 68 02 Instruments and controls Right-side steering wheel lever B – Rain sensor (option) The rain sensor regulates windshield wiper speed according to the amount of water on the windshield. The sensitivity of the rain sensor is adjusted by moving the thumb wheel (C in the illustration on the previous page) up (the wipers will sweep the windshield more frequently) or down (the wipers will sweep the windshield...

  • Page 69: Steering Wheel Adjustment, Hazard Warning Flashers

    Steering wheel adjustment Both the height and the reach of the steering wheel can be adjusted to a comfortable posi- tion for the driver. 1. Pull down the lever on the steering column to release the steering wheel. 2. Adjust the steering wheel to a suitable position 3.

  • Page 70: Parking Brake

    02 Instruments and controls Parking brake Parking brake (hand brake) The parking brake lever is located between the front seats. NOTE The indicator light will illuminate even if the parking brake has only been partially applied. When applying the parking brake 1.

  • Page 71: Operation

    Operation Control panel in driver's door Open/close front windows Open/close rear windows The power windows are controlled by buttons in the arm rests. • The ignition must be ON (ignition key in position I, II or the engine running) for the power windows to function.

  • Page 72: Mirrors

    02 Instruments and controls Mirrors Rearview mirror Auto-dim function An integrated sensor reacts to headlights from following traffic and automatically reduces glare. Rearview mirror with compass (option) The upper right-hand corner of the rearview mirror has an integrated display that shows the compass direction toward which the car is pointing.
  • Page 73 Magnetic zones 3. Press button (1) for at least 3 seconds to display the number of the current magnetic zone. 4. Press button (1) repeatedly until the num- ber for the required geographical area – ) is displayed. " " will be displayed again.
  • Page 74 02 Instruments and controls Mirrors Folding the mirrors in 1. Press down the L and R mirror control but- tons on the driver's door at the same time. 2. Release them after approximately one sec- ond. The mirrors automatically fold in to the fully retracted position.

  • Page 75: Personal Settings

    Control panel Display Menu button Exit button Enter button Menu navigation controls 02 Instruments and controls Personal settings can be made for some of the car's functions, such as the central locking system, climate control, and the audio system. Please refer to page 235 for more information on the audio functions that can be adjusted.
  • Page 76 02 Instruments and controls Personal settings • Global (All doors) – unlocks all doors and the trunk with one press on the remote control. • Two Step (Two-stage unlocking) – This alternative unlocks the driver's door with one press on the remote control. A second press unlocks the passenger's door and the trunk Automatically folding the door mirrors...

  • Page 77: Homelink® Wireless Control System (Option)

    Introduction The HomeLink Wireless Control System pro- vides a convenient way to replace up to three hand-held radio-frequency (RF) transmitters used to activate devices such as gate opera- tors, garage door openers, entry door locks, security systems, even home lighting. Addi- tional HomeLink information can be found on the Internet at www.homelink.com.
  • Page 78 02 Instruments and controls HomeLink® Wireless Control System (option) NOTE Some devices may require you to replace this Programming Step 2 with procedures noted in the “Gate Operator / Canadian Pro- gramming” section. If the HomeLink indica- tor light does not change to a rapidly blinking light after performing these steps, contact HomeLink at www.homelink.com.
  • Page 79 Erasing HomeLink Buttons To erase programming from the three Home- Link buttons (individual buttons cannot be erased but can be “reprogrammed” as outlined below), follow the step noted: • Press and hold the two outer HomeLink buttons until the indicator light begins to flash-after 10 seconds.
  • Page 80 General information... 82 Air vents... 84 Electronic Climate Control ... 85 Air distribution... 88...
  • Page 81 C L I M A T E...

  • Page 82: 03 Climate

    Special tools and equipment are required to maintain and carry out repairs on the climate system. Work of this type should only be done by a trained and qualified Volvo service tech- nician. Refrigerant Volvo cares about the environment. The air conditioning system in your car contains a CFC-free refrigerant –...
  • Page 83 03 Climate General information For information about how to make these set- tings, see the Personal settings section on page 75.

  • Page 84: Air Vents

    03 Climate Air vents Air vents in the dashboard Open Closed Horizontal air flow Vertical air flow Direct the outer air vents toward the side win- dows to defrost.

  • Page 85: Electronic Climate Control

    Auto – On/Off Blower speed Recirculation Defroster Airflow controls A/C – ON/OFF Heated driver's seat Heated front passenger's seat Rear window and door mirror defrosters Temperature selector ECC functions 1. Auto – On/Off The AUTO function automat- ically regulates climate con- trol to maintain the desired temperature.

  • Page 86: Airflow Controls

    03 Climate Electronic Climate Control 3. Recirculation This function can be used to shut out exhaust fumes, smoke, etc from the passen- ger compartment. The air in the passenger compartment is then recirculated, i.e. no air from outside the car is taken into the car when this function is activated.

  • Page 87: Rear Window And Door Mirror Defrosters

    9. Rear window and door mirror defrosters Press to defrost the rear win- dow and door mirrors. The rear window and door mirrors are defrosted simulta- neously if the switch is pressed once. The defrost function is active if the LED in the switch is illu- minated.

  • Page 88: Air Distribution

    03 Climate Air distribution Air distribution Defroster. Air is not recirculated in this mode. Air conditioning is always engaged. There is also a certain amount of airflow to the panel air vents. Air to windshield and front side windows. There is also a certain amount of airflow to the dashboard air vents.
  • Page 89 03 Climate...
  • Page 90 Front seats... 92 Power retractable hard top ... 96 Interior lighting... 102 Storage compartments... 104 Trunk ... 109...
  • Page 91 I N T E R I O R...

  • Page 92: 04 Interior

    04 Interior Front seats Manual seat adjustment The driver's and passenger's seats can be adjusted in a number of ways to provide a comfortable driving and sitting position. Forward-rearward: Pull the lever up and slide the seat to the position of your choice. Use this control to raise or lower the front edge of the seat cushion.
  • Page 93 Moving the seat rearward: 1. With the backrest folded forward in the locked position, slide the seat rearward until it stops/locks in its original position. 2. Pull up handle 1, hold it up, and fold up the backrest to the upright position. 3.

  • Page 94: Emergency Stop

    04 Interior Front seats NOTE The power seats have an overload protector that activates if a seat is blocked by any object. If this occurs, switch off the ignition (key in position 0) and wait for approxi- mately 20 seconds before operating the seat again.
  • Page 95 WARNING • Because the driver's seat can be adjusted with the ignition off, children should never be left unattended in the car. • Movement of the seat can be STOPPED at any time by pressing any button on the power seat control panel. •...

  • Page 96: Power Retractable Hard Top

    • The trunk must be closed. • The vehicle must be at a standstill and the brake pedal must be pressed. Volvo also recommends the following: • The vehicle should be parked outdoors, on level ground. • Raising or lowering the power retractable hard top should preferably be done in one, continuous operation.
  • Page 97 Trunk divider The purpose of the trunk divider is to indicate the amount of cargo that can be stowed in the trunk without affecting movement of the power retractable hard top. To open, grasp the handle and lift. To close, pull the trunk divider rearward. Be sure to close the trunk divider completely so that it locks in place on both the right and left sides.
  • Page 98 04 Interior Power retractable hard top Operating the power retractable hard Power retractable hard top button 1. Turn the ignition key to position II or start the engine if the vehicle is parked out- doors. 2. Press the brake pedal. 3.
  • Page 99 • ROOF FAILURE SERVICE REQUIRED The power retractable hard top cannot be operated. Contact an authorized Volvo retailer or service technician. If the top is down in this situation, a cover for the vehi- cle is provided in the trunk. see page 96 for more information.
  • Page 100 04 Interior Power retractable hard top Temporary cover Covering the vehicle Fold under windshield wipers Attachment at front wheel housings Door mirror opening Attachment at rear wheel housings Antenna opening Attachment at rear bumper The cover should only be used if the power retractable hard top is down and cannot be raised.
  • Page 101 1. Unfold the wind blocker to its full width. 2. Unfold the supports on both rear sides. 3. Slide the winder blocker’s rear supports under the rear head restraints so that they rest on the upper edge of the backrest. 4.

  • Page 102: Interior Lighting

    04 Interior Interior lighting Interior lighting Front courtesy lights and reading lights Front driver's side reading light, on/off Courtesy lighting Front passenger's side reading light, on/off The front seat reading lights can be switched on and off by pressing buttons (1) or (3) when the ignition key is position I or II, or when the engine is running.

  • Page 103: Vanity Mirror

    04 Interior Interior lighting The courtesy lighting can be switched on or off within 30 minutes after the engine has been switched off, or after a door has been opened or closed. These lights switch off automatically 5 minutes after the engine has been switched off. Vanity mirror Raise the cover to switch on the light.

  • Page 104: Storage Compartments

    04 Interior Storage compartments...

  • Page 105: Glove Compartment

    Lockable storage compartment in door Jacket hanger (intended for light garments only) Storage pocket on front side of front seat cushion Glove compartment Cup holders Storage compartment for e.g., CDs Cup holders for rear seat passengers Storage compartments in rear side panels Storage compartment on rear side of front seat backrests.
  • Page 106 04 Interior Storage compartments Compartment in door panel Open the compartment by lifting the front lower section of the lid. Locking function The door panel compartments can be locked by pressing the Lock button on the central locking system’s remote control. Rear seat storage compartment To open, press on the top center of the panel.
  • Page 107 CD storage The deep storage compartment has room for 10 CD jewel cases. These cases must be inserted with their spines upward in order to allow space for 10 cases in the storage com- partment Cup holders in the center console Two cup holders are located under the sliding cover in the center console.
  • Page 108 04 Interior Storage compartments Storage compartment behind the parking brake If the buttons for optional equipment are not installed, the recess behind the parking brake can be used as a storage compartment for coins, etc. WARNING Objects placed in this compartment should not interfere with the hand brake lever when it is in the lifted (hand brake applied) posi- tion.

  • Page 109: Trunk

    Loading the trunk Button for changing level of folded power retract- able hard top Loading the trunk with the power retractable hard top down When the power retractable hard top is down, it is folded in the trunk. Using the button shown in the illustration above, the folded power retractable hard top can be moved up or down slightly to facilitate loading or unloading small...
  • Page 110 04 Interior Trunk NOTE The trunk cannot be closed while the folded power retractable hard top is in the upper position. Raising and lowering the folded top in the event of a fault ROOF FAILURE SEE If the message MANUAL is displayed, the folded power retractable hard top can only be lowered in the trunk.
  • Page 111 Carrying long loads (ski hatch) Ski hatch The center section of the rear seat backrest can be opened to create space for carrying long, light objects (max. length 6.5 ft/2 meters, max. weight 55 lbs/25 kg). To do so, the center section (cushion) of the rear seat backrest must be removed, the tire repair kit (if the vehicle is so equipped) must be removed and stowed in...
  • Page 112 Remote control and key blade... 114 Valet locking ... 118 Keyless drive (option as available)... 120 Locking and unlocking... 124 Alarm (option)... 127...
  • Page 113 L O C K S A N D A L A R M...

  • Page 114: 05 Locks And Alarm

    Loss of a remote control If either of the remote controls is lost, the other must be taken with the car to a Volvo retailer. As an anti-theft measure, the code of the lost remote control must be erased from the sys- tem.
  • Page 115 NOTE The car can also be locked if a door is open (does not apply to vehicles with the optional keyless drive). Unlock – Press the Unlock button on the remote once to unlock the driver's door. After a short pause, press the Unlock but- ton a second time within 10 seconds to unlock the other doors and the trunk.
  • Page 116 5. Press the cover back into place. The old battery should be disposed of properly at a recycling center or by a trained and quali- fied Volvo service technician. Key blade Removing the key blade The key blade can be removed from the remote control.
  • Page 117 While holding the catch, pull the key blade out of the remote control. Reinserting the key blade in the remote control 1. Hold the remote control with the pointed end down. 2. Carefully slide the key blade into its groove. 3.

  • Page 118: Valet Locking

    05 Locks and alarm Valet locking Locking points Normal locking/unlocking points for the remote control with the key blade in place (valet locking not activated): Doors Steering wheel lock Glove compartment Compartments in door panels Ski hatch Trunk Locking/unlocking points for the remote control with the key blade removed (valet locking activated): Doors...
  • Page 119 Activating the valet locking function Begin by removing the key blade from the remote control (see page 116). NOTE The first stages of opening the power retractable hard top offer temporary access to the contents of the trunk. Therefore, before activating valet locking, the power retractable hard top must be up and the trunk divider (see page 97) must be open.

  • Page 120: Keyless Drive (Option As Available)

    05 Locks and alarm Keyless drive (option as available) Keyless locking and unlocking Range of the keyless drive remote control–5 ft (1.5 meters) This system makes it possible to unlock and lock the vehicle without having to use the remote control. It is only necessary to have a keyless drive remote control in your posses- sion to operate the central locking system.
  • Page 121 Locking or unlocking the vehicle with the key blade Keyless drive keyhole cover The driver's door on vehicles equipped with keyless drive can be locked or unlocked with the remote control's detachable key blade if necessary, see page 116 for information on removing the key blade from the remote con- trol.
  • Page 122 05 Locks and alarm Keyless drive (option as available) CAUTION • Keyless drive remote controls should never be left in the vehicle. In the event of a break-in, a remote found in the vehicle could make it possible to start the engine.
  • Page 123 05 Locks and alarm Keyless drive (option as available) WARNING People with implanted pacemakers should not allow the pacemaker to come closer than 9 inches (22 cm) to any of the keyless drive system's antennas. This is to help pre- vent interference between the pacemaker and the keylesss drive system.

  • Page 124: Locking And Unlocking

    05 Locks and alarm Locking and unlocking Locking/unlocking the vehicle from the inside The switches near the door opening handles on either door can be used to lock or unlock both doors and the trunk, and to set the alarm. •...
  • Page 125 Opening the trunk from the inside The vehicle is equipped with a florescent han- dle on the inside of the trunk lid, which can be used in an emergency situation to open the trunk from the inside. Pull the handle down to release the trunk lid. After use, the handle must be pushed back into its original position before the trunk can be closed.
  • Page 126 05 Locks and alarm Locking and unlocking Unlock the glove compartment in the reverse order.

  • Page 127: Alarm (Option)

    Fault in the alarm system: If a fault has been detected in the alarm system, a mes- sage will be shown in the information dis- play. Contact your Volvo retailer to have the alarm system inspected and repaired if necessary.
  • Page 128 05 Locks and alarm Alarm (option) Turning off (stopping) the alarm If the alarm is sounding, it can be stopped by pressing the UNLOCK button on the remote control or by inserting the key in the ignition switch. The driver's door must first be unlocked with the key blade.
  • Page 129 • if the alarm sensors are to be deactivated, press ENTER and then lock the vehicle. • If the vehicle is equipped with the double locking function, it will be deactivated at the same time. The next time the ignition key is turned to posi- tion II, the sensors will be reactivated and Full guard...
  • Page 130 General information... 132 Fuel requirements... 136 Ignition switch... 139 Starting the vehicle... 140 Starting the vehicle with keyless drive (option as available)... 142 Manual transmission, 6-speed (certain markets only)... 143 Automatic transmission (option)... 144 Shiftlock override... 146 Brake system... 147 Stability system...
  • Page 131 S T A R T I N G A N D D R I V I N G...

  • Page 132: 06 Starting And Driving

    06 Starting and driving General information Economical driving conserves natural resources Better driving economy may be obtained by thinking ahead, avoiding rapid starts and stops and adjusting the speed of your vehicle to immediate traffic conditions. Observe the following rules: •...
  • Page 133 Synthetic oil is not used when the oil is changed at the normal maintenance intervals except at owner request and at additional charge. Please consult your Volvo retailer. CAUTION •...

  • Page 134: Conserving Electrical Current

    Avoid using de-icing sprays as they can cause damage to the locks. To prevent injury from contact with hot surfaces, do not inspect your vehicle's transmission fluid yourself. Have your vehicle's transmission fluid level inspected by a qualified Volvo service technician. Conserving electrical current...
  • Page 135 • Reflective warning triangles are legally required in some states/provinces. • Have a word with your Volvo retailer if you intend to drive in countries where it may be difficult to obtain the correct fuel. • Consider your destination. If you will be driving through an area where snow or ice are likely to occur, consider snow tires.

  • Page 136: Fuel Requirements

    Fuel requirements Octane rating Minimum octane Typical pump octane label Volvo recommends premium fuel for best per- formance, but using 87 octane or above will not affect engine reliability. Volvo engines are designed to achieve rated horsepower, torque, and fuel economy per- formance using premium 91 octane fuel.

  • Page 137: Deposit Control Gasoline (Detergent Additives)

    To meet sea- sonal air quality standards, some areas require the use of "oxygenated" fuel. Volvo allows the 06 Starting and driving Fuel requirements use of the following "oxygenated" fuels; how- ever, the octane ratings listed on this page must still be met.
  • Page 138 If the fuel filler cap is not closed tightly or if the engine is running when the vehicle is refueled, the Check Engine Light (malfunction indicator lamp) may indicate a fault. However, your vehicle’s performance will not be affected. Use only Volvo original or approved fuel filler caps.

  • Page 139: Ignition Switch

    Ignition switch positions 0 – Locked position Remove the key to lock the steering wheel . Never turn the key to position 0 while driving or when the vehicle is being towed. NOTE A ticking sound may be audible if the key is turned to a position between 0 and I.

  • Page 140: Starting The Vehicle

    06 Starting and driving Starting the vehicle To start the engine WARNING Before starting, check that the seat, steering wheel and mirrors are adjusted properly. Make sure the brake pedal can be depressed completely. Adjust the seat if necessary. 1. Fasten the seat belt. 2.
  • Page 141 WARNING Volvo's floor mats are specially manufac- tured for your car. They must be firmly secured in the clips on the floor so that they cannot slide and become trapped under the pedals on the driver's side. • Always place the gear selector in Park...

  • Page 142: Starting The Vehicle With Keyless Drive (Option As Available)

    06 Starting and driving Starting the vehicle with keyless drive (option as available) Starting a vehicle with keyless drive Starting a vehicle with keyless drive Keyless drive makes it possible to unlock, start and lock the vehicle without using a remote control.

  • Page 143: Manual Transmission, 6-Speed (Certain Markets Only)

    6-speed manual transmission (option on certain models) Depress the clutch pedal completely when changing gears Remove your foot from the clutch pedal while driving. The shift pattern should be followed. Overdrive (5th and 6th gears) should be used as often as possible to help improve fuel econ- omy.

  • Page 144: Automatic Transmission (Option)

    06 Starting and driving Automatic transmission (option) Shiftgate positions Depress the button on the front of the gear selector knob to move the selector between the R, N, D, and P positions. The gear selector can be moved freely between the Geartronic (manual shifting) and Drive (D) positions while driving.
  • Page 145 based on the level of acceleration and speed. The car must be at a standstill when shifting to position D from position R. Manual shifting – Geartronic The manual shifting mode (Geartronic) can be selected at any time to manually select forward gears, including while the car is moving.

  • Page 146: Shiftlock Override

    06 Starting and driving Shiftlock override Overriding the shiftlock system Shiftlock prevents the gear selector from being moved out of Park unless the ignition key is in position II and the brake pedal is depressed. In certain cases it may be necessary to move the gear selector from the Park position man- ually.

  • Page 147: Brake System

    If the fluid level is below the MIN mark in the reservoir or if a brake system message is shown in the information display, DO NOT DRIVE. Have the vehicle towed to a Volvo retailer and have the brake system inspec- ted.

  • Page 148: Electronic Brake Force Distribution (Ebd)

    If the brake fluid level is normal in these circumstances, drive carefully to a trained and qualified Volvo service technician to have the brake system checked.

  • Page 149: Stability System

    Dynamic Stability Traction Control (DSTC) The stability system consists of a number of functions designed help reduce wheel spin, counteract skidding, and to generally help improve directional stability. A pulsating sound will be audible when the system is actively operating and is normal. Traction control –...
  • Page 150 If this light stays on after the engine has started or comes on while driving, there may be a fault in the stability system. Con- sult a trained and qualified Volvo service technician. • If Spin control has been intentionally...

  • Page 151: Towing

    Towing Towing a vehicle with all four wheels on the ground WARNING Volvo does not recommend towing a disa- bled vehicle behind another vehicle. Signif- icant difficulty in steering and braking, combined with unfavorable weather, traffic, and road conditions may make it impossible to maintain vehicle control.
  • Page 152 154 for instructions on jump star- ting the vehicle. Towing vehicles with front wheel drive Volvo recommends the use of flat bed equip- ment for towing vehicles with front wheel drive. If wheel lift equipment must be used, please use extreme caution to help avoid damage to the vehicle.
  • Page 153 • Sling-type equipment applied at the front will damage radiator and air conditioning lines. • It is equally important not to use sling-type equipment at the rear or apply lifting equip- ment inside the rear wheels; serious dam- age to the rear axle may result. •...

  • Page 154: Jump Starting

    06 Starting and driving Jump starting Follow these instructions to jump start your vehicle's dead battery or to jump start another vehicle's dead battery using your vehicle. If the 12-volt auxiliary battery to be used is in another vehicle, check that the vehicles are not touch- ing to prevent premature completion of a cir- cuit.

  • Page 155: Towing A Trailer

    General information • Volvo recommends the use of Volvo trailer hitches that are specially designed for the vehicle. Maximum trailer weights recommended by Volvo are: • Trailers without brakes: 1,540 lbs (700 kg). • Trailers with brakes: 2,000 lbs (900 kg)
  • Page 156 (using too high a gear). • The drawbar assembly/trailer hitch may be rated for trailers heavier than the vehicle is designed to tow. Please adhere to Volvo's recommended trailer weights. • Avoid driving with a trailer on inclines exceeding 15%.

  • Page 157: Detachable Trailer Hitch

    Installing the ball holder Ball holder Locking bolt Cotter pin Hitch assembly Safety wire attachment 1. If necessary, remove the cotter pin from the locking bolt and slide the locking bolt out of the hitch assembly. 2. Slide the ball holder into the hitch assem- bly.

  • Page 158: Transporting Loads

    2 in. (5 cm) below the upper edge of the rear side win- dows. Objects placed higher than this level could impede the function of the Volvo Inflatable Curtain.

  • Page 159: Blind Spot Information System (Blis)-Option

    "blind area". Blind Spot Information System (BLIS)–option CAUTION The BLIS system should only be repaired by a trained and qualified Volvo service tech- nician. WARNING • BLIS is an information system, NOT a warning or safety system.

  • Page 160: When Does Blis Function

    06 Starting and driving Blind Spot Information System (BLIS)–option the system can be temporarily switched off (for instructions see page 161). When does BLIS function The system functions when your vehicle is moving at speeds above 6 mph (10 km/h). When you pass another vehicle: The system reacts when you pass another vehicle at a speed of up to 6 mph (10 km/h)
  • Page 161 Limitations In certain situations, the BLIS indicator light(s) may illuminate even when there are no other vehicles in the area monitored by the system. NOTE If the BLIS indicator lights illuminate occa- sionally even when there are no other vehi- cles in the blind area, this does not indicate a fault in the system.
  • Page 162 56, to erase the message. BLIS system messages Text in the System status display BLIS service BLIS not functioning required properly. Contact an authorized Volvo serv- ice technician. BLIS camera BLIS camera obscured. blocked Clean the lenses. BLIS ON BLIS system on BLIS OFF...

  • Page 163: Park Assist (Option/Accessory)

    06 Starting and driving Park assist (Option/accessory) NOTE Rear park assist is deactivated automati- cally when towing a trailer if Volvo genuine trailer wiring is used. Front park assist The distance monitored in front of the vehicle is approximately 2.5 ft (0.8 m). The audible sig- nal comes from the audio system's front speakers.

  • Page 164: Activating/Deactivating Park Assist

    Consult a Volvo retailer or authorized Volvo service technician. CAUTION In certain circumstances, the park assist system may give unexpected warning sig-...
  • Page 165 Cleaning the sensors Park assist sensors The sensors must be cleaned regularly to ensure that they work properly. Clean them with water and a suitable car washing deter- gent. Ice and snow covering the sensors may cause incorrect warning signals. NOTE If the sensors are obstructed by e.g., dirt, snow, or ice, this could result in false warn-...
  • Page 166 General information... 168 Tire inflation... 170 Inflation pressure—U.S. models ... 172 Inflation pressure—Canadian models ... 173 Tire designations... 174 Glossary of tire terminology... 176 Vehicle loading... 177 Uniform tire quality gradings... 179 Snow chains, snow tires, studded tires... 180 Temporary spare... 181 Wheel nuts...
  • Page 167 W H E E L S A N D T I R E S...

  • Page 168: 07 Wheels And Tires

    WARNING • The wheel and tire sizes for your Volvo are specified to meet stringent stability and handling requirements. Unap- proved wheel/tire size combinations can negatively affect your vehicle's sta- bility and handling.

  • Page 169: Tread Wear Indicator

    Tread wear indicator The tires have wear indicator strips running across or parallel to the tread. The letters TWI are printed on the side of the tire. When approximately 1/16" (1.6 mm) is left on the tread, these strips become visible and indicate that the tire should be replaced.

  • Page 170: Tire Inflation

    07 Wheels and tires Tire inflation Inflation labels Tire inflation placard on U.S. models Check tire inflation pressure regularly. Tables listing the recommended inflation pres- sure for your vehicle can be found on page 172. A tire inflation pressure placard is also located on the driver's side B-pillar (the struc- tural member at the side of the vehicle, at the rear of the driver's door opening).

  • Page 171: Checking Tire Pressure

    Checking tire pressure Cold tires Inflation pressure should be checked when the tires are cold. The tires are considered to be cold when they have the same temperature as the sur- rounding (ambient) air. This temperature is normally reached after the car has been parked for at least 3 hours.

  • Page 172: Inflation Pressure-U.s. Models

    07 Wheels and tires Inflation pressure—U.S. models Tire inflation pressure table The following tire pressures are recommended by Volvo for your vehicle. Refer to the tire infla- Tire size 235/45R17 94V M+S 235/40R18 91Y Extra Load M+S Temporary spare tire...

  • Page 173: Inflation Pressure-Canadian Models

    Tire inflation pressure table The following tire pressures are recommended by Volvo for your vehicle. Refer to the tire infla- Tire size Cold tire pressures Up to four persons psi (kPa) Front 235/45 R17 94V M+S 36 (250) 235/40 R18 91Y...

  • Page 174: Tire Designations

    07 Wheels and tires Tire designations Tire designations Federal law mandates that tire manufacturers place standardized information on the sidewall of all tires (see the illustration). The following information is listed on the tire sidewall: The tire designation (the following figures are examples of a tire designation): 215: The width of the tire (in millimeters) from sidewall edge to sidewall edge.
  • Page 175 Maximum Load: Indicates the maximum load in pounds and kilograms that can be carried by the tire. Refer to the vehicle's tire information placard or the safety certifica- tion label, located on the B-Pillar or the driver's door or on the inside of the fuel filler door on Canadian models, for the correct tire pressure for your vehicle.

  • Page 176: Glossary Of Tire Terminology

    • Recommended tire inflation pressure: inflation pressure, established by Volvo, which is based on the type of tires that are mounted on a vehicle at the factory. This inflation pressure is affected by the number...

  • Page 177: Vehicle Loading

    Loading the vehicle Before loading your vehicle, familiarize yourself with the following terms for determining your vehicle's weight ratings, with or without a trailer, from the vehicle's Federal/Canadian Motor Vehicle Safety Standards (FMVSS/ CMVSS) label, and the vehicle's tire informa- tion placard: Curb weight The weight of the vehicle including a full tank...
  • Page 178 07 Wheels and tires Vehicle loading WARNING • Exceeding the permissible axle weight, gross vehicle weight, or any other weight rating limits can cause tire over- heating resulting in permanent defor- mation or catastrophic failure. • Do not use replacement tires with lower load carrying capacities than the tires that were original equipment on the vehicle because this will lower the vehi-...

  • Page 179: Uniform Tire Quality Gradings

    Uniform tire quality gradings ALL PASSENGER VEHICLE TIRES MUST CONFORM TO FEDERAL SAFETY REQUIREMENTS IN ADDITION TO THESE GRADES Quality grades can be found, where appli- cable, on the tire sidewall between the tread shoulder and maximum section width. For example: Treadwear 200 Traction AA Temperature A...

  • Page 180: Snow Chains, Snow Tires, Studded Tires

    07 Wheels and tires Snow chains, snow tires, studded tires Snow chains Snow chains can be used on your Volvo with the following restrictions: • Snow chains should be installed on front wheels only. Use only Volvo approved snow chains.

  • Page 181: Temporary Spare

    In the event of damage to this tire, a new one can be purchased from your Volvo retailer. WARNING Current legislation prohibits the use of the "Temporary Spare"...

  • Page 182: Wheel Nuts

    07 Wheels and tires Wheel nuts Wheel nuts Low nut. High nut. There are two different types of wheel nut, depending on whether the wheels are steel or aluminum. Steel rims – low nut Steel rims are normally secured using the low type of nut, although steel rims may also use the high type.

  • Page 183: Tire Rotation

    The tires with the most tread should always be at the rear (to reduce the risk of skid- ding). • Contact a Volvo workshop if you are unsure about the tread depth. Tire rotation Your vehicle has no recommended tire rota- tion.

  • Page 184: Changing A Wheel

    07 Wheels and tires Changing a wheel Changing a wheel The spare tire, jack, and crank are located under the carpet on the floor of the trunk. To change a tire: 1. Apply the parking brake. 2. Put the gear selector in Park (P) or reverse on models with a manual transmission.

  • Page 185: Installing The Wheel

    WARNING • The jack must correctly engage the jack attachment. • Be sure the jack is on a firm, level, non- slippery surface. • Never allow any part of your body to be extended under a car supported by a jack.

  • Page 186: Tire Sealing System

    120 miles (200 km). • Have the tire inspected by a trained and qualified Volvo service technician as soon as possible to determine if it can be permanently repaired or must be replaced.

  • Page 187: Tire Sealing System-Temporarily Repairing A Flat Tire

    WARNING Please keep the following points in mind when using the tire sealing system: • The sealing compound bottle (no. 8 in the illustration) contains 1.2-Ethanol and natural rubber-latex. These sub- stances are harmful if swallowed. • The contents of this bottle may cause allergic skin reactions or otherwise be potentially harmful to the skin, the cen- tral nervous system, and the eyes.
  • Page 188 Once in place, the bot- tle cannot be unscrewed. This must be done by a trained and qualified Volvo service technician. 7. Remove the valve cap from the tire’s infla- tion valve and screw the tire sealing sys- tem’s hose connector onto the valve as...

  • Page 189: Replacing The Sealing Compound Container

    • The empty bottle of sealing compound cannot be removed from the bottle holder. Consult a trained and qualified Volvo service technician to have the bottle removed and properly disposed WARNING If heavy vibrations, unsteady steering behavior, or noises should occur while driv- ing, reduce speed and park the vehicle in a safe place.

  • Page 190: Inflating Tires

    • If the sealing compound bottle’s expi- ration date has passed, please take it to a Volvo retailer or a recycling station that can properly dispose of harmful substances. Inflating tires The tire sealing system can be used to inflate the tires.

  • Page 191: Tire Pressure Monitoring System (Tpms)

    Introduction The tire pressure monitoring system uses sen- sors mounted in the tire valves to check infla- tion pressure levels. When the vehicle is moving at a speed of approximately 20 mph (30 km/h) or faster, these sensors transmit inflation pressure data to a receiver located in the vehicle.

  • Page 192: Erasing Warning Messages

    20 mph (30 km/h) or faster to erase the message. • Volvo recommends that TPMS sensors be fitted on all wheels used on the vehicle. Volvo does not recommend moving sen- sors back and forth between sets of wheels.
  • Page 193 07 Wheels and tires...
  • Page 194 Washing and cleaning the car... 196 Paint touch up... 200...
  • Page 195 C A R C A R E...

  • Page 196: 08 Car Care

    When washing the car, remember to remove dirt from the drain holes in the doors and sills. Exterior components Volvo recommends the use of special cleaning products, available at your Volvo retailer, for cleaning colored plastic, rubber, or ornamental components such as chromed strips on the exterior of your vehicle.

  • Page 197: Exterior Lighting

    (the surface of the vehicle should not be warmer than 113 °F (45 °C). CAUTION Volvo does not recommend the use of long- life or durable paint protection coatings, some of which may claim to prevent pitting, fading, oxidation, etc. These coatings have not been tested by Volvo for compatibility with your vehicle's clear coat.
  • Page 198 The light cream protectant restores a barrier against soil and sunlight. Volvo also offers a special leather softener that should be applied after the cleaner and pro- tectant. It leaves leather soft and smooth, and reduces friction between leather and other fin- ishes in the vehicle.
  • Page 199 Spots on textile mats can be removed with a mild deter- gent. For best protection in winter, Volvo rec- ommends the use of Volvo rubber floor mats. Consult your Volvo retailer.

  • Page 200: Paint Touch Up

    - when washing the vehicle for instance. Touch-up if necessary. Paint repairs require special equipment and skill. Contact a trained and authorized Volvo service technician for any extensive damage. Minor scratches can be repaired by using Volvo touch-up paint.
  • Page 201 08 Car care...
  • Page 202 Volvo maintenance... 204 Maintaining your car... 206 Hood... 208 Engine compartment... 209 Engine oil... 210 Fluids... 212 Wiper blades... 214 Battery... 215 Replacing bulbs... 217 Fuses... 224...
  • Page 203 M A I N T E N A N C E A N D S E R V I C I N G...

  • Page 204: 09 Maintenance And Servicing

    The maintenance services contain several checks that require special tools and training, and therefore must be performed by a qualified technician. To keep your Volvo in top condition, specify time-tested and proven Genuine Volvo Parts and Accessories. The Federal Clean Air Act – U.S...
  • Page 205 • law enforcement or government agencies • others who may assert a legal right to know, or who obtain your consent to know such information. 09 Maintenance and servicing Volvo maintenance...

  • Page 206: Maintaining Your Car

    Visually inspect battery terminals for cor- rosion. Corrosion may indicate a loose ter- minal connector, or a battery near the end of its useful service life. Consult a trained and qualified Volvo service technician for additional information. As needed: •...
  • Page 207 OBD II system to "ready" for inspection. A half-hour trip of mixed stop-and-go/high- way driving is typically needed to allow OBD II to reach readiness. Your Volvo retailer can provide you with more infor- mation on planning a trip. •...

  • Page 208: Hood

    09 Maintenance and servicing Hood Opening the hood To open the hood: 1. Pull the lever located under the left side of the dash to release the hood lock. 2. Lift the hood slightly. 3. Press up the release control located under the front edge of the hood (at the center) up to the right, and lift the hood.

  • Page 209: Engine Compartment

    Cooling system expansion tank Power steering fluid reservoir (concealed behind the headlight) Dipstick – engine oil Radiator Cooling fan Washer fluid reservoir Engine oil filler cap Brake/clutch fluid reservoir Battery 09 Maintenance and servicing Relay/fuse box Air cleaner WARNING The cooling fan may start or continue to operate (for up to 6 minutes) after the engine has been switched off.

  • Page 210: Engine Oil

    Volvo recommends Castrol. NOTE • Volvo does not recommend the use of oil additives. • Synthetic oil is not used when the oil is changed at the normal maintenance intervals except at owner request and at additional charge.
  • Page 211 Do not allow oil to spill onto or come into contact with hot exhaust pipe surfaces NOTE Volvo uses different systems to indicate a low oil level or pressure. Some models have an oil pressure sensor, in which case a warning symbol (see page 53) is used to indicate low oil pressure.

  • Page 212: Fluids

    Coolant Coolant reservoir Normally, the coolant does not need to be changed. If the system must be drained, con- sult a trained and qualified Volvo service tech- nician. CAUTION • If necessary, top up the cooling system...

  • Page 213: Brake Fluid

    (mountain driving, etc), it may be necessary to replace the fluid more often. Consult your Volvo retailer. Always entrust brake fluid changing to a trained and qualified Volvo serv- ice technician. Power steering fluid The fluid level is checked at each service inter- val.

  • Page 214: Wiper Blades

    09 Maintenance and servicing Wiper blades Replacing windshield wiper blades 1. Fold out the wiper arm. 2. Press the button on the wiper blade attach- ment and pull straight out (1), parallel with the wiper arm. 3. Press a new wiper blade (2) until it clicks into place.

  • Page 215: Battery Replacement

    Battery maintenance Driving habits and conditions, climate, the number of starts, etc., all affect the service life and function of the battery. In order for your battery to perform satisfactorily, keep the fol- lowing in mind: Check the fluid level in each cell in the battery every 24 months or every 15,000 miles (24,000 km), whichever is sooner.
  • Page 216 6. Reinstall the cover over the battery. NOTE Used batteries should be properly disposed of at a recycling station or similar facility, or taken to your Volvo retailer. WARNING • Never expose the battery to open flame or electric spark.

  • Page 217: Removing The Headlight Housing

    The optional Bi-Xenon headlight bulbs contain trace amounts of mercury. These bulbs should always be disposed of by a trained and qualified Volvo service techni- cian. Certain bulbs should only be replaced by a trained and qualified Volvo service techni- cian: •...

  • Page 218: Low Beam Bulb

    WARNING Bi-Xenon headlights (option) – due to the high voltage used by these headlights, these bulbs should only be replaced by a trained and qualified Volvo service techni- cian. Low beam bulb Cover with retaining clamps 1. Open the hood and remove the headlight housing (see page 217 for instructions).

  • Page 219: Parking Light Bulb

    (option) – due to the high voltage used by these headlights, the ® Bi-Xenon bulbs should only be replaced by a trained and qualified Volvo service tech- nician. 3. Driver's side headlight: Turn the bulb holder counterclockwise. Passenger's side headlight: Turn the bulb holder clockwise.
  • Page 220 09 Maintenance and servicing Replacing bulbs Turn signal 1. Turn the bulb holder counterclockwise and remove it. 2. Remove the bulb from the holder by press- ing it in and twisting it counterclockwise. 3. Insert a new bulb and reinstall the bulb holder in the headlight housing.
  • Page 221 If the message indicating a burned out bulb remains in the information display after the bulb has been replaced, consult a trained and qualified Volvo service technician. High-level brake light These bulbs should only be replaced by a trained and qualified Volvo service technician.

  • Page 222: Footwell Lighting

    09 Maintenance and servicing Replacing bulbs License plate lighting 1. Switch off all lights and turn the key to position 0. 2. Remove the screws with a screw driver. 3. Detach the lens (bulb housing) carefully. 4. Replace the defective bulb. 5.
  • Page 223 Vanity mirror lighting 1. Insert a screwdriver under the center of the lower edge of the mirror, turn it, and care- fully pry up the lugs at the edge. 2. Move the screwdriver under the edge on the left and right-hand sides (near the black rubber sections) and pry carefully to release the lower edge of the mirror.

  • Page 224: Fuses

    (written on the fuse). If fuses burn out repeatedly, have the electrical system inspected by a trained and qualified Volvo service technician. WARNING Never use metal objects or fuses with higher amperage than those stated on the follow- ing pages.
  • Page 225 36 fuses. • Fuses 1–18 are relays/circuit breakers and should only be removed or replaced by an authorized Volvo service technician. • Fuses 19–36 may be changed at any time when necessary. Several extra fuses and a fuse removal tool to...
  • Page 226 09 Maintenance and servicing Fuses Fuses in the engine compartment Coolant fan (radiator) Power steering Feed to passenger com- partment fuse box Feed to passenger com- partment fuse box Element, climate unit Not in use ABS pump ABS valves Engine functions Climate system blower Headlight washers Headlight washers, climate...
  • Page 227 Engine control module (ECM)/transmission control module (TCM) Not in use Not in use Ignition switch A/C compressor Not in use Front fog lights (option) Not in use Not in use Fuel injectors Heated oxygen sensor, vac- uum pump Ignition coils, climate unit pressure sensor Engine sensor valves, A/C relay, relay coil, PTC ele-...
  • Page 228 09 Maintenance and servicing Fuses Fuse box in the passenger compartment The fuse box in the passenger compartment is located under the glove compartment. To access the fuses: 1. Remove the upholstery covering the fuse box by first pressing in the center pins in the mounting clips approximately 0.5 in (1 cm) with a small screwdriver and then pulling the pins out.
  • Page 229 Not in use Not in use Not in use Not in use Not in use Not in use Audio system, Volvo Navi- gation system (option) 09 Maintenance and servicing Supplemental Restrain Sys- tem (SRS), engine control module 12-volt socket in passeng- er's compartment Lighting –...
  • Page 230 09 Maintenance and servicing Fuses Not in use Volvo Navigation System remote control module (option), alarm siren control module On-board diagnostic socket, brake light switch Right high beam, auxiliary lights relay Left high beam Heated driver's seat (option) Heated passenger's seat...
  • Page 231 09 Maintenance and servicing...
  • Page 232 Audio functions... 234 Radio functions... 239 CD player/CD changer... 244 Audio menu... 248 Bluetooth® hands-free connection... 249...
  • Page 233 A U D I O...

  • Page 234: 10 Audio

    10 Audio Audio functions Audio system controls VOLUME dial AM/FM – select a radio band MODE – select a sound source TUNING dial SOUND button Auxiliary connector Selecting a sound source • Press AM/FM (2) repeatedly to toggle between FM1, FM2, and AM. •...
  • Page 235 7. If there is distortion, lower your music play- er's headphone volume until the distortion goes away. 8. Finally, exit the menu and adjust the audio volume to a comfortable level. Volume Use the volume dial (1) or the buttons in the steering wheel keypad to adjust the volume level.
  • Page 236 10 Audio Audio functions The text LOADING will be displayed while the system loads the files (folder structure) on the device. This may take a short time. When information about the files (the folder structure) on the device has been loaded, the resulting list includes information on the artist, genre and song title.
  • Page 237 The following settings can be made: BASS –set the bass level TREBLE –set the treble level BALANCE –set the left/right sound balance FADER –set the front/rear sound balance SUBWOOFER (accessory)–set the level for the subwoofer (bass speaker) CENTER –make settings for the center speaker SURROUND –make settings for surround sound...
  • Page 238 10 Audio Audio functions • • Medium • High To set the automatic sound level: 1. Press MENU followed by ENTER. 2. Select AUDIO SETTINGS in the menu and press ENTER. 3. Select AUTO. VOLUME CONTROL menu and press ENTER. 4.

  • Page 239: Radio Functions

    Radio function controls 1. AM/FM1/FM2 selection 2. Station preset buttons 3. TUNING dial for selecting radio stations 4. SCAN 5. MENU NAVIGATION CONTROL–press the up or down arrow keys to scroll in a menu, or the keys on the left/right sides of the control to search for or change radio stations/CD tracks 6.
  • Page 240 10 Audio Radio functions To return to the Auto-store mode, press the AUTO button briefly and select a stored station by pressing one of the preset buttons (2). Saving auto-stored stations in the preset memory An auto-stored station can be saved in the memory for manually preset stations.
  • Page 241 (see also "Selecting a channel" in the right column). 2. Call Sirius at 1-888-539-SIRIUS (7474). 3. When asked for the Sirius ID number press AUTO to display this number. It is also possible to retrieve the Sirius ID from the MENU.

  • Page 242: Advanced Settings

    10 Audio Radio functions preset satellite channel stored on that but- ton, regardless of the currently selected channel category. Song Seek and Song Memory The Song Seek and Song Memory functions provide both audio and visual notification when Sirius is broadcasting your favorite songs. Song Seek enables you to store the name of the song for future advance notification when that song is being played.
  • Page 243 ENTER. 2. Press and hold the ENTER button for 2 seconds. 3. The current code will be displayed. Your Volvo retailer can also provide you with assistance. SIRUS ID This function displays the 12-digit Sirius acti- vation ID.

  • Page 244: Cd Player/Cd Changer

    10 Audio CD player/CD changer CD function controls MENU NAVIGATION CONTROL–press the up or down arrow keys to scroll in a menu, or the keys on the left/right sides of the control to change CD tracks/fast for- ward/back Buttons for selecting a disc in the optional CD changer CD eject button CD slot...

  • Page 245: Changing Tracks

    NOTE • The EJECT ALL function can only be used while the vehicle is at a standstill and will be cancelled if the vehicle begins to move. • For reasons of traffic safety, the ejected CD must be removed within 12 seconds or it will be automatically drawn back into the slot and the CD player will enter pause mode.
  • Page 246 10 Audio CD player/CD changer 3. Select Disc Folder and press ENTER. Activating/deactivating the random function-CD changer If a normal CD is being played: 1. Press MENU followed by ENTER. 2. Select Random and press ENTER. 3. Select Single disc All discs and press ENTER.
  • Page 247 • Use discs of the correct size only (3.5" discs should never be used). • Volvo does not recommend the use of plastic outer rings on the disc. • Condensation may occur on discs/optical components of the changer in cold winter weather.

  • Page 248: Audio Menu

    10 Audio Audio menu FM1/FM2 menu 1. RADIOTEXT ON/OFF 2. ADVANCED RADIO SETTINGS 3. AUDIO SETTINGS AM menu 1. AUDIO SETTINGS CD menu 1. RANDOM 2. AUDIO SETTINGS CD changer menu 1. RANDOM 2. DISC TEXT ON/OFF 3. AUDIO SETTINGS AUX menu 1.

  • Page 249: Bluetooth® Hands-Free Connection

    NOTE Not all cell phones are fully compatible with the hands-free system. A list of compatible phones is available at your Volvo retailer or at www.volvocars.com WARNING Never use the hands-free feature or any other device in your vehicle in a way that distracts you from the task of driving safely.
  • Page 250 10 Audio Bluetooth® hands-free connection > The audio system will search for cell phones that are in range. This search takes approximately 30 seconds. Any phones detected will be displayed with their Bluetooth® names. The hands-free system’s Bluetooth® name will appear in the cell phone’s display as 4.
  • Page 251 Call settings While a call is in progress, press MENU or ENTER on the center console to access the following functions: • Microphone off –mute the audio system’s microphone. • Transfer call to mobile –transfer the call from hands-free to the cell phone. •...
  • Page 252 10 Audio Bluetooth® hands-free connection audio system searches for the most recently connected phone, this phone’s name appears in the display. To manually connect a different cell phone, press EXIT. Manual connection To connect a phone other than the one that was most recently connected or to switch between cell phones that are already regis- tered in the hands-free system:...
  • Page 253 Entering text Text is entered by using the number buttons in the center console. Press a button once to enter the first letter on the button, twice to enter the second letter, etc. Continue to press the button to display other characters. Press EXIT briefly to erase a character.
  • Page 254 Label information... 256 Dimensions and weights... 258 Fuel, oils, and fluids... 260 Engine oil... 262 Engine specifications... 263 Electrical system... 265 Three-way catalytic converter... 267 Volvo programs... 268...
  • Page 255 S P E C I F I C A T I O N S...

  • Page 256: 11 Specifications

    11 Specifications Label information...
  • Page 257 Standards (FMVSS) specifications (USA) and Ministry of Transport (CMVSS) standards (Canada) Your Volvo is designed to meet all applicable safety standards, as evidenced by the certifi- cation label on the facing side of the driver's door. For further information regarding these regulations, please consult your Volvo retailer.

  • Page 258: Dimensions And Weights

    11 Specifications Dimensions and weights Dimensions Position Dimension Wheelbase Length Load length, floor Trunk lid up Height Height Track, front Track, rear in. (mm) 103.9 in. (264 cm) 175.9 in. (447 cm) 33.5 in. (85 cm) 7.9 in. (20 cm) 57.2 in.

  • Page 259: Dimensions And Weights

    Position Dimension Width Width encl. door mirrors Weights Category Gross vehicle weight Manual: 4540 lbs Automatic: 4560 lbs Capacity weight All models: 640 lbs Permissible axle weight, front All models: 2440 lbs Permissible axle weight, rear All models: 2370 lbs Curb weight All models: 3770–3800 lbs Max.

  • Page 260: Fuel, Oils, And Fluids

    AKI 91 or above. See page 262 for information on engine oil specifications. Non-turbo engine: JWS 3309 BOT 130 Volvo original coolant/antifreeze (50/50 mixture of water and anti-freeze) DOT 4+ boiling point >536 °F (280 °C), P/N 9437433 WSS M2C204-A or equivalent Use washer fluid solvent in cold weather con- ditions.
  • Page 261 11 Specifications Fuel, oils, and fluids NOTE The transmission oil does not normally need to be changed during the service life of the vehicle. However, it may be necessary to replace the oil if the vehicle is often driven in areas of sustained temperature extremes (hot or cold), when towing a trailer over long distances, for prolonged driving in moun- tainous areas, or if the vehicle is often driven...

  • Page 262: Engine Oil

    Depending on your driving habits, premium or synthetic oils may provide superior fuel econ- omy and engine protection. Consult your Volvo retailer or a trained and qualified Volvo service technician for recommendations on premium or synthetic oils. Oil additives must not be used.

  • Page 263: Engine Specifications

    Engine specifications B5254T7 169/83 227/5000 320/25-80 236/1500-4800 2.52/153.8 83/3.27 93.2/3.67 9.0:1 Volvo kit no. 30650379 0.027in./0.7mm 22.5 ft. lbs./30 Nm and increases engine power over that devel- oped by the normally-aspirated engine. The charge air cooler (which resembles a radiator)
  • Page 264 11 Specifications Engine specifications is located between the turbo-compressor and inlet manifold. Fuel system The engine is equipped with a multiport fuel injection system.

  • Page 265: Electrical System

    Capacity (Ah) Models equipped with the High Performance audio system Models equipped with the Premium Sound audio system, the Volvo Navigation System and/or keyless drive Bulbs used in the car Bulb Low beam headlight If the battery must be replaced, replace it with...
  • Page 266 Front fog light (option) Glove compartment light NOTE For information regarding any other bulbs not mentioned in this section, please con- tact your Volvo retailer or a trained and authorized Volvo service technician. ® headlights only) ® or halogen headlights)

  • Page 267: Three-Way Catalytic Converter

    Three-way catalytic converter – general information • Keep your engine properly tuned. Certain engine malfunctions, particularly involving the electrical, fuel or distributor ignition systems, may cause unusually high three- way catalytic converter temperatures. Do not continue to operate your vehicle if you detect engine misfire, noticeable loss of power or other unusual operating condi- tions, such as engine overheating or back-...

  • Page 268: Volvo Programs

    11 Specifications Volvo programs Volvo On Call Roadside Assistance Your new Volvo comes with a four year ON CALL roadside assistance. Additional informa- tion, features, and benefits are described in a separate information package in your glove compartment. If you require assistance, dial:...
  • Page 269 1, 2, 3 ... 12-volt socket... 110 12-volt sockets... 58 A/C (air conditioning)... 82 ABS (anti-lock brake system)... 147 Airbags front... 22 inflatable curtain... 30 side impact... 29 Airbag system... 22 Air conditioning... 82 Air distribution table... 88 Air vents... 84 Alarm system...
  • Page 270 12 Index Bulbs headlights... 217 list of... 265 Bulbs, replacing... 217 Capacities, fluids... 260 Capacity weight... 177, 259 Catalytic converter, three-way... 267 CD changer... 244 CD player... 244 Cell phone, hands-free connection... 249 Central locking system - remote control. 114 Chains...
  • Page 271 Electronic Climate Control air distribution table... 88 Electronic Climate Control (ECC) - option. 85 Emergency brake... 70 Emergency locking retractor... 34 Emergency starting... 154 Emergency towing... 151 Emission inspection readiness... 206 Engine specifications... 263 starting... 140 starting with keyless drive... 142 Engine compartment overview...
  • Page 272 12 Index High beam flash... 61 High beams... 61 Home safe lighting... 61, 76 Hood, opening... 208 Ignition switch... 139 Immobilizer... 140 Immobilizer (start inhibitor)... 114 Indicator and warning symbols... 49, 51 Inflatable Curtain... 30 Inflation pressure... 170 Inflation pressure, checking... 171 Inflation pressure table Canadian models...
  • Page 273 Occupant safety... 16 Occupant weight sensor... 26 Octane recommendations... 136 Oil... 210 changing... 210 checking... 210 On Call Roadside Assistance... 268 Opening the hood... 208 Opening the trunk from the inside... 125 Owner maintenance... 206 Panel lighting, instrument... 60 Park assist... 163 Parking brake...
  • Page 274 12 Index Safety, occupant... 16 Safety defects, reporting Canada... 17 USA... 16 Seat belt reminder... 20 Seat belts... 18 Automatic locking retractor/Emergency locking retractor... 34 buckling... 18 guides... 19 maintenance... 20 pretensioners... 18 unbuckling... 18 use during pregnancy... 19 Seats, front... 92 Shiftlock override...
  • Page 275 Vehicle loading... 177 Vehicle maintenance performed by the owner... 206 Vehicle towing... 151 Vehicle weights... 259 VIN (Vehicle Identification Number)... 257 Volvo On Call Roadside Assistance... 268 Warning flashers, hazard... 69 Warning symbol... 51 Warranties... 204 Washer fluid... 212, 260 12 Index Washer fluid reservoir...
  • Page 276 12 Index...
  • Page 278 Volvo Car Corporation TP 10177 (USA & Canada), AT 0820, Printed in Sweden, Göteborg 2008, Copyright © 2000-2008 Volvo Car Corporation...

This manual is also suitable for:

C70

Table of Contents
