- Page 1 HE 5710 / HE 5711 µP-magnetic valve control Operating manual Translation of the original operating manual (Original version German)
- Page 2 HESCH Industrie Elektronik GmbH, Documentation Department Copyrights © Copyright 2019 HESCH Industrie-Elektronik GmbH. All rights reserved. The content including pictures and the design of this manual are subject to copyright protection and other laws for protection of intellectual property. The dissemination or alteration of the content of this manual is prohibited.
-
Page 3: Table Of Contents
Notes ..............21 Operating manual HE 5710 / HE 5711... -
Page 4: Foreword
Information regarding control operations and disposal. Target group These operating instructions are intended for qualified electricians that will install, wire, commission and put the magnetic valve control HE 5710 / HE 5711 into operation. Document history Date / version Description 12/2013 / 1.0... -
Page 5: Legal Provisions
HESCH Industrie-Elektronik GmbH, Boschstraße 8, D-31535 Neustadt, Germany Intended use The magnetic valve control HE 5710 / HE 5711 serves to clean industrial filtration plant. The control unit can be operated within the usage and ambient conditions stated in this ... -
Page 6: Safety Information
Warning of explosive atmosphere! Warning of dangerous electrical voltage! Warning of material damage due to electrostatic charging! Warning of material damage! Note! Indicates possible malfunctions and provides information regarding optimal oper- ating conditions. Operating manual HE 5710 / HE 5711 Version 1.3... -
Page 7: Safety During The Individual Phases Of Operation
Connecting points may also be live! Caution! The device may not be put into operation when there is visible damage on the device. Operating manual HE 5710 / HE 5711 Version 1.3... - Page 8 First determine the causes for the failure and remove them. Only use fuses which have the same specification as the original type as a re- placement. Repaired fuses or short circuiting are not permissible. Operating manual HE 5710 / HE 5711 Version 1.3...
- Page 9 It is only permitted to clean the housing with wet cleaning agents in order to avoid static charging. It is required to clean the device in order to prevent increased dust formation. Operating manual HE 5710 / HE 5711 Version 1.3...
-
Page 10: Device Description

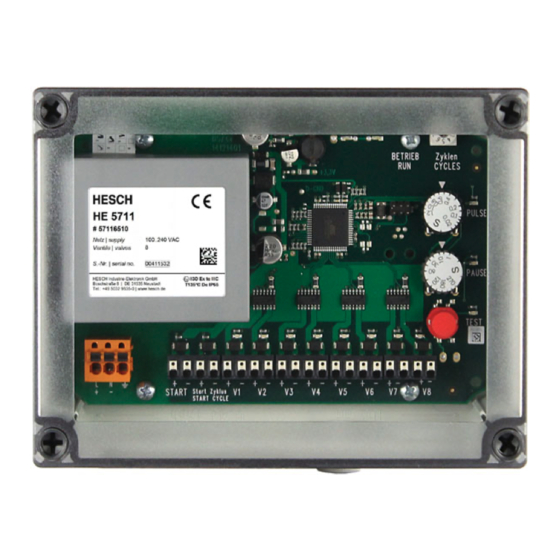

Chapter 3 Device description Device description Overview Fig. 3.1: An overview (taking the 5710 as an example) A. Type designation B. Display and control elements C. Connection compartment Operating manual HE 5710 / HE 5711 Version 1.3... -
Page 11: Display And Control Elements
Longer pressing of the button (for longer than 2 seconds) starts cleaning for the set cycles. If the number of cycles is 0, cleaning will continue until the but- ton is pressed again. Operating manual HE 5710 / HE 5711 Version 1.3... -
Page 12: Technical Data
Openings should be closed, if necessary with screw plugs, to make the device dustproof (IP65) An M32 screw plug is in the scope of delivery of the HE 5710 Housing dimensions: 180 mm × 130 mm × 78 mm (W × H × D) Connectors: 1 ×... -
Page 13: Installation
HE 5710 / HE 5711 Operating manual Note! After receiving the delivery, check it for completeness and obvious defects. In case of a complaint, immediately contact your local HESCH representative. Operating manual HE 5710 / HE 5711 Version 1.3... -
Page 14: Electrical Commissioning
Material damage due to electrostatic charging! Observe the safety measures according to DIN EN 61340-51/-3 in order to pre- vent electrostatic discharging! Note! Only qualified specialists may work on the electronics. Operating manual HE 5710 / HE 5711 Version 1.3... -
Page 15: Supply Voltage
1. Loosen the screws on the housing cover and remove the cover. 2. Read the supply voltage value off the type plate (for example 100 – 240 VAC or 24 VDC mains voltage). 3. Connect PE conductors. Operating manual HE 5710 / HE 5711 Version 1.3... -
Page 16: Connection Diagram
+ V3 Output of valve 3 (+24 V DC) - V3 Output of valve 3 (GND) + V4 Output of valve 4 (+24 V DC) - V4 Output of valve 4 (GND) Operating manual HE 5710 / HE 5711 Version 1.3... -
Page 17: Inputs
+ 24 VDC and are active when they are switched to (-) with a potential-free contact. Valves Connection: HE 5710 on terminals V1 (+ and -) to V4 (+ and -) HE 5711 on terminals V1 (+ and -) to V8 (+ and -) Valve type:... -
Page 18: Setting-Up
Pulsing period of the valves Setting using the PULSE potentiometer between 0.02 and 1.2 seconds. Pause time of the valves Setting using the pausing potentiometer PAUSE between 1 and 270 seconds. Operating manual HE 5710 / HE 5711 Version 1.3... -
Page 19: Declaration Of Conformity
Chapter 7 Declaration of conformity Declaration of conformity You will find the declaration of conformity on www.hesch.de Operating manual HE 5710 / HE 5711 Version 1.3... -
Page 20: Maintenance And Service
Recycle metals and plastics. Electrical and electronic components should be collected separately and be disposed of accordingly. Properly dispose of printed circuit boards. Service HESCH Industrie-Elektronik GmbH Boschstraße 8 D-31535 Neustadt Germany Phone: + 49 (0) 5032 9535-90 Operating manual HE 5710 / HE 5711 Version 1.3...
