Analog Technologies VC60B Manual

Analog Technologies

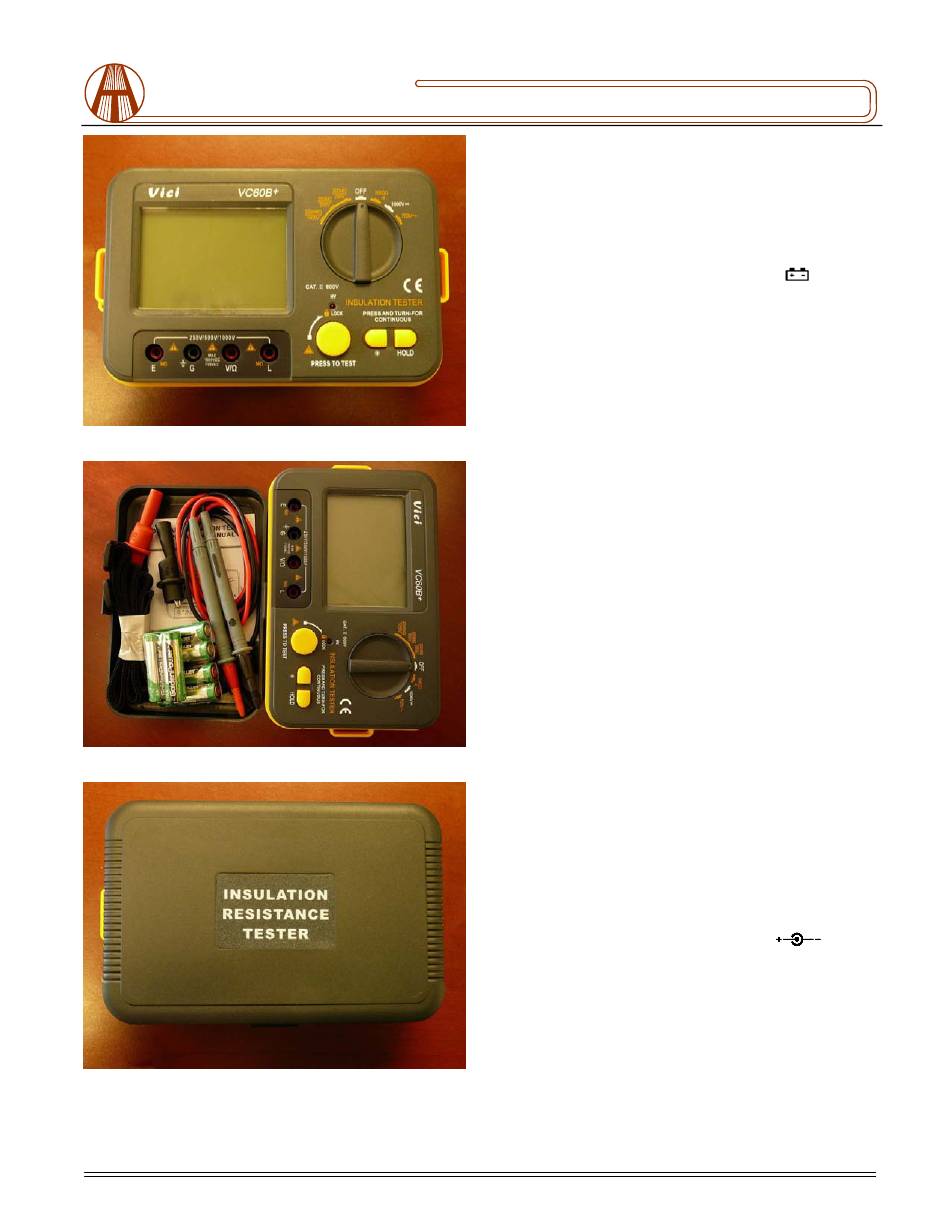

Figure 1. The Photo of Actual VC60B
Figure 2. The Photo of Actual VC60B
Figure 3. The Photo of Actual VC60B
2352 Walsh Ave. Santa Clara, CA 95051. U. S. A. Tel.: (408) 748-9100, Fax: (408) 748-9111 www.analogtechnologies.com
Copyrights 2000 – 2012, Analog Technologies, Inc. All Rights Reserved. Updated on 11/22/2012
FEATURES
Altitude: <2000m
Power Consumption: <650mW
Sampling Rate: Approx. 3 times/sec.
Fuse: 100mA/60V Resettable Fuse
Lower Battery Indication: The LCD Display "
Over Range Indication: Displays "1" When Exceeding
Upper Limit
Additional Temperature Coefficiency: 0.15 × Specified
Accuracy/℃ (<18℃ or >28℃)
Power Source: 5# Battery LR6 (1.5V) × 6 (or External AC
Adapter).
APPLICATIONS
It's widely used for insulation testing of electric machines,
cables, electronic equipments, electric facilities, etc.
DESCRIPTION

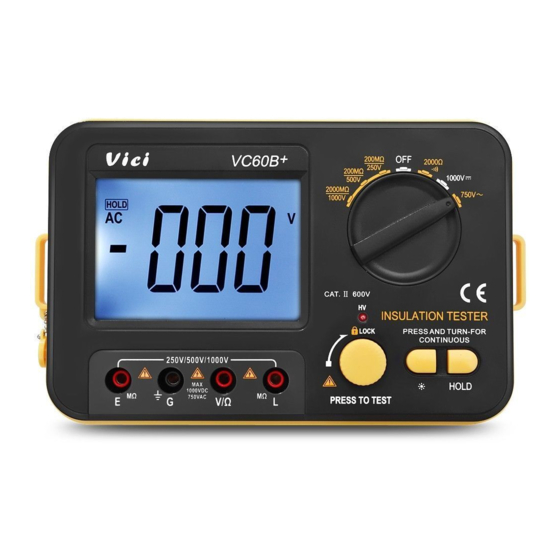

VC60B+1.0 is a digital insulation tester which adopts DC
voltage converter of low consumption and high converter
ratio inductance energy storage to convert the voltage of
9Vdc into 250V/500V/1000Vdc.
With digital bridge, the instrument has the features of being
easy to operate, wide test range, highly stable performance,
backlit LCD display, data hold and auto power off. With a
shoulder strap, it can be used by both hands.
It is an ideal instrument to be used for insulation testing of
electric machines, cables, electronic equipments, electric
facilities, etc.
OPERATION INSTRUCTION
For the first time of operation, please make sure there is
enough power source. If not, open the battery door and put
into 6 pcs of 5# batteries. Please pay attention to the batter
polarities.
When connecting to an external AC adapter, the battery
power supply will be shut off. Do not charge the batteries.
Note: choose a correct power supply mode (
Multimeter
VC60B
" Symbol.
).
1
