Mortara Instrument Quinton Q-Stress 4.0 Additional Information For The User's Manual And Service Manual

Additional Information for the
User's Guide and Service Manual
two subjects: audio notifications and device connections.
An audio notification indicates that a stage change will occur in 10 seconds during the
Exercise phase (see chapter 7, Exercise Phase, in the User's Guide
shipped with your system does not include an audio speaker. To produce the
notification, you must connect an external speaker. Quinton does not supply a
speaker as an orderable part.
Note: The speaker must be PC-compatible and connect with a 1/8
connector.
To attach the speaker:

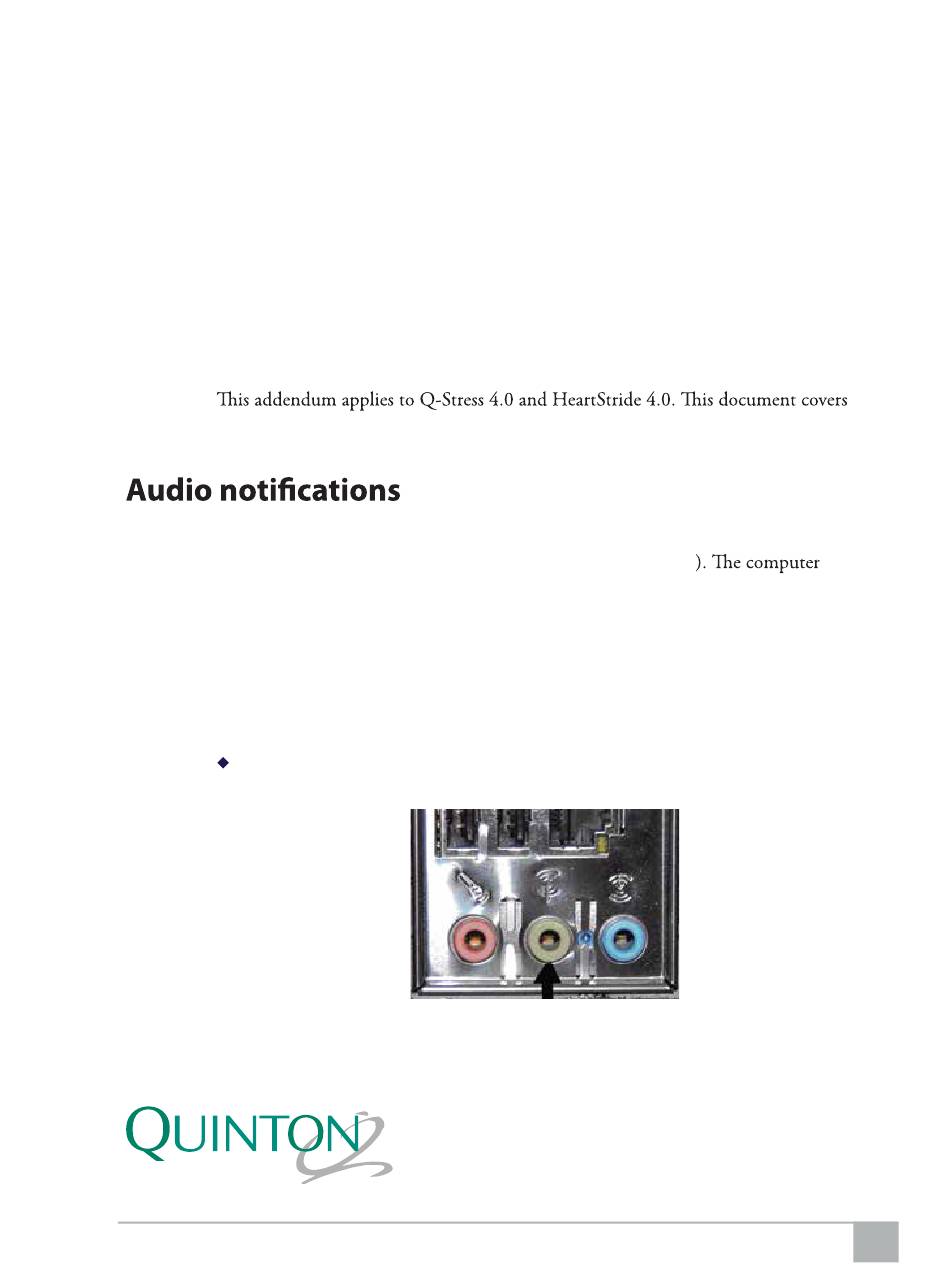

Plug the 1/8" male stereo phono jack from the speakers into the green 1/8" female
stereo phono jack on the back of the tower as shown below.
Note: The operating system drivers to enable sound output are already installed on the
computer.
