Outdoor Demo Kit
Outdoor Luxury Sound
HARDSCAPE

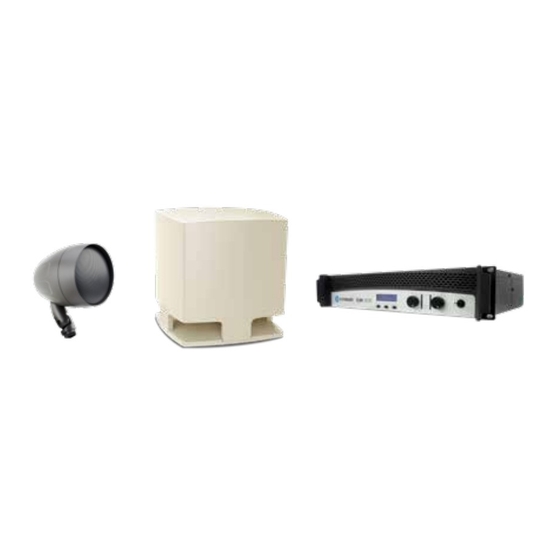

Included Equipment
1. Wire the HS-SUB-12 to channel 1on the amp.
2. Set all Acoustiscape speakers to 70V AS-1(15w), AS-2(25W)
3. Wire up Acoustiscape speakers in parallel to channel 2.
Acoustiscape - CH 2
Sub-Terrain - CH 1
4. Wire the RCA's into the input section of the Crown amp as shown in illustration below.
5. Set left and right gains evenly at 95% - 2 clicks back from full.
Gains
6. Crown amp comes shipped at AS/HS preset. To change the preset press SET/ENTER twice
then use down/up button to select the right setting then press SET/ENTER button to load.

Advertisement

loading
Need help?

Need help?

Do you have a question about the HARDSCAPE and is the answer not in the manual?

Questions and answers

Summary of Contents for TRU Audio HARDSCAPE

  • Page 1 Outdoor Demo Kit Outdoor Luxury Sound HARDSCAPE Included Equipment 1. Wire the HS-SUB-12 to channel 1on the amp. 2. Set all Acoustiscape speakers to 70V AS-1(15w), AS-2(25W) 3. Wire up Acoustiscape speakers in parallel to channel 2. Acoustiscape - CH 2 Sub-Terrain - CH 1 4.
  • Page 2 Wiring 70v Wiring from Crown Amplifier: Connect the (red +) and the (black -) from the HS-SUB-12 to channel 1 on the Crown ampli er. CROWN AMPLIFIER BLACK - To 70v Acoustiscape RED + Speakers GREEN + YELLOW + BLUE - WHITE - HS-SUB-12 Backyard Satellite View...
