User Manual - Ghost In-wall Speakers
Thank you for purchasing this TruAudio product. Like
all of our products, if installed correctly, these
speakers will bring you years of outstanding listening
enjoyment. Please make sure you take the time to
read the complete instruction manual before starting
the installation. If you have any questions, concerns
or comments, call our main office at 888-858-1555.
Please NOTE: These speakers should only be
installed by a TruAudio Certified Dealer. If these are
NOT being installed by one of our dealers, the
warranty could be void.
Box Content
Each TruAudio Ghost In-wall speaker contains the
following:
1. Ghost In-wall speaker
2. Ghost-style white paintable grill
3. Angled 25° Wave Cone, plus one straight Wave
Cone installed in speaker
4. Cutout template
Choosing the Speaker Location
The Ghost In-wall speakers can be mounted either
horizontally or vertically with almost identical
performance.

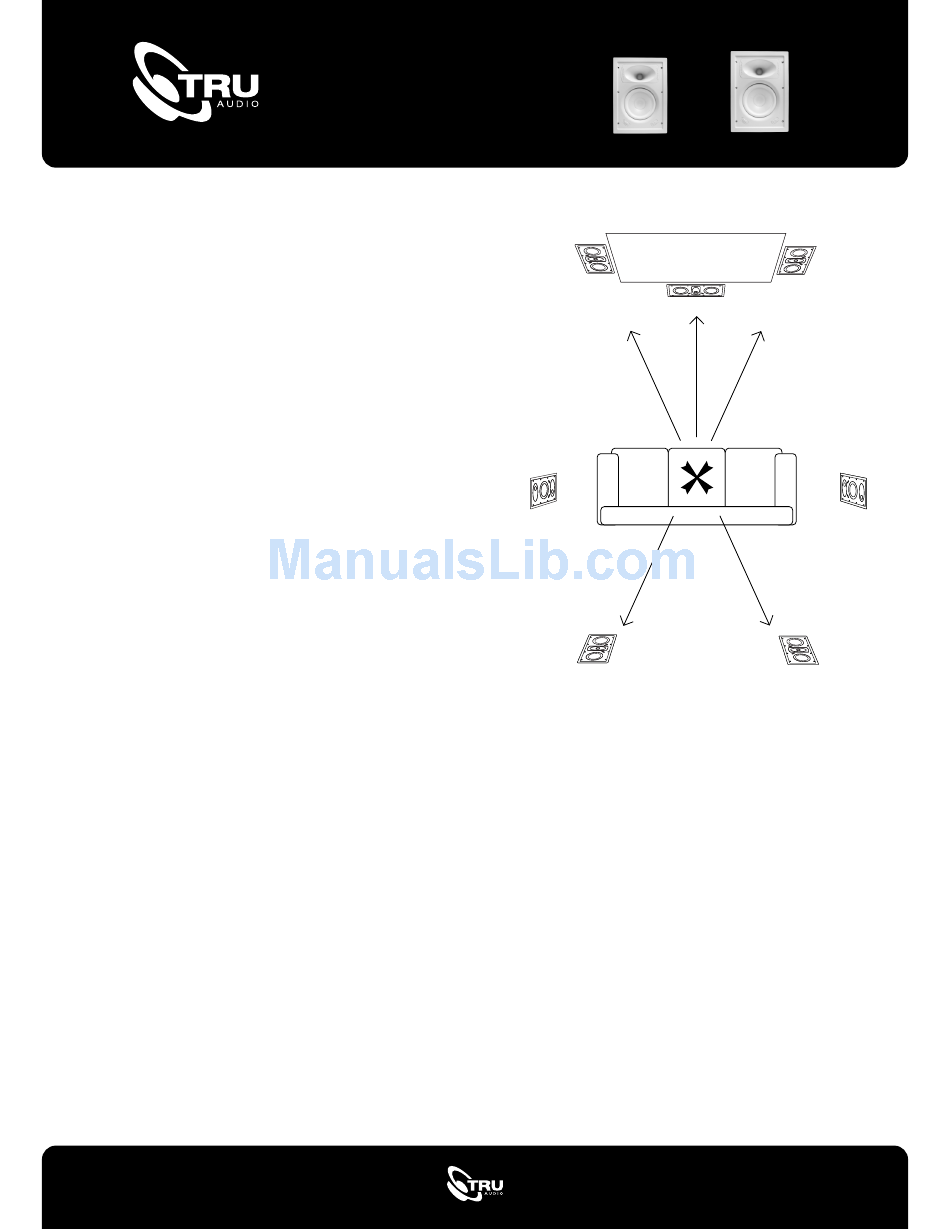

Left and Right speaker placement: Place the Left
and Right speakers on either side on the video
screen. You should try to place the tweeters as close
to ear level as possible (36" - 44" off the floor). Also
keep the speakers 6 to 12 feet apart and at least 16"
away from the wall. (Figure 1)
Ideally you want to place the center channel at the
same level as the left and right speakers (36" to 44"
from the floor). If you must place the center channel
above or below the screen, keep the distance to a
minimum between the left and right this will help keep
a more even sound between the three speakers.
Pantent No. US 7,543,681 B2
GPW-6
CENTER
25º
25º
Changing the Wave Cone
Each Ghost in-wall speaker will come with a straight
Wave Cone that is already installed with the speaker,
plus an additional angled Wave Cone set at 25°.
These Wave cones are designed to improve the front
soundstage that has always been a draw back with
in-wall speakers.
The Straight Wave Cone is designed for Center
Channel installation.
The angled Wave Cone is set at a 25° for left and right
installations.
To change the Wave Cone, first remove the four outer
screws (Figure 3). Before removing the Wave Cone
you will also need to remove the three screws around
the tweeter.
GPW-8
25º
25º
Figure 1
Advertisement
Related Manuals for TRU Audio GPW-6
Summary of Contents for TRU Audio GPW-6
- Page 1 Pantent No. US 7,543,681 B2 User Manual - Ghost In-wall Speakers GPW-6 GPW-8 Thank you for purchasing this TruAudio product. Like all of our products, if installed correctly, these speakers will bring you years of outstanding listening enjoyment. Please make sure you take the time to read the complete instruction manual before starting the installation.
- Page 2 (part number If the speaker hole has not been BB-GW6 for GPW-6 speakers, cut from the drywall please or part number BB-GW8 for read the following instructions: GPW-8 speakers) that can be purchased separately. If you Find the location to where the...
- Page 3 wire. We suggest stripping enough so that 3/8” of sure to check all the way around the grill to ensure its copper wire is showing. Push down each post and sitting on the speaker evenly. insert the speaker cable. The posts will be located on the back of the speaker on the crossover.
- Page 4 GPW-6 GPW-8 Specs: In-Wall, 2 Way Specs: In-Wall, 2 Way Woofers: 6 1/2" White Polypropylene Woofers: 8" White Polypropylene Tweeters: 1” silk soft dome Tweeters: 1” silk soft dome, swivel Power: 5 - 100 watts Power: 5 - 125 watts...
