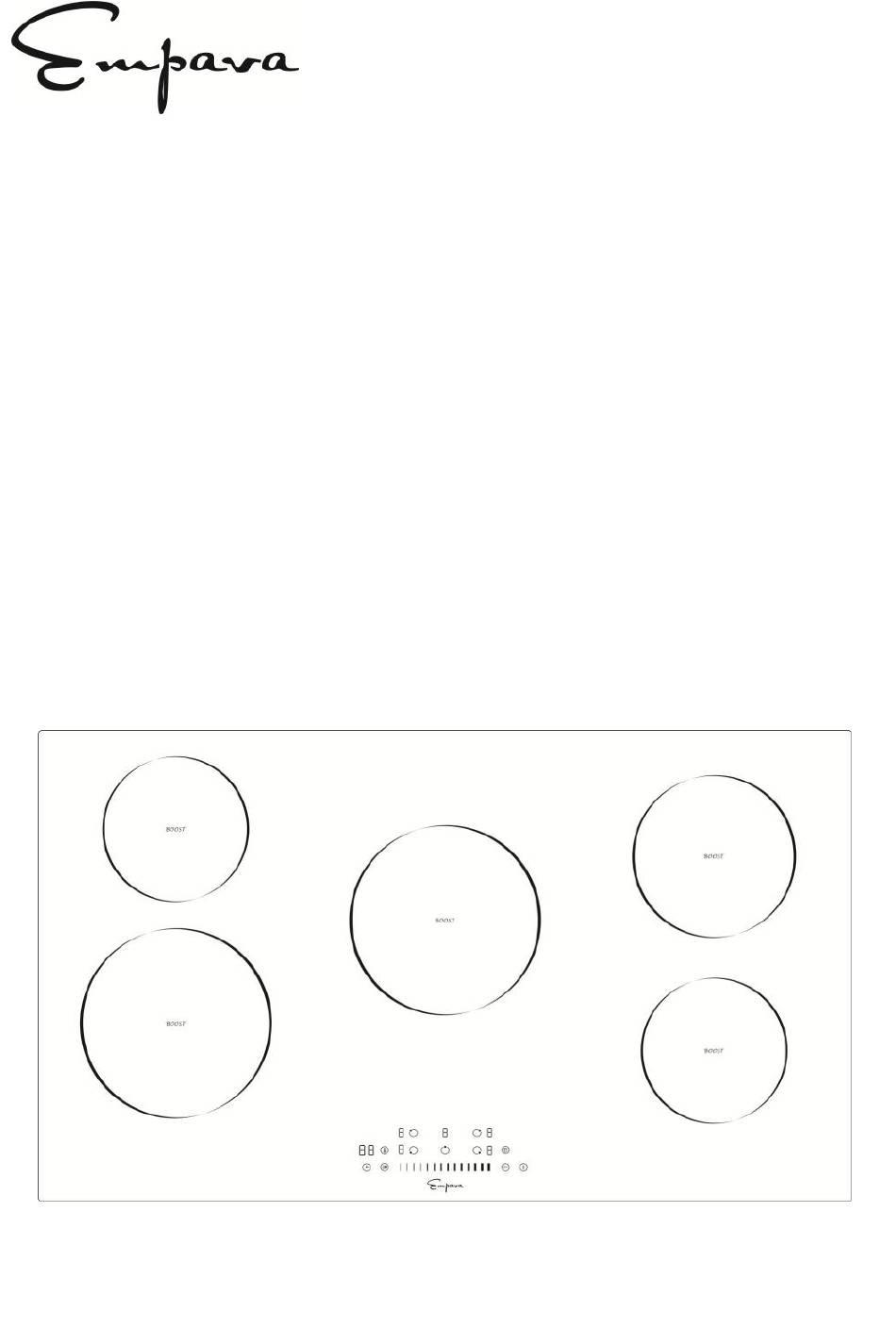

- Page 1 Induction Hob Instruction Manual / Installation Manual MODEL: EMPV-IDC12 EMPV-IDC24 EMPV-IDC30 EMPV-IDC36...
-
Page 2: Safety Warnings
SAFETY WARNINGS PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE. Installation Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. • Connection to a good earth wiring system is essential and mandatory. - Page 3 • This appliance is to be properly installed and earthed only by a suitably qualified person. • This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply. • WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance.
- Page 4 • During use, accessible parts of this appliance will become hot enough to cause burns. • Do not let your body, clothing or any item other than suitable cookware contact the ceramic glass until the surface is cool. • Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get •...
- Page 5 • Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured. • Do not leave children alone or unattended in the area where the appliance is in use. •...
- Page 6 • Care should be taken to avoid touching heating elements. • Children less than 8 years of age shall be kept away unless continuously supervised. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the...

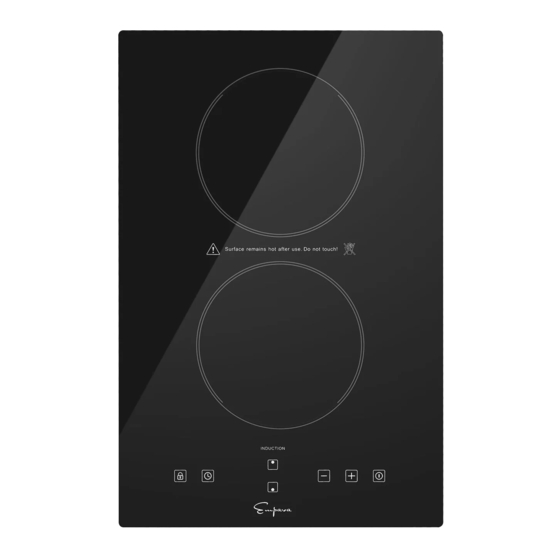

- Page 7 Product Overview Top View 1. max. 1200W 2. max. 1800 W 3. Control panel EMPV-IDC12 1. max. 1800/2100 W 2. max. 1200/1500 W 3. max. 1800/2100 W 4. max. 1200/1500 W 5. Control panel EMPV-IDC24 1. max. 1200/1500 W 2. max. 2300/3000 W 3.
-
Page 8: The Control Panel
2. max. 1200/1500 W 3. max. 1800/2100 W 4. max. 1800/2100 W 5. max. 1200/1500 W 6. Control panel EMPV-IDC36 The Control Panel EMPV-IDC12 EMPV-IDC24 1. ON/OFF switch 4. Child lock 7. Keep warm 2. Select power level 5. Select heating zone 8. -
Page 9: Product Information
EMPV-IDC30 EMPV-IDC36 1. ON/OFF switch 4. Child lock 7. Keep warm 2. Select power level 5. Select heating zone 8. Pause 3. Setting the timer 6. Boost control Product Information The ceramic/induction hob can meet different kinds of cuisine demands because of resistance wire heating, micro-computerized control and multi-power selection, really the optimal choice for modern families. -
Page 10: Before Using Your New Hob
iron pot magnetic circuit ceramic glass plate induction coil induced currents Before using your New Hob • Read this guide, taking special note of the „Safety Warnings‟ section. • Remove any protective film that may still be on your ceramic hob. Remove any protective film that may still be on your Induction hob. -
Page 11: Using Your Hob
Cookware made by the following materials is not suitable: pure stainless steel, • aluminum or copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware. Size of burner (mm) The minimum cookware (diameter /mm) Do not use cookware with jagged edges or a curved base. Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. -
Page 12: When You Have Finished Cooking
Using Boost function For EMPV-IDC12 EMPV-IDC24 EMPV-IDC36 Only Activate the boost function 1. Select the zone with boost function (front left zone). 2. Touching... -
Page 13: Using The Keep Warm Function
Cancel Boost function 1. Select the zone with boost function (front left zone). 2. Touching the “slider” to cancel the Boost function, and select the level you want to set. • Boost function can only last for 5 minutes, after that the zone will go to level 9 automatically. -
Page 14: Locking The Controls
2. Touching the pause control one more time, all the hearting zones will revert to its original setting. The function is available the one or more hearting zones is working. If you don`t cancel the stop working mode within 30 minutes, the induction hob ... -
Page 15: Auto Shutdown
Auto Shutdown safety feature of the hob is auto shut down. This occurs whenever you forget to switch off a cooking zone. The default shutdown times are shown in the table below: Power level Default working timer (hour) Using the Timer You can use the timer in two different ways: ... - Page 16 5. set the time by touching the “-“ “+” or touching the “slider”, now the timer you set is 95 minutes. 6. When the time is set, it will begin to count down immediately. The display will show the remaining time. 7.
- Page 17 6. When the time is set, it will begin to count down immediately. The display will show the remaining time. NOTE: There will be a red dot in the right bottom corner of power level indication which indicating that zone is selected. 7.
-
Page 18: Cooking Guidelines
Cooking Guidelines ke care when frying as the oil and fat heat up very quickly, particularly if you‟re using Boost. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk. Cooking Tips When food comes to the boil, reduce the power setting. •... -
Page 19: Heat Settings
Heat Settings Heat setting Suitability • delicate warming for small amounts of food 1 - 2 • melting chocolate, butter, and foods that burn quickly • gentle simmering • slow warming • reheating 3 - 4 • rapid simmering • cooking rice •... -
Page 20: Hints And Tips
Boilovers, melts, and Remove these immediately with a fish • Remove stains left by melts and hot sugary spills on slice, palette knife or razor blade sugary food or spillovers as soon the glass scraper suitable for ceramic glass as possible. If left to cool on the cooktops, but beware of hot cooking glass, they may be difficult to zone surfaces:... -
Page 21: Failure Display And Inspection
The induction hob makes a This is caused by the technology This is normal, but the noise should low humming noise when of induction cooking. quieten down or disappear completely used on a high heat setting. when you decrease the heat setting. Fan noise coming from the A cooling fan built into your This is normal and needs no action. -
Page 22: Technical Specification
Technical Specification Induction Hob EMPV-IDC12 Cooking Zones 2 Zones Supply Voltage 220-240V~ 50/60Hz Installed Electric Power 2900W Product Size D× W× H(mm) 290× 520× 58 Building-in Dimensions A× B (mm) 290× 490 Induction Hob EMPV-IDC24 Cooking Zones 4 Zones Supply Voltage... -
Page 23: Selection Of Installation Equipment
As shown below: Warning: The work surface material must use the impregnated wood or other insulation material. L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm) EMPV-IDC12 50 mini EMPV-IDC24 50 mini EMPV-IDC30 50 mini EMPV-IDC36 50 mini... - Page 24 Under any circumstances, make sure the hob is well ventilated and the air inlet and outlet are not blocked. Ensure the hob is in good work state. As shown below Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.
-
Page 25: Before Locating The Fixing Brackets
When you have installed the hob, make sure that • The power supply cable is not accessible through cupboard doors or drawers. There is adequate flow of air from outside the cabinetry to the base of the hob. • If the hob is installed above a drawer or cupboard space, a thermal protection barrier •... -
Page 26: Connecting The Hob To The Mains Power Supply
Cautions The hob must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. The hob shall not be mounted to cooling equipment, dishwashers and rotary dryers. The hob shall be installed such that better heat radiation can be ensured to enhance its reliability. - Page 28 This appliance is labeled in compliance with European directive 2002/96/EC for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.
