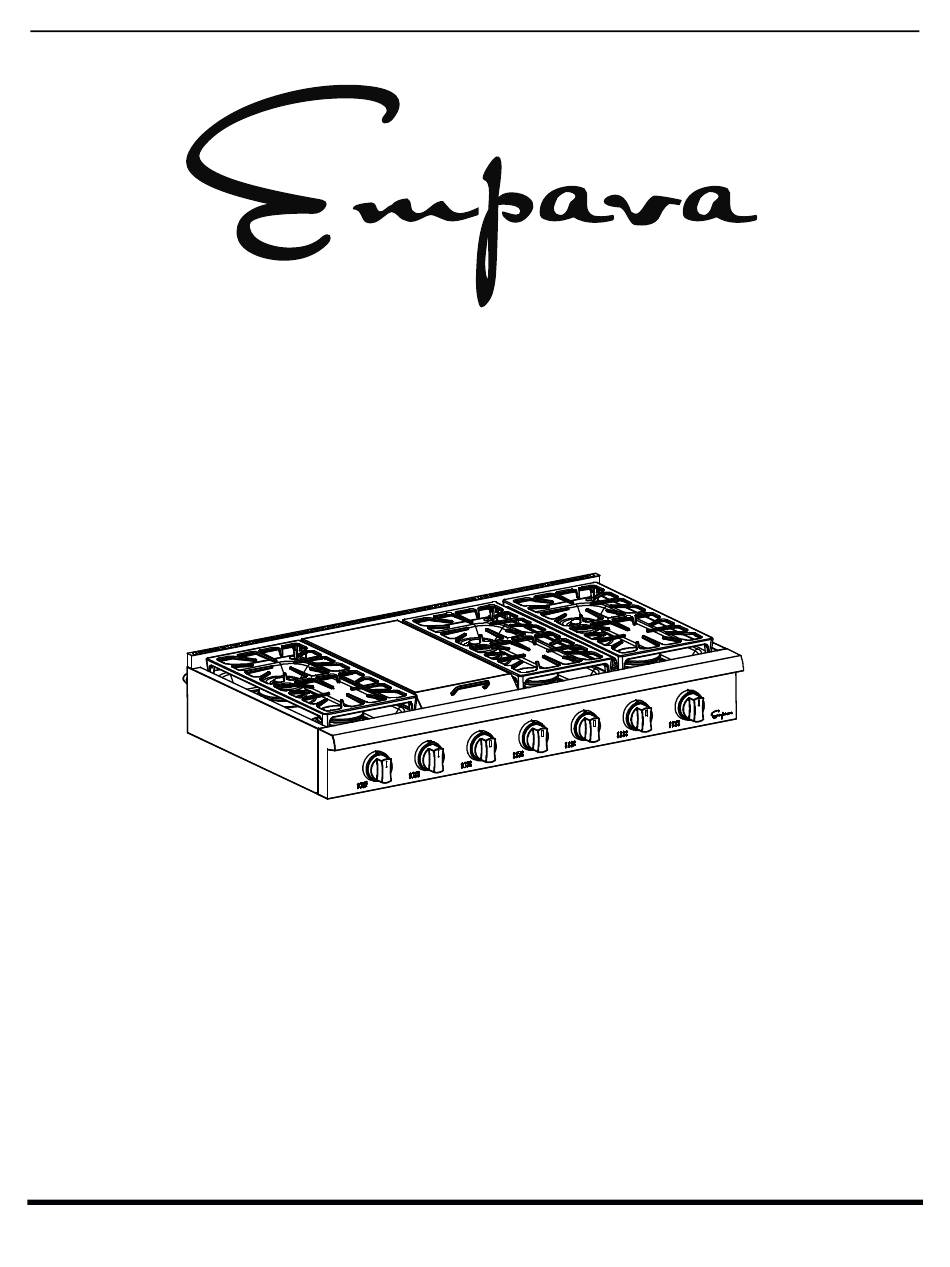

- Page 1 Empava Gas Rangetops PROFESSIONAL GAS RANGETOPS USER MANUAL & INSTALLATION GUIDE Models/ EMPV-30GC30 EMPV-36GC31 EMPV-48GC32...
-
Page 2: Important Note
Welcome & Congratula ons Welcome & Congratulations Congratulations on your purchase of a Empava rangetop! We are very proud of our products and are completely committed to provide you with the best cooking experience. Your satisfaction is our top priority. - Page 3 WARNING states a hazard that may cause grounded circuit breaker or me delay fuse. • serious injury or death if precau ons are no ollowed. Empava gas rangetop are manufacture for use with natural gas or liquid propane gas (LP).
-
Page 4: What To Do If You Smell Gas
flammable vapors and liquids in the vicinity o his or any other appliance. • A ven la on hood is recommended for use with the Empava Kitchen gas rangetop. In Massachuse s: Installa ons and repairs • must be performed by a qualified or licensed contractor, plumber or gasfi... - Page 5 By opening a window, using a ven la ng hood or fan can minimized the exposure to these substances. Proper installa on Empava gas rangetop must be properly installed and grounded by a qualified technician in accordance with the Na onal Fuel Gas Code ANSI Z223.1-latest edi on, and the Na onal Electrical Code ANSI/ NFPA No.70-latest edi on.
- Page 6 Empava Gas Rangetops WARNING! • DO NOT store any flammable materials near surface burners. The type of materials include paper, plas c and flammable liquids. • Do not store explosives, such as aerosol cans, on or near the range top •...
- Page 7 Empava Gas Rangetops Installa on Instruc ons Be sure the range top is properly installed and grounded by a qualified technician. It is the responsibility o he technician to make certain that your range top is properly installed. Situa ons cause by improper installa on are not covered under the warranty.
-
Page 8: Installation Clearances
Empava Gas Rangetops The installa on of range tops designed for recrea onal vehicle installa on must conform with state or other codes or, in the absence of such codes, with the standard for recrea onal vehicles. ANSI A119.2.2–1982 in the U.S.A. or CAN/CGA Z240.4.2 in Canada. - Page 9 Empava Gas Rangetops GAS RANGETOP SPECIFICATIONS Installa on without a range hood Note: All the measurement was based on 24” (61 cm) deep cabinet This range top may be installed directly adjacen o exis ng 36” (91.4 cm) high base cabinets.
- Page 10 Empava Gas Rangetops Installa on with a range hood Note: Minimum clearance for back wall is 0” with backsplash (backguard) or high shelf. If a range hood is installed above the range top, maintain a 30” (76.2 cm) minimum clearance between the rangetop and the bo om o he range hood.
- Page 11 Empava Gas Rangetops ELECTRICAL REQUIREMENTS Empava Gas Rangetop requires 110 volts, 50/60 Hz electrical supply to operate the ignition system. The power cord is a 3-prong grounding plug. The plug must be plugged into a mating outlet. Make sure there is a power outlet within the reach of the range top’s power supply cable (within 36 "/30 cm from the right side of the range top).
-
Page 12: Product Dimension
Empava Gas Rangetops PRODUCT DIMENSION Make sure the counter top cut-ou ollow the dimensions given in the illustra on below. The cabinetry material below rangetop must be non-combus ble material. - Page 13 Empava Gas Rangetops RANGETOP INSTALLATION ž Installa on and service must be performed by a qualified installer, service agency or the gas supplier. ž Remove the rangetop from its package and set aside all burners, burner caps and cooking grates.
- Page 14 This rangetop can be convert for use on Liquid propane gas (LPG). When using this range top on LPG gas, conversion must be made by a qualified installer before a emp ng to operate the range top on that gas. LP kit can be purchase from authorized Empava dealer or contact customer service for further assistant.
- Page 15 Empava Gas Rangetops Any opening in the wall behind the appliance and in the floor under the appliance shall be sealed. GUIDELINES FOR USING RANGE TOP BURNERS There are dual burners have the same low turn-down se ng (SIM) for gentle simmering (620 BTU/hr).
-
Page 16: Surface Burner Ignition
Empava Gas Rangetops SURFACE BURNER IGNITION To ligh he top burners, push and turn the appropriate control knob counter clockwise to the “HI” posi on. You will hear a clicking noise the sound o he electric spark igni ng the burner. Once burner igni on has been achieved, then turn the burner control knob to adjus he desired heat se ng. -
Page 17: Troubleshooting Tips
Empava Gas Rangetops TROUBLESHOOTING TIPS Symptom Possible Cause Solu on Burners will not light. Burner parts or igniters may be Check tha he burner parts are wet, dirty or misaligned. clean, dry and correctly assembled. Check tha he igniters are clean and dry. - Page 18 Empava Gas Rangetops Symptom Possible Cause Solu on Burner flame goes out at Low gas pressure. Contact gas company. low se ng. Remove obstruc on from air intake Air intake holes around holes. burners are obstructed. The flames have suddenly A dra or spill has Turn the burners off, cleaning the...
-
Page 19: Warranty And Service
The warranty does not apply to damage resul ng from abuse, accident, natural disaster, loss of electrical power to the produc or any reason, altera on, outdoor use, improper installa on, and improper opera on, repair or service o he product by anyone other than an authorized Empava, service agency or representa ve. - Page 20 5. Damage resul ng from misuse, altera on, accident, abuse, fire, flood, acts of God, improper installa on, installa on no n accordance with electrical, or use of consumables or cleaning products not approved by Empava. 6. Service to repair or replace consumable parts. Consumable parts are no ncluded in the warranty coverage.
-
Page 21: Warranty And Product Registration
Please enter the informa on requested in the spaces provided. Purchaser_____________________________ Purchase Date ____________________________ Model Number _ ________________________ Serial No. _ _______________________________ Where Purchased ______________________ E-mail Address _______________________________________________________________________ ote: You must provide proof of purchase to access your Empava warranty service.
Need help?
Do you have a question about the EMPV-30GC30 and is the answer not in the manual?
Questions and answers
Quiero convertir mi cosina de gas natural a gas propano , lo ise y no funciona que puedo hacer
To convert the Empava EMPV-30GC30 gas stove from natural gas to propane, follow these steps:
1. Purchase an LP Conversion Kit – The kit is sold separately and must be obtained from an authorized Empava dealer or customer service.
2. Hire a Qualified Installer – A certified technician must perform the conversion before operating the stove on propane.
3. Adjust the Pressure Regulator – Ensure the pressure regulator is correctly set for propane. The pressure should be between 10” and 12” of water column.
4. Check the Inlet Pressure – The inlet pressure must be at least 1” more than the operating manifold pressure.
5. Use a Proper Connector – A flexible metal appliance connector (max 3 feet/91.4 cm) should be used to connect the range top to the gas supply.
6. Ensure Proper Installation – The pressure regulator must remain in the supply line, regardless of the gas type.
If the stove is not working after conversion, verify that all steps were completed correctly and consult a qualified technician if needed.
