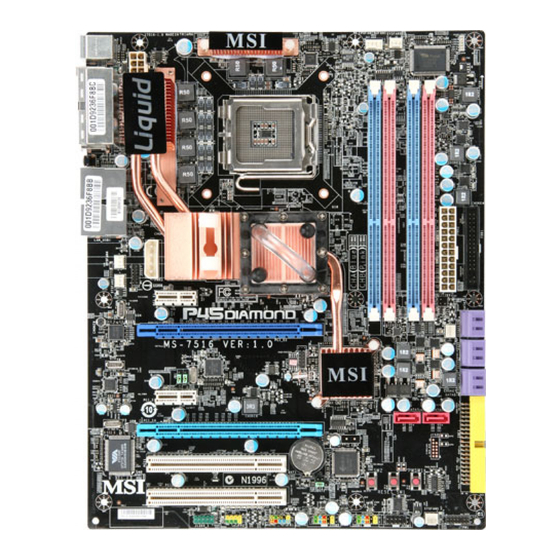

Summary of Contents for MSI P45 Diamond Series

  • Page 1 P45 Diamond series MS-7516 (v1.X) Mainboard G52-75161X1...

  • Page 2: Trademarks

    Alternatively, please try the following help resources for further guidance. Visit the MSI website for FAQ, technical guide, BIOS updates, driver updates, an d ot h er i n f orm at i on: h t t p: / / g l o ba l .

  • Page 3: Safety Instructions

    Safety Instructions Always read the safety instructions carefully. Keep this User’s Manual for future reference. Keep this equipment away from humidity. Lay this equipment on a reliable flat surface before setting it up. The openings on the enclosure are for air convection hence protects the equip- ment from overheating.

  • Page 4: Fcc-B Radio Frequency Interference Statement

    FCC-B Radio Frequency Interference Statement T h is eq uip men t h as been tested and found to c omply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 5: Weee (Waste Electrical And Electronic Equipment) Statement

    WEEE (Waste Electrical and Electronic Equipment) Statement...

  • Page 8: Table Of Contents

    CONTENTS Copyright Notice ......................ii Trademarks ........................ii Revision History ......................ii Technical Support ......................ii Safety Instructions ......................iii FCC-B Radio Frequency Interference Statement ............iv W EEE (Waste Electrical and Electronic Equipment) Statement ........v Chapter 1. Getting Started ..................1-1 Mainboard Specifications ...................
  • Page 9 Software Configuration ..................A-9 Appendix B Dual Core Center ................B-1 Activating Dual Core Center ................B-2 Main ........................B-3 DOT (Dynamic OverClocking) ................B-5 Clock ........................B-6 Voltage ......................... B-7 FAN Speed ......................B-8 Temperature ......................B-9 User Profile ......................B-10 Appendix C Intel ICH10R SATA RAID ..............

  • Page 10: Chapter 1. Getting Started

    Getting Started Chapter 1 Getting Started Thank you for choosing the P45 Diamond Series (MS- 7516 v1.X) ATX mainboard. The P45 Diamond Series mainboards are based on Intel ® P45 & ICH10R chipsets for optimal system efficiency. Designed to fit the ad- vanced Intel ®...

  • Page 11: Mainboard Specifications

    - Supports Intel Yorkfield, Wolfdale, Kentsfield, Conroe processors in ® the LGA775 package. (For the latest information about CPU, please visit http://global. msi.com.tw/index.php?func=cpuform) Supported FSB - 1600*(OC)/ 1333/ 1066/ 800 MHz * (For the latest information about CPU, please visit http://global. msi.com.tw/index.php?func=cpuform)
  • Page 12 Getting Started - 1 floppy port - Supports 1 FDD with 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB Connectors Back panel - 1 PS/2 mouse port - 1 PS/2 keyboard port - 2 eSATA ports (support Command Based Port Multipliers) - 8 USB 2.0 Ports - 2 LAN jack - 1 1394 port - 1 Clear CMOS button...

  • Page 13: Mainboard Layout

    S Y S FA N2 J1395 PCI _E1 PCI _E2 SYSFAN3 Intel ICH 10R SATA7 SATA8 PCI _E3 PCI _E4 BAT T JCI1 PCI1 JBAT1 PWSW1 SYSFAN1 PCI2 J1 394_1 JUSB2 JUSB1 JFP2 JFP1 JCOM1 JTPM1 P45 Diamond Series (MS-7516 v1.X) ATX Mainboard...

  • Page 14: Packing Checklist

    Getting Started Packing Checklist Back IO Shield MSI Driver/Utility CD MSI motherboard Power Cable SATA Cable IDE Cable 1394+USB Bracket external SATA Cable Floppy Cable (Optional) (Optional) CrossFire User’s Guide SATA to ESATA Bracket Video Link Cable (Optional) and Quick Guide * The pictures are for reference only and may vary from the packing contents of the product you purchased.
  • Page 15 M S-7516 M ainboard SATA HDD Power Cable (For SATA to ESATA 6/8mm Adapter x 2 6/10mm Adapter x 2 Bracket) (Optional) 6mm Clamp x 4 8mm Clamp x 2 10mm Clamp x 2 GreenPower Genie Set Tube x 2 (1 GreenPower genie &...

  • Page 16: Chapter 2. Hardware Setup

    Hardware Setup Chapter 2 Hardware Setup This chapter provides you with the information about hardware setup procedures. While doing the installation, be careful in holding the components and follow the installation procedures. For some components, if you install in the wrong orientation, the components will not work properly.

  • Page 17: Quick Components Guide

    M S-7516 M ainboard Quick Components Guide CPUFAN, SYSFAN5 PWR1, PWR3, CPU, JB1/2, p.2-17 p.2-12 p.2-12 p.2-3 p.2-21 DDR3, p.2-7 Back Panel, PWR2, p.2-13 p.2-12 FDD1, p.2-15 J1395, SYSFAN2/4, p.2-19 p.2-17 SYSFAN3, p.2-17 SATA1~8, PCIE, p.2-16 p.2-23 IDE1, p.2-15 PCI, PWSW1, p.2-24 p.2-22...

  • Page 18: Cpu (Central Processing Unit)

    W hen you are installing the CPU, make sure to install the cooler to prevent overheating. If you do not have the CPU cooler, consult your dealer before turning on the computer. For the latest information about CPU, please visit http://global.msi.com.tw/index.php? func=cpuform Important Overheating Overheating will seriously damage the CPU and system.
  • Page 19 M S-7516 M ainboard CPU & Cooler Installation W hen you are installing the CPU, make sure the CPU has a cooler attached on the top to prevent overheating. Meanwhile, do not forget to apply some thermal paste on CPU before installing the heat sink/cooler fan for better heat dispersion. Follow the steps below to install the CPU &...
  • Page 20 Hardware Setup 5. Lift the load lever up and open the 6. After confirming the CPU direction load plate. for correct mating, put down the CPU in the socket housing frame. Be sure to grasp on the edge of the CPU base. Note that the align- ment keys are matched.
  • Page 21 M S-7516 M ainboard 9. Press down the load lever lightly 10. Align the holes on the mainboard onto the load plate, and then se- with the heatsink. Push down the cure the lever with the hook under c ooler u nti l i ts f ou r c lip s g et retention tab.

  • Page 22: Memory

    Hardware Setup Memory These DIMM slots are used for installing memory modules. For more information on compatible components, please visit http://global.msi.com. tw/index.php?func=testreport DDR3 240-pin, 1.5V 72x2=144 pin 48x2=96 pin Dual-Channel mode Population Rule In Dual-Channel mode, the memory modules can transmit and receive data with two data bus lines simultaneously.
  • Page 23 M S-7516 M ainboard Installing Memory Modules 1. The memory module has only one notch on the center and will only fit in the right orientation. 2. Insert the memory module vertically into the DIMM slot. Then push it in until the golden finger on the memory module is deeply inserted in the DIMM slot.
  • Page 24 Hardware Setup W e recommend that you to use the available DDR3 memory modules as below. DDR3 800 M odule Size Nanya NT512C64B88A0NY-AD 512MB (Nanya NT5CB64M8AN-AD) Qimonda IMSH51U03A1F1C-08E 512MB (Qimonda IDSH51-03A1F1C-08E) Hynix HYMT112U64ZNF8-S6 (Hynix HY5TQ1G831ZNFP-S6) Nanya NT1GC64B8HA0NY-AD (Nanya NT5CB64M8AN-AD) Hynix HYMT125U64ZNF8-S6 (Hynix HY5TQ1G831ZNFP-S6) DDR3 1066...
  • Page 25 M S-7516 M ainboard DDR3 1066 M odule Size Elpida EBJ11UD8BAFA-AC-E (Elpida J5308BASE-AC-E) Hynix HYMT112U64ZNF8-G7 (Hynix HY5TQ1G831ZNF-G7) Qimonda IMSH1GU13A1F1C-10F (Qimonda IDSH51-03A1F1C-10F) Qimonda IMSH1GU13A1F1C-10G (Qimonda IDSH51-03A1F1C-10G) Apac er 78.01GC4.331 (Qimonda IDSH51-03A1F1C-10F) CORSAIR CM3X1024-1066C7 (with heatsinks) Crucial CT12864BA1067.8SFD (Micron D9JNL) KingMax FLED45F-A8EB7 [EEES] (Elpida J5308BASE-AE-E) Kingston KVR1066D3N7/1G...
  • Page 26 Hardware Setup DDR3 1333 M odule Size Kingston KVR1333D3N8/512 512MB (Qimonda IDSH51-03A1F1C-13G) Qimonda IMSH51U03A1F1C-13H 512MB (Qimonda IDSH51-03A1F1C-13H) TwinMOS 8H-CBJAEDAAUAT 512MB (ELPIDA J5308BASE-DG-E) Kingston KVR1333D3N8/1G (Qimonda IDSH51-03A1F1C-13G) Qimonda IMSH1GU13A1F1C-13H (Qimonda IDSH51-03A1F1C-13H) M378B5673CZ0-CH9 (SEC K4B1G0846C-ZCH9) Qimonda IMNH51U03A1F1C-13G 512MB (with heatsinks) KingMax FLFD45F-B8EE9 [EAES] (Elpida J1108BASE-DJ-E) Qimonda IMNH1GU13A1F1C-13G...

  • Page 27: Power Supply

    M S-7516 M ainboard Power Supply ATX 24-Pin Power Connector: PWR2 pin 13 This connector allows you to connect an ATX 24-pin power supply. To connect the ATX 24-pin power supply, make sure the plug of the power supply is inserted in the proper orientation and the pins are aligned.

  • Page 28: Back Panel

    Hardware Setup Back Panel USB Ports M ou se Keyboard eSATA Port 1394 USB Ports Port Clear CMOS Button M ouse/Keyboard The standard PS/2 mouse/keyboard DIN connector is for a PS/2 mouse/keyboard. ® ® 1394 Port The IEEE1394 port on the back panel provides connection to IEEE1394 devices. USB Port The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices.
  • Page 29 M S-7516 M ainboard Clear CMOS Button There is a CMOS RAM on board that has a power supply from external battery to keep the system configuration data. With the CMOS RAM, the system can automati- cally boot OS every time it is turned on. If you want to clear the system configuration, use the button to clear data.

  • Page 30: Connectors

    Hardware Setup Connectors Floppy Disk Drive Connector: FDD1 This connector supports 360KB, 720KB, 1.2MB, 1.44MB or 2.88MB floppy disk drive. FDD1 IDE Connector: IDE1 This connector supports IDE hard disk drives, optical disk drives and other IDE devices. IDE1 Important If you install two IDE devices on the same cable, you must configure the drives separately to master / slave mode by setting jumpers.
  • Page 31 M S-7516 M ainboard Serial ATA Connector: SATA1 ~ SATA8 This connector is a high-speed Serial ATA interface port. Each connector can connect to one Serial ATA device. SATA1 SATA3 SATA2 SATA4 SATA5 SATA6 SATA1~6 supported by ICH10R SATA7 SATA8 supported by Jmicron 363 Important Please do not fold the Serial ATA cable into 90-degree angle.
  • Page 32 Hardware Setup Fan Power Connectors: CPUFAN, SYSFAN1~5 The fan power connectors support system cooling fan with +12V. W hen connecting the wire to the connectors, always note that the red wire is the positive and should be connected to the +12V; the black wire is Ground and should be connected to GND. If the mainboard has a System Hardware Monitor chipset on-board, you must use a specially designed fan with speed sensor to take advantage of the CPU fan control.
  • Page 33 M S-7516 M ainboard IEEE1394 Connector: J1394_1 This connector allows you to connect the IEEE1394 device via an optional IEEE1394 bracket. Pin Definition SIGNAL SIGNAL TPA+ TPA- Ground Ground J1394_1 TPB+ TPB- Cable power Cable power Key (no pin) Ground IEEE1394 Bracket (Optional) TPM Module Connector: JTPM1 This connector connects to a TPM (Trusted Platform Module) module (optional).
  • Page 34 Hardware Setup Front Panel Connectors: JFP1, JFP2 These connectors are for electrical connection to the front panel switches and LEDs. The JFP1 is compliant with Intel ® Front Panel I/O Connectivity Design Guide. Power Power Switch Speaker JFP1 JFP2 Reset Power Switch JFP1 Pin Definition...
  • Page 35 M S-7516 M ainboard Front USB Connector: JUSB1/2 These connectors, compliant with Intel ® I/O Connectivity Design Guide, is ideal for connecting high-speed USB interface peripherals such as USB HDD, digital cameras, M P3 players, printers, modems and the like. Pin Definition SIGNAL SIGNAL...

  • Page 36: Jumper

    Hardware Setup Jumper The motherboard provides the following jumper for you to set the computer’s function. This section will explain how to change your motherboard’s function through the use of jumper. Hardware Overclock FSB Jumpers: JB1, JB2 (optional) You can overclock the FSB to increase the processor frequency by changing the jumpers JB1 and JB2.

  • Page 37: Button

    M S-7516 M ainboard Button The motherboard provides the following button for you to set the computer’s function. This section will explain how to change your motherboard’s function through the use of button. Power Button: PWSW1 This power button is used to turn-on or turn-off the system. Press the button to turn- on or turn-off the system.

  • Page 38: Slots

    Hardware Setup Slots PCI (Peripheral Component Interconnect) Express Slot The PCI Express slot supports the PCI Express interface expansion card. The PCI Express 2.0x 16 supports up to 8.0 GB/s transfer rate. The PCI Express x1 supports up to 250 MB/s transfer rate. PCI Express x16 Slots support up to PCI Express 2.0x16 speed (PCI_E2 &...
  • Page 39 M S-7516 M ainboard PCI (Peripheral Component Interconnect) Slot The PCI slot supports LAN card, SCSI card, USB card, and other add-on cards that comply with PCI specifications. 32-bit PCI Slot Important When adding or removing expansion cards, make sure that you unplug the power supply first.
  • Page 40 Hardware Setup ATi CrossFire (Multi-GPU) Technology ATi CrossFire (Multi-GPU) technology is an exciting new technology developed by ATI that allows the power of multiple Graphics. CrossFire requires a CrossFire Edition graphics card and a compatible standard Radeon (CrossFire Ready) graphics card from the same series.
  • Page 41 M S-7516 M ainboard 3.W hen all of the hardware and software has been properly set up and installed, reboot the system. After entering the O.S., click the “Catalyst™ Control Center” icon on the desktop. There is a setting in the Catalyst™ Control Center that needs to be enabled for CrossFire™...

  • Page 42: Led Status Indicators

    Hardware Setup LED Status Indicators Phase LEDs Phase LEDs Standby Power PCIE LEDs Phase LEDs LEDs D-LED Name Status CPU Phase LEDs 6/ 5/ 4/ 3/ 2/ 1 of the LEDs will light blue when CPU is in 6/ 5/ 4/ 3/ 2/ 1 phase power mode. NB Phase LEDs 2/ 1 of the LEDs will light blue when NB is in 2/ 1 phase power mode.
  • Page 43 M S-7516 M ainboard D-LED These four LED groups allow users to identify system problems through 16 various combinations of LED signals. T hes e LED s wi ll T hes e LED s wi ll light Green color. light Red color. Green light Red light Description...

  • Page 44: Water Cooling Accessories Installation

    Hardware Setup Water cooling accessories installation This section describes from installing tubeing on the north bridge water block to the adapters. A complete water-cooling system consists of waterblock, tubing, pump, radiator and reservoir. To complete the water-cooling system safely you have to purchase separate pumps, radiators and reservoirs etc..
  • Page 45 M S-7516 M ainboard 3. Slip the 6mm clamp over the tubing. 4. Attach the tubing to the water block and use pliers to cinch the 6mm clamps over the tubing and waterblock 5. Clip the tubing as shown in the figure below. 6.
  • Page 46 Hardware Setup Important Leak Test Water will cause serious damage to the mainboard and peripherals. Before you turn the computer on, we suggest that you do leak test for 24 hours and make sure no leaks are occurring. Choose Tubing It is not necessary to use the provided tubing to setup up your water cooling system.

  • Page 47: Chapter 3 Bios Setup

    BIOS Setup Chapter 3 BIOS Setup This chapter provides information on the BIOS Setup program and allows you to configure the system for optimum use. You may need to run the Setup program when: ² An error message appears on the screen during the system booting up, and requests you to run SETUP.

  • Page 48: Entering Setup

    M S-7516 M ainboard Entering Setup Power on the computer and the system will start POST (Power On Self Test) process. W hen the message below appears on the screen, press <DEL> key to enter Setup. Press DEL to enter SETUP If the message disappears before you respond and you still wish to enter Setup, restart the system by turning it OFF and On or pressing the RESET button.
  • Page 49 BIOS Setup Control Keys < ↑> Move to the previous item < ↓> Move to the next item < ←> Move to the item in the left hand < →> Move to the item in the right hand Select the item <Enter>...

  • Page 50: The Main Menu

    M S-7516 M ainboard The Main Menu Standard CM OS Features Use this menu for basic system configurations, such as time, date etc. Advanced BIOS Features Use this menu to setup the items of AMI ® special enhanced features. Integrated Peripherals Use this menu to specify your settings for integrated peripherals.
  • Page 51 BIOS Setup User Settings Use this menu to save or load settings. Load Fail-Safe Defaults Use this menu to load the default values set by the BIOS vendor for stable system performance. Load Optimized Defaults Use this menu to load the default values set by the mainboard manufacturer specifi- cally for optimal performance of the mainboard.

  • Page 52: Standard Cmos Features

    M S-7516 M ainboard Standard CMOS Features The items in Standard CMOS Features Menu includes some basic setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item. Date (MM:DD:YY) This allows you to set the system to the date that you want (usually the current date).
  • Page 53 BIOS Setup Device / Vender / Size It will showing the device information that you connected to the SATA connector. LBA/Large M ode This allows you to enable or disable the LBA Mode. Setting to Auto enables LBA mode if the device supports it and the devices is not already formatted with LBA mode disabled.
  • Page 54 M S-7516 M ainboard System Information Press <Enter> to enter the sub-menu, and the following screen appears. This sub-menu shows the CPU information, BIOS version and memory status of your system (read only).

  • Page 55: Advanced Bios Features

    BIOS Setup Advanced BIOS Features Full Screen LOGO Display This item enables you to show the company logo on the bootup screen. Settings are: [Enabled] Shows a still image (logo) on the full screen at boot. [Disabled] Shows the POST messages at boot. Quick Booting Setting the item to [Enabled] allows the system to boot within 10 seconds since it will skip some check items.
  • Page 56 M S-7516 M ainboard Primary Graphic’s Adapter This setting specifies which graphic card is your primary graphics adapter. PCI Latency Timer This item controls how long each PCI device can hold the bus before another takes over. W hen set to higher values, every PCI device can conduct transactions for a longer time and thus improve the effective PCI bandwidth.
  • Page 57 BIOS Setup Boot Sequence Press <Enter> to enter the sub-menu and the following screen appears: 1st/ 2nd/ 3rd/ 4th Boot Device The items allow you to set the first/ second/ third/ fourth boot device where BIOS attempts to load the disk operating system. Boot From Other Device Setting the option to [Yes] allows the system to try to boot from other device.

  • Page 58: Integrated Peripherals

    M S-7516 M ainboard Integrated Peripherals USB Controller This setting allows you to enable/disable the onboard USB controller. USB Device Legacy Support Select [Enabled] if you need to use a USB-interfaced device in the operating system. Onboard LAN Controller This item is used to enable/disable the onboard LAN controller. Onboard 2nd LAN Controller This item is used to enable/disable the onboard 2nd LAN controller.
  • Page 59 BIOS Setup RAID M ode This item allows you to enable/ disable the extra SATA RAID function. Select [RAID] will enable RAID. On-Chip ATA Devices Press <Enter> to enter the sub-menu and the following screen appears: PCI IDE BusMaster This item allows you to enable/ disable BIOS to used PCI busmastering for reading/ writing to IDE drives.

  • Page 60: Power Management Setup

    M S-7516 M ainboard Power Management Setup Important S3-related functions described in this section are available only when your BIOS supports S3 sleep mode. ACPI Function This item is to activate the ACPI (Advanced Configuration and Power Management Interface) Function. If your operating system is ACPI-aware, such as W indows 2000/ XP, select [Enabled].
  • Page 61 BIOS Setup Power Button Function This feature sets the function of the power button. Settings are: [On/ Off] The power button functions as normal power off button. [Suspend] W hen you press the power button, the computer enters the suspend/sleep mode, but if the button is pressed for more than four seconds, the computer is turned off.
  • Page 62 M S-7516 M ainboard Resume by RTC Alarm The field is used to enable or disable the feature of booting up the system on a scheduled time/date. 3-16...

  • Page 63: H/W Monitor

    BIOS Setup H/W Monitor Chassis Intrusion The field enables or disables the feature of recording the chassis intrusion status and issuing a warning message if the chassis is once opened. To clear the warning message, set the field to [Reset]. The setting of the field will automatically return to [Enabled] later.

  • Page 64: Green Power

    M S-7516 M ainboard Green Power Energy Save W hen set to [Enabled], the system will NOT supply power to the empty PCIE slots, PCI slots, SATA ports etc. for saving power. CPU/ DDR/ MCH Phase Control W hen set to [Auto], the hardware will auto adjust the CPU/ DDR/ MCH power phase according to the loading of CPU / DDR / MCH to reach the best power saving function.

  • Page 65: Bios Setting Password

    BIOS Setup BIOS Setting Password W hen you select this function, a message as below will appear on the screen: Type the password, up to six characters in length, and press <Enter>. The password typed now will replace any previously set password from CMOS memory. You will be prompted to confirm the password.

  • Page 66: Cell Menu

    M S-7516 M ainboard Cell Menu Important Change these settings only if you are familiar with the chipset. Current CPU / DRAM Frequency These items show the current clocks of CPU and Memory speed. Read-only. Multi-step OC Booster This item is used to avoid overclocking failure to initialize the operating system or boot.
  • Page 67 D.O.T Control This item allows users to select either/both of CPU and PCIE to be controlled under D. O.T. The D.O.T. (Dynamic Overclocking Technology) is an automatic overclocking function, included in the MSI ’s newly developed Dual CoreCell Technology. It is designed to detect the load balance of CPU while running programs, and to adjust the best frequency automatically.
  • Page 68 M S-7516 M ainboard Adjusted CPU FSB Frequency (MHz) It shows the adjusted CPU frequency (FSB x Ratio). Read-only. Advance DRAM Configuration Press <Enter> to enter the sub-menu and the following screen appears. MEMORY-Z Press <Enter> to enter the sub-menu and the following screen appears. DIM M1/2/3/4 Memory SPD Information Press <Enter>...
  • Page 69 BIOS Setup FSB/DRAM Ratio This item will allow you to adjust the FSB/Ratio of the memory. Adjusted DRAM Frequency (MHz) It shows the adjusted DDR Memory frequency. Read-only. ClockGen Tuner Press <Enter> to enter the sub-menu and the following screen appears. CPU Clock Drive/ PCI Express Clock Drive These items are used to select the CPU/ PCI Express clock amplitude.
  • Page 70 M S-7516 M ainboard Important 1. If you do not have any EMI problem, leave the setting at [Disabled] for optimal system stability and performance. But if you are plagued by EMI, select the value of Spread Spectrum for EMI reduction. 2.
  • Page 71 BIOS Setup CPU and Memory Clock Overclocking The D.O.T Control, Adjust CPU FSB Frequency, Adjust CPU Ratio, FSB/Memory Ratio are the items for you to overclock the CPU and the Memory. Please refer to the descriptions of these fields for more information. Important 1.
  • Page 72 M S-7516 M ainboard User Settings Save Settings 1/2 Select this item and press “Enter” to save any changes you have made to your current settings. Load Settings 1/2 Select this item and press “Enter” to load settings from the store. 3-26...

  • Page 73: Load Fail-Safe/ Optimized Defaults

    BIOS Setup Load Fail-Safe/ Optimized Defaults The two options on the main menu allow users to restore all of the BIOS settings to the default Fail-Safe or Optimized values. The Optimized Defaults are the default values set by the mainboard manufacturer specifically for optimal performance of the mainboard.

  • Page 74: Appendix A X-Fi Xtreme Audio (Optional

    X-Fi Xtreme Audio Card Appendix A X-Fi Xtreme Audio Card The X-Fi Xtreme Audio card is powered by Creative CA0110 Audio chip. It supports up to 8-channel & SPDIF audio effect and allows users to attach 2, 4, 6, or 8 speakers for better surround sound effect.

  • Page 75: Introduction

    M S-7516 M ainboard Introduction X-Fi Xtreme Audio Card is powered by Creative CA0110 Digital Audio Controller. This card provides advanced audio functions by offering a comprehensive suite of software applications. The advanced tools and amazing features provided will allow you to experience a full array of exciting activities, such as listening to effects enhanced music, watching a multi-channel movie, playing the latest game or recording a high quality audio track.
  • Page 76 X-Fi Xtreme Audio Card Features High Definition Audio Quality - 144-pin LQFP ASIC with 64 audio channel playback at independent sample rates - 24-bit Analog-to-Digital conversion of analog inputs at 96kHz sample rate - 24-bit Digital-to-Analog conversion of digital sources at 96kHz to analog 7.1 speaker output - 16-bit and 24-bit recording with sampling rates of 8, 11.025, 16, 22.05, 24, 32, 44.1, 48 and 96kHz...

  • Page 77: Hardware Installation

    M S-7516 M ainboard Hardware Installation Installing the Card The interface of X-Fi Xtreme Audio Card is PCI-E x1. You can install it to the PCI-E x1 slot. Follow the steps below to install the card, then you can activate the advanced function and enjoy the audio effect.
  • Page 78 X-Fi Xtreme Audio Card Connecting the Speakers W hen you have set the Multi-Channel Audio Function mode properly in the software utility, connect your speakers to the correct jacks in accordance with the setting in software utility. n 2-Channel M ode for 2-Speaker Output Refer to the diagram and caption for the function of each jack on the back panel when 2-Channel Mode is selected.
  • Page 79 M S-7516 M ainboard n 6-Channel M ode for 6-Speaker Output Refer to the diagram and caption for the function of each jack on the back panel when 6-Channel Mode is selected. 6-Channel Analog Audio Output 1 S/PDIF Out-Optical 2 MIC & Line-In 3 Line Out (Front channels) 4 No function 5 Line Out (Center and Subwoofer channel)

  • Page 80: Installing The Creative Audio Driver

    X-Fi Xtreme Audio Card Installing the Creative Audio Driver You need to install the driver for Creative CA0110 to function properly before you can get access to 2-, 4-, 6- or 8- channel and SPDIF audio operations. Follow the proce- dures below to install the drivers for W indows 2000/ XP/ VISTA operating system.
  • Page 81 M S-7516 M ainboard 3. Select your region from the list . 4. Select the language that you need from the list . 5. On the next page, click Install to start the installation and follow the setup instruc- tions to complete. 6.

  • Page 82: Software Configuration

    X-Fi Xtreme Audio Card Software Configuration After installing the creative audio driver, you are able to use the 2-, 4-, 6- or 8- channel and the SPDIF audio features. Double click on the creative volume control audio icon from the system tray at the lower-right corner of the screen to activate the Sound Blaster X-Fi Xtreme Audio Applications, simply click on each icon to enter the configuration screen.
  • Page 83 M S-7516 M ainboard Creative M ediaSource Go! Launcher Click on the Creative MediaSource Go! Launcher icon to enter its configuraton screen. Creatvie MediaSource Go! Launcher consists of various tabs such as Programs, Product Settings, Product Support and Companion Products. In each tab, you can access different applications, called Tasks.
  • Page 84 X-Fi Xtreme Audio Card Soundfont Bank Manager Click on the SOUNDFONT BANK MANAGER icon to enter its configuraton screen. ® W ith SoundFont Bank Manager (SFBM), you can: click on this button to get the online help information - Load SoundFont banks Replace the default sounds on your computer with the high-quality sound of a SoundFont bank.
  • Page 85 M S-7516 M ainboard Creative MediaSource Play/ Organizer Click on the Creative MediaSource Play/ Organizer icon to enter its configuraton screen. Creative MediaSource Player/ Oraganizer is your digital music center for playing , creating, organizing and transferring digital music. This is your ultimate all-in-one digital entertainment software.
  • Page 86 X-Fi Xtreme Audio Card Entertainment M ode Console Click on the Entertainment Mode icon to enter its configuraton screen. In Entertainment Mode, you audio device is optimized for movie soundtrack and music playback. You can configure Entertainment Mode settings in the Entertainment Mode consloe. W ith the Entertainment Mode console, you can: click on this button to get the online help information - Adjust master volume or speaker volume, bass and treble levels.
  • Page 87 M S-7516 M ainboard The following table lists the function of each control on the main interface. Close button - Click on this button to close the Entertainment Mode console. Minimize button - Click on this button to minimize the Entertainment Mode window to the task bar.
  • Page 88 X-Fi Xtreme Audio Card Speaker & Headphone Click on the speaker button to enter its configuration screen. Here you can adjust your speakers configuration. Select the type of your speaker system, and adjust the volume and cuff frequency for your subwoofer. This is the main application to use for the following tasks: - Designating the number and configuration of speakers to use =>...
  • Page 89 M S-7516 M ainboard X-Fi CMSS-3D Click on the X-Fi CMSS-3D button to enter its configuration screen. Creative MultiSpeaker Surround (CMSS) 3D makes ordinary two-channel (Left and Right Stereo) sound seem to surround you, even through only two speakers. For users with 5.1, 6.1, 7.1 multichannel speaker systems, CMSS can also simulate surround sound from ordinary stereo.

  • Page 90: Appendix B Dual Core Center

    Dual Core Center Dual CoreCenter, the most useful and powerful utility that MSI has spent muc h researc h and ef forts to develop, helps users to monitor or configure the hard- ware status of MSI Mainboard & MSI Graphics card in windows, such as CPU/GPU clock, voltage, fan speed and temperature.

  • Page 91: Activating Dual Core Center

    Activating Dual Core Center Once you have your Dual Core Center installed (locate the setup source file in the setup CD accompanying with your mainboard, path: Utility --> MSI Utility --> Dual Core Center), it will have an icon in the system tray, a short cut icon on the desktop, and a short cut path in your “Start-up”...

  • Page 92: Main

    Dual Core Center Main Before using this utility, we have to remind you: only when installing the MSI V044 (V044 has to install with the version 8.26 or newer driver)/ V046 or V060 graphics card can activate the full function of this utility. If you install a graphics card of other brand, only hardware status of the MSI mainboard would be available.
  • Page 93 M S-7516 M ainboard AV/ Game/ Office/ Silence/ Cool MSI provides five common settings for different environments. The settings had been set to optimal values to reac h better performanc e in eac h environment. Click the button you need.

  • Page 94: Dot (Dynamic Overclocking

    Dual Core Center DOT (Dynamic OverClocking) Dynamic Overclocking Technology is an automatic overclocking function, included in the MSI ’s newly developed Dual CoreCenter Technology. It is designed to detect the loading of CPU/ GPU while running programs, and to over-clock automatically. When...

  • Page 95: Clock

    M S-7516 M ainboard Clock In the Clock sub-menu, you can see clock status (including FSB/ CPU clock of mainboard and GPU/ memory clock of graphics card) of your system. And you can select desired value for overclocking. There will be several items for you to select for overclocking after you click button.

  • Page 96: Voltage

    Dual Core Center Voltage In the Voltage sub-menu, you can see voltage status (including Vcore, memory, GPU voltage... etc.) of your system, and you can select desired value for overclocking. It will show several items to select for overclocking after you click the button.

  • Page 97: Fan Speed

    M S-7516 M ainboard FAN Speed In the FAN Speed sub-menu, you can read fan status of your system. Select higher speed for better cooling effect. There are several sections for you to change the fan speed to a section after clicking button.

  • Page 98: Temperature

    Dual Core Center Temperature In the Temperature sub-menu, you can see temperature status of your system. On the underside, it shows the graphs of the temperatures. Only the curves of the item which the button is lit up with red color will be shown.

  • Page 99: User Profile

    M S-7516 M ainboard User Profile In the User Profile sub-menu, click the setting button that besides the user profile bar, and the next screen will appear. Here you can define the clock/ fan speed/ voltage by your need, click the button to choose a value quickly, or click the plus / minus sign button to...
  • Page 100 Dual Core Center Use the draw bar to set the max system temperature. W hen the system temperature exceeds the threshold you defined, the system will pop up a warning message and shut down the system. Use the draw bar to set the minimal fan speed. When the fan speed is lower than the threshold you defined, the system will pop up a warning message.

  • Page 101: Appendix C Intel Ich10R Sata Raid

    Intel ICH10R SATA RAID Appendix C Intel ICH10R SATA RAID This appendix will assist users in configuring and en- abling RAID functionality on platforms...

  • Page 102: Ich10R Introduction

    M S-7516 M ainboard ICH10R Introduction The ICH10R provides a hybrid solution that combines 6 independent SATAII ports for support of up to 6 Serial ATAII (Serial ATAII RAID) drives. Serial ATAII (SATAII) is the latest generation of the ATA interface. SATA hard drives deliver blistering transfer speeds up to 3Gb/s.

  • Page 103: Bios Configuration

    Intel ICH10R SATA RAID BIOS Configuration The Intel Matrix Storage Manager Option ROM should be integrated with the system BIOS on all motherboards with a supported Intel chipset. The Intel Matrix Stroage Manager Option ROM is the Intel RAID implementation and provides BIOS and DOS disk services.
  • Page 104 M S-7516 M ainboard After pressing the <Ctrl> and <I> keys simultaneously, the following window will appear: (1) Create RAID Volume Select option 1 “Create RAID Volume” and press <Enter> key. The following screen appears. Then in the Name field, specify a RAID Volume name and then press the <TAB>...
  • Page 105 Intel ICH10R SATA RAID In the Disk field, press <Enter> key and the following screen appears. Use <Space> key to select the disks you want to create for the RAID volume, then click <Enter> key to finish selection. Then select the strip value for the RAID array by using the “upper arrow” or “down arrow”...
  • Page 106 M S-7516 M ainboard Important Since you want to create two volumes (Intel Matrix RAID Technology), this default size (maximum) needs to be reduced. Type in a new size for the first volume. As an example: if you want the first volume to span the first half of the two disks, re-type the size to be half of what is shown by default.
  • Page 107 Intel ICH10R SATA RAID (2) Delete RAID Volume Here you can delete the RAID volume, but please be noted that all data on RAID drives will be lost. Important If your system currently boots to RAID and you delete the RAID volume in the Intel RAID Option ROM, your system will become unbootable.
  • Page 108 M S-7516 M ainboard (3) Reset Disks to Non-RAID Select option 3 Reset Disks to Non-RAID and press <Enter> to delete the RAID volume and remove any RAID structures from the drives. The following screen appears: Press <Y> key to accept the selection. Important 1.
  • Page 109 Intel ICH10R SATA RAID (4) Recovery Volume Options Select option 4 Recovery Volume Options and press <Enter> to change recovery volume mode. The following screen appears: Recovery mode will change from Continuous Update to On-Request after you enable Only Recovery Disk or Only Master Disk.

  • Page 110: Installing Driver

    Please follow the instruction below to make an “Intel RAID Driver” for ® yourself. 1. Insert the MSI CD into the CD-ROM drive. 2. Click the “Browse CD” on the Setup screen. 3. Copy all the contents in \\IDE\Intel\ICH10R\Floppy to a formatted floppy diskette.
  • Page 111 Intel ICH10R SATA RAID † Existing Windows Vista/XP/2000 Driver Installation 1. Insert the MSI CD into the CD-ROM drive. 2. The CD will auto-run and the setup screen will appear. 3. Under the Driver tab, click on Intel IAA RAID Edition.

  • Page 112: Installing Software

    For this reason, you cannot remove or un-install this driver from the system after installation; however, you will have the ability to un-install all other non-driver components. Insert the MSI CD and click on the Intel IAA RAID Editor to install the software. Click on this item C-12...
  • Page 113 Intel ICH10R SATA RAID The InstallShield Wizard will begin automatically for installation showed as following: Click on the Next button to proceed the installation in the welcoming window. C-13...
  • Page 114 M S-7516 M ainboard The window shows the components to be installed. Click Next button to continue. After reading the license agreement in the following window, click Yes button to continue. C-14...
  • Page 115 Intel ICH10R SATA RAID The following window appears to show the Readme File Information. It shows the system requirements and installation information. Once the installation is complete, the following window appears. C-15...

  • Page 116: Raid Migration Instructions

    M S-7516 M ainboard RAID Migration Instructions The Intel Matrix Storage Console offers the flexibility to upgrade from a single Serial ATA (SATA) hard drive to RAID configuration when an additional SATA hard drive is added to the system. This process will create a new RAID volume from an existing disk.
  • Page 117 Intel ICH10R SATA RAID Create RAID Volume from Existing Disk To create a RAID volume from an existing disk, choose Action --> Create RAID Volume from Existing Hard Drive. The Create RAID Volume from Existing Hard Drive Wizard pops up to lead you for the following procedure.
  • Page 118 M S-7516 M ainboard (1) Configure Volume Here you can configure the new RAID volume by entering the volume name, selecting the RAID level and strip size. † RAID Volume Name: A desired RAID volume name needs to be typed in where the ‘RAID_Volume1’ text currently appears above.
  • Page 119 Intel ICH10R SATA RAID expensive (requiring read-in prior to write, in order to be able to calculate the correct parity information), or similar to RAID-1 writes. The write efficiency depends heavily on the amount of memory in the machine, and the usage pattern of the array.
  • Page 120 M S-7516 M ainboard (3) Select Member Hard Drive(s) Then select the member disk (the target disk) that you wish to use and then click “- -->” to move it to the Selected field. Then click Next to continue. Please note that the existing data on the selected hard drive(s) will be deleted permanently.
  • Page 121 Intel ICH10R SATA RAID (4) Specify Volume Size Specify the amount of available array space to be used by the new RAID volume. You may enter the amount in the space or use the slider to specify. It is recommended you use 100% of the available space for the optimized usage.
  • Page 122 M S-7516 M ainboard (6) Start Migration The migration process may take up to two hours to complete depending on the size of the disks being used and the strip size selected. A dialogue window will appear stating that the migration process may take considerable time to complete, meanwhile a popup dialogue at the taskbar will also show the migration status.

  • Page 123: Recovery Volume Creation

    Intel ICH10R SATA RAID Recovery Volume Creation A recovery volume can be created using either Basic mode or Advanced mode in the Intel Matrix Storage Console. Recovery Volume in Basic Mode Creation Important Creating a recovery volume will permanently delete any existing data on the drive selected as the recovery drive.
  • Page 124 M S-7516 M ainboard Recovery Volume in Advanced Mode Creation Important Creating a recovery volume will permanently delete any existing data on the drive selected as the recovery drive. Back up all important data before beginning these steps. To create a recovery volume in Advanced mode, use the following steps: (1) Open the Intel Matrix Storage Console.
  • Page 125 Intel ICH10R SATA RAID (6) Select a hard drive to be used as the master hard drive for the recovery volume. (7) Select a hard drive to be used as the recovery hard drive for the recovery volume. C-25...
  • Page 126 M S-7516 M ainboard (8) Select an update policy. (9) Select Finish to begin recovery volume creation. C-26...

  • Page 127: Degraded Raid Array

    Intel ICH10R SATA RAID Degraded RAID Array A RAID 1, RAID 5 or RAID 10 volume is reported as degraded when one of its hard drive members fails or is temporarily disconnected, and data mirroring is lost. As a result, the system can only utilize theremaining functional hard drive member. To re- establish data mirroring and restore data redundancy, refer to the procedure below that corresponds to the current situation.
  • Page 128 M S-7516 M ainboard 5. Exit Intel RAID Option ROM, and then reboot to W indows system. 6. W hen prompted to rebuild the RAID volume, click 'Yes'. 7. The Intel(R) Storage Utility will be launched. Right-click the new hard drive and select 'Rebuild to this Disk'.

  • Page 129: Appendix D Jm Icron Raid Introduction

    Appendix D JMicron RAID Introduction This appendix will assist users in configuring and enabling RAID functionality on platforms The JMicron RAID solution supports RAID level 0 (striping), RAID level 1 (mirroring) and J BOD (Concatenate). Important...

  • Page 130: Introduction

    M S-7516 M ainboard Introduction JMicron JMB363 offers RAID level 0 (Striping), RAID level 1 (Mirroring and Duplexing) and JBOD (Concatenate). RAID 0 breaks the data into blocks which are written to separate hard drives. Spreading the hard drive I/O load across independent channels greatly improves I/O performance. RAID 1 provides data redundancy by mirroring data between the hard drives and provides enhanced read performance.

  • Page 131: Jmicron Raid Bios Utility

    JMicron RAID JMicron RAID BIOS Utility Be sure to set RAID mode for the JMicron 36x ATA Controller in BIOS before configuring the JMicron BIOS utility. After that, save the configuration and exit. During boot up (POST), press CTRL+J to enter the JMicron BIOS RAID utility. The RAID Utility menu screen will be displayed.
  • Page 132 M S-7516 M ainboard Creating RAID set 1. Select “Create RAID Disk Drive”. Then press <Enter>. 2. Then in the Name field, specify a RAID set name and then press the <Enter> to go to the next field. 3. Choose a 0-Striped, a 1-Mirror, or a JBOD-Concatenate combination set and then press <Enter>...
  • Page 133 JMicron RAID 4. In the Hard Disk Disk List menu, use <Space> key to select the disks you want to create for the RAID set, then click <Enter> key to finish selection. 5. Then select the block value (stripe value) for the RAID array by using the “upper arrow”...
  • Page 134 M S-7516 M ainboard 6. Then select the capacity of the RAID set in the Size field. The default value is the maximum capacity of the selected disks. Then press <Enter> to the Confirm Crea- tion field. 7. The Creation field will display a message to ask you to confirm the creation. Then press <Y>...
  • Page 135 JMicron RAID Deleting RAID set 1. Select “Delete RAID Disk Drive”. Then press <Enter>. 2. In the RAID Disk Driver List menu, use <Space> key to select the RAID set you want to delete. Then press <Del> key. 3. Press “Y” to accept the deletion when a deletion message is appeared.
  • Page 136 M S-7516 M ainboard Revert HDD to non-RAID Select Revert HDD to non-RAID and press <Enter>. In the Hard Disk Driver List menu use <Space> key to select the disks you want to revert then click <Enter> key. The following screen appears, press <Y> key to remove any RAID structures from the drives.
  • Page 137 JMicron RAID Solving a Mirror Conflict A Mirror conflict occurs when both disks in a RAID 1 (Mirror) configuration are unplugged from the system in turn, then plugged in again. Since both disks contain exactly the same data, the system will be unable to determine which of the two is the source drive.
  • Page 138 M S-7516 M ainboard Rebuilding a Mirror drive W hen one of the disk in a RAID 1 (Mirror) configuration is unplugged from the system, then plugged in again, a dialogue box appears to ask you to rebuild the Mirror drive. Press <Y>...

  • Page 139: Installing Driver

    Please follow the instruction below to make an “JMicron RAID Driver” for yourself. 1. Insert the MSI CD into the CD-ROM drive. 2. Click the “Browse CD” on the Setup screen. 3. Copy all the contents in the \\IDE\JMicron\Floppy32 (for 32-bit OS) or \\IDE\JMicron\Floppy64 (for 64-bit OS) to a formatted floppy disk.
  • Page 140 M S-7516 M ainboard † Existing Windows Vista/XP Driver Installation 1. Insert the MSI CD into the CD-ROM drive. 2. The CD will auto-run and the setup screen will appear. 3. Under the Driver tab, click on JMicron Drivers. 4. The drivers will be automatically installed.

  • Page 141: Jmicron Raid Configurer

    JMicron RAID JMicron Raid Configurer There is an application called JMRaidTool which helps you perform the following tasks of JMicron RAID. • Viewing RAID Array Configurations View an array configuration (mirrored, striped) • Creating RAID Arrays • Deleting a RAID Array •...
  • Page 142 M S-7516 M ainboard Create RAID JMRaidTool supports the creation of RAID 0, 1 and JBOD. 1. Left-click the “Create Raid” button. 2. A CREATE RAID W IZARD dialogue will display on the screen, following the descrip- tion of every step to complete the creation. Create RAID from Existing Disk You can combine the Existing Disk (Source disk may content OS and Data) with other HD (must be larger than source Disk) to be RAID.
  • Page 143 JMicron RAID Remove RAID There are two ways you can choose to remove RAID. Way 1 1. Right-click the name of the disk array you want to delete and the “Remove” menu will appear. Select the “Remove Raid” of the pop-up menu. 2.
  • Page 144 M S-7516 M ainboard Way2 1. Left-Click the “Remove Raid” icon on the toolbar. 2. A “REMOVE RAID” wizard dialogue will display on the screen, following the de- scription of every step to complete the deletion. Rebuild RAID RAID 1 can be rebuilt while RAID 0, JBOD cannot be rebuilt. There are two ways you can choose to rebuild RAID.
  • Page 145 JMicron RAID 2. Select “Rebuild Raid”. 3. A “REBUILD RAID W IZARD” dialogue will display on the screen, following the description of every step to complete the rebuilding. Way 2 1. If the disk array needs to rebuild then the rebuild button will be enabling on the toolbar.
  • Page 146 M S-7516 M ainboard 2. Left-Click the “Rebuild Raid” button on the toolbar. 3. A “REBUILD RAID W IZARD” dialogue will display on the screen, following the description of every step to complete the rebuilding. Solve Mirror Conflict If the conflict occurs, it will show the “REBUILDING RAID W IZARD” dialogue to ask you if you want to rebuild RAID, following the description of every step to rebuild the RAID.

This manual is also suitable for:

Ms-7516

Table of Contents
