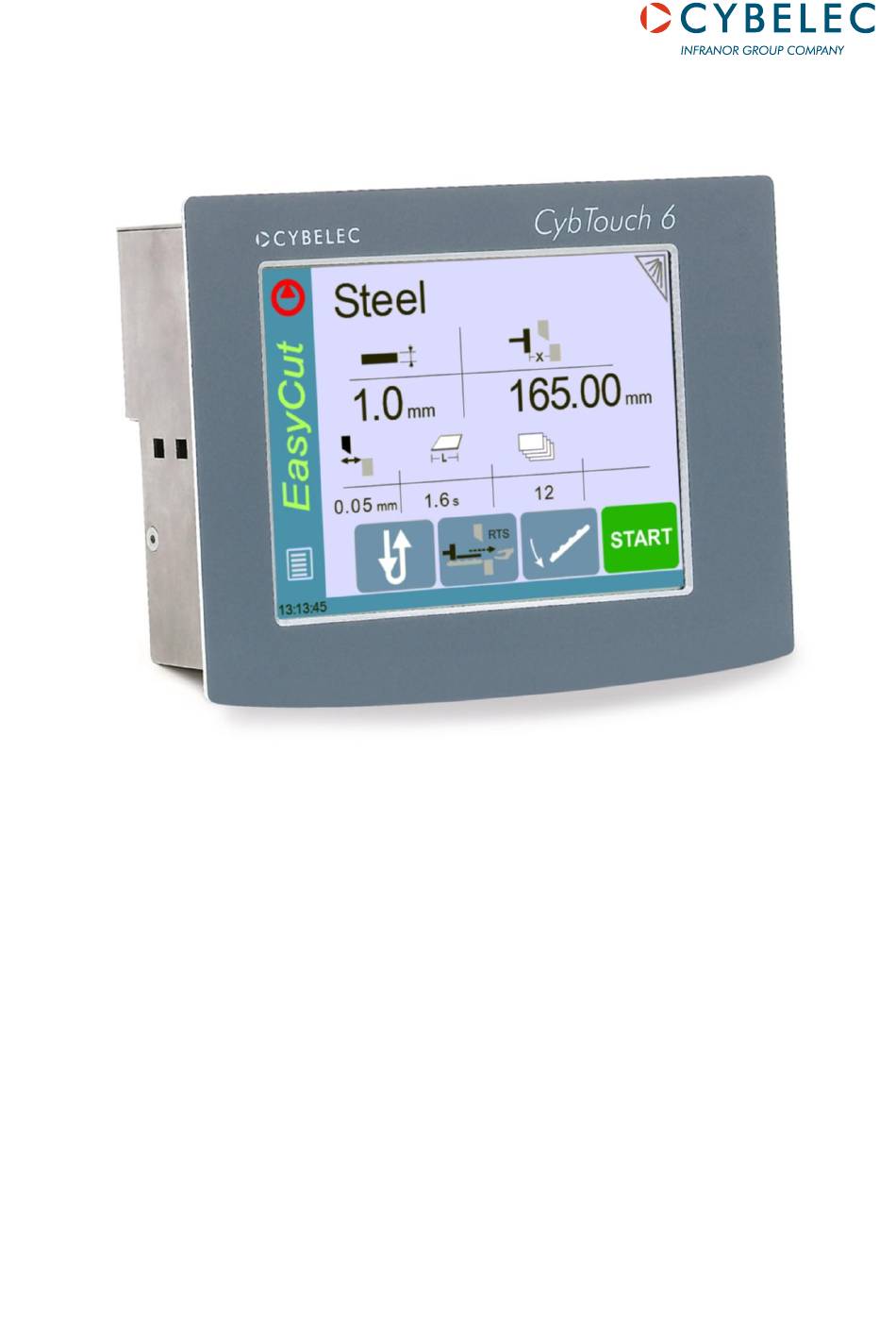

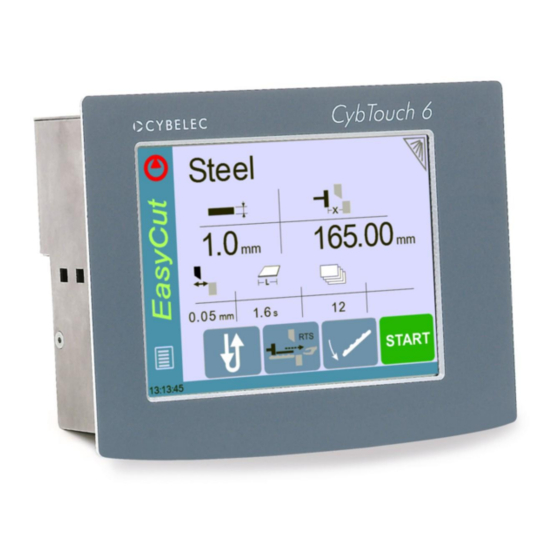

- Page 1 CybTouch 6 W-G Swing Shears & Adjustable Rake Angle Shears User Manual V2.4c...
-
Page 2: Table Of Contents
v2.4c 03.04.12 ABLE OF CONTENTS Getting Started..............................3 General Introduction ............................3 Selecting your Language ............................. 3 Using EasyCut Page ............................4 Basic Screen Description............................4 Starting the Pump Motor ............................ 4 Making a Basic Cut with EasyCut Page ....................... 5 Programs ................................ -
Page 3: Getting Started
TARTED ENERAL NTRODUCTION This user manual is for the CybTouch 6 W (swing shear) – G adjustable rake angle (shear) numerical control (Dec. 2011). Due to software evolutions and the shear controlled by the CybTouch (configuration/capabilities), the present manual may not fully correspond to the CybTouch that you currently have. -
Page 4: Using Easycut Page
v2.4c 03.04.12 SING ASIC CREEN ESCRIPTION Current cycle activity information* Material used Clean Screen Pump On / Off (off here)* Back gauge position icon Material thickness icon Back gauge position value Material thickness value Length of the cut (inactive) Number of pieces to cut (inactive)* Start –... -
Page 5: Making A Basic Cut With Easycut Page
v2.4c 03.04.12 AKING A ASIC UT WITH Material Touch the field to chose the material type used. Material thickness Touch the value. Enter the material thickness. Validate. Back gauge position Touch the value and enter the value using the keyboard. START Touch or briefly press the foot-... -
Page 6: Programs
v2.4c 03.04.12 ROGRAMS ROGRAM Menu In EasyCut page, touching the button opens the below program menu: What is a program? A program is a set of different sequences (cuts) that should be executed one after the other in order to obtain a complete part. A program can be stored in memory and can be recalled again later for a same job order. -
Page 7: Creating A Basic New Program
v2.4c 03.04.12 REATING A ASIC ROGRAM New Program Touch in the program menu to begin creating a new program. Here we will create a program with two sequences: OF PROGRAM EQUENCE BASIC PROPERTIES FOR THE PROGRAM Choose the material and its thickness like in the EasyCut page. -
Page 8: Of Program: Sequence 2, Properties For Second Cut Of Program
v2.4c 03.04.12 OF PROGRAM EQUENCE PROPERTIES FOR SECOND CUT OF PROGRAM Back gauge position Touch the value and enter the value using the keyboard. Go back to the first sequence created by Previous page touching the button. Pump Turn on the pump, by touching the On –... -
Page 9: Extra Cutting Features
v2.4c 03.04.12 XTRA UTTING EATURES There are various other features to help the operator to perform tasks. These features can be used in both in EasyCut mode or for programs. The below table regroups and describes all buttons and features available on the CybTouch 6: *Functions with an asterisk (*) are not available on all machines, depending on the CybTouch version and the machine type. - Page 10 v2.4c 03.04.12 The back gauge is parked and is not used. This function is used for cuts which do not require a back gauge. Back gauge foldaway The cutting length can be activated or deactivated by touching this button. The operator can enter a cut length value by touching the value below this button.
-
Page 11: Using Current Program
v2.4c 03.04.12 Return to sender function is ready; the operator can press and hold this button as long as needed to make the back gauge move the cut piece towards him in order to retrieve it. A specific button can Return to sender* ready be added to the machine to use the return function. -
Page 12: Other Menus
v2.4c 03.04.12 THER ENUS Other Touching displays the menu below: ANUAL OVEMENT Manual movements Other Touching in the menu displays the below page. This page allows the operator to manually move the axes and functions. This icon remains inactive. The beam moves down as long as the foot pedal is pressed down. -
Page 13: Language
v2.4c 03.04.12 Language Language Touch and select your language in the list. Event Viewer Allows the operator to view a log file to trace problems. Usually requested and used by a technician to solve any possible problems. Touchscreen Calibration Allows the touchscreen to be calibrated. To be more precise, it is recommended to use a plastic pen tip and gently touch the center of each cross when asked. -
Page 14: Service
v2.4c 03.04.12 Here the default characteristics for each material can be changed, or a new material and its corresponding characteristics can be configured in the CybTouch: Material: Selected material name (here Steel). Default thickness: Default thickness for the material (here when you call the material. -
Page 15: Maintenance
v2.4c 03.04.12 AINTENANCE Maintenance screen displays the free memory space in the CybTouch and the fragmentation rate. The Maintenance screen is also used for the following actions: Formatting memory: Only use this with a technician’s help. Creating internal data backups Machine parameters and axis parameters. -
Page 16: Information
v2.4c 03.04.12 NFORMATION Information Touching displays all information regarding: Hardware Boot version RF link (Radio Frequency link) HMI (Human –Machine Interface) Real Time Advanced Touching the button displays more detailed information. ACHINE TATUS Choose to make the machine status screen accessible or not while working. - Page 17 v2.4c 03.04.12 NFORMATION AND RROR ESSAGES Below is a list of warning and error messages which may be displayed in the interactive message line: Information messages are on a green background, they will disappear automatically. Error messages (machine or NC errors) are on a red background. They inform the user of an error occurring on the machine or NC, and sometimes require intervention by the end user or a technician.
- Page 18 v2.4c 03.04.12 19 //Sac destek X güvenliği A safety zone is defined while using the sheet support. The sheet support can't be used while X is programmed in that zone. 20 //Döngü Tekrarı = 0 Cannot start cycle because repeat cycle function is set to “0”. 21 //Malzeme tanımlı...
