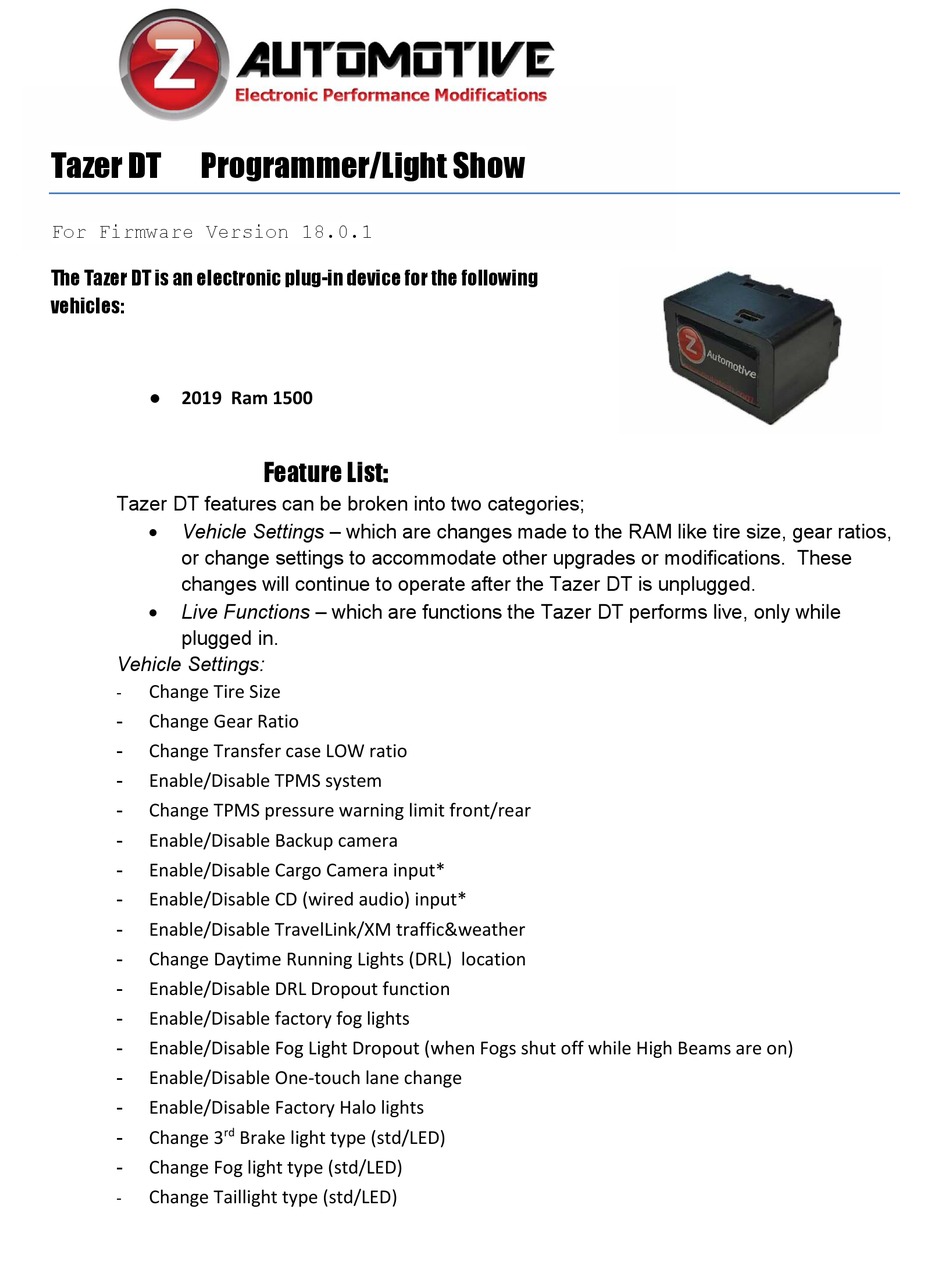

Tazer DT
Programmer/Light Show
For Firmware Version 18.0.1
The Tazer DT is an electronic plug-in device for the following
vehicles:
● 2019 Ram 1500
Tazer DT features can be broken into two categories;
Vehicle Settings – which are changes made to the RAM like tire size, gear ratios,
or change settings to accommodate other upgrades or modifications. These
changes will continue to operate after the Tazer DT is unplugged.
Live Functions – which are functions the Tazer DT performs live, only while
plugged in.
Vehicle Settings:
Change Tire Size
-
Change Gear Ratio
-
Change Transfer case LOW ratio
-
Enable/Disable TPMS system
-
Change TPMS pressure warning limit front/rear
-
Enable/Disable Backup camera
-
Enable/Disable Cargo Camera input*
-
Enable/Disable CD (wired audio) input*
-
Enable/Disable TravelLink/XM traffic&weather
-
-
Change Daytime Running Lights (DRL) location
Enable/Disable DRL Dropout function
-
Enable/Disable factory fog lights
-
-
Enable/Disable Fog Light Dropout (when Fogs shut off while High Beams are on)
Enable/Disable One-touch lane change
-
Enable/Disable Factory Halo lights
-
rd
Change 3
-
Change Fog light type (std/LED)
-
Change Taillight type (std/LED)
-
Feature List:
Brake light type (std/LED)
Advertisement
Related Manuals for Automotive Tazer DT
Summary of Contents for Automotive Tazer DT
- Page 1 These changes will continue to operate after the Tazer DT is unplugged. Live Functions – which are functions the Tazer DT performs live, only while plugged in. Vehicle Settings: Change Tire Size...
- Page 2 Button Mapping: Use cruise up, down and right buttons as quick-access to some of Tazer JL’s functions, when cruise control is off Firmware updates – new firmware is available periodically, always free and posted to the Z Automotive website. Use ZPU programming utility, also on the website, to load the firmware.
-
Page 3: Installation
The Tazer DT is intended to be left plugged in, as many of its features (Live Functions) only work when installed. The Tazer DT will go to sleep by itself, 30 seconds after the RAM shuts down. - Page 4 Wait about 60 seconds AFTER the dash goes dark, then re-enter. this twice. The setup menu is accessed with the ignition ON but engine NOT running. The menu items are listed in the order in which they will display. Light Show : Though this is not a setting, it’s in the settings menu so that the light shows can be activated also when the engine is off –...
- Page 5 Set Backup Camera : If factory backup camera is deleted, this setting will disable it. Set Cargo Cam: This will enable the “cargo cam” selector on the “controls” screen. Useful for front cameras. Set DVD_CD This setting adds the CD input on the RA3/RA4 radio, for use as an aux input, particularly useful if adding a media player or DVD player.
- Page 6 Submenu Other: Set AUX: This setting is to configure the vehicle for AUX button package. Set Blind Spot: This setting is to configure the vehicle for blind spot detection package. Set Belt ding: This setting is to delete the seat belt reminder chime. The reminder icon will remain on the dash.
- Page 7 TurnCAM: If enabled, will automatically turn on the backup camera if the turn signals are being used. When this is enabled, In-motion nav will be disabled. AutoFold: If enabled, will automatically retract and extend the power folding mirrors (if equipped) with ignition.
- Page 8 ZPU Programming Utility. The ZPU User Guide explains how to install ZPU and how to perform firmware updates. The Tazer DT does not need to be connected to a vehicle in order to use ZPU. Please see the accompanying “Light Show Configuration Guide” to configure your Tazer JL’s light show...
- Page 9 Z Automotive cannot be held responsible misuse or consequential damages. If you are in doubt, email techsupport@zautotech.com. Please be aware that modifying your vehicle in any way can affect your vehicle’s warranty, longevity, handling, etc. Please use with caution, and AT YOUR OWN RISK. USING THE LIGHT SHOW FEATURE ON PUBLIC ROADS, IMPERSONATING A POLICE OFFICER IS A FELONY.
