This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to
service or repair the products dealt with in this service information by anyone else could result in serious injury or death.
In order to avoid frostbite, be assured of no refrigerant leakage during the installation or repairing of refrigerant circuit.

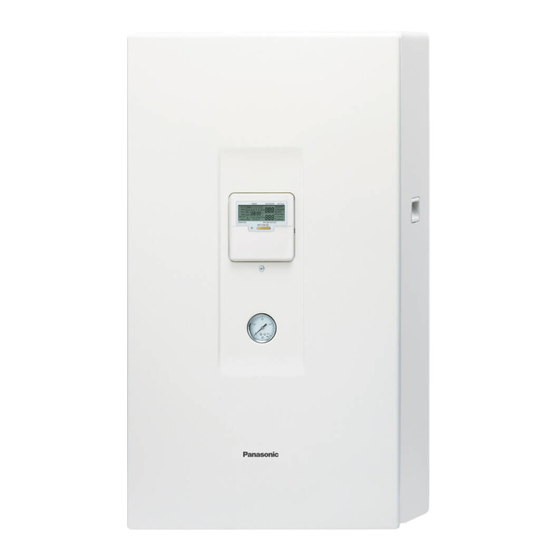

Indoor Unit
WH-SDC12F6E5
WH-SDC14F6E5
WH-SDC16F6E5
WARNING
PRECAUTION OF LOW TEMPERATURE
Order No: PAPAMY1404034CE
Outdoor Unit
WH-UD12FE5
WH-UD14FE5
WH-UD16FE5
Destination
Europe
© Panasonic Corporation 2014.
Advertisement
Table of Contents
Related Manuals for Panasonic WH-SDC12F6E5
Summary of Contents for Panasonic WH-SDC12F6E5
- Page 1 PRECAUTION OF LOW TEMPERATURE In order to avoid frostbite, be assured of no refrigerant leakage during the installation or repairing of refrigerant circuit. © Panasonic Corporation 2014.
-
Page 2: Safety Precautions
1. Safety Precautions Read the following “SAFETY PRECAUTIONS” carefully before perform any servicing. Electrical work must be installed or serviced by a licensed electrician. Be sure to use the correct rating and main circuit for the model installed. ... - Page 3 WARNING 19. The unit is only for use in a closed portable water system. Utilization in an open water circuit or non-portable water circuit, may lead to excessive corrosion of the water piping and risk of incubating bacteria colonies, particularly Legionella, in water. 20.
- Page 4 WH-SDC16F6E5 WH-UD16FE5 Item Unit Outdoor Unit Performance Test Condition EUROVENT Condition A35W7 (Ambient/Water) 12.20 Cooling Capacity BTU/h 41600 kcal/h 10490 2.56 Cooling EER kcal/hW 2.20 Condition A7W35 A2W35 (Ambient/Water) 16.00 13.00 Heating Capacity BTU/h 54600 44300 kJ/h 13760 11180 4.28 3.28 Heating COP kcal/hW...
- Page 5 Item Unit Outdoor Unit ø Single Power Source (Phase, Voltage, Cycle) Condition A35W7 A7W35 A2W35 (Ambient/Water) Input Power Cooling: 4.76 Heating: 3.74 Heating: 3.96 Maximum Input Power For Heatpump System 5.74 Power Supply 1 : Phase (Ø) / Max. Current (A) / Max. Input Power (W) 1Ø...
- Page 6 Item Unit Indoor Unit Volume Expansion Vessel Capacity of Integrated Electric Heater 6.00 Note: Cooling capacities are based on outdoor air temperature of 35°C Dry Bulb with controlled indoor water inlet temperature of 12°C and water outlet temperature of 7°C. ...
- Page 7 3. Features Inverter Technology - Energy saving High Efficiency Environment Protection - Non-ozone depletion substances refrigerant (R410A) Long Installation Piping - Long piping up to 30 meter with height difference 20 meter - Flexible 4-way piping for outdoor unit ...
- Page 8 4.1.4 Main Components Control panel Pressure relief valve Flow switch Pressure gauge Water pump 1 phase RCCB/ELCB Connector name 1 phase RCCB/ELCB Water Outlet Cabinet front plate Gas Refrigerant Cabinet Liquid Refrigerant Handle (2 pieces) Water drainage Overload protector (3 pieces) Water inlet Heater assembly Expansion vessel...
-
Page 9: Outdoor Unit
Outdoor Unit Air inlet (rear) Air inlet (side) Air outlet... -
Page 10: Indoor Unit
5. Dimensions Indoor Unit <Top View> <Front View> <Side View> 35 98 107 115 155 <Bottom View> 205.5 98.5 Relative position between the indoor unit and the installation plate <Front View> 213.5 213.5 140.7 140.7 Installation 306.4 Plate Indoor unit external dimensions line Unit: mm... - Page 11 Outdoor Unit <Top View> <Side view> <Front View> <Side View> 318.5 <Back view> Unit: mm...
-
Page 12: Refrigeration And Water Cycle Diagram
6. Refrigeration and Water Cycle Diagram Outdoor Indoor Side Side Water Pressure Gauge Expansion Liquid Vessel Water Capillary Side Flow Expansion (3-Way Tube Switch Valve Strainer Strainer Valve) Water Inlet (Connect Water Pipe Pump Sanitary Temp. Tank) Sensor Pipe Defrost Temp. -
Page 13: Wiring Connection Diagram
8. Wiring Connection Diagram Indoor Unit... - Page 14 Outdoor Unit...
-
Page 15: How To Adjust Water Flow Rate [Service Mode: 02]
In AIR PURGE function, the pump will operate ON and OFF for 10 minutes to purge the air in the hydraulic system. Press again the FORCE button to exit AIR PURGE function. PUMP SPEED ADJUST MODE will stop operation. (WH-SDC12F6E5) (WH-SDC14/16F6E5) 15.6... - Page 16 19.1.3 WH-SDC16F6E5 WH-UD16FE5 Heating Characteristics at Different Outdoor Air Temperature Condition Outdoor air temperature : 7°C (DBT), 6°C (WBT) Indoor water inlet temperature : 30°C Indoor water outlet temperature : 35°C Piping length : 7 m 17.500 16.000 14.500 13.000 11.500 10.000 Outdoor Temperature (°C)
- Page 17 Cooling Characteristics at Different Outdoor Air Temperature Condition Outdoor air temperature : 35°C (DBT), -°C (WBT) Indoor water inlet temperature : 12°C Indoor water outlet temperature : 7°C Piping length : 7 m 16.000 14.000 12.000 10.000 8.000 6.000 Outdoor Temperature (°C) 5.500 4.500 3.500...
- Page 18 Cooling Characteristics at Different Outdoor Air Temperature Condition Outdoor air temperature : 35°C (DBT), -°C (WBT) Indoor water inlet temperature : 19°C Indoor water outlet temperature : 14°C Piping length : 7 m 22.000 20.000 18.000 16.000 14.000 12.000 Outdoor Temperature (°C) 6.500 5.500 4.500...
- Page 19 Cooling Characteristics at Different Outdoor Air Temperature Condition Outdoor air temperature : 35°C (DBT), -°C (WBT) Indoor water inlet temperature : 23°C Indoor water outlet temperature : 18°C Piping length : 7 m 17.000 15.000 13.000 11.000 9.000 7.000 Outdoor Temperature (°C) 5.500 4.500 3.500...
- Page 20 Heating Characteristics at Different Piping Length Condition Outdoor air temperature : 7°C (DBT), 6°C (WBT) Indoor water inlet temperature : 30°C Indoor water outlet temperature : 35°C Piping length : 7 m 17.000 16.500 16.000 15.500 15.000 14.500 Piping Length (m) 4.200 4.000 3.800...
- Page 21 Cooling Characteristics at Different Piping Length Condition Outdoor air temperature : 35°C (DBT), -°C (WBT) Indoor water inlet temperature : 12°C Indoor water outlet temperature : 7°C Piping length : 7 m 13.500 12.500 11.500 10.500 9.500 8.500 Piping Length (m) 5.000 4.900 4.800...
-
Page 22: Heating Capacity Table
19.2 Heating Capacity Table 19.2.1 WH-SDC12F6E5 WH-UD12FE5 Water Out (°C) Input Input Input Input Input Input Capacity Capacity Capacity Capacity Capacity Capacity Outdoor Air (°C) Power Power Power Power Power Power 9300 3460 8900 3620 8500 3790 8100 3950 7500... -
Page 23: Cooling Capacity Table
19.3 Cooling Capacity Table 19.3.1 WH-SDC12F6E5 WH-UD12FE5 Water In (°C) Water Out (°C) Outdoor Air (°C) Capacity (W) Input Power (W) Capacity (W) Input Power (W) Capacity (W) Input Power (W) 7860 1180 13150 1400 10000 1730 12080 2900 15700...
