R
This product contains high-voltage circuitry. To avoid dangerous electric shock, do not disassemble or modify the unit.
RISK OF ELECTRIC SHOCK
DO NOT OPEN!

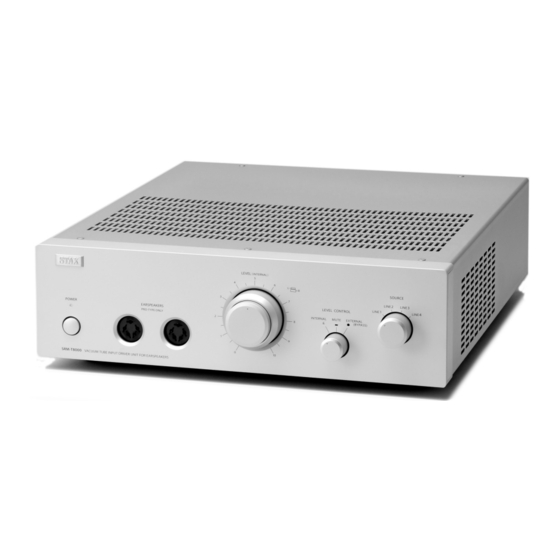

The SRM-T8000 contains high voltage circuitry.
It is dangerous to disassemble or to remodel it. Please observe Don'ts.
Advertisement
Related Manuals for STAX SRM-T8000
Summary of Contents for STAX SRM-T8000
- Page 1 This product contains high-voltage circuitry. To avoid dangerous electric shock, do not disassemble or modify the unit. RISK OF ELECTRIC SHOCK DO NOT OPEN! The SRM-T8000 contains high voltage circuitry. It is dangerous to disassemble or to remodel it. Please observe Don'ts.

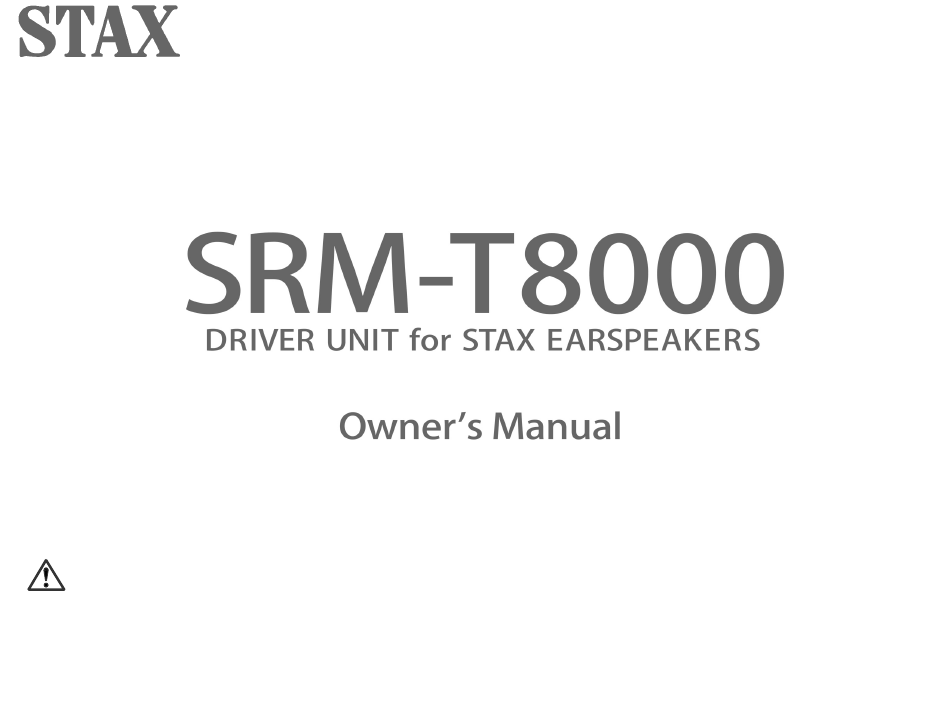

- Page 2 ９． Specifications / Care and Cleaning / Accessories Thank you very much for purchasing the SRM-T8000 driver unit for STAX earspeakers. Please read this manual carefully in order to use the unit safely and to bring out its maximum performance for many years of listening pleasure. Please be sure to keep this manual along with the warranty card after reading.
- Page 3 ● Prior to use - About WARNING/CAUTION marks Various WARNING and CAUTION marks are used in this manual for safe WARNING: usage of the unit. The possible danger or trouble caused by disregarding ● In case smoke comes out or unusual smell or sound is perceived, the marks and mishandling the unit are classified as follows.
- Page 4 Using the unit without the slot cover may cause failure of the ● The SRM-T8000 is equipped with “direct mode” function, enabling it to con- unit. nect to preamplifier output terminal or to use your favorite attenuator. Also, ●...
- Page 5 It is recommendable to turn down the volume control knob to “0” or to set the “LEVEL CONTROL” to “MUTE”. SRM-T8000 VACUUM TUBE INPUT DRIVER UNIT FOR EARSPEAKERS ② Power switch: pushing in the switch turns the unit on, and pushing it out turns the unit off.
- Page 6 XLR balance input polarity is 1-SHIELD, 2-HOT, 3-COLD. LINE When connecting equipment with 3-HOT, use polarity con- LINE LINE PARALLEL OUT SRM-T8000 RISK OF ELECTRIC SHOCK DO NOT OPEN version adaptor or conversion cable. CAUTION VACUUM TUBE INPUT DRIVER UNIT FOR EARSPEAKERS...
-
Page 7: Standard Connection
First set the volume of source equipment to the usual headphone listening level, and then adjust the volume of the driver unit. (BYPASS) GREEN Lights LINE LINE LINE PARALLEL OUT SRM-T8000 RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION VACUUM TUBE INPUT DRIVER UNIT FOR EARSPEAKERS 50/60Hz 95W PUSH... - Page 8 Pre- or Integrated amplifier or attenuator Connect the driver unit to PRE OUT terminal of amplifier or attenuator. LINE LINE LINE PARALLEL OUT SRM-T8000 RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION VACUUM TUBE INPUT DRIVER UNIT FOR EARSPEAKERS 50/60Hz 95W...
- Page 9 “LEVEL CONTROL” is in the position for using integrated volume. PARALLEL OUT LEVEL CONTROL LINE 1：RCA High-current emitter follower output stage EXT. LINE 2：RCA Double triode INT. L-CH Input selector LINE 3：XLR 6922 INT. LINE 4 OPTION SLOT EXT. LEVEL CONTROL ●...
- Page 10 “PARALLEL OUT” is powered off, it is possible that the sound is distort- ed because of the lowered impedance. In this case, simply disconnect the cable. The SRM-T8000 does not affect other connected equipment When you replace the vacuum tube of drive unit, be sure to ask the pur- even when powered off.
- Page 11 ● Pull out power cable from wall socket and wipe it with dry soft cloth. ● Frequency response: 1Hz - 115kHz +0, -3dB When very dirty, wipe off dirt with wet cloth and then again with dry cloth. ● Rated input level: 100mV (at 100V output) ●...
- Page 12 ○ 3798-1 Shimonanbata, Fujimi-shi, Saitama-ken, Japan 〒354-0004 STAX LIMITED Tel: +81-49-293-1891 Fax: +81-49-293-1892 URL:www.stax.co.jp Printed in Japan 2017-05 MP STAX...
