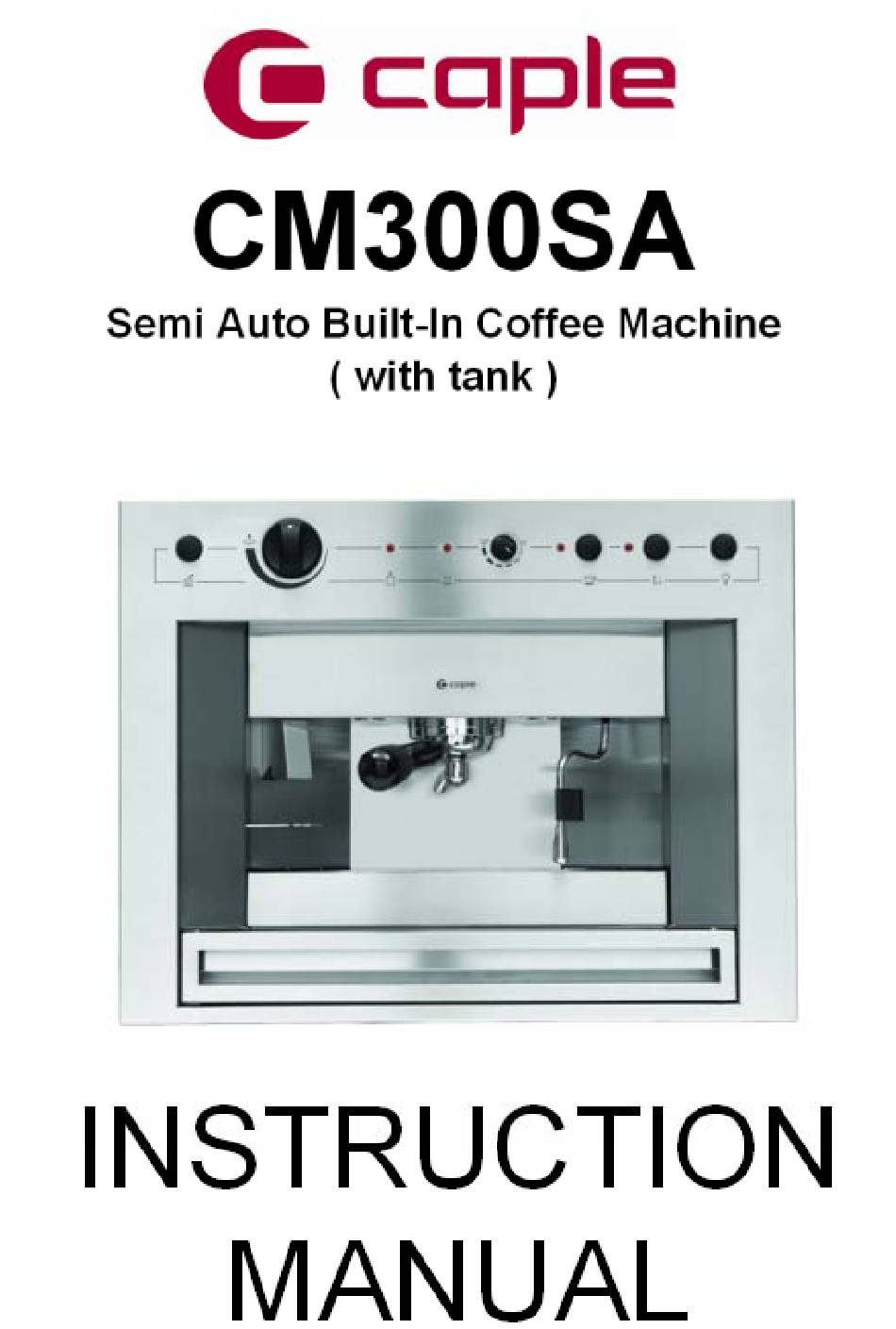

Summary of Contents for Caple CM300SA
-
Page 2: Technical Characteristics
Congratulations , Romantica upon the wise choice you have made by purchasing the S-CM3 “ ” model. Please read the information in this manual carefully before you operate the coffee machine. Here you will find important indications regarding your safety and the care and maintenance of the appliance that will allow you satisfactory use over a long term. -
Page 3: Table Of Contents
Contents DISPENSING..........pag. 32 TECHNICAL CHARACTERISTICS......Pag.19 Preparing one or two espresso coffees ..pag. 32 Steam dispensing........pag. 32 DESCRIPTION..........pag. 21 Adjusting the fineness and amount General notes about delivery......pag. 22 of ground coffee ......... pag. 33 SAFETY INSTRUCTIONS...... -
Page 4: Description
DESCRIPTION Fig. 1 N Lights ON/OFF switch F Dial to regulate amount of coffee T Accessories drawer O Dispensing unit A Coffee grinding button G Coffee dispensing indicator light U Filter holder H Coffee dispensing button P Steam nozzle B Steam regulation dial V Coffee grinding support I Machine on indicator light Q Drip tray... -
Page 5: General Notes About Delivery
GENERAL NOTES ABOUT DELIVERY The machine and its parts are delivered in special packing. Nevertheless, when you receive it, make sure that: • The packing is undamaged and that there are no defects to the machine exterior. • The packing contains: a) Coffee machine b) Box of accessories: 8 Support guides assembly... -
Page 6: Safety Instructions
SAFETY INSTRUCTIONS ☞ ☞ by a qualified electrician who must Basic rules must be observed when Parts of the packaging can be harm- ensure that the electric power of the using any electric appliance. ful to children. Danger of suffocation! system is sufficient to absorb the Keep packaging out of the reach of maximum power input stated on the... - Page 7 ☞ ☞ ☞ Before servicing the appliance, the To avoid dangerous overheating, To increase ventilation to the authorised technician must first make sure the supply cord is fully machine, make an opening of at least switch off the appliance and remove uncoiled.
-
Page 8: Transport And Handling
TRANSPORT AND HANDLING HANDLING CAUTION MACHINE RISK OF POLLUTION IDENTIFICATION CAUTION Always quote the machine serial number in all RISK OF IMPACT communications to the manufacturer, Sirius. OR CRASHING During all handling operations, the operator must ensure that there are no persons, objects or property in the handling area. -
Page 9: Preliminary Operations
PRELIMINARY OPERATIONS CAUTION WARNING FILLING THE APPLIANCE RISK OF POLLUTION CAUTION The water hardness must be less then Do not dispose of packaging in the environ- 4° - 6° fr (french degree). ment. The chlorine contents is max 100 mg per Switch off the machine before filling or litre (0.00000361 lb/cu in). - Page 10 NOTE: The maximum outlet pressure from the pressure reducing valve MUST NOT exceed 1.5 bars. Fig. 14 • Connect one end of the Teflon pipe (diam. 4 mm) to the machine, inserting it firmly into Fig. 16 the snap-on connector. To make sure that the connection has been made properly, pull the tube outwards (see drawing).
-
Page 11: Assembly Instructions For Qualified Persons
ASSEMBLY INSTRUCTIONS FOR QUALIFIED PERSONS • The unit housing the built-in coffee machine • Place the metal plate in position in the top INSTRUCTIONS FOR must be suitably fixed to the floor or wall in part of the coffee machine housing so that it BUILT-IN ASSEMBLY the room. -
Page 12: Number Of Spacer Plates
Fig. 20 • Fix the guides to the coffee machine hous- Fig. 19 Fig. 22 ing, tightening all of the screws. • Make sure that the power cord comes out Open the lid in the top part; then remove and fill •... -
Page 13: Technical Data
TECHNICAL DATA COFFEE MACHINE CLASS I RATED VOLTAGE 120V 60hz ELECTRICAL 1200W INPUT 1.8KW CONNECTION READY FOR CONNECTION POWER CORD 1,2m / 47.24 in 596 X 280 X 462mm APPLIANCE DIMEN- SIONS (LXPXH) 23.39 X17.32 X 18.27in COMPARTMENT 560X550X450mm DIMENSIONS (LXPXH) 22.05 X 21.65 X 17.72in NET WEIGHT 52Kg / 114Lb... -
Page 14: Preparing And Setting Up The Machine
PREPARING AND SETTING UP THE MACHINE C) Partly pull out the machine and open the pump from overheating). In this case, PREPARING THE MACHI- water door ( L ); remove the water tank and switch off the machine with the main switch NE FOR OPERATION wash it carefully with soapy water. -
Page 15: Dispensing
DISPENSING P P R R E E P P A A R R I I N N G G O O N N E E O O R R S S T T E E A A M M D D I I S S P P E E N N S S I I N N G G T T W W O O E E S S P P R R E E S S S S O O C C O O F F F F E E E E S S WARNING... -
Page 16: Adjusting The Fineness And Amount Of Ground Coffee
ADJUSTING THE FINE- NESS AND AMOUNT OF GROUND COFFEE The level of the amount of coffee that will be 1) The machine is equipped with a professio- ground – as required for one or two doses – nal coffee grinder with Ø 50 mm (Ø 1.97 in) is indicated in the grooves inside the filters grinding wheels;... -
Page 17: Cleaning And Maintenance
CLEANING THE DRIP CLEANING AND MAINTENANCE TRAY 1) Clean the drip tray with warm water and a WARNING mild soap. 2) NOTE: the drip tray is dishwasher safe. Before performing any type of cleaning operation, except that for the dispensing unit or 3) WARNING: never use solvents of any type. -
Page 18: Troubleshooting
TROUBLESHOOTING..If your espresso machine is not working correctly, try looking through the causes and solutions listed here below. Also refer to the corresponding sections in the users’ manual. PROBLEM SOLUTION Check to see whether or not the indicator light to show insufficient water is switched on: this means there is not enough water in the tank or that the tank has been inserted The machine is not... -
Page 19: Wiring Diagram
WIRING DIAGRAM Fig. 33 Romantica...
