TC Electronic ZEUS DRIVE OVERDRIVE Quick Start Manual

Quick Start Guide

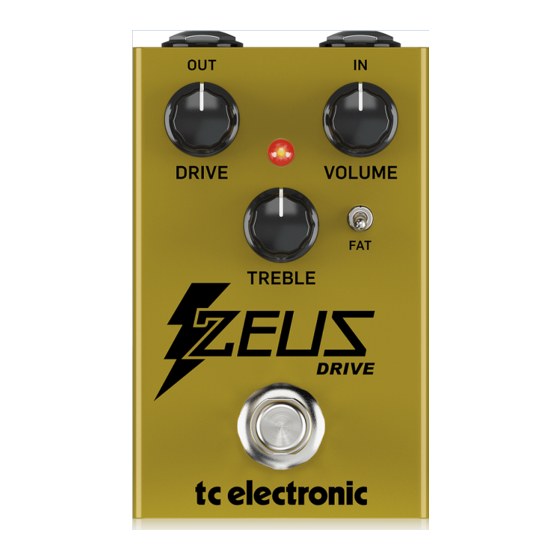

ZEUS DRIVE OVERDRIVE
Legendary Dynamic Overdrive Boost Pedal with 2 Clipping Modes and
Optional Buffered Bypass
(1) (2) (3)
(4)
(5)
(8)
V 1.0
OUT – Send the signal to other pedals or a
1.
guitar amp via ¼" cable.
9 V DC – Connect a standard 9 V power
2.
supply (not included). The pedal does not
accept batteries.
(6)
3. IN – Connect your guitar via ¼" cable.
4. DRIVE – Adjusts mix and clipping of
(7)
drive circuit.
5. LED – Lights when the pedal is engaged.
6. VOLUME – Adjusts the output level when the
pedal is engaged.
7. FAT – Boosts the low frequencies and
(9)
reshapes the mids, giving a fatter tone.
TREBLE – Active tone control for the high
8.
frequencies. The center position is neutral,
turning clockwise boosts highs, and turning
counterclockwise attenuates highs.
9. FOOTSWITCH – Press to engage or bypass
the pedal.
Note – ZEUS Drive has 2 options for bypass type -
buffered bypass and true bypass. Remove 4 screws
on the side of the pedal and input/output nuts to
access the internal bypass type selector switch.
Slide switch to the right for True Bypass
Slide switch to the left for Buffered Bypass
