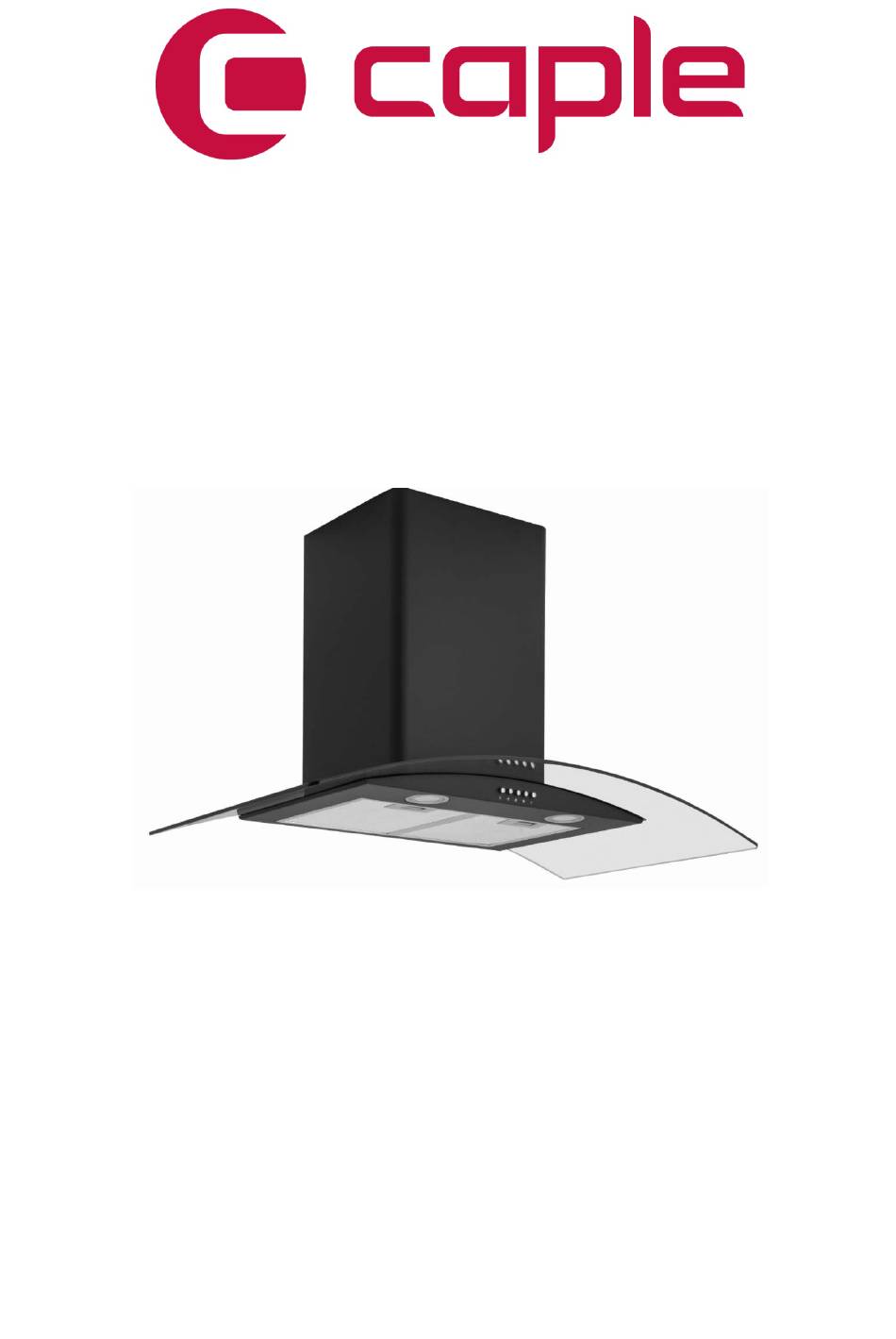

CGC910BK
Caple 90cm Curved Glass Hood Black
Technical Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the CGC910BK and is the answer not in the manual?

Questions and answers

Related Manuals for Caple CGC910BK

Summary of Contents for Caple CGC910BK

  • Page 1 CGC910BK Caple 90cm Curved Glass Hood Black Technical Manual...
  • Page 2 CGC910BK Caple 90cm Curved Glass Hood Black Whole Hood Mechanical Switch Chassis Assembly Motor Assembly...
  • Page 3 CGC910BK Caple 90cm Curved Glass Hood Black For whole cooker hood Item Part Number Description Quantity B21-2501-032-3 Upper Chimney (500mm height) B21-2501-033-3 Lower Chimney (500mm height) B33-2501-054-0 Glass B76-4501-002-B Mechanical Switch Assembly B35-2501-014-0 Round carbon filter B76-4102-003-B Motor assembly(550m3h, 450mm cable)
  • Page 4 CGC910BK Caple 90cm Curved Glass Hood Black For Mechanical switch（B76-4501-001-B） Item Part Number Description Quantity B30-2201-090-0 Switch box cover lid B60-2501-089-0 Push button B30-2201-089-0 Push button bottom B62-2501-090-0 Switch Cable(1300mm) For Chassis assembly（B71-4501-008-3） Item Part Number Description Quantity B11-0501-002-B Round casing...
