Summary of Contents for Caple WI152

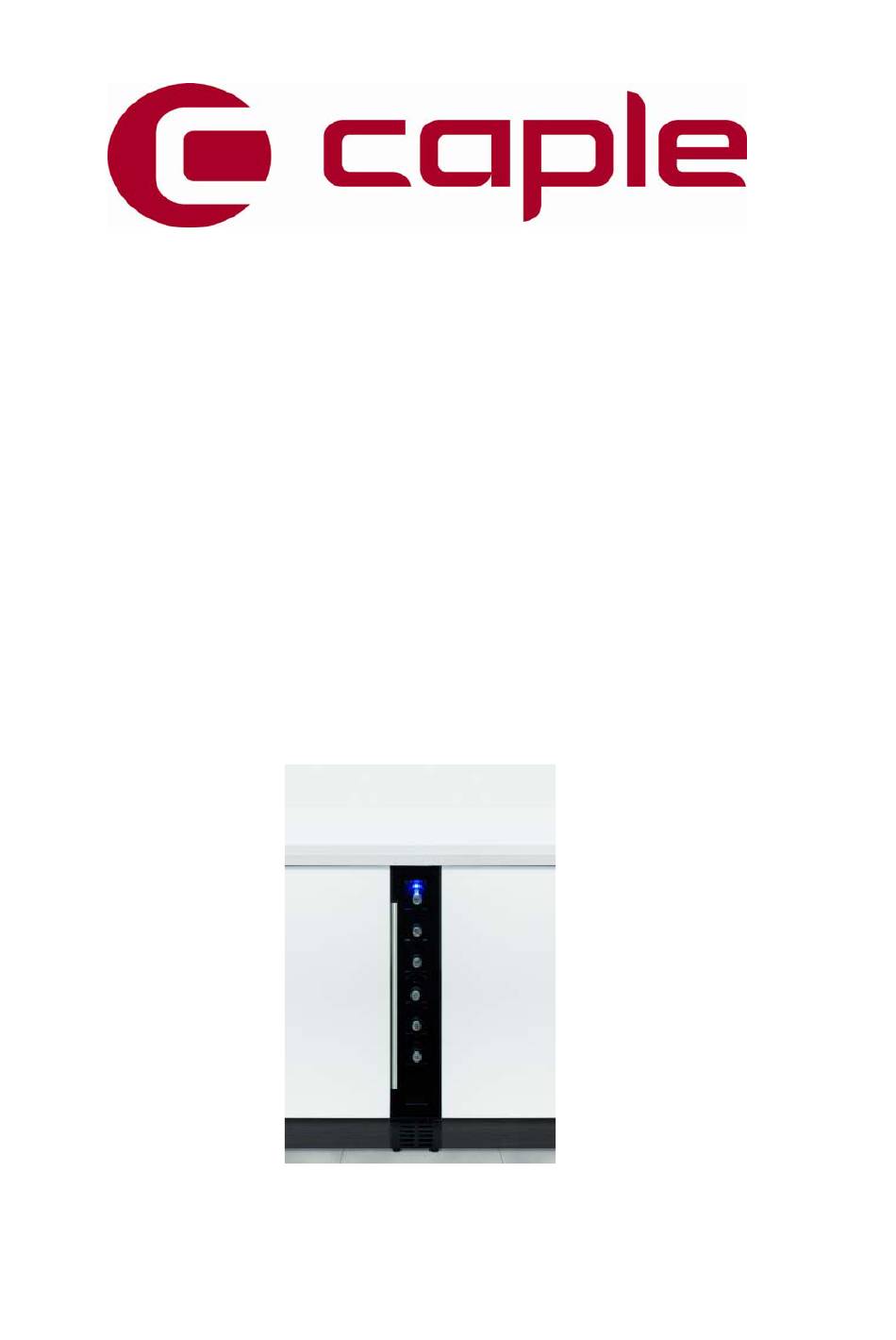

- Page 1 WI152 Caple 15cm wine cabinet Technical information...
- Page 3 WI152 - Caple 15cm wine cabinet Item Part Code Description Power cord DG2-14 Dry filter DG11-4 Compressor DG1-58 DG26-84 Cabinet DG13-8 Decorative nail DG14-154-BR Top hinge module right Top hinge module left DG14-154-BL Evaporator DG12-77 Evaporator fan(Upper) DG7-41-BH DG17-144-1 DG22-397...
- Page 5 Computer Controlled Wine Cellar Wi152 Wi153 Service Manual Here below we listed various faults while using the wine cellar, and the method of check-up and solve these default, and find the information of the correspondent page. Statement: (Fig.4 ) shows the reference figure Fig4 ( →6.1.6 ) shows the reference item 6.1.6.
- Page 6 4. Name and function on control panel.—————————————— 5 5. How to diagnose the fault. —————————————————— 5 6. Gist on disassembly. ————————————————————— 7 7. How to maintain the default. ————————————————— 14 1. Safety rules on operation of repairing (Rules must be obeyed). To avoid the accident during maintain the wine cooler, and make sure the product is safety, rules must be obeyed list below.
- Page 7 This symbol means instance forbidden Danger ·Please make sure to discharge the rest refrigerant in the parts. ·When discharging refrigerant, make sure that it never go to the fire place and drain to outdoors. Tell the customers that they never close to the discharge place and the fire is forbidden.
- Page 8 Danger ·During repairing, the power plug should be disconnected. Before remove, install, replace parts disconnect the power plug. ·Attention don’t get electric shock. When checking current, voltage or charging never touch the connectors. When changing the parts, don’t touch the charged parts within three minutes after disconnect the plug.
- Page 9 service part worsen. When measuring the grounding resistance make sure that the test range is more than 1MΩ. Make sure the power cord and plug never be pinched on rear of the wine cooler. Exchange the power cord when it damaged. Clean the flake of the plug when it dirty.
- Page 10 2. Electrical circuit diagram. 3. Cooling system diagram. 6/23...
- Page 11 4. Name and function on control panel. LIGHT Press one time, the light on, press again, the light off. POWER Press it and hold on for three seconds, the power on or off. “UP” BUTTON Press ‘ ’，the setting temp will raise up in 1. “DOWN”...
- Page 12 enter self-check mode. 2 >．The function as below: a. Not any react when press any button. b. The readout show “━ ━”. c. The compressor keep running. d. The inner fan and outer fan running. e. The light switch control the light at normal. 3 >．If all items a~e tally with above description, the parts are normal.
- Page 13 ● Not cooling (the compressor stop) If the inner light can be turn on Check the power source (power cord, plug, socket) Display error code? Refer to 5.2. The starter have power input? The starter failed The protector have power input? The protector failed Check the compressor Compressor fault...
- Page 14 The compressor run for more than 30 minutes？ If the door opened frequently? Don’t open the door frequently If the hot goods was put into the It can be loaded with normal temperature cabinet? wine bottle No 是 If the door gasket airproof? Repair or replace the gasket Cooling system default ?（Check if any gas leakage or block ）...
- Page 15 Screws Fig.2 6.1.3. How to remove the inner fan. The process: remove the shelves → remove the air-duct board → remove the fan After remove the air-duct board, remove four fan fixing screws, and the fan can be removed. （Fig.3） Sensor and Four fixing...
- Page 16 Remove the screw on the back of the control box, pull out the control panel, disconnect the connectors, remove the control box. ( Fig.4) Screw Fig.4 6.1.6．How to remove the main PCB. The process: Remove the shelves → remove the control box → remove the main PCB. After removing the control box, press the nail one by one and pull the PCB upward, remove the main PCB.
- Page 17 6.1.7． How to remove the LED light The process: Remove the shelves → remove the control box → remove the LED light. After removing the control box, disconnect the LED connector, pull the hooks fixing the LED light and remove the LED light. (Fig.7) LED light Hooks...
- Page 18 Power PCB cover Fig.8 Transformer Power PCB Nails Fig.9 ( Fig.10) Diagram and explanation of power PCB and connection L: Power - L N: Power - N X6: Transformer primary X16: Transformer secondary X3: Compressor X15: Outer fan X12: Main PCB Fig.10 14/23...
-
Page 19: How To Remove The Compressor
6.2.2．How to remove the condenser fan. The process: remove the decorative cover → remove the condenser fan Remove the two decorative cover fixing screws, take away the decorative cover, and remove two fan fixing (Fig.11 & Fig.12) screws, the condenser fan can be removed. Decorative cover Fig.12... - Page 20 A: Suction pipe solder joint Fig.13 B: Filter and condenser pipe solder joint C: Process pipe D: Filter and capillary solder joint E: Condenser and compressor solder joint Four legs Six screws Fig.14 Four screws Condenser Fig.15 6.2.4．How to remove the evaporator The process: remove the shelves →...
- Page 21 Fig.16 Screw Evaporator 6.2.5．How to remove the condenser. The process: separate the solder joints → remove the cabinet legs → remove the compressor supporter → remove the condenser. Refer to the method of remove the compressor, after remove the whole compressor and it’s supporter, separate the compressor and condenser on point E, pull the hooks fixing the condenser by using the plier, we can remove the condenser.
-
Page 22: Check The Cooling System
Hooks (both side of the condenser) Fig.17 7. How to overhaul the default It should take approximate 3 hours to reach the lowest setting temperature of about 5℃ for an empty unit (assuming ambient temp of 32 degrees centigrade and continuous operation). If not, check the compressor, cooling fans, controller, and sensors. - Page 23 2>.If the default is concentrated on the cooling system, the checking procedure is as below. a. Cut off the discharge pipe (See Fig.13, E) of the compressor, and infuse 0.8-1.5 MP nitrogen per process pipe, and put the hand close to the cut kerf. If there is a little gas leak from the terminal, it means normal, otherwise it is jammed.
-
Page 24: Noise Problem
7.5. Noise problem 1 Compressor noise The working of motor and piston motion will cause noise when compressor working. So if 1>. noise is steady and not exceeds 42 dB, it’s normal. If noise is not steady or very high, it’s compressor fault and it should be maintained or replaced. - Page 25 Default: high frequency impact noise in capillary Zone. Caused by either reason below: The capillary being insert too deep into the evaporator, so when the refrigerant is Jetting, the 1>. end of vibrating capillary will hit the inside of the evaporator. Vibration from the capillary touching the inside of the cabinet or air duct board, then when 2>.
- Page 26 Fig.18 7.10. Unstable temperatures inside the cabinet. The unstable temperature is caused by the evaporator fans cease, and it can be check by the below method: When the compressor is running, the light “Run” is on, the fan should be running, if the fan stop, check the whether is any fault in the fan or fan connection.
-
Page 27: Explanation Of Display
7.13. Explanation of display. According to requirement there are two different display, one is that the LED display show the setting temperature, the other is that the LED display show the real inner temperature. Rev:A 23/23...
