Pour le français, voir la page 2.
Para el español, ver la página 3.

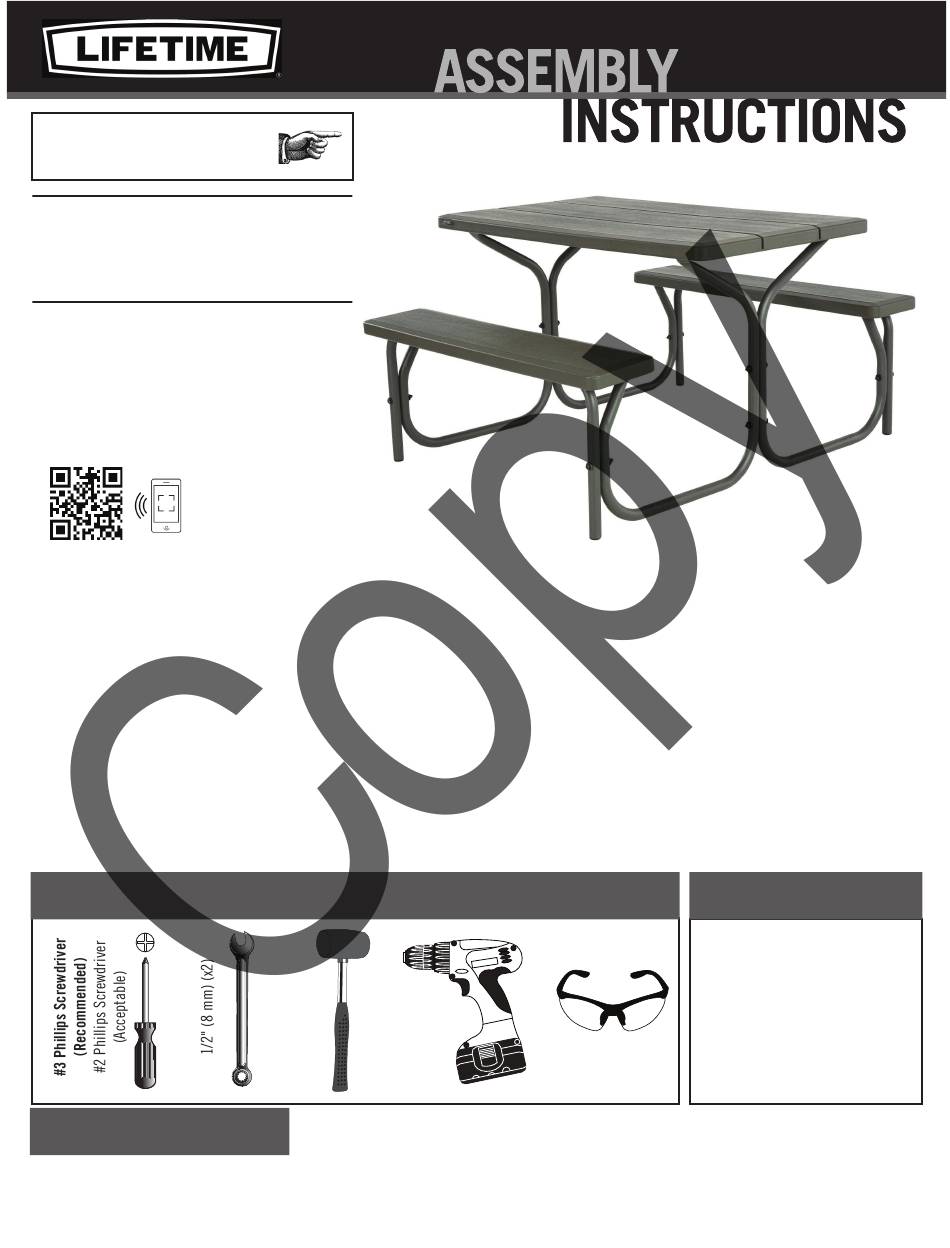

4' (1,22 m)

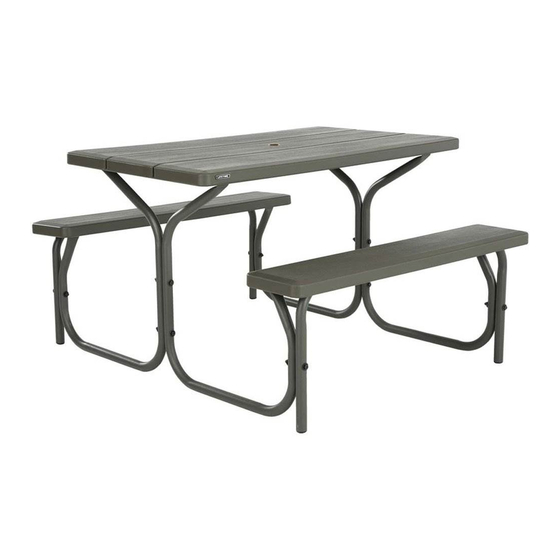

PICNIC TABLE
®
Lifetime
picnic tables are designed to be
strong and durable. We strive to make assembly
as easy as possible without compromising
quality. If you get stuck, we have tools to help:
• Watch Our Instructional Video
Scan the code below to see how it all comes
together.
http://go.lifetime.com/4picnic
• Assemble on Level Ground
• Recruit a Friend or a Family Member
Assembly should take 2 people about 1
hour to complete.
TOOLS REQUIRED
NEED HELP? TALK TO US!
Call: 1-800-225-3865
7:00 am–5:00 pm (Monday–Friday) MST
and 9:00 am–1:00 pm Saturday MST
Lifetime's assembly experts offer quick responses and great customer service.
Web: www.lifetime.com/instructions
Live Chat: www.lifetime.com/instructions
TABLE OF CONTENTS
Icon Legend................................4
Warnings & Notices.....................5
Table Assembly...........................6
Cleaning & Care........................15
Registration.........................16
Warranty................................17
MODEL# AND PRODUCT ID
(you will need both when contacting us)
Models:
60135
Product ID:

Advertisement

loading
Need help?

Need help?

Do you have a question about the 60135 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lifetime 60135

Summary of Contents for Lifetime 60135

  • Page 1 Warnings & Notices.....5 Table Assembly......6 Cleaning & Care......15 Registration......16 Warranty........17 NEED HELP? TALK TO US! Lifetime’s assembly experts offer quick responses and great customer service. MODEL# AND PRODUCT ID (you will need both when contacting us) Call: 1-800-225-3865 Web: www.lifetime.com/instructions Models: Product ID: 7:00 am–5:00 pm (Monday–Friday) MST...

  • Page 2: Outils Requis

    For English, see page 1. Para el español, ver la página 3. TABLE DE PIQUE-NIQUE DE 1,22 m ® Les tables de pique-nique Lifetime sont conçues pour être solides et durables. Nous nous efforçons de rendre l’assemblage aussi facile que possible sans compromettre la qualité.
  • Page 3 Pour le français, voir la page 2. MESA PARA PICNIC DE 1,22 m ® Las mesas para picnic Lifetime diseñadas para ser sólidas y durables. Nos esforzamos por hacer el ensamble lo más fácil posible sin comprometer la calidad. Si se...
  • Page 4 ICON LEGEND / LÉGENDE DES ICÔNES / LEYENDA DE ÍCONOS • Indicates special heed should be taken when reading. • Indique qu’une attention spéciale doit être prise lors de la lecture. • Indica que uno debe prestar atención al leer. •...
  • Page 5 WARNINGS & NOTICES / AVERTISSEMENTS ET AVIS / ADVERTENCIAS Y AVISOS English: • Failure to follow these warnings may result in serious injury or property damage and will void warranty. • To ensure safety, do not attempt to assemble this product without following the instructions carefully. •...
  • Page 6 TABLE ASSEMBLY / ASSEMBLAGE DE LA TABLE / ENSAMBLE DE LA MESA HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO Hardware Bag Contents / Contenu du sac de quincaillerie Contenido de la bolsa de herraje ENV (x8) ENW (x16) BBZ (x1) ENZ (x18) EOA (x4) ENX (x8)
  • Page 7 • Si tiene problemas con esta sección, siga el código debajo para ver un video sobre el ensamble de esta sección. http://go.lifetime.com/4picnic • The Table-Top Frame Tube (ENU) has two tube holes—one at each end. You’ll also notice three screw holes along one side of the Tube.
  • Page 8 u SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ENZ (x4) • The three screw holes are large on one side and small on the other. To help orient the Tubes correctly, insert two (2) Screws (ENZ) by hand into the larger holes as shown.
  • Page 9 u SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ENZ (x4) • Slide the Cross Tubes (ENT) into the Tubes from Step • Lay the Table Top (BAC) upside down, and set the 1.1.
  • Page 10 u SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS 1/2 in/po (x2) ENV (x4) ENX (x4) ENW (x8) • Attach two Legs (BAE) together, but tighten only by hand at this time. Repeat this step for the other Leg Assembly. •...
  • Page 11 u SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS EOA (x4) • Set the Leg Assemblies onto the Table Top as shown, align the holes, and reinsert the Screws through tabs and into Tubes.
  • Page 12 u SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS 1/2 in/po (x2) ENV (x4) ENZ (x4 New / Nouvelles / Nuevos) ENX (x4) ENW (x8) •...
  • Page 13 u SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS 1/2 in/po (x2) ENZ (x3 New / Nouvelles / Nuevos) 1.11 Larger Side / • Bench Frame Tube (EOB) has three holes. The Grand côté...
  • Page 14 u SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS 1/2 in/po (x2) ENZ (x3 New / Nouvelles / Nuevos) BBZ (x1) 1.13 • Have one adult hold a Bench (BAD) in place. Starting with the center screw, finish inserting the five (5) Screws (ENZ) into the Bench as shown.

  • Page 15: Cleaning And Care
