Lifetime GLIDER 60361 Assembly Instructions Manual

Bench
Hide thumbs

Advertisement

Quick Links

Download this manual

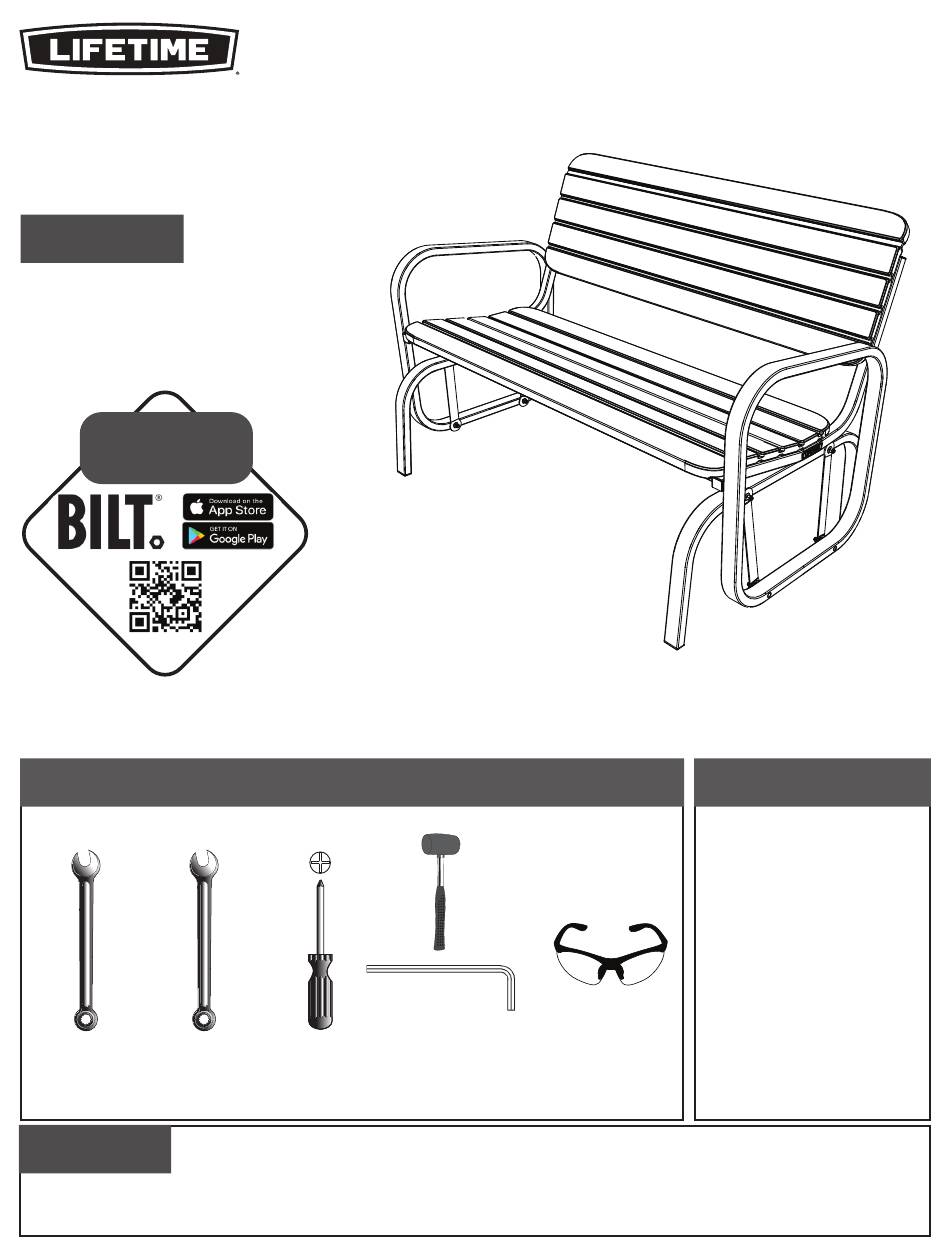

GLIDER
BENCH
MODEL 60361
BEFORE ASSEMBLY:
• Assemble on a level surface
• At least 2 people are recommended for setup
WATCH
3D ANIMATION
OF THE FULL ASSEMBLY
SCAN THE
CODE
WARNING: Only for domestic use.
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
TOOLS REQUIRED (NOT INCLUDED-UNLESS INDICATED OTHERWISE)
10 mm
8 mm
QUESTIONS?
CONTACT LIFETIME
Call: 1-800-225-3865
7:00 am-5:00 pm (Monday-Friday) MST
and 9:00 am-1:00 pm Saturday MST
OR SEARCH
1208723
®
CUSTOMER SERVICE:
Live Chat: www.lifetime.com/customerservice
(click on "LIVE CHAT" tab)
For Customer Service in the United Kingdom and mainland Europe:
E-mail: cs@lifetimeproducts.eu
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
EEO
3/16"
≈5 mm
(Included)

TABLE OF CONTENTS

Icon Legend...............................4
Warnings & Notices.....................5
Frame Assembly.........................6
Additional Warnings..................19
Cleaning & Care........................20
Registration............................21
Warranty.................................22
MODEL# AND PRODUCT ID
(you will need both when contacting us)
Model Number: 60361
Product ID:
