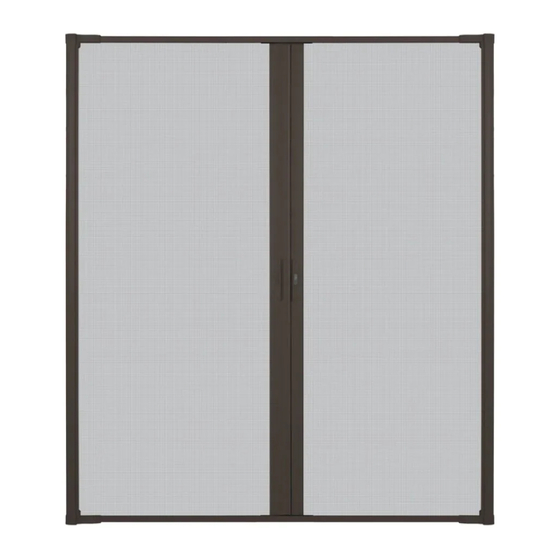

Replacement latch housing retractable insect screen door
Hide thumbs Also See for LuminAire:

Advertisement

Quick Links

Installation Guide
Replacement Latch Housing for Andersen®
LuminAire
Retractable Insect Screen Door
For installation help please visit www.AndersenLuminAire.com/install
Please Do Not Return Product to Store!
PLEASE call the Storm Door Solution Center at 844-813-6664,
with any questions regarding installation, lost part replacement, or anything else related to your retractable
insect screen purchase. Replacement parts can also be found at: parts.andersenstormdoors.com
Read this entire guide before you begin your installation. If your abilities do not
match the requirements of this installation, contact an experienced contractor.

PARTS OVERVIEW

Your replacement part should contain the following parts.
1
Latch Housing
End Caps (attached to ends of the housing)
2
Not Shown
3
Screw Pack containing:
• 1 inch #8 screws (qty 6)
• 1/2 inch #8 self-tapping screws (qty 3)
• 1/8 inch Drill Bit
• #2 Phillips Bit
NOTICE
To avoid product damage, be sure to place all parts of your retractable
insect screen on a soft non-abrasive surface such as carpet, drop cloth
placed on your lawn or cardboard.
