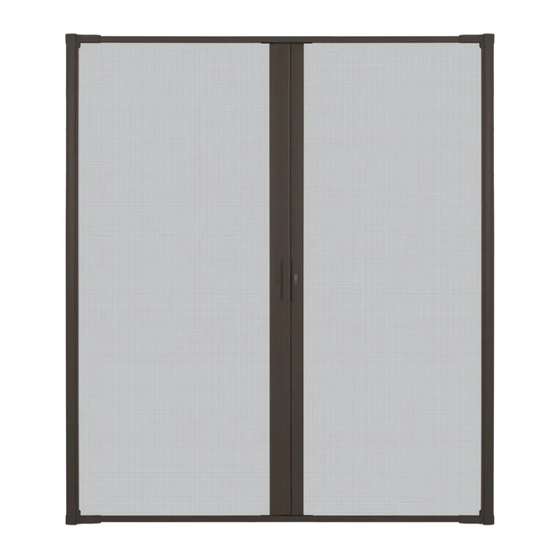

Retractable insect screen double door with slideaway insect screen system
Hide thumbs Also See for LuminAire:

Advertisement

Quick Links

Installation Guide
for Andersen® LuminAire® Retractable Insect Screen Double Door
with SlideAway® Insect Screen System
Designed for 68" – 72" wide by 80" tall double hinged doors with suitable mounting surface.
For installation help please visit www.AndersenLuminAire.com/install
Please Do Not Return Product to Store!
PLEASE call the Storm Door Solution Center at 844-813-6664,
with any questions regarding installation, lost part replacement, or anything else related to your retractable
insect screen purchase. Replacement parts can also be found at: parts.andersenstormdoors.com
Read this entire guide before you begin your installation. If your abilities do not
match the requirements of this installation, contact an experienced contractor.
Your installation kit should contain the following parts.
Active Housing (gray fastener clips on end caps)
1
2
Passive Housing (labeled passive on end caps)
3
Screen Tracks (top and bottom)
End Caps (attached to ends of housings)
4
Sill Adapter
5
Orange Installation Clips
6
Shipping Plastic Wrap
7
In the Parts Bag:
8
Track Extenders (qty 2)
9
Track Stops (qty 2)
Slot Covers (qty 2)
10
11
Not Shown: Screw Pack containing:
• 1 inch #8 screws (qty 6)
• 1/2 inch #8 self-tapping screws (qty 6)
• #2 Phillips Bit
• 1/8 inch Drill Bit
• 3/32 inch Hex Wrench
• Corner Pile (qty 2)
NOTE: The orange installation clips attached to the Housings provide
product protection during shipping and installation. DO NOT extend the
screens from the housings or remove installation clips until instructed.
NOTICE
To avoid product damage, be sure to place all parts of your retractable
insect screen on a soft non-abrasive surface such as carpet, drop cloth
placed on your lawn or cardboard.

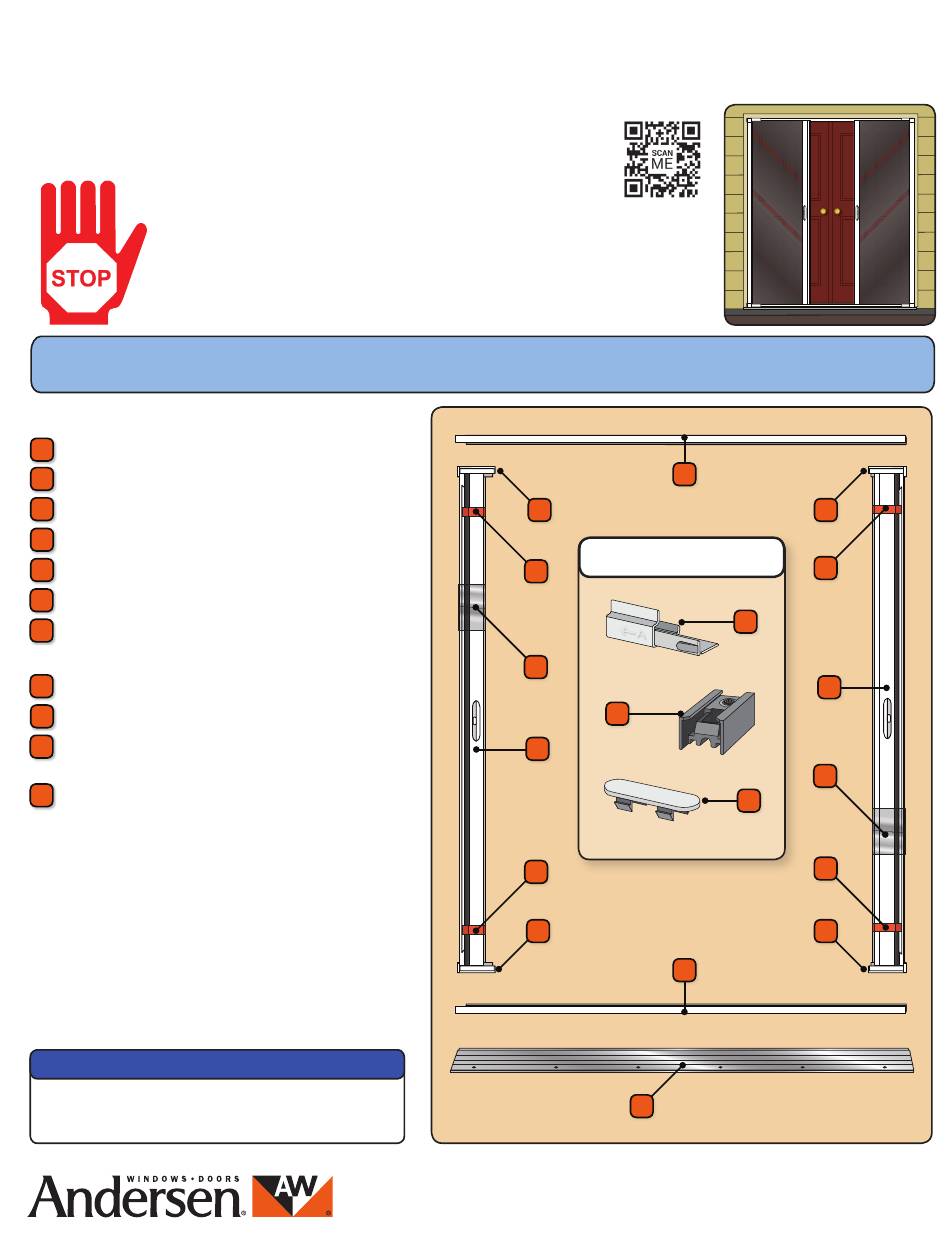

DOUBLE DOOR PARTS OVERVIEW
Emco Enterprises, Inc., is a wholly owned subsidiary of Andersen Corporation. Emco Enterprises, Inc.
manufactures and supports the limited warranties for Andersen ® and EMCO ® doors. "Andersen",
"EMCO" and all other marks where denoted are trademarks of Andersen Corporation. ©2019
Andersen Corporation. All rights reserved.
1
3
4
Items in the Parts Bag:
6
7
9
1
6
4
3
5
4
6
8
2
7
10
6
4
Andersen SDD, PO Box 853
Des Moines, IA 50306-0853
Rev 02-2019 r2 Print in Color
p/n 900900
