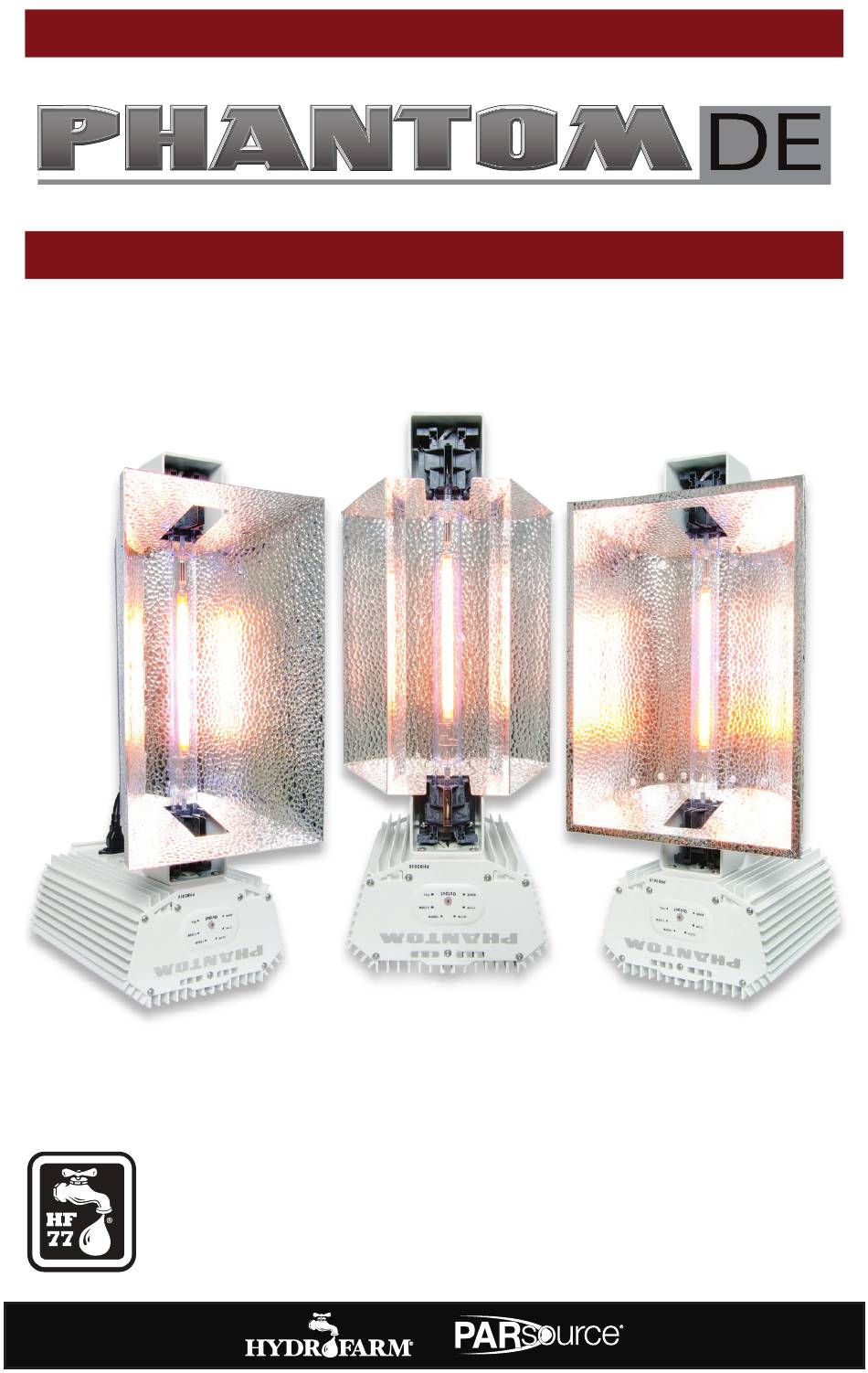

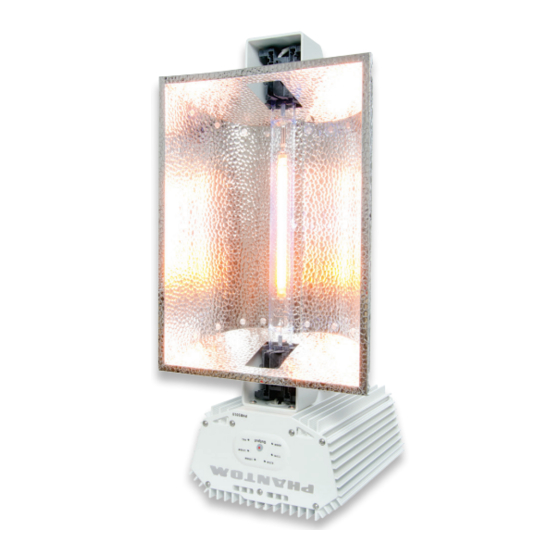

- Page 1 U S E R M A N UA L DOUBLE ENDED LIGHTING SYSTEMS (ALL MODELS) OPEN, ENCLOSED AND SUPER DEEP SYSTEMS...
-
Page 2: General Overview
GENERAL OVERVIEW Thank you for purchasing the Phantom Double-Ended Lighting System. Setup is the same for each system: Open, Enclosed and Super Deep. WARNING: FAILURE TO FOLLOW OUR GUIDELINES COULD RESULT IN ELECTRICAL SHOCK. Do not touch, move, spray, or clean your light fixture when it is plugged in. Allow it to cool down before handling. -
Page 3: Hanging The Fixture
DIAGRAM A Anode Arc Tube Quartz Outer Jacket Cathode (closest to ballast - High Voltage) (Neutral) Burner Filament Triple Capacitor Getter (always position up) (absorbs lamp impurities) PHOTO D PHOTO E PHOTO F PHOTO G HANGING THE FIXTURE 1. Make sure your unit is unplugged. 2. -
Page 4: Installation And Connection
BALLAST OVERVIEW The Phantom Ballast Commercial DE is an ideal ballast choice for efficient growing. It was created with state-of-the-art microprocessor technology to utilize the industry’s double-ended 1000W and 750W HPS lamps. This ballast (and all 40/50 Series Phantom Ballasts) includes a Control Port on the front panel which allows connection to and data communication with the Autopilot PX1 Lighting Controller via USB. -
Page 5: Definition Of Terms
NOTES ON VARIABLE OUTPUT CONTROL • When a USB cable is connected to the ballast’s control port, manual selection of wattage output is defeated. The power-level LEDs surrounding the variable output button on the bottom panel will go dark, and the LED labeled “PX1” will go on. When/if the USB cable is disconnected from the control port, output control is returned to the variable output button after a short delay, indicated by the LEDs becoming active again after start-up. -
Page 6: Electrical Specifications
ELECTRICAL SPECIFICATIONS PHANTOM 50 SERIES BALLAST ELECTRICAL SPECIFICATIONS Operating Main Power Ignitor Model Watts Voltage Input Output Power Settings Voltage Factor Voltage Range Power PHB5010 1000W 120/240V 110-265V 1246W 600W-750W-825W-1000W-1150W > 0.98 3-5 kV < 8% 1. 4 14-1. 6 40°C/104°F 70°C/158°F PHB5015 1000W 208/240V 185-265V 1236W 600W-750W-825W-1000W-1150W >... - Page 7 RECOMMENDED WIRING DIAGRAMS Each ballast MUST be wired to the main’s neutral line back to the circuit. DO NOT “daisy-chain” a neutral line with any other ballast. RESIDENTIAL VOLTAGES - SINGLE PHASE POWER COMMERCIAL VOLTAGES - THREE PHASE POWER...
- Page 8 WORKING WITH OTHER EQUIPMENT 1. Environmental Controllers • When setting restrike delays with your environmental controller, it is best to set a restrike delay at 20 minutes or longer to prevent constant restrikes throughout the day. • When installing your controller, it is best to program the controller for a staggered start with 40 luminaires or less on each start.
-
Page 9: General Care And Maintenance
Hydrofarm representative. Tracking Performance It is best to map out the lights by location to track any maintenance or replacement data. Consult PARsource/Hydrofarm for examples of product mapping. TIPS • The lamp may require 10-30 minutes cooling time before restarting. -
Page 10: Troubleshooting
Electronic ballasts come with safety shut-offs. A non-working ballast may be in the shut-off mode. To reset the shut-off, turn off the power to the ballast for a minimum of 15 minutes. Restart the ballast. If the ballast does not start, review the basic diagnosis steps or consult with a PARSource/Hydrofarm representative. - Page 11 COMMON SYMPTOMS (DE LAMPS) Possible Reason How to Diagnose Place a known working lamp in the ballast. If it does not flicker or Bad lamp have erratic start, the original lamp is bad. Lamp not installed properly Check to see if lamp is properly and securely installed. Lamp / ballast incompatibility Try another lamp brand.
-
Page 12: System Dimensions
SYSTEM DIMENSIONS 1000W 208V/240V OPEN SYSTEM DIMENSIONS - PHDEOK11,PHDEOK13, PHDEOK15 PHDEOK11 OPEN SYSTEM 1000W 208V/240V 508mm 20.0" 211mm 570mm 8.30" 22.50" 750W/1000W 120V/240V OPEN SYSTEM DIMENSIONS - PHDEOK12/PHDEOK72 PHDEOK12 OPEN SYSTEM 1000W 120V/208V/240V 508mm 20.0" 211mm 569mm 8.30" 22.40"... - Page 13 SYSTEM DIMENSIONS 1000W 208V/240V OPEN SYSTEM DIMENSIONS - PHDESK11, PHDESK13, PHDESK15 PHDESK11 ENCLOSED SYSTEM 1000W 208V/240V 211mm 8.30" 508mm 20.0" 570mm 22.50" 750W/1000W 120V/240V ENCLOSED SYSTEM DIMENSIONS - PHDESK12/PHDESK72 PHDESK12 ENCLOSED SYSTEM 1000W 120V/208V/240V 211mm 8.30" 508mm 20.0" 570mm 22.50"...
- Page 14 SYSTEM DIMENSIONS 1000W 208V/240V SUPER DEEP SYSTEM DIMENSIONS - PHDEDK11 PHDEDK11 SUPER DEEP SYSTEM 1000W 208V/240V 211mm 8.30" 508mm 20.0" 570mm 22.50" 750W/1000W 120V/240V SUPER DEEP SYSTEM DIMENSIONS - PHDEDK12/PHDEDK72 PHDEDK12 SUPER DEEP SYSTEM 1000W 120V/208V/240V 211mm 8.30" 508mm 20.0" 570mm 22.50"...
- Page 15 POLAR DIAGRAMS PHANTOM DE OPEN SYSTEM PHDEOK11 CANDELA DISTRIBUTION 90˚ 90˚ 75˚ 75˚ 20500 60˚ 60˚ 41000 45˚ 45˚ 61500 30˚ 15˚ 0˚ 15˚ 30˚ 0⁰ 45⁰ 90⁰ PHANTOM DE ENCLOSED PHDESK11 CANDELA DISTRIBUTION 90˚ 90˚ 75˚ 75˚ 20000 60˚ 60˚...
-
Page 16: Limited Warranty
Hydrofarm’s warranty liability extends only to the replacement cost of the product. Hydrofarm will not be liable for any consequential, indirect, or incidental damages of any kind, including lost revenues, lost profits, or other losses in connection with the product.
