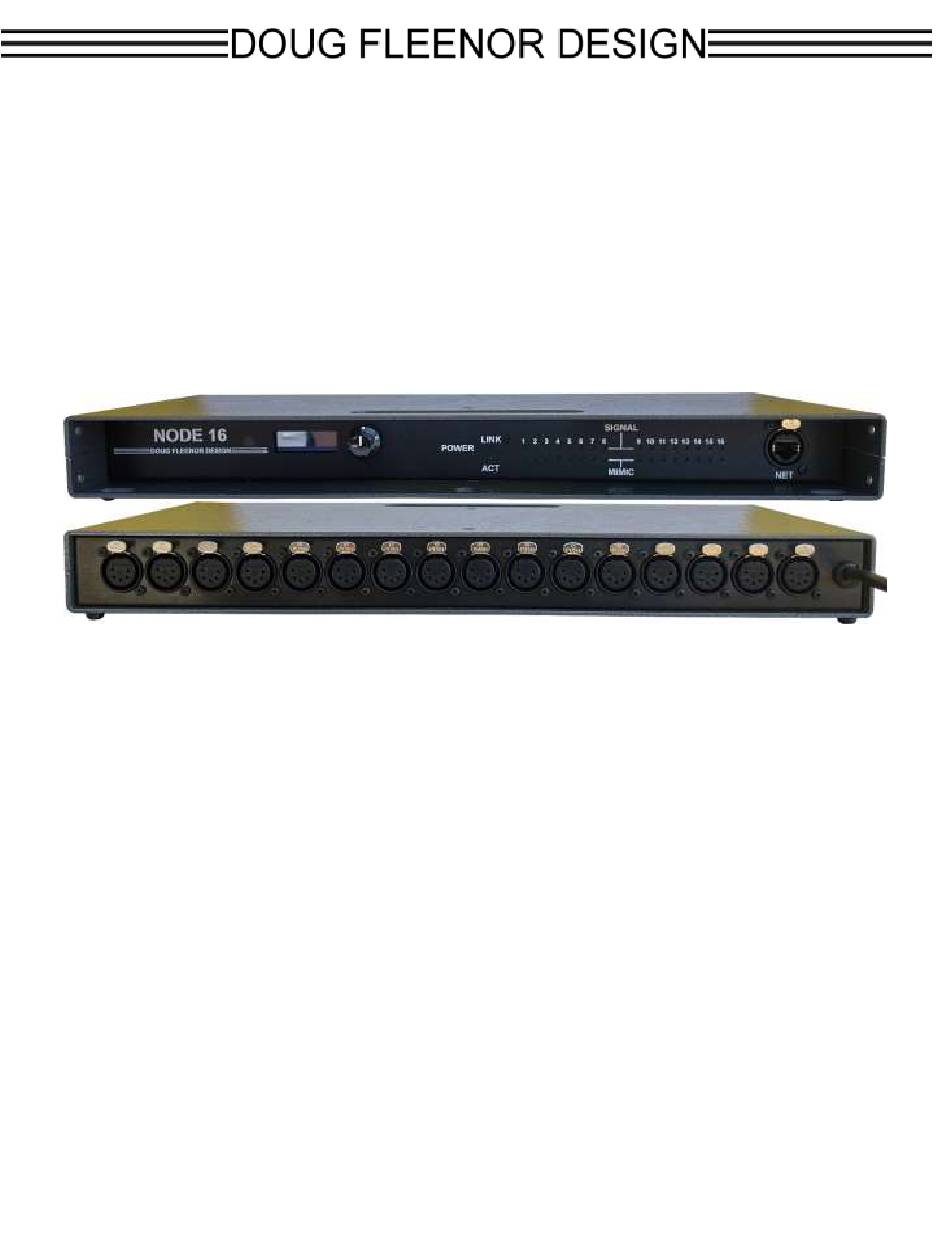

- Page 1 Sixteen Output Ethernet to DMX512 Interface Configuration & Owner’s Manual model: N Doug Fleenor Design, Inc. 396 Corbett Canyon Road Arroyo Grande, CA 93420 (805) 481-9599 Voice and FAX Manual Revision October 2020 Page 1 of 6...

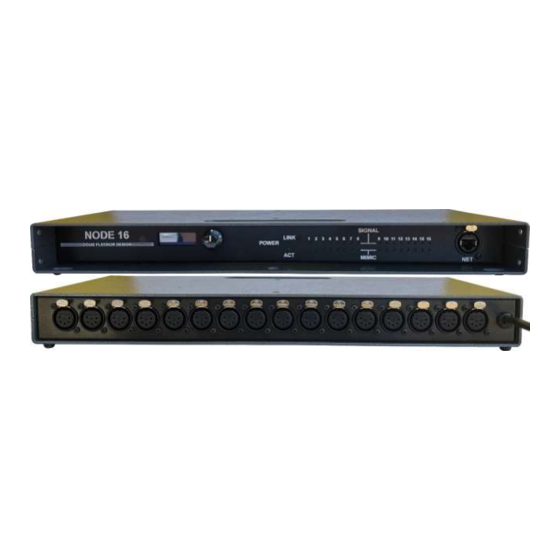

- Page 2 Product description 16 is an Ethernet to DMX512 bridging device. It accepts Streaming ACN (ANSI E1.31) or Artistic License's Art-Net protocols. There are sixteen fully isolated DMX512 output ports. The Ethernet input connector accepts standard RJ45 (8P8C) connectors as well as Neutrik Ethercon plugs. Each of the sixteen outputs has two front panel indicators: A signal LED which illuminates if there is DMX512 data for the selected universe, and a mimic LED which mimics the output level of DMX512 slot one (channel one) of the selected universe (useful for...
- Page 3 General Specifications Power input: 100-240 VAC, 50/60 Hz,30W. Indicators: 1 Red POWER indicator. 1 Green Ethernet LINK indicator. 1 Yellow Ethernet ACTIVITY indicator. 16 Green MIMIC indicators mimic the level of the first channel on each output (useful in troubleshooting). 16 Green SIGNAL indicators illuminate when DMX512 output signal is present on each port.
- Page 4 Network Jargon Doug Fleenor Design strives to make our products reliable and easy to use. Computer networks, and their complexity, complicate this goal. To help our users de-mystify the network side of our NODE products, Mr. Fleenor shares some of his insights.
- Page 5 Once a configuration page is selected, the knob is rotated to change the selected parameter. Depressing the knob accepts the change. DHCP. Doug Fleenor Design recommends against using DHCP in an entertainment lighting control network; it typically adds an unnecessary level of complexity. That said, 16 ships with DHCP enabled in case a server is being used.
- Page 6 U: 0 S: 0 N: 0, the second output is U: 1 S: 0 N: 0, the sixteenth output is U:15 S: 0 N: 0. LIMITED MANUFACTURER’S WARRANTY Products manufactured by Doug Fleenor Design (DFD) carry a five-year parts and labor warranty against manufacturing defects. It is the customer's responsibility to return the product to DFD at the customer's expense.
