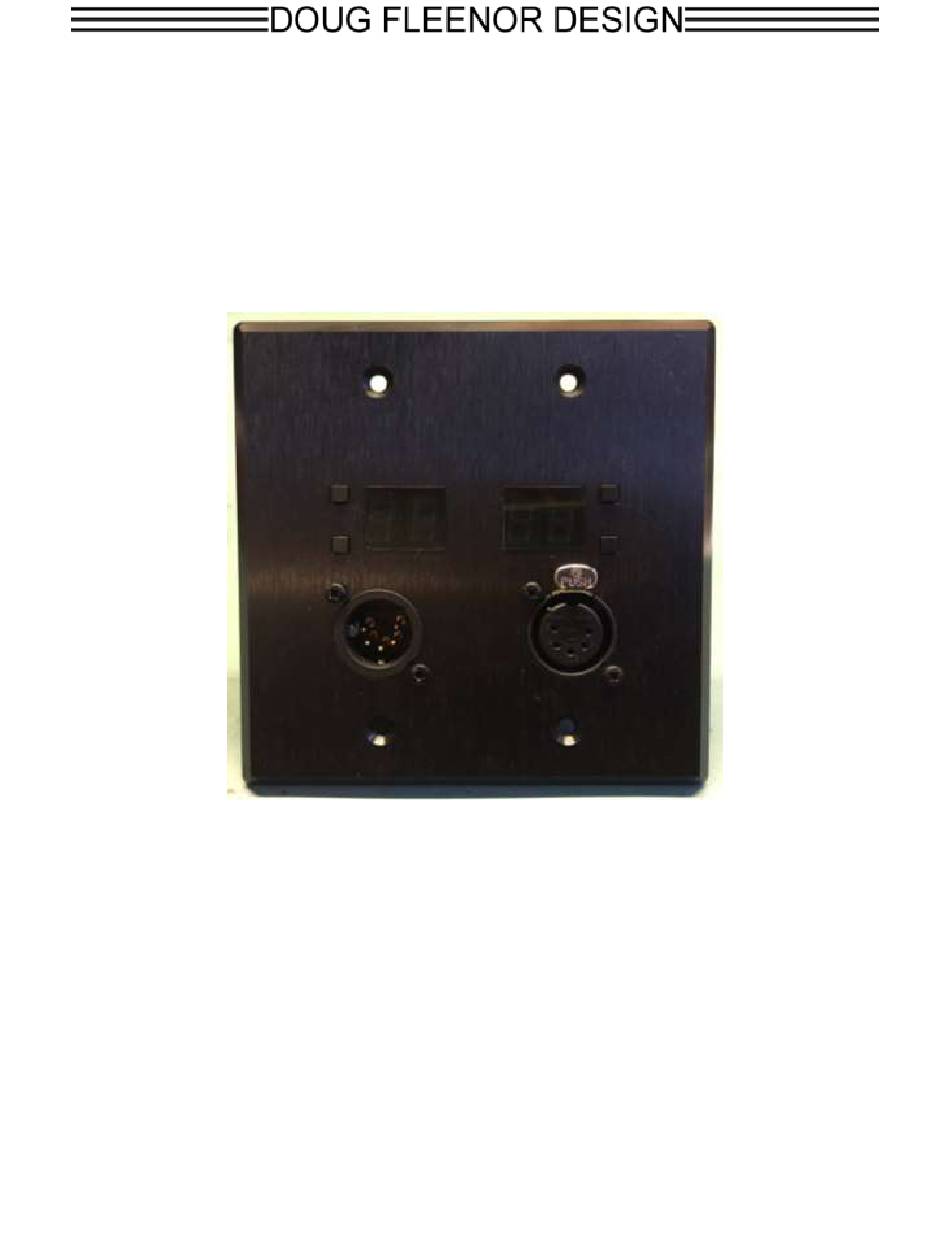

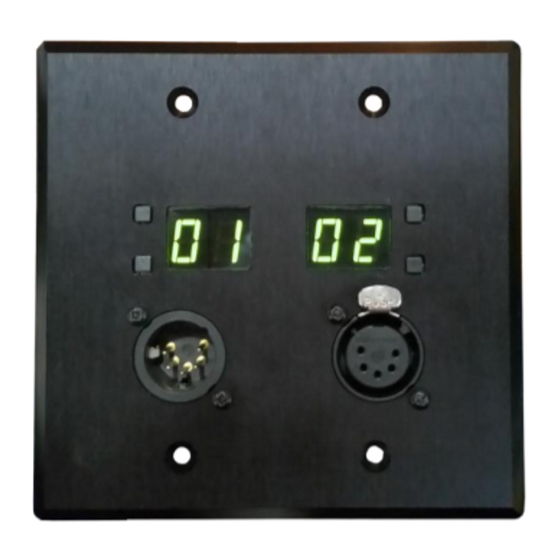

- Page 1 Two Port Ethernet to DMX512 Interface Configuration & Owner’s Manual model: N Doug Fleenor Design, Inc. 396 Corbett Canyon Road Arroyo Grande, CA 93420 (805) 481-9599 Voice and FAX Manual Revision October 2020 Page 1 of 10...
-
Page 2: Product Description
They specified the Doug Fleenor Design Router-Router, however they needed 20 inputs and Rotor- Router maxed out at 12. Doug Fleenor Design worked with the hotel planners to meet their any-input-to-any-output goal; N 2 is the result. -
Page 3: Jumper Settings
Jumper settings Five configuration jumpers are located on the rear of N 2. Jumpers should be set prior to installation. Jumper functions are described in the table below. Jumper Installed function Removed function Front panel displays turn off after 30 Front panel displays are always on seconds of inactivity Port A up/down buttons operate normally... - Page 4 100. Network Jargon Doug Fleenor Design strives to make our products reliable and easy to use. Computer networks, and their complexity, complicate this goal. To help our users de-mystify the network side of our N products, Mr.
-
Page 5: Network Setup
Doug Fleenor Design recommends users use Network 10 (address 10.X.X.X), which is intended for private (dedicated) networks that are not connected to the internet. Another private network number is 192.168 (address 192.168.X.X). - Page 6 Port direction Factory set for installed connectors. JP4 resets to two outputs. settings are edited using its built-in web server. To access the web server, the user must attach a computer to the N 2's network, launch a browser application (Microsoft Edge, Google Chrome, Mozilla Firefox, etc.), and point it to the N 2.
- Page 7 From this page: Checking the Identify Node box will cause N 2's display to flash. Clicking Network Configuration displays the network configuration page. Clicking Port A or Port B displays the appropriate DMX512 configuration page. Page 7 of 10...
- Page 8 Network configuration page: The Device Name (up to 20 characters) and Description (up to 64 characters) are fields that can be queried and displayed by a controller, such as a console, on the network. When editing these fields it will be necessary to delete or backspace over existing text and trailing spaces. DHCP can be enabled or disabled.
- Page 9 Five Network Protocols are supported: sACN (default), Art-Net (also popular), draft sACN (some ETC products), ShowNet (some Strand products), and KiNET (some Color Kinetics products). Remember to click Save Settings before navigating away from this page or changes will be lost.
-
Page 10: Restoring Default Settings
2s across a network. Limited Manufacturer’s Warranty Products manufactured by Doug Fleenor Design (DFD) carry a five-year parts and labor warranty against manufacturing defects. It is the customer's responsibility to return the product to DFD at the customer's expense. If covered under warranty, DFD will repair the unit and pay for return ground shipping.
