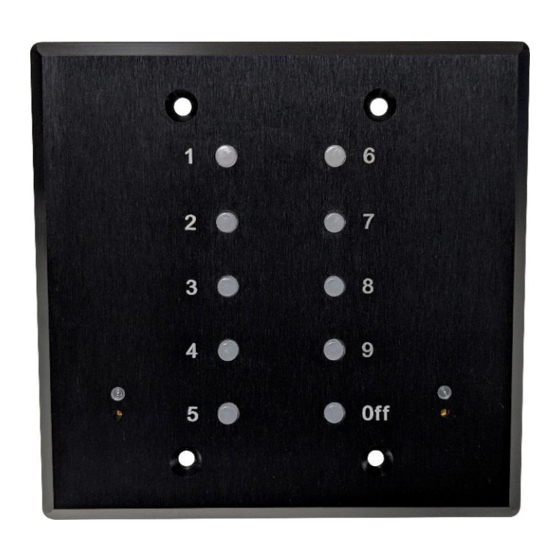

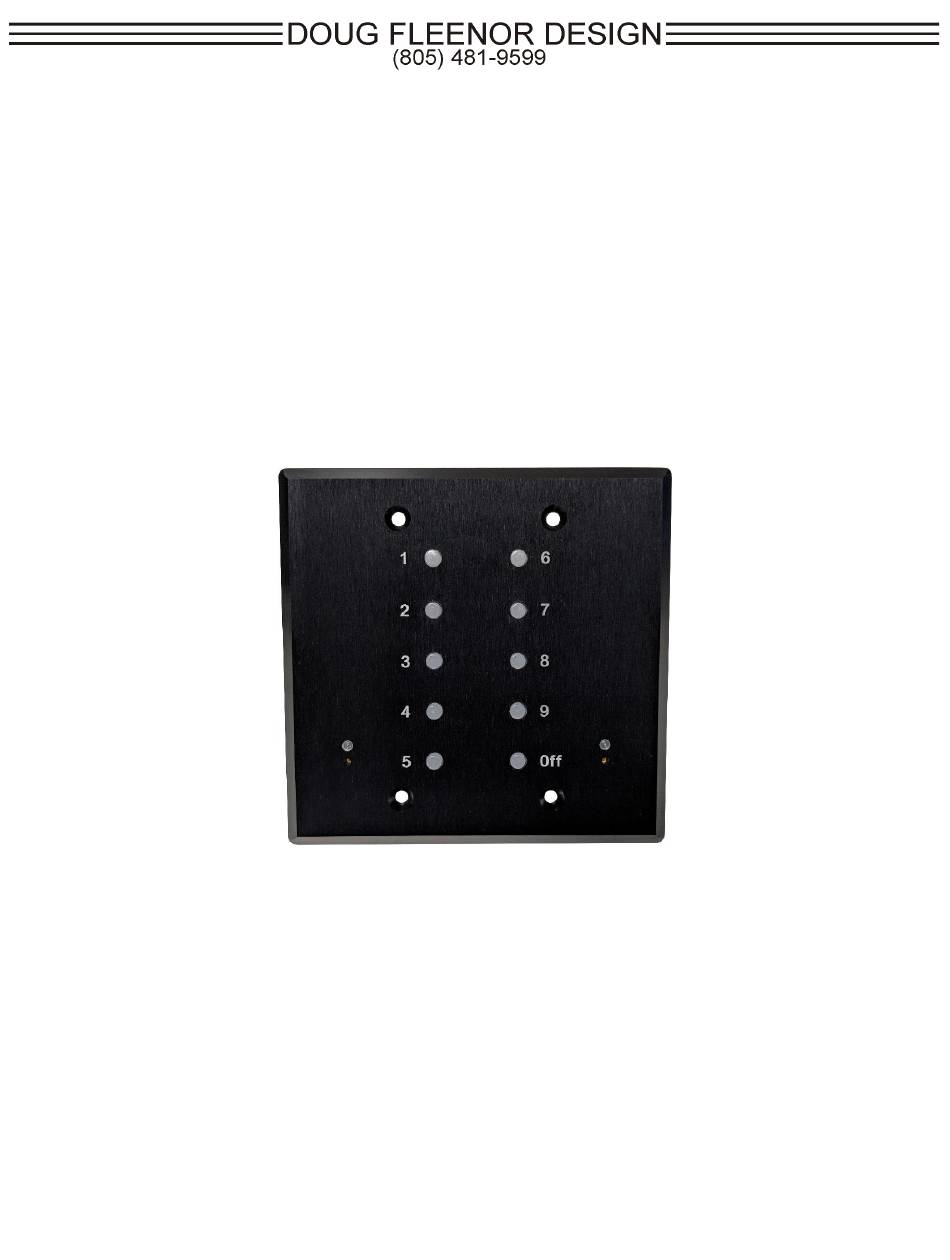

- Page 1 Preset 10 Ethernet Interface Configuration & Owner’s Manual model: PRE10E-A Doug Fleenor Design, Inc. 396 Corbett Canyon Road Arroyo Grande, CA 93420 (805) 481-9599 Voice and FAX Manual Revision 0 September 2018 Page 1 of 10...
-
Page 2: Product Overview
3.6”h X 2.9w” x 1.4”d. Data input and output takes place over the RJ45 jack. For best possible data rates, a cable capable of Fast Ethernet (100BASE-TX) is required. The cable must connect the PRE10E-A to an Ethernet LAN that contains the console and receiving devices. -
Page 3: System Topology
SYSTEM TOPOLOGY Both Single Station and Multistation system designs are possible with the PRE10E-A. A simple system may consist of a single console, PRE10E-A, and receiving device. A more complex system may have PRE10E-A stations at multiple locations in a building. -
Page 4: Rear Interface
REAR INTERFACE The PRE10E-A has a set of rear mounted controls that are accessed during initial commissioning of the wall station. The rear interface changes network settings, lockouts and button behavior. Once setup is complete, this interface remains facing into the two gang wall box and is not accessed by users changing presets on the front interface. -
Page 5: Subnet Mask
Turns Dynamic Host Configuration Protocol (DHCP) On or Off. DHCP servers, such as a router, will issue an IPv4 address to the PRE10E-A when connected on the same Local Area Network. With a DHCP addressed issued, the PRE10E-A will not be able to alter its own IPv4 address. -
Page 6: Jumper Settings
DATA Displays the value of the first slot of the first universe being received by the PRE10E-A. The Data page does not display data transmitted by the PRE10E-A. This is provided as a system diagnostic and troubleshooting aide. -
Page 7: Front Interface
LED. In NO LOCKOUT mode, the playback happens all the time, and the red LED indicates only the receipt of data. When shipped, the PRE10E-A will have its lockout setting as STANDARD. Whenever one or more of the indicator LEDs are on, a user can expect playback. -
Page 8: Recording Presets
INDICATOR led will illuminate. Note: If one or more static presets are active at the time power is lost, the PRE10E-A will return to the last active preset(s) when power is restored. The formerly active preset(s) will fade in completely after eight seconds. - Page 9 (16 minutes and 39 seconds). To enter a crossfade time: 1. Disconnect the PRE10E-A from any sACN sources on the same universes as the PRE10E-A. 2. Press the button of the preset you wish to edit. The green preset indicator LED will illuminate.
- Page 10 Doug Fleenor Design (at the customer's expense) for service. Doug Fleenor Design will repair the unit and return it to the customer (at Doug Fleenor Design's expense). If a trip is necessary to the customer's site to solve a problem, the expenses of the trip must be paid by the customer.
