- Page 1 Mi Desktop Monitor 27'' User Manual...
-
Page 2: Table Of Contents
Contents Product Overview ................2 Monitor Overview ................2 Package Contents ................2 Installation ................... 3 Installing the Base ................3 Instructions ..................5 Connections ..................5 Turning On/Off ................6 Indicator Status ................6 5-way Navigation Button Instructions ........6 Menu Description ................7 Precautions .................. -
Page 3: Product Overview

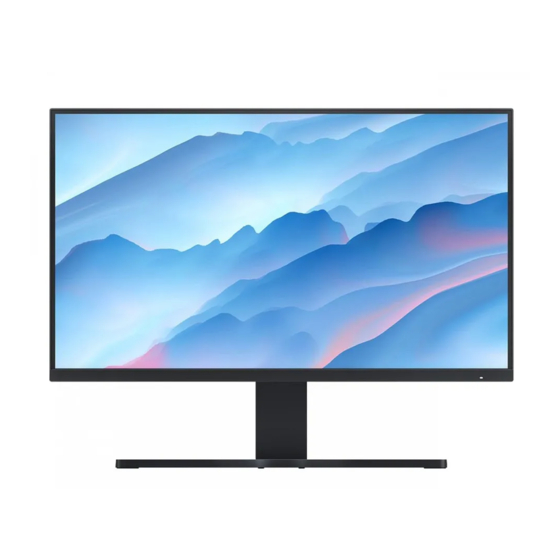

Read this manual carefully before use, Product Overview and retain it for future reference. Monitor Overview Monitor Stand Indicator Base 5-way Navigation Button Power Port HDMI Port VGA Port Audio Port Package Contents Mi Desktop Monitor 27'' User Manual Benutzerhandbuch zum Mi Desktop-Monitor 27'' 14 Manuale utente Mi Desktop Monitor 27'' Manuel d’utilisation de Mi Desktop Monitor 27'' Manual de usuario de Mi Desktop Monitor 27''... -
Page 4: Installation
Installation Installing the Base Do not press. It is recommended to install the monitor on the foam to avoid dropping or scratching it. 1. Unpack the box, then remove the monitor with 2. Install the stand onto the base and fasten it with its protective foam together from the box and the thumb screw from the bottom of the base. - Page 5 5. Use both hands to carefully take out the fully assembled monitor and place it on a flat stable surface. Note: To avoid damaging the screen, be careful not to press on the LCD screen when standing it up. Forward 5° Backward 21°...
-
Page 6: Instructions
Instructions Connections • Connect the VGA cable. VGA cable is only used for transferring data or signals via the VGA port. It is sold separately. a. Make sure the monitor and the computer are both turned off. b. Connect one end of the VGA cable to the computer's VGA output port, and the other end to the monitor's VGA port. -
Page 7: Turning On/Off
5-way Navigation Button DC IN Turning On/Off Indicator Status Press the middle of the Dimmed Turn On 5-way navigation button Press and hold the middle of the 5-way navigation Turn Off button for 3 seconds Blinking In sleep mode 5-way Navigation Button Instructions Result When menu is not When shortcut menu... -
Page 8: Menu Description
Menu Description Shortcut Button Description • When the menu is not displayed, you can open the Shortcut Button 1 shortcut menu by pressing the 5-way navigation button on any direction of up, down, left, or right. • When the shortcut menu is displayed, press the 5-way navigation button on the four directions up, down, left, or right to select the corresponding options. - Page 9 Main Menu Submenu Description Option Default Adjust the monitor’s response Ultrafast/Superfast/ Response Time Normal time Fast/Normal Sharpness Adjust the monitor’s sharpness 0-100 Adjust the image automatically Auto-adjust when using the VGA signal source Standard Mode Set to standard mode ECO Mode Set to eco mode Smart Game Mode...
-
Page 10: Precautions
Precautions • Do not use this monitor in damp or humid environments such as bathrooms, kitchens, basements, or near swimming pools. • Make sure the monitor is placed on a stable surface. If the monitor falls down or is knocked over, it may cause personal injury or damage to the monitor. -
Page 11: Troubleshooting
Troubleshooting Issue Possible Cause Solutions Unable to turn on No power Make sure the power cord is plugged in properly. Brightness/ Image is dark Contrast not Adjust the brightness and contrast. adjusted properly Image is jittery or has Keep the monitor away from electronic devices that Interference ripples may cause electrical Interference. -
Page 12: Specifications
Specifications Model RMMNT27NF Power Input 12 V Rated Power* 24 W Max. Screen Size 27” Viewable Image Size (Diagonal) 685.98 mm Dot Pitch 0.3114 x 0.3114 mm Brightness 300 cd/m (TYP) Contrast 1000:1 (TYP) Dynamic Contrast 1000000:1 Color Gamut 16.7 M Aspect Ratio 16:9 Response Time... -
Page 13: Eye Health
Eye Health To avoid eyestrain, or neck, arm, elbow, and shoulder pain caused by using the computer for a long time, please follow the suggestions listed below: • Keep the monitor at a distance of 20-28 inches (approx. 50-70 cm) from your eyes. •... -
Page 14: Regulatory Compliance Information
EU Declaration of Conformity We, Xiaomi Communications Co., Ltd., hereby, declare that this equipment is in compliance with the applicable Directives and European Norms, and amendments. The full text of the EU declaration of conformity is available at the following internet address: http://www.mi.com/global/service/support/declaration.html... - Page 15 Xiaomi Communications Co., Ltd. Address: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085 For further information, please go to www.mi.com Importer: Beryko s.r.o. Na Roudné 1162/76, 301 00 Plzeň www.beryko.cz...
