Summary of Contents for Amazfit Nexo

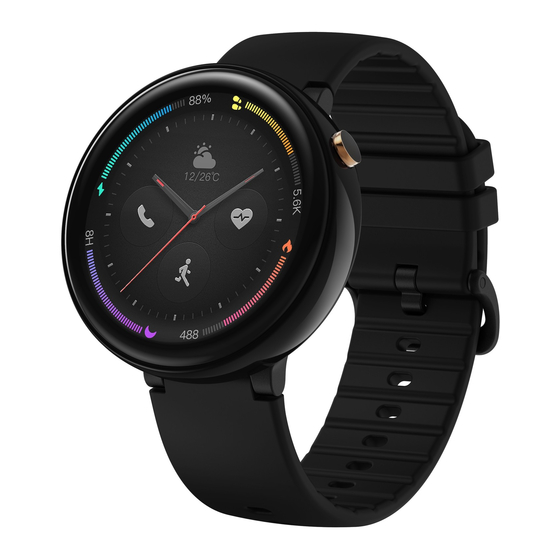

- Page 1 AMAZFIT Nexo User Manual...
-
Page 2: Package Contents
01 Package Contents Watch (including the strap) × 1 USB charging cable and base × 1 User Manual × 1... -
Page 3: About The Watch
02 About the watch Leak hole Button Speaker Microphone Heart rate sensing area Display screen Charging port... -
Page 4: Install The App
03 Install the App Scan the QR code below with your mobile phone, or search for the “Amaz t” app in major application markets and have it installed. - Page 5 04 Turn On/O Press and hold the button on the right of the watch, and the watch screen will light up to display the startup animation. A QR code will be displayed on your watch screen when it rst turns on. This QR code will be used to pair your watch with your mobile phone.
- Page 6 05 Connect Your Watch Activate Bluetooth and open the “Amaz t” app on your mobile phone. Log in to your account, and follow the prompts to scan the QR code displayed to bind the watch. Note: Do not pair the watch directly using your mobile phone’s Bluetooth.
- Page 7 06 eSIM Activation Contact your local carrier to get a QR code. Use the "Amaz t" app on your mobile phone to scan the QR code, following the instructions on the app to activate the eSIM. eSIM...
- Page 8 07 Charging Your Watch All AMAZFIT Nexo watches are shipped with the battery charged. As shown in the illustrations, align the watch with the charging base, align the charging interface of the watch with the metal contacts of the charging base, and then insert the USB interface of the charging base into the charger or the USB port of a computer.
- Page 9 08 Disassembly and Assembly of the Watch Strap 1. Please refer to the illustrations to assemble the watch strap.
- Page 10 2. Please refer to the illustrations to disassemble the watch strap.
- Page 11 09 Safety Notice The watch has a dust and water resistant rating of IP68. If the device falls on the ground or is hit, its dust and water resistant capacity may be damaged. Do not wear the watch during swimming or bath. If it is exposed to water, do not turn it on or recharge, you need to dry it with soft cloth.
- Page 12 Do not disassemble the watch and its accessories at will. If your watch needs any repair, please go to a designated professional organization for help. The product supports o cial system upgrades. If you modify the system les by installing a third-party ROM system or other cracking methods, it may lead to malfunction or data damage or loss of the product.
- Page 13 10 Basic Parameters Product model: AC1817 Resolution: 454 × 454 WLAN: 2.4 GHz 802.11 b/g/n Display screen: 1.39-inch AMOLED Battery type: Polymer li-ion rechargeable battery Bluetooth: 2.4 GHZ Bluetooth V4.2/BLE Battery capacity: 420 mAh (typical) GPS: GPS/Glonass/Galileo Frequency: Input: 5 V 700 mA MAX FDD-LTE: 824~849 MHz, 832~862 MHz, 880~915 MHz, Operating temperature: 0°C to 40°C...
- Page 14 11 Disposal and Recycling Information The use of the WEEE Symbol indicates that the following product may not be treated as a household waste. By ensuring that this product is disposed correctly, you will help protect the environment. For a more detailed information about the recycling of the following product, please contact your local authority, your household waste disposal service provider, or the shop where you have purchased the product.
- Page 15 A1817 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://en.amazfit.com/support.html For more regulatory information and product certification/compliance logos related to AMAZFIT Nexo, please go to Regulatory on your AMAZFIT Nexo.
- Page 16 13 Warranty and Return Policy The Amaz t Limited Warranty covers Amaz t products against manufacturing defects beginning on the original purchase date. The warranty period is 12 months or other period as the applicable consumer laws in the consumer’s country of purchase require. Our warranty is in addition to rights provided by applicable consumer laws.
