Vector MZ3-V01 Quick Start Manual page 2

Technical data
Power supply Operating voltage
Power consumption
Power backup for real time clock
Electrical connection
Signal outputs
Analog outputs
Output signal
Maximum load
Environment
Operation
Climatic conditions
Temperature
Humidity
Transport & storage
Climatic conditions
Temperature
Humidity
Mechanical conditions
Standards
Degree of protection
Safety class
General
Housing material:
Dimensions (H x W x D)
including packaging
Weight (incl. packaging)

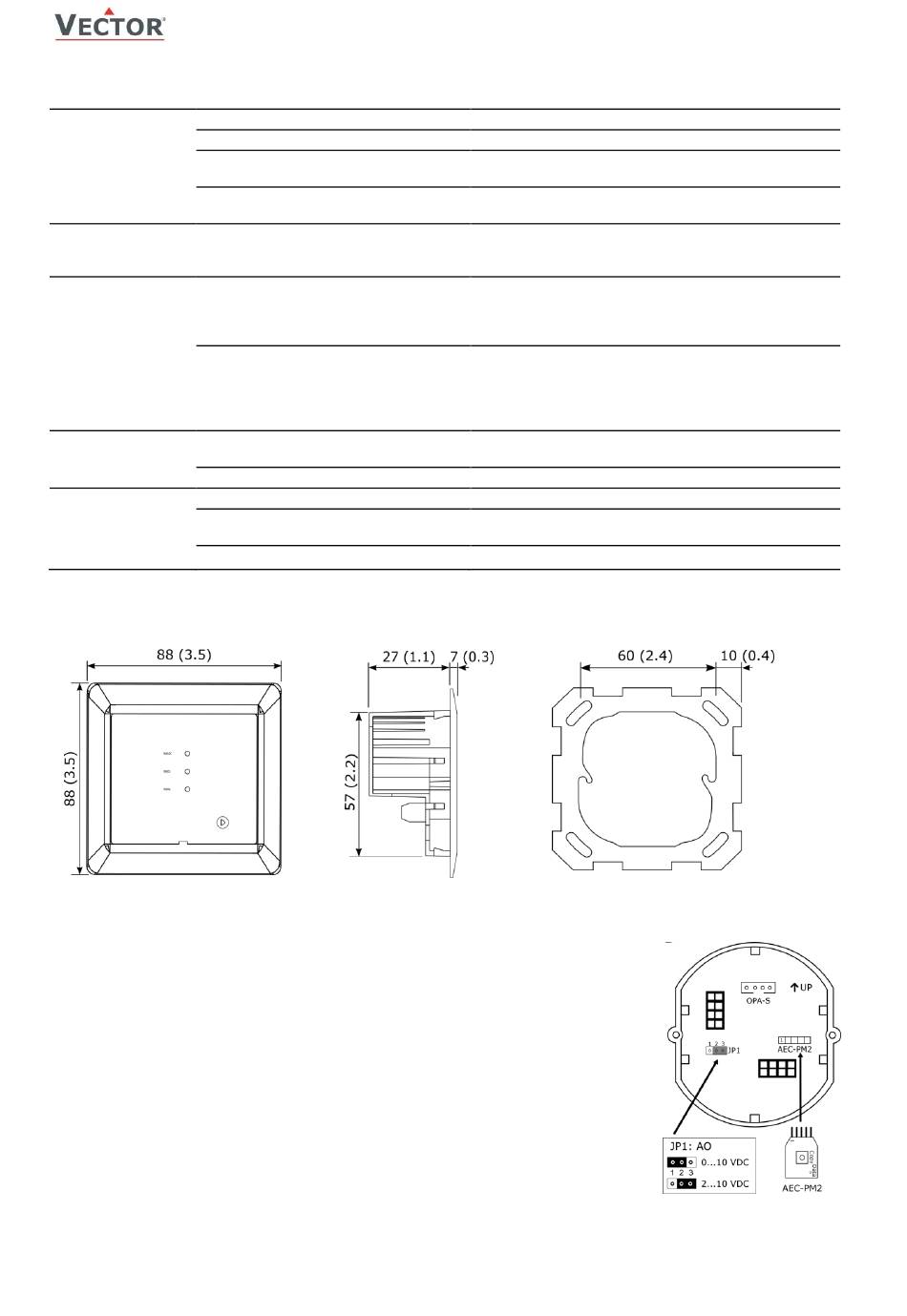

Dimensions mm (in)
The MZ3-V01 is so designed that it can be incorporated into a commercially available flush box (Feller EDIZIOdue
and mounting plate are included).
Selecting the signal from 0-10 VDC to 2-10 VDC with JP1
If JP1 is in position 1-2, the output signal is 0...10 VDC
If JP1 is in position 2-3, the output signal is 2...10 VDC
Parameter copy
It is now possible to copy settings to an accessory (AEC-PM2) and to copy them
back to other MZ3. For this, remove the front panel of the MZ3, insert AEC-PM2 in
the designated plug. Connect OPA-S and copy parameter from MZ3 to AEC-PM2 by
setting OP06 to 1.
AEC-PM2 "Data" LED is ON for 5 seconds after successful parameter copy and
OP06 is set to 0. If the parameter copy failed the LED blinks for 5 seconds and
OP06 is set to 7.
Copy parameter from AEC-PM2 to MZ3 simply by pressing the "Copy" button on
the AEC-PM2. AEC-PM2 "Data" LED is ON for 5 seconds after successful parameter
copy. If the parameter copy failed the LED blinks for 5 seconds.
Doc: 70-00-0834 V2.2, 20210419
Subject to alterations
24 V AC/DC ± 10%, 50/60 Hz, Class 2 48 VA max
Max. 1,0 VA
Super cap, keeps clock running for 24 h without
power
Terminal connectors,
wire 0,34-2,5 mm
DC 0...10 VDC
2 mA or 5 kΩ
To IEC 721-3-3
class 3K5
0...50 ° C (32...122 ° F)
< 95% RH non-condensing
To IEC 721-3-2 and IEC 721-3-1
class 3K3 and class 1K3
-25...70 °C (-13...158 °F)
< 95% RH non-condensing
class 2MT2
Wall mounted:
Not installed:
III (IEC 60536)
Fireproof ABS+PC plastic (UL94 class V-0)
120 x 120 x 40 mm (4,7" x 4,7" x 1,6")
140 g (5.0 oz)
