3.
Assembly
3-2

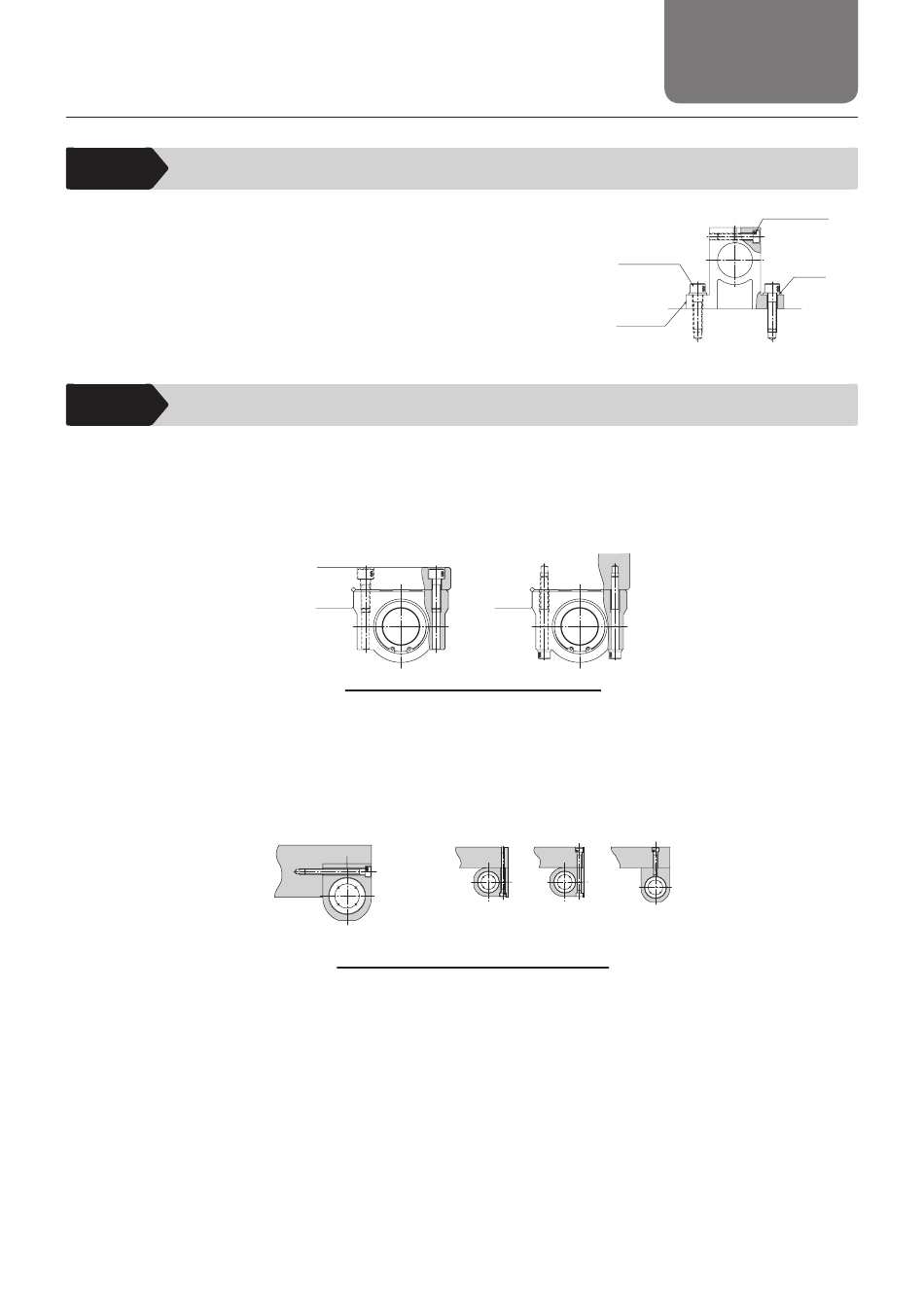

Mounting the Shaft Support

Shaft Support model SK can easily be secured to the
table using mounting bolts and the LM shaft can be
firmly―secured―using―clamping―bolts.
3-3

Mounting the Linear Bushing

z Mounting Model SC (SL)
Since models SC and SL can be attached from the top or bottom by simply tightening the bolts,
the installation time can be shortened. (Figure 3-6)
z Mounting Model SH (SH-L)
Since models SH and SH-L can be attached from the top or bottom by simply tightening the
bolts, the installation time can be shortened. (Figure 3-7)
тел. +7(499) 703-39-86
Figure 3-6 Mounting Model SC (SL)
Basic mounting
Figure 3-7 Mounting Model SH (SH-L)
3-5
Mounting bolt
Reference
surface
Alternative mounting
sales@thk.ru
3. Assembly
Fastening bolt
Washer
THK
SK30
Linear Bushing
