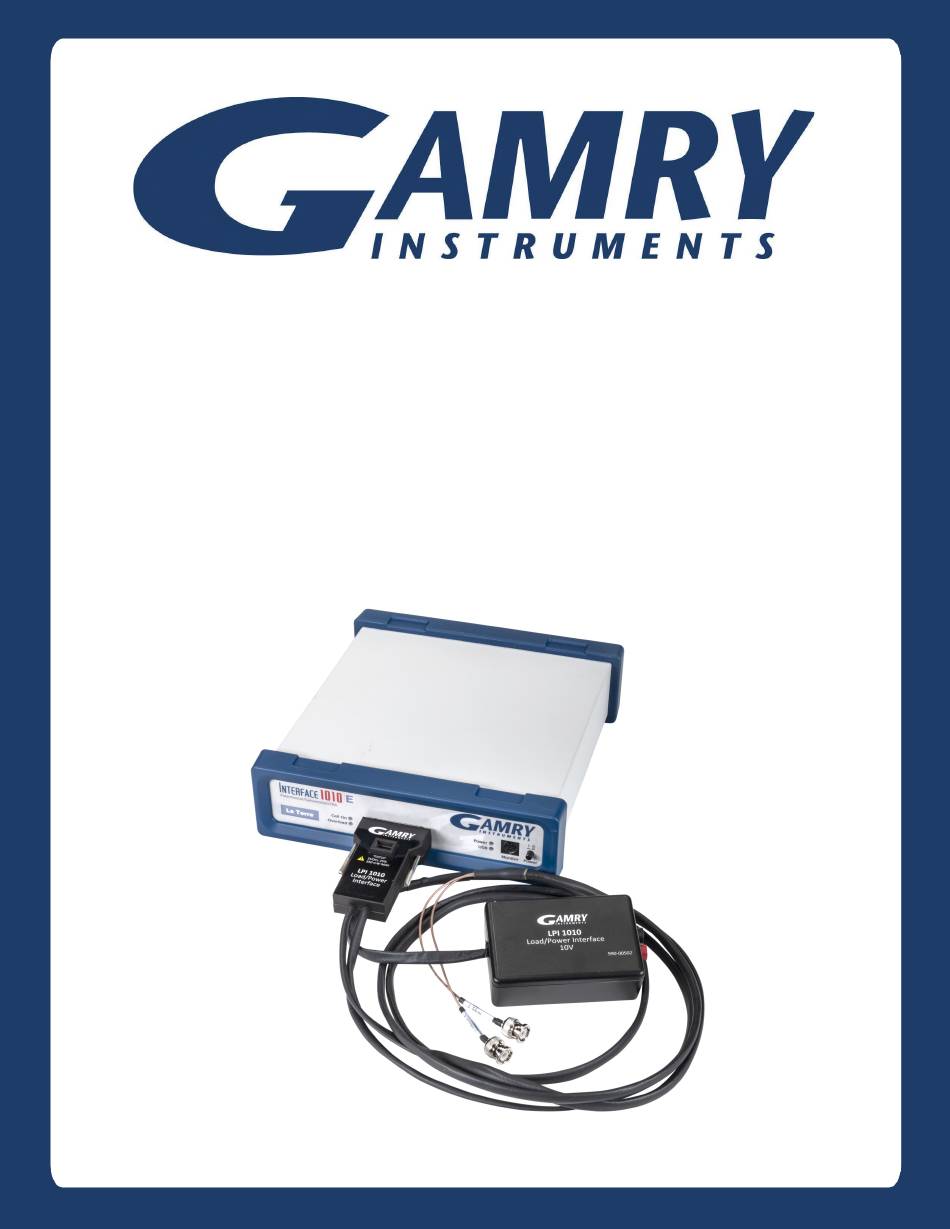

- Page 1 Load/Power Supply Interface (LPI1010) High Voltage EIS Test System QUICK-START GUIDE...
- Page 2 Connect the 15-pin HD D-sub connector of the LPI Power Cable to the mating User I/O connector on the back of the Interface 1010 and hand-tighten the jackscrews. Connect the male micro USB-B connector of the LPI Power Cable into the female micro USB-B connector on the top side of the LPI1010 D-sub Module.
- Page 3 The LPI D-sub Module is connected via a cable to onse side of the Cable End Module. On the other side, connect both red and black Voltage Sense Cables which are supplied with your LPI1010 system to the mating banana connectors of the Cable End Module. The red cable is assigned to the positive (+) contact and the black cable is for the negative (-) contact.
- Page 4 Options > Instrument Manager… on the Framework Menu. 4) Click on the potentiostat that is connected to the LPI1010. Check if any software updates are required. 5) Press the Con�gure button to open the LPI Con�guration Entry.
- Page 5 User Calibration Open the LPI Calibration script 1) Ensure that your LPI1010 is plugged into the Interface 1010 instrument and the LPI1010 is powered. 2) Power on your Interface 1010 and ensure that its USB port is connected to your computer.
