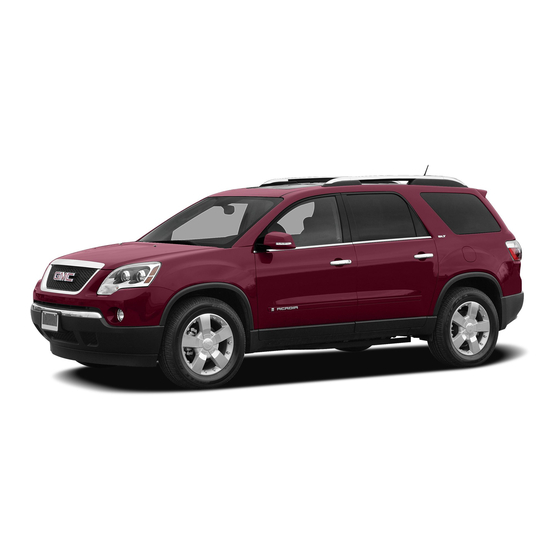

GMC 2008 Acadia Owner's Manual

GMC 2008 Acadia Owner's Manual

Hide thumbs Also See for 2008 Acadia:

Getting to know manual (24 pages)

page of 472

/ 472
Contents
Table of Contents
Bookmarks

Table of Contents

Advertisement

Quick Links

Download this manual

2008 GMC Acadia Owner Manual

Seats and Restraint Systems ........................... 1-1

Front Seats

............................................... 1-2

Rear Seats

.............................................. 1-11

Safety Belts

............................................. 1-16

Child Restraints

....................................... 1-36

Airbag System

......................................... 1-61

Restraint System Check

Features and Controls ..................................... 2-1

Keys

........................................................ 2-3

Doors and Locks

...................................... 2-10

Windows

................................................. 2-18

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

.................................................... 2-40

Object Detection Systems

®

OnStar

System

...................................... 2-47

Universal Home Remote System

Storage Areas

......................................... 2-55

Sunroof

.................................................. 2-60

Instrument Panel ............................................. 3-1

Instrument Panel Overview

Climate Controls

...................................... 3-26

Warning Lights, Gages, and Indicators

Driver Information Center (DIC)

Audio System(s)

....................................... 3-84

............................ 1-77

............................ 2-21

........... 2-25

.......................... 2-45

................ 2-50

.......................... 3-4

........ 3-39

.................. 3-57

Driving Your Vehicle ....................................... 4-1

Your Driving, the Road, and Your Vehicle

Towing

................................................... 4-26

Service and Appearance Care .......................... 5-1

Service

..................................................... 5-3

Fuel

......................................................... 5-6

Checking Things Under the Hood

All-Wheel Drive

........................................ 5-43

Headlamp Aiming

..................................... 5-45

Bulb Replacement

Windshield Wiper Blade Replacement

Tires

...................................................... 5-48

Appearance Care

..................................... 5-89

Vehicle Identiﬁcation

Electrical System

...................................... 5-99

Capacities and Speciﬁcations

Maintenance Schedule ..................................... 6-1

Maintenance Schedule

Customer Assistance Information .................... 7-1

Customer Assistance and Information

Reporting Safety Defects

Vehicle Data Recording and Privacy

Index ................................................................ 1

M

............... 5-12

.................................... 5-45

......... 5-47

................................. 5-98

................... 5-107

................................ 6-2

........... 7-2

........................... 7-13

........... 7-15

..... 4-2

Table of Contents

Advertisement

Chapters

Table of Contents

Need help?

Need help?

Do you have a question about the 2008 Acadia and is the answer not in the manual?

Questions and answers

Garry Allen Callison

May 15, 2025

DVD won't turn on at all when I insert DVD or it won't play, any advice

0

1 comments:

Mr. Anderson

May 22, 2025

For a 2008 GMC Acadia DVD player that won't turn on or play DVDs, follow these troubleshooting steps:

1. Wait up to 30 seconds after previews finish, as the DVD may start automatically.
2. If it does not play, press the pushbutton under the play/pause symbol on the radio display.
3. If the DVD still does not play, refer to any on-screen instructions.
4. If a disc fails to eject, press and hold the eject button for more than five seconds to force ejection.
5. If the screen is blank but audio works, it may be a display issue rather than a DVD playback problem.

These steps address common issues with DVD playback and screen function.

This answer is automatically generated

0

Bunny

June 11, 2025

Can you listen to the radio in front while watching a dvd in back?

0

Summary of Contents for GMC 2008 Acadia

Page 1 2008 GMC Acadia Owner Manual Seats and Restraint Systems ... 1-1 Front Seats ... 1-2 Rear Seats ... 1-11 Safety Belts ... 1-16 Child Restraints ... 1-36 Airbag System ... 1-61 Restraint System Check ... 1-77 Features and Controls ... 2-1 Keys ...
Page 2: Canadian Owners
For vehicles ﬁrst sold in Canada, substitute the name “General Motors of Canada Limited” for GMC whenever it appears in this manual. This manual describes features that may be available in this model, but your vehicle may not have all of them.
Page 3: Using This Manual
Using this Manual Many people read the owner manual from beginning to end when they ﬁrst receive their new vehicle to learn about the vehicle’s features and controls. Pictures and words work together to explain things. Index A good place to quickly locate information about the vehicle is the Index in the back of the manual.
Page 4: Vehicle Damage Warnings
Vehicle Damage Warnings You will also ﬁnd notices in this manual. Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
Page 5: Table Of Contents
Section 1 Front Seats ...1-2 Manual Seats ...1-2 Seat Height Adjuster ...1-3 Power Seats ...1-3 Manual Lumbar ...1-4 Power Lumbar ...1-5 Heated Seats ...1-5 Memory Seat and Mirrors ...1-6 Reclining Seatbacks ...1-8 Head Restraints ...1-10 Rear Seats ...1-11 Rear Seat Operation ...1-11 Third Row Seats ...1-13 Safety Belts ...1-16 Safety Belts: They Are for Everyone ...1-16...
Page 6: Front Seats
Front Seats Manual Seats CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 7: Seat Height Adjuster
Seat Height Adjuster If your vehicle has a manual driver seat height adjuster, it is located on the outboard side of the seat. See Manual Seats on page 1-2 for more information. To raise the seat, move the lever upward repeatedly until the seat is at the desired height.
Page 8: Manual Lumbar
Move the seat forward or rearward by sliding the control forward or rearward. Your vehicle may have additional features to adjust your vehicle’s power seat: • Raise or lower the entire seat by moving the entire control up or down. •...
Page 9: Power Lumbar
Power Lumbar If the seats have power lumbar, the controls used to operate this feature are located on the outboard side of the seats. See Power Seats on page 1-3 for more information. • To increase lumbar support, press and hold the front of the control.
Page 10: Memory Seat And Mirrors
Memory Seat and Mirrors Your vehicle may have the memory package. The controls for this feature are located on the driver’s door panel, and are used to program and recall memory settings for the driver’s seat and outside mirrors. To save your positions in memory, do the following: 1.
Page 11: Easy Exit Seat
Using the Remote Keyless Entry (RKE) transmitter to enter your vehicle with the remote recall memory feature on causes automatic seat and mirror adjustment. There is no adjustment when the position has not been changed by another seating position or the easy exit feature.
Page 12: Power Reclining Seatbacks
Reclining Seatbacks Manual Reclining Seatbacks CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 13 CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this. The shoulder belt cannot do its job because it will not be against your body.
Page 14: Head Restraints
Head Restraints Adjust the head restraint so that the top of the restraint is at the same height as the top of the occupant’s head. This position reduces the chance of a neck injury in a crash. 1-10 Pull the head restraint up to raise it.
Page 15: Rear Seats
Rear Seats Rear Seat Operation A. Seat Adjustment Handle. B. Reclining Seatback Strap. C. Sliding Seat Lever. Entering and Exiting the Third Row CAUTION: Using the third row seating position while the second row is folded, or folded and tumbled, could cause injury in a sudden stop or crash.
Page 16: Returning The Seat To The Seating Position
To access the third row: 1. Remove objects on the ﬂoor in front of or on the second row seat, or in the seat tracks on the ﬂoor. 2. Move the front center console armrest completely forward. See Center Console Storage on page 2-56 3.
Page 17: Third Row Seats
Reclining the Seatbacks To recline the seatback: 1. Leaning forward in the seat, pull the reclining seatback strap (B). 2. Move the seatback to the desired position, then release the strap to lock the seatback in place. 3. Push and pull on the seatback to make sure it is locked.
Page 18 To fold the seatback: 1. Remove anything on or under the seat. 2. Disconnect the rear safety belt mini-latch, using a key in the slot on the mini-buckle, let the belt retract into the headliner. Stow the mini-latch in the holder located in the headliner.
Page 19: Removing The Third Row Seats
CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatback to be sure it is locked. 3. Push and pull on the seatback to make sure it is locked in place.
Page 20: Safety Belts: They Are For Everyone
Installing the Third Row Seats 1. Before installing the seat the seatback must be folded forward. See “Folding the Seatback” earlier in this section. The seats must be placed in the proper locations for the legs to attach correctly. The wider seat must be installed on the driver side and the narrower seat on the passenger side.
Page 21 CAUTION: It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts.
Page 22: Why Safety Belts Work
Why Safety Belts Work When you ride in or on anything, you go as fast as it goes. Put someone on it. Take the simplest vehicle. Suppose it is just a seat on wheels. 1-18...
Page 23 Get it up to speed. Then stop the vehicle. The rider does not stop. The person keeps going until stopped by something. In a real vehicle, it could be the windshield... 1-19...
Page 24 or the instrument panel... 1-20 or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense.
Page 25: Questions And Answers About Safety Belts
Questions and Answers About Safety Belts Will I be trapped in the vehicle after a crash if I am wearing a safety belt? You could be — whether you are wearing a safety belt or not. But your chance of being conscious during and after an accident, so you can unbuckle and get out, is much greater if you are belted.
Page 26: How To Wear Safety Belts Properly
How to Wear Safety Belts Properly This section is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your vehicle, see Older Children on page 1-36 or Infants and Young Children on page 1-39.
Page 27 What is wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 28 What is wrong with this? The lap belt is too loose. It will not give as much protection this way. 1-24 CAUTION: You can be seriously hurt if your lap belt is too loose. In a crash, you could slide under the lap belt and apply force on your abdomen.
Page 29 What is wrong with this? The belt is buckled in the wrong place. CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not on the pelvic bones.
Page 30 What is wrong with this? The belt is over an armrest. 1-26 CAUTION: You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt.
Page 31 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 32 What is wrong with this? The belt is behind the body. 1-28 CAUTION: You can be seriously injured by not wearing the lap-shoulder belt properly. In a crash, you would not be restrained by the shoulder belt. Your body could move too far forward increasing the chance of head and neck injury.
Page 33 What is wrong with this? The belt is twisted across the body. CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer/retailer to ﬁx it.
Page 34: Lap-Shoulder Belt
Lap-Shoulder Belt All seating positions in your vehicle have a lap-shoulder belt. If you are using a rear seating position with a detachable safety belt and the safety belt is not attached, see Third Row Seats on page 1-13 for instruction on reconnecting the safety belt to the mini-buckle.
Page 35: Shoulder Belt Height Adjustment
6. To make the lap part tight, pull up on the shoulder belt. It may be necessary to pull the stitching on the safety belt through the latch plate to fully tighten the lap belt on smaller occupants. To unlatch the belt, push the button on the buckle. The belt should go back out of the way.
Page 36: Rear Safety Belt Comfort Guides
Safety Belt Pretensioners Your vehicle has safety belt pretensioners for front outboard occupants. Although you cannot see them, they are part of the safety belt assembly. They can help tighten the safety belts during the early stages of a moderate to severe frontal, near frontal, or rear crash if the threshold conditions for pretensioner activation are met.
Page 37 For the third row center position, locate the comfort guide which is located in a storage pocket, at the top of the seat, under the headrest on the driver’s side of the vehicle. To access the comfort guide, you will ﬁrst need to move the headrest forward by pulling on the handle behind the seatback.
Page 38 3. Be sure that the belt is not twisted and it lies ﬂat. The elastic cord must be under the belt and the guide on top. 1-34 CAUTION: A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured.
Page 39: Safety Belt Use During Pregnancy
4. Buckle, position, and release the safety belt as described previously in this section. Make sure that the shoulder belt crosses the shoulder. To remove and store the comfort guide, squeeze the belt edges together so that you can take them out of the guide.
Page 40: Safety Belt Extender
Safety Belt Extender If the vehicle’s safety belt will fasten around you, you should use it. But if a safety belt is not long enough, your dealer/retailer will order you an extender. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you.
Page 41 The manufacturer’s instructions that come with the booster seat, state the weight and height limitations for that booster. Use a booster seat with a lap-shoulder belt until the child passes the below ﬁt test: • Sit all the way back on the seat. Do the knees bend at the seat edge? If yes, continue.
Page 42 CAUTION: Never do this. Here two children are wearing the same belt. The belt cannot properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time. 1-38 CAUTION: Never do this.
Page 43: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 44 CAUTION: People should never hold an infant in their arms while riding in a vehicle. An infant does not weigh much — until a crash. During a crash an infant will become so heavy it is not possible to hold it. For example, in a crash at only 25 mph (40 km/h), a 12 lb (5.5 kg) infant will suddenly become a 240 lb (110 kg) force on a person’s arms.
Page 45 CAUTION: Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 46 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height, and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
Page 47: Child Restraint Systems
CAUTION: The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should.
Page 48 A forward-facing child seat (B) provides restraint for the child’s body with the harness. 1-44 A booster seat (C-D) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. A booster seat can also help a child to see out the window.
Page 49: Securing The Child Within The Child Restraint
Securing an Add-On Child Restraint in the Vehicle CAUTION: A child can be seriously injured or killed in a crash if the child restraint is not properly secured in the vehicle. Make sure the child restraint is properly installed in the vehicle using the vehicle’s safety belt or LATCH system, following the instructions that came with that restraint, and also the instructions in...
Page 50: Where To Put The Restraint
Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. We recommend that children and child restraints be secured in a rear seat, including: an infant or a child riding in a rear-facing child restraint;...
Page 51: Lower Anchors And Tethers For Children (Latch)
When securing a child restraint in a rear seating position, study the instructions that came with your child restraint to make sure it is compatible with this vehicle. Wherever you install a child restraint, be sure to secure the child restraint properly. Keep in mind that an unsecured child restraint can move around in a collision or sudden stop and injure people in the vehicle.
Page 52 Lower Anchors Lower anchors (A) are metal bars built into the vehicle. There are two lower anchors for each LATCH seating position that will accommodate a child restraint with lower attachments (B). 1-48 Top Tether Anchor A top tether (A, C) anchors the top of the child restraint to the vehicle.
Page 53 Some child restraints with top tethers are designed for use with or without the top tether being attached. Others require the top tether always to be attached. In Canada, the law requires that forward-facing child restraints have a top tether, and that the tether be attached.
Page 54 Seating positions with top tether anchors. (Lower Anchor): Seating positions with two lower anchors. Second Row — 60/40 Bench Seating positions with top tether anchors. Third Row 1-50 (Top Tether Anchor): (Top Tether Anchor): To assist you in locating the lower anchors, each second row anchor position has a label, near the crease between...
Page 55 Second Row — Bucket Shown, Bench Similar The top tether anchors are located at the bottom rear of the seatback for each seating position in the second row. Open the cover to access the anchors. Be sure to use an anchor located on the same side of the vehicle as the seating position where the child restraint will be placed.
Page 56: Securing A Child Restraint Designed For The Latch System
Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. See Where to Put the Restraint on page 1-46 for additional information. Securing a Child Restraint Designed for the LATCH System CAUTION: If a LATCH-type child restraint is not attached to anchors, the restraint will not be able to...
Page 57 CAUTION: Children can be seriously injured or strangled if a shoulder belt is wrapped around their neck and the safety belt continues to tighten. Secure any unused safety belts behind the child restraint so children cannot reach them. Pull the shoulder belt all the way out of the retractor to set the lock, if your vehicle has one, after the child restraint has been installed.
Page 58 2. If the child restraint manufacturer recommends that the top tether be attached, attach and tighten the top tether to the top tether anchor, if the vehicle has one. Refer to the child restraint instructions and the following steps: 2.1. Find the top tether anchor. 2.2.
Page 59: Securing A Child Restraint In A Rear Seat Position
If the position you are using has a ﬁxed headrest or head restraint and you are using a single tether, route the tether over the headrest or head restraint. 3. Push and pull the child restraint in different directions to be sure it is secure. Securing a Child Restraint in a Rear Seat Position When securing a child restraint in a rear seating...
Page 60 If you need to install more than one child restraint in the rear seat, be sure to read Where to Put the Restraint on page 1-46. 1. Put the child restraint on the seat. 2. Pick up the latch plate, and run the lap and shoulder portions of the vehicle’s safety belt through or around the restraint.
Page 61 5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt, and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 62: Securing A Child Restraint In The Right Front Seat Position
Securing a Child Restraint in the Right Front Seat Position Your vehicle has airbags. A rear seat is a safer place to secure a forward-facing child restraint. See Where to Put the Restraint on page 1-46. In addition, your vehicle has a passenger sensing system which is designed to turn off the right front passenger’s frontal airbag and seat-mounted side impact airbag under certain conditions.
Page 63 If your child restraint has the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 1-47 for how to install your child restraint using LATCH. If you secure a child restraint using a safety belt and it uses a top tether, see Lower Anchors and Tethers for Children (LATCH) on page 1-47 for top tether anchor locations.
Page 64 5. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 1-60 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor.
Page 65: Airbag System
If a child restraint has been installed and the on indicator is lit, turn the vehicle off. Remove the child restraint from the vehicle and reinstall the child restraint. If, after reinstalling the child restraint and restarting the vehicle, the on indicator is still lit, check to make sure that the vehicle’s seatback is not pressing the child restraint into the seat cushion.
Page 66 All of the airbags in your vehicle will have the word AIRBAG embossed in the trim or on an attached label near the deployment opening. For frontal airbags, the word AIRBAG will appear on the middle part of the steering wheel for the driver and on the instrument panel for the right front passenger.
Page 67 CAUTION: Frontal airbags are designed to deploy in moderate to severe frontal and near frontal crashes. They are not designed to inﬂate in rollover, rear crashes, or in many side crashes. Seat-mounted side impact airbags are designed to inﬂate in moderate to severe crashes where something hits the side of your vehicle.
Page 68: Where Are The Airbags
CAUTION: Airbags plus lap-shoulder belts offer the best protection for adults, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them. Young children and infants need the protection that a child restraint system can provide.
Page 69 The right front passenger’s frontal airbag is in the instrument panel on the passenger’s side. Driver Side shown, Passenger Side similar The seat-mounted side impact airbags for the driver and right front passenger are in the side of the seatbacks closest to the door.
Page 70 Driver Side shown, Passenger Side similar The roof-rail airbags for the driver, right front passenger, passengers behind the driver and right front passenger, and the third row outboard passengers are in the ceiling above the side windows. 1-66 CAUTION: If something is between an occupant and an airbag, the airbag might not inﬂate properly or it might force the object into that person causing severe injury or even death.
Page 71: When Should An Airbag Inﬂate
When Should an Airbag Inﬂate? Frontal airbags are designed to inﬂate in moderate to severe frontal or near-frontal crashes to help reduce the potential for severe injuries mainly to the driver’s or right front passenger’s head and chest. However, they are only designed to inﬂate if the impact exceeds a predetermined deployment threshold.
Page 72: What Makes An Airbag Inﬂate
Seat-mounted side impact airbags are not intended to inﬂate in frontal impacts, near-frontal impacts, rollovers, or rear impacts. Roof-rail airbags are not intended to inﬂate in rear impacts. A seat-mounted side impact airbag is intended to deploy on the side of the vehicle that is struck.
Page 73: What Will You See After An Airbag Inﬂates
But airbags would not help in many types of collisions, primarily because the occupant’s motion is not toward those airbags. See When Should an Airbag Inﬂate? on page 1-67 for more information. Airbags should never be regarded as anything more than a supplement to safety belts.
Page 74: Passenger Sensing System
In many crashes severe enough to inﬂate the airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger airbag. • Airbags are designed to inﬂate only once. After an airbag inﬂates, you will need some new parts for the airbag system.
Page 75 The passenger sensing system works with sensors that are part of the right front passenger’s seat. The sensors are designed to detect the presence of a properly-seated occupant and determine if the right front passenger’s frontal airbag and seat-mounted side impact airbag should be enabled (may inﬂate) or not.
Page 76 The passenger sensing system is designed to turn off the right front passenger’s frontal airbag and seat-mounted side impact airbag if: • The right front passenger seat is unoccupied. • The system determines that an infant is present in a rear-facing infant seat. •...
Page 77 Remove any additional material from the seat such as blankets, cushions, seat covers, seat heaters, or seat massagers before reinstalling or securing the child restraint. If the on indicator is still lit, secure the child in the child restraint in a rear seat position in the vehicle, and check with your dealer/retailer.
Page 78 Safety belts help keep the passenger in position on the seat during vehicle maneuvers and braking, which helps the passenger sensing system maintain the passenger airbag status. See “Safety Belts” and “Child Restraints” in the Index for additional information about the importance of proper restraint use. 1-74 CAUTION: If the airbag readiness light in the instrument...
Page 79: Servicing Your Airbag-Equipped Vehicle
CAUTION: Stowing of articles under the passenger’s seat or between the passenger’s seat cushion and seatback may interfere with the proper operation of the passenger sensing system. Servicing Your Airbag-Equipped Vehicle Airbags affect how your vehicle should be serviced. There are parts of the airbag system in several places around your vehicle.
Page 80: Adding Equipment To Your Airbag-Equipped Vehicle
Adding Equipment to Your Airbag-Equipped Vehicle Is there anything I might add to or change about the vehicle that could keep the airbags from working properly? Yes. If you add things that change your vehicle’s frame, bumper system, height, front end or side sheet metal, they may keep the airbag system from working properly.
Page 81: Restraint System Check
Because I have a disability, I have to get my vehicle modiﬁed. How can I ﬁnd out whether this will affect my airbag system? If you have questions, call Customer Assistance. The phone numbers and addresses for Customer Assistance are in Step Two of the Customer Satisfaction Procedure in this manual.
Page 82: Replacing Restraint System Parts After A Crash
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible.
Page 83: Features And Controls
Section 2 Keys ...2-3 Remote Keyless Entry (RKE) System ...2-4 Remote Keyless Entry (RKE) System Operation ...2-5 Remote Vehicle Start ...2-7 Doors and Locks ...2-10 Door Locks ...2-10 Power Door Locks ...2-11 Delayed Locking ...2-11 Programmable Automatic Door Locks ...2-11 Rear Door Security Locks ...2-11 Lockout Protection ...2-12 Liftgate ...2-13...
Page 84 Section 2 Universal Home Remote System ...2-50 Universal Home Remote System Operation (With One Triangular LED) ...2-51 Storage Areas ...2-55 Glove Box ...2-55 Cupholder(s) ...2-55 Instrument Panel Storage ...2-55 Center Console Storage ...2-56 Second Row Center Console ...2-56 Features and Controls Floor Mats ...2-57 Luggage Carrier ...2-58 Rear Seat Armrest ...2-58...
Page 85: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function with the keys in the ignition and they could be seriously injured or killed if caught in the path of a closing...
Page 86: Remote Keyless Entry (Rke) System
See your dealer/retailer if a replacement key or additional key is needed. Notice: If you ever lock your keys in your vehicle, you may have to damage the vehicle to get in. Be sure you have spare keys. If you are locked out of your vehicle, call the Roadside Assistance Center.
Page 87: Remote Keyless Entry (Rke) System Operation
Remote Keyless Entry (RKE) System Operation The Remote Keyless Entry (RKE) transmitter functions will work up to 195 feet (60 m) away. However, the operating range may be less while the vehicle is running. There are other conditions which can affect the performance of the transmitter.
Page 88: Battery Replacement
& (Power Liftgate): Press and hold one second to open and close the liftgate. The taillamps will ﬂash and a chime will sound to indicate when the liftgate is opening and closing. (Vehicle Locator/Panic Alarm): Press and release to locate your vehicle. The turn signal lamps will ﬂash and the horn will sound three times.
Page 89: Remote Vehicle Start
To replace the battery in the RKE transmitter: 1. Separate the halves of the transmitter with a ﬂat, thin object inserted into the notch on the side. 2. Remove the old battery. Do not use a metal object. 3. Insert the new battery, positive side facing down. Replace with a CR2032 or equivalent battery.
Page 90 The RKE transmitter with the remote start button, provides an increased range of operation. However, the range may be less while the vehicle is running. As a result, you may need to be closer to your vehicle to turn it off, than you were to turn it on. There are other conditions which can affect the performance of the transmitter, see Remote Keyless Entry (RKE) System on page 2-4 for additional...
Page 91: Remote Start Ready
For example, if the lock button and then the remote start buttons are pressed again after the vehicle has been running for ﬁve minutes, 10 minutes are added, allowing the engine to run for 15 minutes. The additional 10 minutes are considered a second remote start.
Page 92: Doors And Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers, especially children, can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
Page 93: Power Door Locks
Power Door Locks The power door lock switches are located on the front doors. (Unlock): Press to unlock the doors. (Lock): Press to lock the doors. Delayed Locking When locking the doors with the power lock switch and a door or the liftgate is open, the doors will lock ﬁve seconds after the last door is closed.
Page 94: Lockout Protection
The rear door security locks are located on the inside edge of each rear door. The rear doors must be open to access them. The label showing lock and unlock positions is located near the lock. Lock Label shown To set the locks, do the following: 1.
Page 95: Liftgate
Liftgate CAUTION: It can be dangerous to drive with the liftgate open because carbon monoxide (CO) gas can come into your vehicle. You cannot see or smell CO. It can cause unconsciousness and even death. If you must drive with the liftgate open, or if electrical wiring or other cable connections must pass through the seal between the body and the liftgate:...
Page 96: Instrument Panel
Power Liftgate Power Liftgate Operation CAUTION: It can be dangerous to drive with the liftgate open because carbon monoxide (CO) gas can come into your vehicle. You cannot see or smell CO. It can cause unconsciousness and even death. If you must drive with the liftgate open, or if electrical wiring or other cable connections must pass through the seal between the body and the liftgate:...
Page 97 CAUTION: You or others could be injured if caught in the path of the power liftgate. Make sure there is no one in the way of the liftgate as it is opening and closing. Notice: If you open the liftgate without checking for overhead obstructions such as a garage door, you could damage the liftgate or the liftgate glass.
Page 98 Power Liftgate Button Near Liftgate Latch The liftgate can also be closed by pressing the power liftgate button next to the liftgate latch. Press the button a second time during liftgate operation to reverse that operation. The power liftgate may be temporarily disabled under extreme temperatures, or under low battery conditions.
Page 99 Your vehicle has pinch sensors located on the side edges of the liftgate. If an object is caught between the liftgate and the body and presses against this sensor, the liftgate will reverse direction and open fully. The liftgate will remain open until it is activated again or closed manually.
Page 100: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 101: Power Windows
Power Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome from extreme heat in warm or hot weather and suffer permanent injuries or even death from heat stroke. Leaving children in a vehicle with the ignition key is dangerous for many reasons, children or others could be badly injured or even killed.
Page 102: Programming The Power Windows
Express-Down Windows Windows that have the express-down feature allow the windows to be lowered without holding the switch. Press the window switch fully and release it to activate the express-down feature. The express mode can be canceled at any time by brieﬂy pressing, or pulling the switch.
Page 103: Sun Visors
Sun Visors Pull the sun visor down to block glare. Detach the sun visor from the center mount and slide it along the rod from side-to-side to cover the driver or passenger side of the front window. Swing the sun visor to the side to cover the side window.
Page 104: Testing The Alarm
If a locked door is opened without using the key in the driver’s door key cylinder or the RKE transmitter, a ten second pre-alarm will occur. The horn will chirp and the lights will ﬂash. If the key is not placed in the ignition and turned to START or the door is not unlocked by pressing the unlock button on the RKE transmitter during the ten second pre-alarm, the alarm will go...
Page 105: Pass-Key Iii+ Operation
® PASS-Key III+ ® The PASS-Key III+ system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
Page 106 If the engine still does not start, and the key appears to be undamaged, try another ignition key. At this time, you may also want to check the fuse, see Fuses and Circuit Breakers on page 5-100. If the engine still does not start with the other key, your vehicle needs service.
Page 107: Starting And Operating Your Vehicle
Starting and Operating Your Vehicle New Vehicle Break-In Notice: Your vehicle does not need an elaborate break-in. But it will perform better in the long run if you follow these guidelines: • If you have all-wheel drive, keep your speed at 55 mph (88 km/h) or less for the ﬁrst 500 miles (805 km).
Page 108: Ignition Positions
Ignition Positions With the key in the ignition, you can turn it to four different positions. In order to shift out of PARK (P), ignition must be in ON/RUN or ACC/ACCESSORY and the regular brake pedal must be applied. Notice: Using a tool to force the key from the ignition switch could cause damage or break the key.
Page 109: Key In The Ignition
Key In the Ignition Never leave your vehicle with the keys inside, as it is an easy target for joy riders or thieves. If you leave the key in the ignition and park your vehicle, a chime will sound when you open the driver’s door. Always remember to remove your key from the ignition and take it with you.
Page 110: Starting Procedure
Starting Procedure 1. With your foot off the accelerator pedal, turn the ignition key to START. When the engine starts, let go of the key. The idle speed will go down as your engine gets warm. Do not race the engine immediately after starting it.
Page 111: To Use The Engine Coolant Heater
Engine Coolant Heater The engine coolant heater, if available, can help in cold weather conditions at or below 0°F (−18°C) for easier starting and better fuel economy during engine warm-up. Plug in the coolant heater at least four hours before starting your vehicle.
Page 112: Automatic Transmission Operation
Automatic Transmission Operation Your vehicle has an electronic shift position indicator within the instrument panel cluster. When using the Electronic Range Select Mode a number will display next to the L, indicating the current gear that has been selected. See Electronic Range Select mode in this section for more information.
Page 113 Make sure the shift lever is fully in PARK (P) before starting the engine. Your vehicle has an automatic transmission shift lock control system. You must fully apply your regular brake ﬁrst and then press the shift lever button before you can shift from PARK (P) when the ignition key is in ON.
Page 114: Electronic Range Select Mode
DRIVE (D): This position is for normal driving. It provides the best fuel economy for your vehicle. If you need more power for passing, and you are: • Going less than 35 mph (56 km/h), push your accelerator pedal about halfway down. •...
Page 115 When you shift from DRIVE (D) to LOW (L), the transmission will shift to a pre-determined lower gear range. The highest gear available for this pre-determined range is displayed next to the L in the DIC. See Driver Information Center (DIC) on page 3-57 and DIC Operation and Displays (With DIC Buttons) on page 3-57 or DIC Operation and Displays (Without DIC Buttons) on page 3-63 for more information.
Page 116: Tow/Haul Mode
Tow/Haul Mode Your vehicle may have a Tow/Haul mode. The button to turn it on or off is located on instrument panel under the climate controls. Push the button to turn it on, push it again to deactivate the system. You can use this feature to assist when towing or hauling a heavy load.
Page 117: Parking Brake
Parking Brake To set the parking brake, push down the parking brake pedal down with your left foot. If the ignition is on, the brake system warning light will come on. See Brake System Warning Light on page 3-47. Notice: Driving with the parking brake on can overheat the brake system and cause premature wear or damage to brake system parts.
Page 118: Shifting Into Park (P)
Shifting Into PARK (P) CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 119: Torque Lock
Torque Lock If you are parking on a hill and you do not shift your transmission into PARK (P) properly, the weight of the vehicle may put too much force on the parking pawl in the transmission. You may ﬁnd it difficult to pull the shift lever out of PARK (P).
Page 120: Parking Over Things That Burn
Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Do not park over papers, leaves, dry grass, or other things that can burn. 2-38 Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell.
Page 121: Climate Controls
Running the Engine While Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle.
Page 122: Mirrors
Mirrors Manual Rearview Mirror with ® OnStar When you are sitting in a comfortable driving position, adjust the mirror so you can see clearly behind your vehicle. Hold the mirror in the center to move it up or down and side to side. The day/night adjustment allows you to adjust the mirror to avoid glare from the lamps behind you.
Page 123: Compass Variance
If after a few seconds the display does not show a compass direction, (N for North for example), there may be a strong magnetic ﬁeld interfering with the compass. Such interference may be caused by a magnetic antenna mount, note pad holder, or similar object. If the letter C or CAL appears in the compass window, the compass may need to be reset or calibrated.
Page 124: Outside Power Mirrors
Outside Power Mirrors If your vehicle is equipped with outside power mirrors, the controls are located on the driver’s door armrest. Press (A) to select the driver’s side mirror or (B) to select the passenger’s side mirror. Press either (A) or (B) again to deselect the mirror.
Page 125: Outside Power Foldaway Mirrors
Outside Power Foldaway Mirrors If your vehicle is equipped with outside power foldaway mirrors, the controls are located on the driver’s door armrest. • Press (A) to select the driver’s side mirror. Then press the arrows located on the four-way control pad to adjust the mirror.
Page 126: Park Tilt Mirrors
Park Tilt Mirrors If your vehicle has the memory package, the outside mirrors are able to perform the park tilt function. This feature may be useful in allowing the driver to view the curb when parallel parking. This feature will cause the passenger’s and/or driver’s mirror to tilt to a preselected position when the vehicle is in REVERSE (R).
Page 127: Object Detection Systems
Object Detection Systems Ultrasonic Rear Parking Assist (URPA) If your vehicle has the Ultrasonic Rear Parking Assist (URPA) system, it helps you park easier and avoid other vehicles while in REVERSE (R). It operates at speeds less than 5 mph (8 km/h). It can determine how close objects are to the rear bumper, up to 8 feet (2.5 m) behind your vehicle.
Page 128: How The System Works
The display is located in the headliner and can be seen by looking over your right shoulder. URPA uses three color-coded lights to provide distance and system information. How the System Works URPA comes on automatically when the shift lever is moved into REVERSE (R).
Page 129: Rear Vision Camera
When the System Does Not Seem to Work Properly • The driver disables the system. • The parking brake pedal is depressed. • The ultrasonic sensors are not clean. Keep your vehicle’s rear bumper free of mud, dirt, snow, ice and slush. For cleaning instructions, see Washing Your Vehicle on page 5-92.
Page 130: Onstar Services
OnStar service is provided to you subject to the OnStar Terms and Conditions. You may cancel your OnStar service at any time by contacting OnStar. A complete OnStar Owner’s Guide and the OnStar Terms and Conditions are included in the vehicle’s OnStar Subscriber glove box literature.
Page 131: How Onstar Service Works
OnStar Hands-Free Calling OnStar Hands-Free Calling allows eligible OnStar subscribers to make and receive calls using voice commands. Hands-Free Calling is fully integrated into the vehicle, and can be used with OnStar Pre-Paid Minute Packages. Hands-Free Calling may also be linked to a Verizon Wireless service plan in the U.S. or a Bell Mobility service plan in Canada, depending on eligibility.
Page 132: Universal Home Remote System
OnStar service cannot work unless your vehicle is in a place where OnStar has an agreement with a wireless service provider for service in that area. OnStar service also cannot work unless you are in a place where the wireless service provider OnStar has hired for that area has coverage, network capacity and reception when the service is needed, and technology that is compatible with the OnStar service.
Page 133: Universal Home Remote System
Universal Home Remote System Operation (With One Triangular LED) If there is one triangular Light Emitting Diode (LED) indicator light above the Universal Home Remote buttons, follow the instructions below. This system provides a way to replace up to three remote control transmitters used to activate devices such as garage door openers, security systems, and home automation devices.
Page 134 To program up to three devices: 1. From inside the vehicle, press and hold down the two outside buttons at the same time, releasing only when the Universal Home Remote indicator light begins to ﬂash, after 20 seconds. This step will erase the factory settings or all previously programmed buttons.
Page 135 6. After Steps 1 through 5 have been completed, locate inside the garage the garage door opener receiver (motor-head unit). Locate the “Learn” or “Smart” button. The name and color of the button may vary by manufacturer. 7. Firmly press and release the “Learn” or “Smart” button.
Page 136: Gate Operator And Canadian Programming
Gate Operator and Canadian Programming If you have questions or need help programming the Universal Home Remote System, call 1-800-355-3515 or go to www.homelink.com. Canadian radio-frequency laws require transmitter signals to time out or quit after several seconds of transmission. This may not be long enough for Universal Home Remote to pick up the signal during programming.
Page 137: Storage Areas
Reprogramming a Single Universal Home Remote Button To reprogram any of the three Universal Home Remote buttons, repeat the programming instructions earlier in this section, beginning with Step 2. For help or information on the Universal Home Remote System, call the customer assistance phone number under Customer Assistance Offices on page 7-5.
Page 138: Center Console Storage
Center Console Storage The armrest on the center console can slide forwards and backwards by holding up the lever located on the front of it. To open the armrest storage area, press the button located on the front of the armrest. There is additional storage under the armrest.
Page 139: Floor Mats
To access the upper storage area, press the upper button (2) and lift up. To access the lower storage area, press the lower button (3) and lift up. The top of the console can be folded forward for increased storage area.
Page 140: Luggage Carrier
Luggage Carrier CAUTION: If you try to carry something on top of your vehicle that is longer or wider than the luggage carrier — like paneling, plywood, a mattress and so forth — the wind can catch it as you drive along.
Page 141: Cargo Tie Downs
Cargo Tie Downs Cargo tie-downs located in the rear of the vehicle are used to secure small loads. Cargo Management System Your vehicle has a cargo management system located in the rear of the vehicle. To open, pull the handle toward the rear of the vehicle and lift the cover up.
Page 142: Sunroof
Sunroof The vehicle may have a sunroof over the front seats, and a rear sunroof over the second row seats. The rear sunroof does not open. The switches to operate the front sunroof and rear sunshade are located on the headliner above the rearview mirror. The ignition must be in ON or ACCESSORY to operate the sunroof.
Page 143: Warning Lights, Gages, And Indicators
Section 3 Instrument Panel Overview ...3-4 Hazard Warning Flashers ...3-6 Other Warning Devices ...3-6 Horn ...3-6 Tilt and Telescopic Steering Wheel ...3-6 Power Tilt Wheel and Telescopic Steering Column ...3-7 Turn Signal/Multifunction Lever ...3-8 Turn and Lane-Change Signals ...3-8 Headlamp High/Low-Beam Changer ...3-9 Flash-to-Pass ...3-9 Windshield Wipers ...3-9 Windshield Washer ...3-10...
Page 144 Section 3 Antilock Brake System Warning Light ...3-48 ® StabiliTrak Indicator Light ...3-48 Engine Coolant Temperature Warning Light ...3-49 Engine Coolant Temperature Gage ...3-49 Tire Pressure Light ...3-50 Malfunction Indicator Lamp ...3-50 Oil Pressure Light ...3-54 Security Light ...3-54 Fog Lamp Light ...3-55 Cruise Control Light ...3-55 Highbeam On Light ...3-55 Tow/Haul Mode Light ...3-55...
Page 145 NOTES...
Page 146: Instrument Panel Overview
Instrument Panel Overview...
Page 147 The main components of your instrument panel are listed here: A. Air Vent. See Outlet Adjustment on page 3-36. B. Multifunction Lever. See Turn Signal/Multifunction Lever on page 3-8. Windshield Wipers. See Turn Signal/Multifunction Lever on page 3-8. C. Instrument Panel Cluster. See Instrument Panel Cluster on page 3-40.
Page 148: Hazard Warning Flashers
Hazard Warning Flashers The hazard warning ﬂashers let you warn others. They also let police know you have a problem. The front and rear turn signal lamps will ﬂash on and off. The hazard warning ﬂasher button is located in the center of the instrument panel, below the audio system.
Page 149: Power Tilt Wheel And Telescopic Steering Column
To tilt and telescope the steering wheel, pull down the lever. Then move the steering wheel up or down or backward or forward into a comfortable position. Pull the lever up to lock the steering wheel in place. Do not adjust the tilt and telescope lever while driving. Power Tilt Wheel and Telescopic Steering Column If your vehicle has this...
Page 150: Turn Signal/Multifunction Lever
Turn Signal/Multifunction Lever The lever on the left side of the steering column includes the following: • Turn and Lane Change Signals. See Turn and Lane-Change Signals on page 3-8. • Headlamp High/Low-Beam Changer. See Headlamp High/Low-Beam Changer on page 3-9. •...
Page 151: Headlamp High/Low-Beam Changer
If a bulb is burned out, replace it to help avoid an accident. If the arrows do not go on at all when you signal a turn, check for burned-out bulbs and then check the fuse. See Fuses and Circuit Breakers on page 5-100.
Page 152: Windshield Washer
(Mist): Turn the band to mist for a single wiping cycle. Hold it there until the wipers start. Then let go. The wipers stop after one wipe. Hold the band on mist longer, for more wipe cycles. (Off): To stop the wipers, move the band to off. (Delay): Turn the band to adjust the delay time.
Page 153: Heated Windshield Washer
Heated Windshield Washer If your vehicle has the heated windshield washer ﬂuid system it can be used to help clear ice, snow, tree sap, or bugs from the windshield. This feature only works with the front wiper system. The button is located to the left of the steering column below the instrument panel...
Page 154: Cruise Control
Cruise Control With cruise control, you can maintain a speed of about 25 mph (40 km/h) or more without keeping your foot on the accelerator. This can really help on long trips. Cruise control does not work at speeds below about 25 mph (40 km/h). When you apply your brakes, cruise control is turned off.
Page 155 Setting Cruise Control Cruise control will not work if your parking brake is set, or if the master cylinder brake ﬂuid level is low. The cruise control light on the instrument panel cluster comes on after the cruise control has been set to the desired speed.
Page 156: Exterior Lamps
Passing Another Vehicle While Using Cruise Control Use the accelerator pedal to increase vehicle speed. When you take your foot off the pedal, your vehicle will slow down to the previously set cruise speed. Using Cruise Control on Hills How well your cruise control will work on hills depends upon the vehicle speed, load, and the steepness of the hills.
Page 157: Delayed Headlamps
AUTO (Automatic): Turn the control to this position to automatically turn on the headlamps at normal brightness, together with the following: • Parking Lamps • Taillamps • License Plate Lamps • Instrument Panel Lights (Parking Lamps): Turn the control to this position to turn on the parking lamps together with the following: •...
Page 158: Daytime Running Lamps (Drl)/ Automatic Headlamp System
Daytime Running Lamps (DRL)/ Automatic Headlamp System Daytime Running Lamps (DRL) can make it easier for others to see the front of your vehicle during the day. DRL can be helpful in many different driving conditions, but they can be especially helpful in the short periods after dawn and before sunset.
Page 159: Instrument Panel Brightness
Instrument Panel Brightness (Instrument Panel Brightness): The knob with this symbol on it is located next to the exterior lamps control. Push the knob in all the way until it extends out and then turn the knob clockwise to brighten or counterclockwise to dim the lights.
Page 160: Delayed Entry Lighting
Entry lighting includes a feature called theater dimming. With theater dimming, the lamps do not turn off at the end of the delay time. Instead, they slowly dim after the delay time until they go out. The delay time is canceled if you turn the ignition key to ON/RUN or press the power door lock switch.
Page 161: Reading Lamps
Reading Lamps The vehicle has reading lamps that also act as the dome lamp. Press the button to turn them on and off. Electric Power Management The vehicle has Electric Power Management (EPM) that estimates the battery’s temperature and state of charge.
Page 162: Battery Run-Down Protection
Battery Run-Down Protection This vehicle has a feature to help prevent the battery from being drained, if the interior courtesy lamps, reading/map lamps, visor vanity lamps or trunk lamp are accidentally left on. If any of these lamps are left on, they will automatically turn off after 10 minutes, if the ignition is off.
Page 163 The HUD information can be displayed in one of three languages, English, French, or Spanish. The speedometer reading and other numerical values can be displayed in either English or metric units. The language selection and the units of measurement are changed through the trip computer in the Driver Information Center (DIC).
Page 164 The HUD control is located to the right of the steering wheel. To adjust the HUD image so that items are properly displayed, do the following: 1. Adjust the driver’s seat to a comfortable position. 2. Start the engine. 3. Adjust the HUD controls. Use the following settings to adjust the HUD.
Page 165: Care Of The Hud
Format Two: This display includes the information in Format One without the transmission information and the outside air temperature. Format Three: This display includes all the information in Format One along with a circular tachometer, but without outside air temperature. All formats will show the turn-by-turn navigation information and provide details about the next driving maneuver to be made.
Page 166: If The Hud Image Is Not Clear
If You Cannot See the HUD Image When the Ignition Is On • Is anything covering the HUD lens? • Is the HUD dimmer setting bright enough? • Is the HUD image adjusted to the proper height? • Are you wearing polarized sunglasses? •...
Page 167: Power Outlet 115 Volt Alternating Current
Certain electrical accessories may not be compatible with the accessory power outlets and could result in blown vehicle or adapter fuses. If you experience a problem, see your dealer/retailer for additional information on the accessory power outlet. Notice: Adding any electrical equipment to your vehicle may damage it or keep other components from working as they should.
Page 168: Climate Controls
The indicator light does not come on when the ignition is in LOCK/OFF or if no equipment is plugged into the outlet. If you try to connect equipment using more than 150 watts or a system fault is detected, a protection circuit shuts off the power supply and the indicator light turns off.
Page 169 Airﬂow Mode Control: Turn the right knob clockwise or counterclockwise to direct the airﬂow inside of the vehicle. To change the current mode, select one of the following: (Vent): This mode directs air to the instrument panel outlets. (Bi-Level): This mode directs about half of the air to the instrument panel outlets and half to the ﬂoor outlets.
Page 170: Defogging And Defrosting
For quicker cool down on hot days, do the following: 1. Open the windows to let hot air escape. 2. Select the vent mode. 3. Select the air conditioner. 4. Select the coolest temperature. 5. Select the highest fan speed. 6.
Page 171: Display Function
AUX (Auxiliary): Press this button to turn the rear heating and air conditioning on. See Rear Air Conditioning and Heating System on page 3-36 or Rear Air Conditioning and Heating System and Electronic Climate Controls on page 3-38. Rear Window Defogger The rear window defogger uses a warming grid to remove fog from the rear window.
Page 172: Automatic Operation
Driver’s Side Temperature Control The driver side temperature buttons are used to adjust the temperature of the air coming through the system on the driver side. The temperature can be adjusted even if the system is turned off. This is possible since outside air will always ﬂow through the system as the vehicle is moving forward unless it is set to recirculation mode.
Page 173 2. Set the driver’s and passenger’s temperature. To ﬁnd your comfort setting, start with a 73°F (22°C) temperature setting and allow about 20 minutes for the system to regulate. Use the driver’s or passenger’s temperature buttons to adjust the temperature setting as necessary. If you choose the temperature setting of 60°F (15°C), the system remains at the maximum cooling setting.
Page 174 The air delivery mode setting remains displayed, the word AUTO is no longer displayed, and the AUTO button indicator light turns off. (Vent): This setting delivers air to the instrument panel outlets. (Bi-Level): This mode directs air to the instrument panel outlets and to the ﬂoor outlets.
Page 175: Air Conditioning
Air Conditioning (Air Conditioning): Press this button to turn the air conditioning (A/C) compressor on and off. When air conditioning is selected, an indicator light comes on to show that the air conditioning has been activated. The air conditioning compressor does not work when outside temperatures fall below 40°F (4°C).
Page 176 The interior temperature sensor located on the instrument panel to the right of the steering column, measures the temperature of the air inside the vehicle. There is also an exterior temperature sensor located behind the front grille. This sensor reads the outside air temperature and helps maintain the temperature inside the vehicle.
Page 177: Rear Window Defogger
To clear fog from the rear seat side windows, select the bi-level mode on the rear climate control system and direct the headliner outlets toward the side windows. (Defrost): Press this button to remove fog or frost from the windshield more quickly. This mode directs most of the air to the windshield and side window vents and some to the ﬂoor vents.
Page 178: Outlet Adjustment
Outlet Adjustment Use the slider switch in the center of the outlet, to change the direction of the air ﬂow. Use the thumbwheel near the outlet to control the amount of air ﬂow or to shut off the airﬂow completely. Keep all outlets open whenever possible for best system performance.
Page 179: Fan Knob
Fan Knob Turn the left knob clockwise or counterclockwise to increase or decrease the fan speed. Turn the knob all the way counterclockwise to turn the rear system off. Temperature Knob The middle knob on the control panel lets you select the temperature of the air ﬂowing into the passenger area.
Page 180: Rear Air Conditioning And Heating System And Electronic Climate Controls
Rear Air Conditioning and Heating System and Electronic Climate Controls If your vehicle has this rear climate control system there are rear seat audio controls located in the center console. The rear system can be controlled through the AUX button on the front climate control panel. Press the AUX button to turn the rear climate control system on or off.
Page 181: Warning Lights, Gages, And Indicators
(Mode): Press the mode button to manually change the direction of the airﬂow in the vehicle. Repeatedly press the button until the desired mode appears on the display. Multiple presses cycles through the delivery selections. (Vent): This mode directs air through the headliner outlets.
Page 182: Instrument Panel Cluster
Instrument Panel Cluster The instrument cluster is designed to let you know at a glance how the vehicle is running. You will know how fast you are going, about how much fuel you have used, and many other things you will need to know to drive safely and economically.
Page 183: Speedometer And Odometer
Speedometer and Odometer The speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). The odometer shows how far your vehicle has been driven, in either miles or kilometers. Your vehicle has a tamper-resistant odometer. If your vehicle needs a new odometer installed, the new one will be set to the mileage total of the old odometer.
Page 184: Airbag Readiness Light
Passenger Safety Belt Reminder Light Several seconds after the engine is started, a chime will sound for several seconds to remind the front passenger to buckle their safety belt. This would only occur if the passenger airbag is enabled. See Passenger Sensing System on page 1-70 for more information.
Page 185: Passenger Airbag Status Indicator
CAUTION: If the airbag readiness light stays on after you start your vehicle, it means the airbag system may not be working properly. The airbags in your vehicle may not inﬂate in a crash, or they could even inﬂate without a crash. To help avoid injury to yourself or others, have your vehicle serviced right away if the airbag readiness light stays on after you start your vehicle.
Page 186 Then, after several more seconds, the status indicator will light either ON or OFF, or either the on or off symbol to let you know the status of the right front passenger’s frontal and seat-mounted side impact airbags. If the word ON or the on symbol is lit on the passenger airbag status indicator, it means that the right front passenger’s frontal airbag and seat-mounted side impact airbag are enabled (may inﬂate).
Page 187: Charging System Light
If, after several seconds, both status indicator lights remain on, or if there are no lights at all, there may be a problem with the lights or the passenger sensing system. See your dealer/retailer for service. CAUTION: If the airbag readiness light in the instrument panel cluster ever comes on and stays on, it means that something may be wrong with the airbag system.
Page 188: Voltmeter Gage
Voltmeter Gage When the engine is not running, but the ignition is turned on, this gage shows the battery’s state of charge in DC volts. When the engine is running, this gage shows the condition of the charging system. The vehicle’s charging system regulates voltage based on the state of charge of the battery.
Page 189: Brake System Warning Light
Brake System Warning Light Your vehicle’s hydraulic brake system is divided into two parts. If one part is not working, the other part can still work and stop you. For good braking, though, you need both parts working well. If the warning light comes on, there is a brake problem. Have your brake system inspected right away.
Page 190: Antilock Brake System Warning Light
Antilock Brake System Warning Light For vehicles with the Antilock Brake System (ABS), this light will come on brieﬂy when you start the engine. That is normal. If the light does not come on then, have it ﬁxed so it will be ready to warn you if there is a problem. If the ABS light stays on, turn the ignition off, if the light comes on when you are driving, stop as soon as it is safely possible and turn the ignition off.
Page 191: Engine Coolant Temperature Warning Light
Engine Coolant Temperature Warning Light The engine coolant temperature warning light will come on when the engine has overheated. If this happens you should pull over and turn off the engine as soon as possible. See Engine Overheating on page 5-25 for more information. Notice: Driving with the engine coolant temperature warning light on could cause your vehicle to overheat.
Page 192: Tire Pressure Light
Tire Pressure Light Your vehicle has a tire pressure light. This light comes on brieﬂy when the engine is started and provides information about tire pressures and the Tire Pressure Monitoring System. When the Light is Solid This indicates that one or more of your tires are signiﬁcantly underinﬂated.
Page 193 The check engine light comes on to indicate that there is an OBD II problem and service is required. Malfunctions often are indicated by the system before any problem is apparent. This can prevent more serious damage to your vehicle. This system is also designed to assist your service technician in correctly diagnosing any malfunction.
Page 194: If The Light Is Flashing
If the Light is Flashing The following can prevent more serious damage to your vehicle: • Reduce vehicle speed. • Avoid hard accelerations. • Avoid steep uphill grades. • If you are towing a trailer, reduce the amount of cargo being hauled as soon as it is possible. If the light stops ﬂashing and remains on steady, see “If the Light Is On Steady”...
Page 195: Emissions Inspection And Maintenance Programs
Have you recently changed brands of fuel? If so, be sure to fuel your vehicle with quality fuel. See Gasoline Octane on page 5-6. Poor fuel quality causes the engine not to run as efficiently as designed. You might notice this as stalling after start-up, stalling when you put the vehicle into gear, misﬁring, hesitation on acceleration, or stumbling on acceleration —...
Page 196: Maintenance Schedule
Oil Pressure Light CAUTION: Do not keep driving if the oil pressure is low. If you do, your engine can become so hot that it catches ﬁre. You or others could be burned. Check your oil as soon as possible and have your vehicle serviced.
Page 197: Fog Lamp Light
Fog Lamp Light The fog lamp light will come on when the fog lamps are in use. The light will go out when the fog lamps are turned off. See Fog Lamps on page 3-16 for more information. Cruise Control Light This light comes on whenever you set the cruise control.
Page 198: Fuel Gage
Fuel Gage United States When the ignition is on, the fuel gage tells you about how much fuel you have left in your tank. The gage will ﬁrst indicate empty before you are out of fuel, and you should get more fuel as soon as possible. 3-56 When the fuel tank is low on fuel, the FUEL LEVEL LOW message will appear on the Driver Information...
Page 199: Driver Information Center (Dic)
Driver Information Center (DIC) Your vehicle has a Driver Information Center (DIC). The DIC displays information about your vehicle. It also displays warning messages if a system problem is detected. All messages will appear in the DIC display located at the top of the instrument panel cluster.
Page 200: Oil Life
DIC Buttons The buttons are the set/reset, customization, vehicle information, and trip/fuel buttons. The button functions are detailed in the following pages. (Set/Reset): Press this button to set or reset certain functions and to turn off or acknowledge messages on the DIC. (Customization): Press this button to customize the feature settings on your vehicle.
Page 201: Park Assist
Remember, you must reset the OIL LIFE display yourself after each oil change. It will not reset itself. Also, be careful not to reset the OIL LIFE display accidentally at any time other than when the oil has just been changed. It cannot be reset accurately until the next oil change.
Page 202: Blank Display
RELEARN REMOTE KEY This display allows you to match Remote Keyless Entry (RKE) transmitters to your vehicle. To match an RKE transmitter to your vehicle: 1. Press the vehicle information button until PRESS TO RELEARN REMOTE KEY displays. 2. Press the set/reset button until REMOTE KEY LEARNING ACTIVE is displayed.
Page 203 The trip odometer has a feature called the retro-active reset. This can be used to set the trip odometer to the number of miles (kilometers) driven since the ignition was last turned on. This can be used if the trip odometer is not reset at the beginning of the trip.
Page 204 AVG (Average) ECONOMY Press the trip/fuel button until AVG ECONOMY displays. This display shows the approximate average miles per gallon (mpg) or liters per 100 kilometers (L/100 km). This number is calculated based on the number of mpg (L/100 km) recorded since the last time this menu item was reset.
Page 205: Dic Operation And Displays (Without Dic Buttons)
DIC Operation and Displays (Without DIC Buttons) If your vehicle does not have DIC buttons, the information below explains the operation of this system. The DIC has different displays which can be accessed by pressing the trip odometer reset stem located on the instrument panel cluster.
Page 206 To use the retro-active reset feature, press and hold the trip odometer reset stem for at least four seconds. The trip odometer will display the number of miles (mi) or kilometers (km) driven since the ignition was last turned on and the vehicle was moving. Once the vehicle begins moving, the trip odometer will accumulate mileage.
Page 207: Display Language
When the URPA system is turned off and the vehicle is shifted out of PARK (P), the DIC will display the PARK ASSIST OFF message as a reminder that the system has been turned off. See DIC Warnings and Messages on page 3-66 and Ultrasonic Rear Parking Assist (URPA) on page 2-45 for more information.
Page 208: Dic Warnings And Messages
DIC Warnings and Messages Messages are displayed on the DIC to notify the driver that the status of the vehicle has changed and that some action may be needed by the driver to correct the condition. Multiple messages may appear one after another.
Page 209: Battery Saver Active
BATTERY SAVER ACTIVE This message displays when the system detects that the battery voltage is dropping below expected levels. The battery saver system starts reducing certain features of the vehicle that you may be able to notice. At the point that the features are disabled, this message is displayed.
Page 210: Driver Door Open
DRIVER DOOR OPEN This message displays and a chime sounds if the driver door is not fully closed and the vehicle is in a drive gear. Stop and turn off the vehicle, check the door for obstructions, and close the door again. Check to see if the message still appears on the DIC.
Page 211: Engine Overheated Stop Engine
ENGINE OVERHEATED STOP ENGINE Notice: If you drive your vehicle while the engine is overheating, severe engine damage may occur. If an overheat warning appears on the instrument panel cluster and/or DIC, stop the vehicle as soon as possible. See Engine Overheating on page 5-25 for more information.
Page 212: Oil Pressure Low Stop Engine
HEATING WASH (Washer) FLUID WASH (Washer) WIPES PENDING This message displays when you turn on the heated windshield washer ﬂuid system. See “Heated Windshield Washer” under Windshield Washer on page 3-10 for more information. HOOD OPEN This message displays and a chime sounds if the hood is not fully closed.
Page 213 PARK ASSIST OFF If your vehicle has the Ultrasonic Rear Parking Assist (URPA) system, after the vehicle has been started and shifted out of PARK (P), this message displays to remind the driver that the URPA system has been turned off. Press the set/reset button or the trip odometer reset stem to acknowledge this message and clear it from the DIC display.
Page 214: Service Brake System
SERVICE AIR BAG This message displays if there is a problem with the airbag system. Have your dealer/retailer inspect the system for problems. See Airbag Readiness Light on page 3-42 and Airbag System on page 1-61 for more information. SERVICE ALL WHEEL DRIVE If your vehicle has the All-Wheel Drive (AWD) system, this message displays if there is a problem with this system.
Page 215: Service Tire Monitor System
SERVICE STABILITRAK This message displays if there is a problem with the ® StabiliTrak system. If this message appears, try to reset the system. Stop; turn off the engine for at least 15 seconds; then start the engine again. If this message still comes on, it means there is a problem.
Page 216: Traction Control Off
STARTING DISABLED SERVICE THROTTLE This message displays when your vehicle’s throttle system is not functioning properly. Have your vehicle serviced by your dealer/retailer. THEFT ATTEMPTED This message displays if the content theft-deterrent system has detected a break-in attempt while you were away from your vehicle.
Page 217: Turn Signal On
TRANSMISSION HOT IDLE ENGINE Notice: If you drive your vehicle while the transmission ﬂuid is overheating and the transmission temperature warning is displayed on the instrument panel cluster and/or DIC, you can damage the transmission. This could lead to costly repairs that would not be covered by your warranty.
Page 218: Auto Door Lock
To change customization preferences, use the following procedure. Entering the Feature Settings Menu 1. Turn the ignition on and place the vehicle in PARK (P). To avoid excessive drain on the battery, it is recommended that the headlamps are turned off. 2.
Page 219 Press the customization button until AUTO DOOR LOCK appears on the DIC display. Press the set/reset button once to access the settings for this feature. Then press the customization button to scroll through the following settings: SHIFT OUT OF PARK (default): The doors will automatically lock when the vehicle is shifted out of PARK (P).
Page 220: Remote Door Unlock
NO CHANGE: No change will be made to this feature. The current setting will remain. To select a setting, press the set/reset button while the desired setting is displayed on the DIC. REMOTE DOOR LOCK This feature allows you to select the type of feedback you will receive when locking the vehicle with the Remote Keyless Entry (RKE) transmitter.
Page 221: Exit Lighting
LIGHTS ON (default): The exterior lamps will ﬂash when you press the unlock button on the RKE transmitter. NO CHANGE: No change will be made to this feature. The current setting will remain. To select a setting, press the set/reset button while the desired setting is displayed on the DIC.
Page 222: Approach Lighting
NO CHANGE: No change will be made to this feature. The current setting will remain. To select a setting, press the set/reset button while the desired setting is displayed on the DIC. APPROACH LIGHTING This feature allows you to select whether or not to have the exterior lights turn on brieﬂy during low light periods after unlocking the vehicle using the Remote Keyless Entry (RKE) transmitter.
Page 223 PARK TILT MIRRORS If your vehicle has this feature, it allows you to select whether or not the outside mirror(s) will automatically tilt down when the vehicle is shifted into REVERSE (R). See Outside Power Foldaway Mirrors on page 2-43 for more information.
Page 224: Memory Seat Recall
MEMORY SEAT RECALL If your vehicle has this feature, it allows you to select your preference for the remote memory seat recall feature. See Memory Seat and Mirrors on page 1-6 for more information. Press the customization button until MEMORY SEAT RECALL appears on the DIC display.
Page 225: Factory Settings
FACTORY SETTINGS This feature allows you to set all of the customization features back to their factory default settings. Press the customization button until FACTORY SETTINGS appears on the DIC display. Press the set/reset button once to access the settings for this feature.
Page 226: Audio System(S)
Audio System(s) Determine which radio your vehicle has and then read the pages following to familiarize yourself with its features. CAUTION: This system provides you with far greater access to audio stations and song listings. Giving extended attention to entertainment tasks while driving can cause a crash and you or others can be injured or killed.
Page 227: Default Settings
Setting the Time MP3 Radios with a Single CD or a Single CD and DVD Player If your vehicle has a radio with a single CD or a CD and DVD player, it has a (clock) button for setting the time and date. 1.
Page 228 MP3 Radio with a Six-Disc CD Player If your vehicle has a radio with a six-disc CD player, the radio has a MENU button instead of the button to set the time and date. To set the time and date, follow these instructions: 1.
Page 229: Radio(S) (Mp3)
Radio(s) (MP3) Radio with CD and DVD Radio with CD shown, Radio with Your vehicle has one of these radios as its audio system. Six-Disc CD similar Radios with CD and DVD ® Radios with CD and DVD have a Bose Surround Sound System.
Page 230: Playing The Radio
The DVD player is the top slot on the radio faceplate. The player is capable of reading the DTS programmed DVD Audio or DVD Video media, (DTS and DTS Digital Surround are registered trademarks of Digital Theater Systems, Inc.). Manufactured under license from Dolby ®...
Page 231: Finding A Station
Finding a Station BAND: Press to switch between AM, FM, or XM™ (if equipped). The selection displays. (Tune): Turn to select radio stations. © ¨ SEEK : Press the arrows to go to the previous or to the next station and stay there. To scan stations, press and hold either arrow for a few seconds until a beep sounds.
Page 232: Setting The Tone
The number of favorites pages can be setup using the MENU button. To setup the number of favorites pages, perform the following steps: 1. Press the MENU button to display the radio setup menu. 2. Press the pushbutton located below the FAV 1-6 label.
Page 233: Adjusting The Speakers (Balance/Fade)
Adjusting the Speakers (Balance/Fade) BAL/FADE (Balance/Fade): To adjust balance or fade, press the knob until the speaker control labels display. Continue pressing to highlight the desired label, or press the pushbutton positioned under the desired label. Turn the counterclockwise to adjust the highlighted setting. You can also adjust the highlighted setting by pressing either SEEK arrow, FWD, or...
Page 234: Radio Messages
Undesired XM™ categories can be removed through the setup menu. To remove an undesired category, perform the following: 1. Press the MENU button to display the radio setup menu. 2. Press the pushbutton located below the XM CAT label. 3. Turn the knob to display the category you want removed.
Page 235: Playing A Cd(S) (Six-Disc Cd Player)
Playing a CD(s) (Six-Disc CD Player) LOAD : Press to load CDs into the CD player. This CD player holds up to six CDs. To insert one CD, do the following: 1. Press and release the button. 2. Wait for the message to insert the disc. 3.
Page 236: Care Of Your Cds And Dvds
Care of Your CDs and DVDs If playing a CD-R, the sound quality can be reduced due to CD-R or CD-RW quality, the method of recording, the quality of the music that has been recorded, and the way the CD-R or CD-RW has been handled. Handle them carefully.
Page 237 DVD (Eject): Press and release to eject the disc that is currently playing in the top slot. A beep sounds and Ejecting Disc displays. If loading and reading of a disc cannot be completed, such as unknown format, etc., and the disc fails to eject, press and hold for more than ﬁve seconds to force the disc to eject.
Page 238 To play the tracks from a CD loaded in the radio with CD and DVD, press the DVD/CD AUX button when not sourced to the CD, or insert a disc partway into the slot. A RDM label displays. To play tracks from a single CD in random order, press the pushbutton positioned under the RDM label until Random Current Disc displays.
Page 239 Radios with CD and DVD Audio Output Only one audio source can be heard through the speakers at one time. An audio source is deﬁned as DVD slot, CD slot, XM™, FM/AM, Front Auxiliary Jack, or Rear Auxiliary Jack. Press the button to turn the radio on.
Page 240: Using The Dvd Player
Player Error: There are disc LOAD or disc EJECT problems. • It is very hot. When the temperature returns to normal, the CD should play. • You are driving on a very rough road. When the road becomes smoother, the CD should play. •...
Page 241: Playing A Dvd
Playing a DVD DVD/CD AUX (Auxiliary): Press this button to cycle through DVD, CD, or Auxiliary when listening to the radio. The DVD/CD text label and a message showing track or chapter number displays when a disc is in either slot. Press this button again and the system automatically searches for an auxiliary input device, such as a portable audio player.
Page 242 FWD (Fast Forward): Press to fast forward the CD or DVD. The radio displays the elapsed time and fast forwards ﬁve times the normal speed. To stop fast forwarding, press again. This button might not work when the DVD is playing the copyright information or the previews.
Page 243: Inserting A Disc
Nav (Navigate): Press to display directional arrows for navigating through the menus. (Return): Press to exit the current active menu and return to the previous menu. This button operates only when a DVD is playing and a menu is active. DVD-A (Audio) Display Buttons Once a DVD-A is inserted, radio display menu shows several tag options for DVD playing.
Page 244: Ejecting A Disc
Stopping and Resuming Playback To stop playing a DVD without turning off the system, press the button on the remote control, or press the pushbutton located under the stop or the play/pause symbol tags displayed on the radio. If the radio head is sourced to something other than DVD-V, press the DVD/CD AUX button to make DVD-V the active source.
Page 245: Using The Auxiliary Input Jack
Using the Auxiliary Input Jack Your radio system has an auxiliary input jack located on the lower right side of the faceplate. This is not an audio output; do not plug the headphone set into the front auxiliary input jack. You can however, connect an external audio device such as an iPod, laptop computer, MP3 player, CD player, or cassette tape player, etc.
Page 246: Using An Mp3 (Radio With Cd And Six-Disc Cd Player)
Using an MP3 (Radio with CD and Six-Disc CD Player) MP3/WMA CD-R or CD-RW Disc The radio plays MP3/WMA ﬁles that were recorded on a CD-R or CD-RW disc. The ﬁles can be recorded with the following ﬁxed bit rates: 32 kbps, 40 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 160 kbps, 192 kbps, 224 kbps, 256 kbps, and 320 kbps or a variable bit rate.
Page 247: Root Directory
• Minimize the length of the ﬁle, folder, or playlist names. Long ﬁle, folder, or playlist names, or a combination of a large number of ﬁles and folders, or playlists could cause the player to be unable to play up to the maximum number of ﬁles, folders, playlists, or sessions.
Page 248 When the CD-R or CD-RW disc contains only playlists and compressed audio ﬁles, but no folders, all ﬁles are located under the root folder. The folder down and up buttons search playlists (Px) ﬁrst and then goes to the root folder. Order of Play Tracks recorded to the CD-R or CD-RW disc are played in the following order:...
Page 249 (Tune): Turn this knob to select MP3/WMA ﬁles on the CD-R or CD-RW currently playing. © ¨ SEEK : Press the left SEEK arrow to go to the start of the current MP3/WMA ﬁle, if more than ten seconds have played. Press the right SEEK arrow to go to the next MP3/WMA ﬁle.
Page 250 Once the disc has scanned, the player defaults to playing MP3/WMA ﬁles in order by artist. The current artist playing is shown on the second line of the display between the arrows. Once all songs by that artist are played, the player moves to the next artist in alphabetical order on the CD-R or CD-RW and begins playing MP3/WMA ﬁles by that artist.
Page 251 • Create a folder structure that makes it easy to ﬁnd songs while driving. Organize songs by albums using one folder for each album. Each folder or album should contain 18 songs or less. • Avoid subfolders. The system can support up to eight subfolders deep, however, keep the total number of folders to a minimum in order to reduce the complexity and confusion in trying to locate...
Page 252 When the CD-R or CD-RW disc contains only playlists and compressed audio ﬁles, but no folders, all ﬁles are located under the root folder. The folder down and the folder up buttons search playlists (Px) ﬁrst and then goes to the root folder. When the radio displays the name of the folder the radio displays ROOT.
Page 253 Depending on the format of the disc, a softkey menu appears and allows navigation of the disc. The menu reads left to right as RDM (Randomize song play order), a Folder icon with left and right arrows (to move up or down through available folders), a PL tag if the disc has a Playlist available, and a Music Navigator tag.
Page 254 (Next Folder): Press the pushbutton positioned under the Folder label to go to the ﬁrst track in the next folder. REV (Reverse): Press and hold this button to reverse playback quickly within an MP3/WMA ﬁle. You will hear sound at a reduced volume. Release this button to resume playing the ﬁle.
Page 255: Xm Radio Messages
To change from playback by artist to playback by album, press the pushbutton located below the Sort By label. From the sort screen, push one of the buttons below the album button. Press the pushbutton below the back label to return to the main music navigator screen.
Page 256 Loading XM: The audio system is acquiring and processing audio and text data. No action is needed. This message should disappear shortly. Channel Off Air: This channel is not currently in service. Tune to another channel. Channel Unavail: This previously assigned channel is no longer assigned.
Page 257: Parental Control
Navigation/Radio System Your vehicle may have a navigation radio system. The navigation system has built-in features intended to minimize driver distraction. Technology alone, no matter how advanced, can never replace your own judgment. See the Navigation System manual for some tips to help you reduce distractions while driving. Rear Seat Entertainment (RSE) System Your vehicle may have a DVD Rear Seat Entertainment...
Page 258 Headphones The RSE includes two 2-channel wireless headphones that are dedicated to this system. Channel 1 is dedicated to the video screen, while Channel 2 is dedicated to RSA selections. These headphones are used to listen to media such as CDs, DVDs, MP3/WMAs, DVD-As, radio, any auxiliary source connected to A/V jacks, or the auxiliary input jack, if your vehicle has this feature.
Page 259: Battery Replacement
For optimal audio performance, the headphones must be worn correctly. The symbol L (Left) appears on the upper left side, above the ear pad and should be positioned on the left ear. The symbol R (Right) appears on the upper right side, above the ear pad and should be positioned on the right ear.
Page 260: Audio/Video (A/V) Jacks
Audio/Video (A/V) Jacks The A/V jacks, located on the rear of the ﬂoor console, allow audio or video signals to be connected from an auxiliary device such as a camcorder or a video game unit to the RSE system. Adapter connectors or cables (not supplied) might be required to connect the auxiliary device to the A/V jacks.
Page 261: Video Screen
Audio Output Audio from the DVD player or auxiliary inputs can be heard through the following possible sources: • Wireless Headphones • Vehicle Speakers • Vehicle wired headphone jacks on the rear seat audio system, if your vehicle has this feature. The RSE system always transmits the audio signal to the wireless headphones, if there is audio available.
Page 262: Remote Control Buttons
Remote Control To use the remote control, aim it at the transmitter window at the rear of the overhead console and press the desired button. Direct sunlight or very bright light could affect the ability of the RSE transmitter to receive signals from the remote control.
Page 263 (Main Menu): Press to access the DVD menu. The DVD menu is different on every DVD. Use the navigation arrows to move the cursor around the DVD menu. After making a selection press the enter button. This button only operates when using a DVD. (Menu Navigation Arrows): Use the arrow buttons to navigate through a menu.
Page 264 (Fast Forward): Press to fast forward the DVD or CD. To stop fast forwarding a DVD video, press the play/pause button. To stop fast forwarding a DVD audio or CD, release the fast forward button. This button might not work when the DVD is playing the copyright information or the previews.
Page 265 Problem Recommended Action No power. The ignition might not be turned ON/RUN or in ACC/ACCESSORY. The picture does not ﬁll Check the display mode the screen. There are settings in the setup black borders on the menu by pressing the top and bottom or on display menu button on both sides or it looks...
Page 266: Dvd Distortion
DVD Display Error Messages The DVD display error message depends on which radio you have. The video screen might display one of the following: Disc Load/Eject Error: This message displays when there are disc load or eject problems. Disc Format Error: This message displays, if the disc is inserted with the disc label wrong side up, or if the disc is damaged.
Page 267: Rear Seat Audio (Rsa)
Rear Seat Audio (RSA) This feature allows rear seat passengers to listen to and control any of the music sources: radio, CDs, DVDs, or other auxiliary sources. However, the rear seat passengers can only control the music sources the front seat passengers are not listening to (except on some radios where dual control is allowed).
Page 268 ©¨ (Seek): When listening to FM, AM, or XM™ (if equipped), press either the seek arrows to go to the previous or to the next station or channels and stay there. This function is inactive, with some radios, if the front seat passengers are listening to the radio.
Page 269: Rear Audio Controller (Rac)
Rear Audio Controller (RAC) Your vehicle may have the Rear Audio Controller (RAC). With RAC you can control certain radio functions. (Next/Previous): Press the down or up arrows to go to the next or to the previous radio station stored as a favorite. When a CD/DVD is playing, press the down or up arrows to go to the next or previous track or chapter.
Page 270: Audio Steering Wheel Controls
Audio Steering Wheel Controls Vehicles with audio steering wheel controls could differ depending on your vehicle’s options. Some audio controls can be adjusted at the steering wheel. They include the following: (Next/Previous): Press the down or up arrow to go to the next or to the previous radio station stored as a favorite.
Page 271: Radio Reception
Radio Reception Frequency interference and static can occur during normal radio reception if items such as cell phone chargers, vehicle convenience accessories, and external electronic devices are plugged into the accessory power outlet. If there is interference or static, unplug the item from the accessory power outlet.
Page 272 NOTES 3-130...
Page 273: Driving Your Vehicle
Section 4 Your Driving, the Road, and Your Vehicle ...4-2 Defensive Driving ...4-2 Drunk Driving ...4-2 Control of a Vehicle ...4-3 Braking ...4-4 Antilock Brake System (ABS) ...4-5 Braking in Emergencies ...4-6 ® StabiliTrak System ...4-6 All-Wheel Drive (AWD) System ...4-9 Steering ...4-9 Off-Road Recovery ...4-11 Passing ...4-11...
Page 274: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Defensive Driving Defensive driving means “always expect the unexpected.” The ﬁrst step in driving defensively is to wear your safety belt — See Safety Belts: They Are for Everyone on page 1-16. CAUTION: Assume that other road users (pedestrians, bicyclists, and other drivers) are going to be careless and make mistakes.
Page 275: Control Of A Vehicle
Death and injury associated with drinking and driving is a global tragedy. Alcohol affects four things that anyone needs to drive a vehicle: judgment, muscular coordination, vision, and attentiveness. Police records show that almost 40 percent of all motor vehicle-related deaths involve alcohol. In most cases, these deaths are the result of someone who was drinking and driving.
Page 276: Braking
Braking See Brake System Warning Light on page 3-47. Braking action involves perception time and reaction time. First, you have to decide to push on the brake pedal. That is perception time. Then you have to bring up your foot and do it. That is reaction time. Average reaction time is about three-fourths of a second.
Page 277: Antilock Brake System (Abs)
Antilock Brake System (ABS) Your vehicle has the Antilock Brake System (ABS), an advanced electronic braking system that will help prevent a braking skid. When you start the engine and begin to drive away, ABS will check itself. You might hear a momentary motor or clicking noise while this test is going on, and you might even notice that the brake pedal moves a little.
Page 278: Braking In Emergencies
Braking in Emergencies With ABS, you can steer and brake at the same time. In many emergencies, steering can help you more than even the very best braking. Panic Brake Assist Your vehicle has a Panic Brake Assist feature designed to assist the driver in stopping or decreasing vehicle speed in emergency driving conditions.
Page 279 The StabiliTrak ﬂash on the instrument panel cluster when the system is both on and activated. You may also feel or hear the system working; this is normal. The traction control disable button is located on the instrument panel below the climate controls.
Page 280: Traction Control Operation
Traction Control Operation The traction control system is part of the StabiliTrak system. Traction control limits wheel spin by reducing engine power to the wheels (engine speed management) and by applying brakes to each individual wheel (brake-traction control) as necessary. The traction control system is enabled automatically when you start your vehicle.
Page 281: Power Steering
All-Wheel Drive (AWD) System If your vehicle has this feature, engine power is sent to all four wheels when extra traction is needed. This is like four-wheel drive, but there is no separate lever or switch to engage or disengage the front axle. It is fully automatic, and adjusts itself as needed for road conditions.
Page 282: Steering In Emergencies
Speed limit signs near curves warn that you should adjust your speed. Of course, the posted speeds are based on good weather and road conditions. Under less favorable conditions you will want to go slower. If you need to reduce your speed as you approach a curve, do it before you enter the curve, while the front wheels are straight ahead.
Page 283: Off-Road Recovery
Off-Road Recovery You may ﬁnd that your vehicle’s right wheels have dropped off the edge of a road onto the shoulder while you are driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 284: Loss Of Control
Loss of Control Let us review what driving experts say about what happens when the three control systems — brakes, steering, and acceleration — do not have enough friction where the tires meet the road to do what the driver has asked.
Page 285: Driving At Night
Driving at Night Night driving is more dangerous than day driving because some drivers are likely to be impaired — by alcohol or drugs, with night vision problems, or by fatigue. Night driving tips include: • Drive defensively. • Do not drink and drive. •...
Page 286: Driving In Rain And On Wet Roads
Driving in Rain and on Wet Roads Rain and wet roads can reduce vehicle traction and affect your ability to stop and accelerate. Always drive slower in these types of driving conditions and avoid driving through large puddles and deep-standing or ﬂowing water. CAUTION: Wet brakes can cause crashes.
Page 287: Before Leaving On A Long Trip
Before Leaving on a Long Trip To prepare your vehicle for a long trip, consider having it serviced by your dealer/retailer before departing. Things to check on your own include: • Windshield Washer Fluid: Reservoir full? Windows clean — inside and outside? •...
Page 288: Hill And Mountain Roads
Hill and Mountain Roads Driving on steep hills or through mountains is different than driving on ﬂat or rolling terrain. Tips for driving in these conditions include: • Keep your vehicle serviced and in good shape. • Check all ﬂuid levels and brakes, tires, cooling system, and transmission.
Page 289: Winter Driving
Winter Driving Here are some tips for winter driving: • Have your vehicle in good shape for winter. • You might want to put winter emergency supplies in your vehicle. Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth, and a couple of reﬂective warning triangles.
Page 290: If You Are Caught In A Blizzard
® StabiliTrak improves your ability to accelerate when driving on a slippery road. Even with StabiliTrak down and adjust your driving to the road conditions. Under certain conditions, you might want to turn the traction control part of the StabiliTrak such as when driving through deep snow and loose gravel, to help maintain vehicle motion at lower speeds.
Page 291 You can run the engine to keep warm, but be careful. CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle.
Page 292: If Your Vehicle Is Stuck In Sand, Mud, Ice, Or Snow
Then, shut the engine off and close the window almost all the way to preserve the heat. Start the engine again and repeat this only when you feel really uncomfortable from the cold. But do it as little as possible. Preserve the fuel as long as you can.
Page 293: Rocking Your Vehicle To Get It Out
Rocking Your Vehicle to Get It Out First, turn the steering wheel left and right to clear the area around the front wheels. Turn the traction ® control part of the StabiliTrak System off. See ® StabiliTrak System on page 4-6. Then shift back and forth between REVERSE (R) and a forward gear, spinning the wheels as little as possible.
Page 294: Tire And Loading Information Label
Tire and Loading Information Label Example Label A vehicle speciﬁc Tire and Loading Information label is attached to the center pillar (B-pillar) of your vehicle. With the driver’s door open, you will ﬁnd the label attached below the door lock post (striker). The tire and loading information label shows the number of occupant seating positions (A), and the maximum vehicle capacity weight (B) in kilograms...
Page 295 Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage load capacity calculated in Step 4. If your vehicle will be towing a trailer, the load from your trailer will be transferred to your vehicle.
Page 296 Example 2 Item Description Vehicle Capacity Weight for Example 2 = Subtract Occupant Weight 150 lbs (68 kg) × 5 = Available Cargo Weight = 4-24 Total Item 1,000 lbs (453 kg) 750 lbs (340 kg) 250 lbs (113 kg) Refer to your vehicle’s tire and loading information label for speciﬁc information about your vehicle’s capacity weight and seating positions.
Page 297 Certiﬁcation/Tire Label A vehicle speciﬁc Certiﬁcation/Tire label is attached to the rear edge of the driver’s door. The label shows the gross weight capacity of your vehicle. This is called the Gross Vehicle Weight Rating (GVWR). The GVWR includes the weight of the vehicle, all occupants, fuel, and cargo.
Page 298: Towing
If you put things inside your vehicle — like suitcases, tools, packages, or anything else, they will go as fast as the vehicle goes. If you have to stop or turn quickly, or if there is a crash, they will keep going. CAUTION: Things you put inside your vehicle can strike and injure people in a sudden stop...
Page 299: Dinghy Towing
Here are some important things to consider before you do recreational vehicle towing: • What’s the towing capacity of the towing vehicle? Be sure you read the tow vehicle manufacturer’s recommendations. • How far will you tow? Some vehicles have restrictions on how far and how long they can tow.
Page 300 To tow your vehicle from the front with all four wheels on the ground: 1. Position the vehicle to tow and then secure it. 2. Turn the ignition to LOCK/OFF. 3. Set the parking brake. 4. Turn the ignition to ACC/ACCESSORY. 5.
Page 301: Dolly Towing (All-Wheel-Drive Vehicles)
Dolly Towing (All-Wheel-Drive Vehicles) All-wheel-drive vehicles must not be towed with two wheels on the ground. To properly tow these vehicles, they should be placed on a platform trailer with all four wheels off of the ground or dinghy towed from the front. Dolly Towing (Front-Wheel-Drive Vehicles Only) To tow your front-wheel-drive vehicle from the front with...
Page 302: Towing Your Vehicle From The Rear
Towing Your Vehicle From the Rear Notice: Towing your vehicle from the rear could damage it. Also, repairs would not be covered by the warranty. Never have your vehicle towed from the rear. Do not tow your vehicle from the rear. 4-30 Towing a Trailer CAUTION:...
Page 303: If You Do Decide To Pull A Trailer
That is the reason for this part. In it are many time-tested, important trailering tips and safety rules. Many of these are important for your safety and that of your passengers. So please read this section carefully before you pull a trailer. Load-pulling components such as the engine, transmission, rear axle, wheel assemblies and tires are forced to work harder against the drag of the added...
Page 304: Tow/Haul Mode
Tow/Haul Mode Tow/Haul is a feature that assists when pulling a heavy trailer or a large or heavy load. The purpose of the Tow/Haul mode is to: • Reduce the frequency and improve the predictability of transmission shifts when pulling a heavy trailer or a large or heavy load.
Page 305: Weight Of The Trailer
Tow/Haul is designed to be most effective when the vehicle and trailer combined weight is at least 75 percent of the vehicle’s Gross Combined Weight Rating (GCWR). See Weight of the Trailer later in this section. Tow/Haul is most useful under the following driving conditions: •...
Page 306: Weight Of The Trailer Tongue
Look in the following chart to ﬁnd the maximum trailer weight for your vehicle. Maximum Package Trailer Weight Front-Wheel 2,000 lbs Drive (907 kg) **Front-Wheel 4,500 lbs Drive (2 041 kg) 2,000 lbs All-Wheel Drive (907 kg) 4,500 lbs **All-Wheel Drive (2 041 kg) **Includes optional trailer towing package (V92) *The Gross Combination Weight Rating (GCWR)
Page 307 If you are using a weight-carrying hitch or a weight-distributing hitch, the trailer tongue (A) should weigh 10-15 percent of the total loaded trailer weight (B). After you have loaded your trailer, weigh the trailer and then the tongue, separately, to see if the weights are proper.
Page 308: Total Weight On Your Vehicle's Tires
But let us say your speciﬁc vehicle is equipped with some of the latest options and you have a front seat passenger and two rear seat passengers with some luggage and gear in the vehicle as well. You may add 300 lbs (136 kg) to the front axle weight and 400 lbs (181 kg) to the rear axle weight.
Page 309: Trailer Brakes
Hitches It is important to have the correct hitch equipment. Crosswinds, large trucks going by and rough roads are a few reasons why you will need the right hitch. Here are some rules to follow: • The rear bumper on your vehicle is not intended for hitches.
Page 310: Driving With A Trailer
Driving with a Trailer Towing a trailer requires a certain amount of experience. Before setting out for the open road, you will want to get to know your rig. Acquaint yourself with the feel of handling and braking with the added weight of the trailer. And always keep in mind that the vehicle you are driving is now a good deal longer and not nearly as responsive as your vehicle is by itself.
Page 311: Turn Signals When Towing A Trailer
Turn Signals When Towing a Trailer When you tow a trailer, your vehicle may need a different turn signal ﬂasher and/or extra wiring. Check with your dealer/retailer. The arrows on your instrument panel will ﬂash whenever you signal a turn or lane change.
Page 312: Parking On Hills
Parking on Hills CAUTION: You really should not park your vehicle, with a trailer attached, on a hill. If something goes wrong, your rig could start to move. People can be injured, and both your vehicle and the trailer can be damaged. But if you ever have to park your rig on a hill, here is how to do it: 1.
Page 313: Engine Cooling When Trailer Towing
Trailer Wiring Harness Your vehicle is equipped with the following wiring harness for towing a trailer. Basic Trailer Wiring If your vehicle is equipped for heavy duty trailering, the trailer wiring harness, with a seven-pin connector, is located at the rear of the vehicle and is tied to the vehicle’s frame.
Page 314 NOTES 4-42...
Page 315: Service And Appearance Care
Section 5 Service ...5-3 Accessories and Modiﬁcations ...5-4 California Proposition 65 Warning ...5-4 California Perchlorate Materials Requirements ...5-4 Doing Your Own Service Work ...5-5 Adding Equipment to the Outside of Your Vehicle ...5-6 Fuel ...5-6 Gasoline Octane ...5-6 Gasoline Speciﬁcations ...5-6 California Fuel ...5-7 Additives ...5-7 Fuels in Foreign Countries ...5-8...
Page 316 Section 5 Wheel Replacement ...5-68 Tire Chains ...5-70 If a Tire Goes Flat ...5-71 Changing a Flat Tire ...5-72 Removing the Spare Tire and Tools ...5-73 Removing the Flat Tire and Installing the Spare Tire ...5-76 Secondary Latch System ...5-81 Storing a Flat or Spare Tire and Tools ...5-84 Compact Spare Tire ...5-88 Appearance Care ...5-89...
Page 317: Service
Service Genuine GM parts have one of these marks: For service and parts needs, visit your dealer/retailer. You will receive genuine GM parts and GM-trained and supported service people.
Page 318: Accessories And Modiﬁcations
Accessories and Modiﬁcations When non-dealer/non-retailer accessories are added to your vehicle they can affect your vehicle’s performance and safety, including such things as, airbags, braking, stability, ride and handling, emissions systems, aerodynamics, durability, and electronic systems like antilock brakes, traction control and stability control. Some of these accessories could even cause malfunction or damage not covered by warranty.
Page 319: Doing Your Own Service Work
Doing Your Own Service Work CAUTION: You can be injured and your vehicle could be damaged if you try to do service work on a vehicle without knowing enough about it. • Be sure you have sufficient knowledge, experience, the proper replacement parts, and tools before you attempt any vehicle maintenance task.
Page 320: Adding Equipment To The Outside Of Your Vehicle
Adding Equipment to the Outside of Your Vehicle Things you might add to the outside of your vehicle can affect the airﬂow around it. This can cause wind noise and can affect fuel economy and windshield washer performance. Check with your dealer/retailer before adding equipment to the outside of your vehicle.
Page 321: California Fuel
California Fuel If your vehicle is certiﬁed to meet California Emissions Standards, it is designed to operate on fuels that meet California speciﬁcations. See the underhood emission control label. If this fuel is not available in states adopting California emissions standards, your vehicle will operate satisfactorily on fuels meeting federal speciﬁcations, but emission control system performance might be affected.
Page 322: Fuels In Foreign Countries
Notice: Your vehicle was not designed for fuel that contains methanol. Do not use fuel containing methanol. It can corrode metal parts in the fuel system and also damage plastic and rubber parts. That damage would not be covered under your warranty.
Page 323: Filling The Tank
Filling the Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off your engine when you are refueling. Do not smoke if you are near fuel or refueling your vehicle.
Page 324 To remove the fuel cap, turn it slowly counterclockwise. The fuel cap has a spring in it; if the cap is released too soon, it will spring back to the right. While refueling, hang the tethered fuel cap from the hook on the fuel door.
Page 325 When replacing the fuel cap, turn it clockwise until it clicks. Make sure the cap is fully installed. The diagnostic system can determine if the fuel cap has been left off or improperly installed. This would allow fuel to evaporate into the atmosphere. See Malfunction Indicator Lamp on page 3-50.
Page 326: Filling A Portable Fuel Container
Filling a Portable Fuel Container CAUTION: Never ﬁll a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the fuel vapor. You can be badly burned and your vehicle damaged if this occurs. To help avoid injury to you and others: •...
Page 327: Hood Release
CAUTION: Things that burn can get on hot engine parts and start a ﬁre. These include liquids like fuel, oil, coolant, brake ﬂuid, windshield washer and other ﬂuids, and plastic or rubber. You or others could be burned. Be careful not to drop or spill things that will burn onto a hot engine.
Page 328: Engine Compartment Overview
Engine Compartment Overview When you lift the hood, here is what you will see: 5-14...
Page 329: Engine Oil
A. Radiator Pressure Cap (Out of View). See Radiator Pressure Cap on page 5-24. B. Engine Coolant Recovery Cap. See Cooling System on page 5-27. C. Remote Negative (−) Terminal. See Jump Starting on page 5-39. D. Underhood Fuse Block. See Underhood Fuse Block on page 5-103.
Page 330: When To Add Engine Oil
When to Add Engine Oil If the oil is below the cross-hatched area at the tip of the dipstick, add at least one quart/liter of the recommended oil. This section explains what kind of oil to use. For engine oil crankcase capacity, see Capacities and Speciﬁcations on page 5-107.
Page 331: What Kind Of Engine Oil To Use
What Kind of Engine Oil to Use Look for three things: • GM6094M Your vehicle’s engine requires oil meeting GM Standard GM6094M. Look for and use only an oil that meets GM Standard GM6094M. • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle.
Page 332: Engine Oil Additives
If you are in an area of extreme cold, where the temperature falls below −20°F (−29°C), it is recommended that you use either an SAE 5W-30 synthetic oil or an SAE 0W-30 oil. Both provide easier cold starting and better protection for the engine at extremely low temperatures.
Page 333: What To Do With Used Oil
If your vehicle does not have Driver Information Center (DIC) buttons: 1. Turn the ignition to ON/RUN, with the engine off. The vehicle must be in PARK (P) to access this display. Press the trip odometer reset stem until OIL LIFE REMAINING displays.
Page 334: How To Inspect The Engine Air Cleaner/Filter
Engine Air Cleaner/Filter When to Inspect the Engine Air Cleaner/Filter Inspect the air cleaner/ﬁlter at the Maintenance II intervals and replace it at the ﬁrst oil change after each 50,000 mile (80 000 km) interval. See Scheduled Maintenance on page 6-4 for more information. If you are driving in dusty/dirty conditions, inspect the ﬁlter at each engine oil change.
Page 335: Automatic Transmission Fluid
CAUTION: Operating the engine with the air cleaner/ﬁlter off can cause you or others to be burned. The air cleaner not only cleans the air; it helps to stop ﬂames if the engine backﬁres. If it is not there and the engine backﬁres, you could be burned.
Page 336: What To Use
Engine Coolant The cooling system in your vehicle is ﬁlled with ® DEX-COOL engine coolant. This coolant is designed to remain in your vehicle for ﬁve years or 150,000 miles (240 000 km), whichever occurs ﬁrst, if you add only ®...
Page 337: Checking Coolant
Notice: If you use an improper coolant mixture, your engine could overheat and be badly damaged. The repair cost would not be covered by your warranty. Too much water in the mixture can freeze and crack the engine, radiator, heater core, and other parts.
Page 338: Adding Coolant
Adding Coolant If more coolant is needed, add the proper DEX-COOL coolant mixture at the coolant recovery tank, but be careful not to spill it. If the coolant recovery tank is completely empty, add coolant to the radiator. See Engine Overheating on page 5-25.
Page 339: Engine Overheating
Engine Overheating There is an engine coolant temperature gage on your vehicle’s instrument panel. See Engine Coolant Temperature Gage on page 3-49. Your vehicle may also have an ENGINE OVERHEATED IDLE ENGINE and ENGINE OVERHEATED STOP ENGINE message displayed in the Driver Information Center (DIC).
Page 340: If No Steam Is Coming From Your Engine
If No Steam Is Coming From Your Engine If you get an engine overheat warning but see or hear no steam, the problem may not be too serious. Sometimes the engine can get a little too hot when you: • Climb a long hill on a hot day.
Page 341: Cooling System
Cooling System When you decide it is safe to lift the hood, here is what you will see: A. Engine Coolant Reservoir B. Radiator Pressure Cap (covered) C. Engine Cooling Fans CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you.
Page 342 When the engine is cold, the coolant level should be at least up to the FULL COLD mark. If it is not, you may have a leak at the pressure cap or in the radiator hoses, heater hoses, radiator, water pump or somewhere else in the cooling system.
Page 343 CAUTION: Steam and scalding liquids from a hot cooling system can blow out and burn you badly. They are under pressure, and if you turn the radiator pressure cap — even a little — they can come out at high speed. Never turn the cap when the cooling system, including the radiator pressure cap, is hot.
Page 344 CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough. Do not spill coolant on a hot engine. When the coolant in the coolant recovery tank is at the FULL COLD mark, start your vehicle.
Page 345 3. Keep turning the pressure cap slowly, and remove it. 4. Fill the radiator with the proper DEX-COOL coolant mixture, up to the base of the ﬁller neck. See Engine Coolant on page 5-22 for more information about the proper coolant mixture. ®...
Page 346 7. Start the engine and let it run until you can feel the upper radiator hose getting hot. Watch out for the engine cooling fan. 5-32 8. By this time, the coolant level inside the radiator ﬁller neck may be lower. If the level is lower, add more of ®...
Page 347: When To Check Power Steering Fluid
Power Steering Fluid The power steering ﬂuid reservoir is located toward the front of the engine compartment on the passenger’s side of the vehicle. See Engine Compartment Overview on page 5-14 for reservoir location. When to Check Power Steering Fluid It is not necessary to regularly check power steering ﬂuid unless you suspect there is a leak in the system or you hear an unusual noise.
Page 348: Adding Washer Fluid
Windshield Washer Fluid What to Use When adding windshield washer ﬂuid, be sure to read the manufacturer’s instructions before use. If operating your vehicle in an area where the temperature may fall below freezing, use a ﬂuid that has sufficient protection against freezing.
Page 349: Brakes
Brakes Brake Fluid The brake master cylinder reservoir is ﬁlled with DOT-3 brake ﬂuid. See Engine Compartment Overview on page 5-14 for the location of the reservoir. There are only two reasons why the brake ﬂuid level in the reservoir might go down. The ﬁrst is that the brake ﬂuid goes down to an acceptable level during normal brake lining wear.
Page 350: Brake Wear
CAUTION: With the wrong kind of ﬂuid in the brake hydraulic system, the brakes might not work well. This could cause a crash. Always use the proper brake ﬂuid. Notice: • Using the wrong ﬂuid can badly damage brake hydraulic system parts. For example, just a few drops of mineral-based oil, such as engine oil, in the brake hydraulic system can damage brake hydraulic system parts so badly that they...
Page 351: Replacing Brake System Parts
Properly torqued wheel nuts are necessary to help prevent brake pulsation. When tires are rotated, inspect brake pads for wear and evenly tighten wheel nuts in the proper sequence to torque speciﬁcations in Capacities and Speciﬁcations on page 5-107. Brake linings should always be replaced as complete axle sets.
Page 352: Vehicle Storage
Battery Your vehicle has a maintenance free battery. When it is time for a new battery, see your dealer/retailer for one that has the replacement number shown on the original battery’s label. For battery replacement, see your dealer/retailer or the service manual.
Page 353: Jump Starting
Jump Starting If your vehicle’s battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle. Be sure to use the following steps to do it safely. CAUTION: Batteries can hurt you. They can be dangerous because: •...
Page 354 4. Open the hoods and locate the positive (+) and negative (−) terminal locations on the other vehicle. Your vehicle has a remote positive (+) and a remote negative (−) jump starting terminal. See Engine Compartment Overview on page 5-14 for more information on the terminal locations.
Page 355 6. Connect the red positive (+) cable to the positive (+) terminal of the dead battery. Use a remote positive (+) terminal if the vehicle has one. 7. Do not let the other end touch metal. Connect it to the positive (+) terminal of the good battery. Use a remote positive (+) terminal if the vehicle has one.
Page 356 Notice: If the jumper cables are connected or removed in the wrong order, electrical shorting may occur and damage the vehicle. The repairs would not be covered by your warranty. Always connect and remove the jumper cables in the correct order, making sure that the cables do not touch each other or other metal.
Page 357: All-Wheel Drive
All-Wheel Drive Be sure to perform the lubricant checks described in this section. There are two additional systems that need lubrication. Transfer Case When to Check Lubricant Refer to the Maintenance Schedule to determine how often to check the lubricant. See Scheduled Maintenance on page 6-4.
Page 358: Rear Drive Module
What to Use Refer to the Maintenance Schedule to determine what kind of lubricant to use. See Recommended Fluids and Lubricants on page 6-12. Rear Drive Module When to Check Lubricant Refer to the Maintenance Schedule to determine how often to check the lubricant. See Scheduled Maintenance on page 6-4.
Page 359: Headlamp Aiming
Headlamp Aiming Headlamp aim has been preset at the factory and should need no further adjustment. However, if your vehicle is damaged in a crash, the headlamp aim may be affected. Aim adjustment to the low-beam headlamps may be necessary if oncoming drivers ﬂash their high-beam headlamps at you (for vertical aim).
Page 360: License Plate Lamp
License Plate Lamp To replace one of these bulbs: 1. Remove the two screws holding each of the license plate lamps to the liftgate trim. 2. Turn and pull the license plate lamp forward through the lift gate trim opening. 3.
Page 361: Windshield Wiper Blade Replacement
Windshield Wiper Blade Replacement Windshield wiper blades should be inspected for wear or cracking. See Scheduled Maintenance on page 6-4 for more information. Replacement blades come in different types and are removed in different ways. To replace the wiper blade assembly, do the following: 1.
Page 362: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your vehicle Warranty booklet for details. 5-48 CAUTION: Poorly maintained and improperly used tires are dangerous.
Page 363: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into its sidewall. The examples below show a typical passenger vehicle tire and a compact spare tire sidewall. Passenger (P-Metric) Tire Example (A) Tire Size The tire size is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type, and service description.
Page 364 (F) Uniform Tire Quality Grading (UTQG) manufacturers are required to grade tires based on three performance factors: treadwear, traction, and temperature resistance. For more information see Uniform Tire Quality Grading on page 5-67. (G) Maximum Cold Inﬂation Load Limit Maximum load that can be carried and the maximum pressure needed to support that load.
Page 365 (E) Tire Inﬂation The temporary use tire or compact spare tire should be inﬂated to 60 psi (420 kPa). For more information on tire pressure and inﬂation see Inﬂation - Tire Pressure on page 5-55. (F) Tire Size A combination of letters and numbers deﬁne a tire’s width, height, aspect ratio, construction type, and service description.
Page 366: Tire Terminology And Deﬁnitions
(D) Construction Code A letter code is used to indicate the type of ply construction in the tire. The letter R means radial ply construction; the letter D means diagonal or bias ply construction; and the letter B means belted-bias ply construction.
Page 367 DOT Markings A code molded into the sidewall of a tire signifying that the tire is in compliance with the U.S. Department of Transportation (DOT) motor vehicle safety standards. The DOT code includes the Tire Identiﬁcation Number (TIN), an alphanumeric designator which can also identify the tire manufacturer, production plant, brand, and date of production.
Page 368 Outward Facing Sidewall The side of an asymmetrical tire that has a particular side that faces outward when mounted on a vehicle. The side of the tire that contains a whitewall, bears white lettering, or bears manufacturer, brand, and/or model name molding that is higher or deeper than the same moldings on the other sidewall of the tire.
Page 369: Inﬂation - Tire Pressure
Vehicle Capacity Weight The number of designated seating positions multiplied by 150 lbs (68 kg) plus the rated cargo load. See Loading Your Vehicle on page 4-21. Vehicle Maximum Load on the Tire individual tire due to curb weight, accessory weight, occupant weight, and cargo weight.
Page 370: When To Check
A vehicle speciﬁc Tire and Loading Information label is attached to your vehicle. This label shows your vehicle’s original equipment tires and the correct inﬂation pressures for your tires when they are cold. The recommended cold tire inﬂation pressure, shown on the label, is the minimum amount of air pressure needed to support your vehicle’s maximum load carrying capacity.
Page 371: Tire Pressure Monitor System
Tire Pressure Monitor System The Tire Pressure Monitor System (TPMS) uses radio and sensor technology to check tire pressure levels. The TPMS sensors monitor the air pressure in your vehicle’s tires and transmit tire pressure readings to a receiver located in the vehicle. Each tire, including the spare (if provided), should be checked monthly when cold and inﬂated to the inﬂation pressure recommended by the vehicle manufacturer...
Page 372: Tire Pressure Monitor Operation
Federal Communications Commission (FCC) and Industry and Science Canada The Tire Pressure Monitor System (TPMS) operates on a radio frequency and complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2.
Page 373 At the same time a message to check the pressure in a speciﬁc tire appears on the Driver Information Center (DIC) display. The low tire pressure warning light and the DIC warning message come on at each ignition cycle until the tires are inﬂated to the correct inﬂation pressure.
Page 374: Tpms Malfunction Light And Message
TPMS Malfunction Light and Message The TPMS will not function properly if one or more of the TPMS sensors are missing or inoperable. When the system detects a malfunction, the low tire warning light ﬂashes for about one minute and then stays on for the remainder of the ignition cycle.
Page 375: Tpms Sensor Matching Process
TPMS Sensor Matching Process Each TPMS sensor has a unique identiﬁcation code. Any time you rotate your vehicle’s tires or replace one or more of the TPMS sensors, the identiﬁcation codes will need to be matched to the new tire/wheel position. The sensors are matched to the tire/wheel positions in the following order: driver side front tire, passenger side front tire, passenger side rear tire, and driver...
Page 376: Tire Inspection And Rotation
8. Proceed to the driver side rear tire, and repeat the procedure in Step 5. The horn sounds two times to indicate the sensor identiﬁcation code has been matched to the driver side rear tire, and the TPMS sensor matching process is no longer active. The TIRE LEARNING ACTIVE message on the DIC display screen goes off.
Page 377: When It Is Time For New Tires
Make certain that all wheel nuts are properly tightened. See “Wheel Nut Torque” under Capacities and Speciﬁcations on page 5-107. CAUTION: Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts become loose after time.
Page 378: Buying New Tires
You need new tires if any of the following statements are true: • You can see the indicators at three or more places around the tire. • You can see cord or fabric showing through the tire’s rubber. • The tread or sidewall is cracked, cut, or snagged deep enough to show cord or fabric.
Page 379 GM recommends replacing tires in sets of four. This is because uniform tread depth on all tires will help keep your vehicle performing most like it did when the tires were new. Replacing less than a full set of tires can affect the braking and handling performance of your vehicle.
Page 380: Different Size Tires And Wheels
Your vehicle’s original equipment tires are listed on the Tire and Loading Information Label. See Loading Your Vehicle on page 4-21, for more information about the Tire and Loading Information Label and its location on your vehicle. Different Size Tires and Wheels If you add wheels or tires that are a different size than your original equipment wheels and tires, this could affect the way your vehicle performs, including its...
Page 381: Uniform Tire Quality Grading
Uniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example: Treadwear 200 Traction AA Temperature A The following information relates to the system developed by the United States National Highway Traffic Safety Administration (NHTSA), which grades tires by treadwear, traction, and temperature performance.
Page 382: Wheel Alignment And Tire Balance
Temperature – A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a speciﬁed indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
Page 383 If you need to replace any of your wheels, wheel bolts, wheel nuts, or Tire Pressure Monitor System (TPMS) sensors, replace them only with new GM original equipment parts. This way, you will be sure to have the right wheel, wheel bolts, wheel nuts, and TPMS sensors for your vehicle.
Page 384: Used Replacement Wheels
Used Replacement Wheels CAUTION: Putting a used wheel on your vehicle is dangerous. You cannot know how it has been used or how far it has been driven. It could fail suddenly and cause a crash. If you have to replace a wheel, use a new GM original equipment wheel.
Page 385: If A Tire Goes Flat
If a Tire Goes Flat It is unusual for a tire to blowout while you are driving, especially if you maintain your vehicle’s tires properly. If air goes out of a tire, it is much more likely to leak out slowly.
Page 386: Changing A Flat Tire
Changing a Flat Tire If a tire goes ﬂat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your vehicle’s hazard warning ﬂashers. See Hazard Warning Flashers on page 3-6 for more information. 5-72 CAUTION: Changing a tire can be dangerous.
Page 387: Removing The Spare Tire And Tools
When your vehicle has a ﬂat tire, use the following example as a guide to assist you in the placement of wheel blocks. The following information tells you how to use the jack and change a tire. Removing the Spare Tire and Tools The tools needed to remove the spare tire are located in the storage compartment on the driver side, at the rear of the vehicle.
Page 388: Removing The Spare Tire
The tools you will be using include the jack (A) and lug wrench (B). Removing the Spare Tire The compact spare tire is located under the vehicle, in front of the rear bumper. See Compact Spare Tire on page 5-88 for more information about the compact spare. 5-74 A.
Page 389 4. Turn the lug wrench counterclockwise to lower the spare tire to the ground. Continue turning the wrench until the spare tire can be pulled out from under the vehicle. 5. Tilt the retainer and slip it through the wheel opening to remove the spare tire from the cable.
Page 390: Removing The Flat Tire And Installing The Spare Tire
Do the following to check the cable: 1. Check under the vehicle to see if the cable is visible. 2. If it is not visible, see Secondary Latch System on page 5-81. If it is visible, ﬁrst try to tighten the cable by turning the lug wrench clockwise until you hear two clicks or feel it skip twice.
Page 391 3. Loosen the wheel nuts — but do not remove them — using the lug wrench. For wheels with a wheel lock key, use the wheel lock key between the lock nut and lug wrench. The key is supplied in the front passenger door pocket.
Page 392 5. Do not raise the vehicle yet. Put the compact spare tire near you. CAUTION: Getting under a vehicle when it is jacked up is dangerous. If the vehicle slips off the jack, you could be badly injured or killed. Never get under a vehicle when it is supported only by a jack.
Page 393 CAUTION: Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts become loose after time. The wheel could come off and cause an accident. When you change a wheel, remove any rust or dirt from places where the wheel attaches to the vehicle.
Page 394 13. Lower the vehicle by attaching the lug wrench to the jack and turning the wrench counterclockwise. Lower the jack completely. CAUTION: Incorrect or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to a crash. If you have to replace them, be sure to get new original equipment wheel nuts.
Page 395: Secondary Latch System
Secondary Latch System Your vehicle has an underbody mounted tire hoist assembly that has a secondary latch system. It is designed to stop the compact spare tire from suddenly falling off your vehicle if the cable holding the spare tire is damaged. For the secondary latch to work, the tire must be stowed with the valve stem pointing down.
Page 396 All-Wheel-Drive Vehicle shown 2. Turn the lug wrench counterclockwise until approximately 6 inches (15 cm) of cable is exposed. 3. Attach the lug wrench to the jack and raise the jack at least 10 turns. 4. Place the jack under the vehicle, ahead of the rear bumper.
Page 397 8. Disconnect the lug wrench from the jack and carefully remove the jack. Use one hand to push against the spare tire while ﬁrmly pulling the jack out from under the spare tire with the other hand. 9. Tilt the retainer and slip it through the wheel opening when the spare tire has been completely lowered.
Page 398: Storing A Flat Or Spare Tire And Tools
Storing a Flat or Spare Tire and Tools Storing the Spare Tire CAUTION: The underbody-mounted spare tire needs to be stored with the valve stem pointing down. If the spare tire is stored with the valve stem pointing upwards, its secondary latch will not work properly and the spare tire could loosen and suddenly fall from your vehicle.
Page 399 5. Raise the tire fully against the underside of the vehicle. Continue turning the lug wrench until you feel more than two clicks. This indicates that the compact spare tire is secure and the cable is tight. The spare tire hoist cannot be overtightened.
Page 400 4. Hook on end of the cable onto the outside portion of the liftgate hinge opposite (B). 5. Pull the cable (A) through the center of the wheel (D), then the door striker (E), and the plastic spare tire heat shield (C), as shown. 5-86 6.
Page 401 9. Push the tube toward the front of the vehicle. 10. Close the liftgate and make sure it is latched properly. Storing the Tools A. Tool Bag B. Wing Bolt C. Jack 5-87...
Page 402: Compact Spare Tire
Put back all tools as they were stored in the jack storage compartment and put the compartment cover back on. 1. Attach the tool bag to the jack. 2. Make sure that the bottom of the jack is facing toward you. 3.
Page 403: Appearance Care
The All-Wheel Drive (AWD) system will be automatically disabled when you use the compact spare. To restore the AWD and prevent excessive wear on the clutch in your AWD, replace the compact spare tire with a full-size tire as soon as possible. Notice: Tire chains will not ﬁt your compact spare.
Page 404: Fabric/Carpet
Do not clean your vehicle using the following cleaners or techniques: • Never use a knife or any other sharp object to remove a soil from any interior surface. • Never use a stiff brush. It can cause damage to your vehicle’s interior surfaces.
Page 405: Leather
If any of the soil remains, a commercial fabric cleaner or spot lifter may be necessary. When a commercial upholstery cleaner or spot lifter is to be used, test a small hidden area for colorfastness ﬁrst. If the locally cleaned area gives any impression that a ring formation may result, clean the entire surface.
Page 406: Care Of Safety Belts
Care of Safety Belts Keep belts clean and dry. CAUTION: Do not bleach or dye safety belts. If you do, it may severely weaken them. In a crash, they might not be able to provide adequate protection. Clean safety belts only with mild soap and lukewarm water.
Page 407: Cleaning Exterior Lamps/Lenses
Dry the ﬁnish with a soft, clean chamois or an all-cotton towel to avoid surface scratches and water spotting High pressure car washes may cause water to enter the vehicle. Avoid using high pressure washes closer than 12 inches (30 cm) to the surface of the vehicle. Use of power washers exceeding 1,200 psi (8 274 kPa) can result in damage or removal of paint and decals.
Page 408: Windshield, Backglass, And Wiper Blades
Use special care with aluminum trim. To avoid damaging protective trim, never use auto or chrome polish, steam or caustic soap to clean aluminum. A coating of wax, rubbed to high polish, is recommended for all bright metal parts. Windshield, Backglass, and Wiper Blades Clean the outside of the windshield and backglass with glass cleaner.
Page 409: Tires
Notice: Using chrome polish on aluminum wheels could damage the wheels. The repairs would not be covered by your warranty. Use chrome polish on chrome wheels only. Use chrome polish only on chrome-plated wheels, but avoid any painted surface of the wheel, and buff off immediately after application.
Page 410: Underbody Maintenance
Underbody Maintenance Chemicals used for ice and snow removal and dust control can collect on the underbody. If these are not removed, corrosion and rust can develop on the underbody parts such as fuel lines, frame, ﬂoor pan, and exhaust system even though they have corrosion protection.
Page 411: Vehicle Care/Appearance Materials
Vehicle Care/Appearance Materials Description Interior and exterior Polishing Cloth polishing cloth. Tar and Road Oil Removes tar, road oil, Remover and asphalt. Chrome Cleaner and Use on chrome or Polish stainless steel. Removes soil and black White Sidewall Tire marks from whitewalls Cleaner and raised white lettering.
Page 412: Vehicle Identiﬁcation
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This is the legal identiﬁer for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver side. You can see it if you look through the windshield from outside your vehicle. The VIN also appears on the Certiﬁcation/Tire and Service Parts labels and the certiﬁcates of title and registration.
Page 413: Electrical System
Electrical System High Voltage Devices and Wiring CAUTION: Exposure to high voltage can cause shock, burns, and even death. The high voltage systems in your vehicle can only be serviced by technicians with special training. High voltage devices are identiﬁed by labels. Do not remove, open, take apart, or modify these devices.
Page 414: Windshield Wiper Fuses
Windshield Wiper Fuses The windshield wiper motor is protected by a circuit breaker and a fuse. If the motor overheats due to heavy snow, etc., the wiper will stop until the motor cools. If the overload is caused by some electrical problem, have it ﬁxed.
Page 415 Fuse Side Fuses Usage FRT/WSW Front Windshield Wiper SPARE Spare HTD/SEAT Front Heated Seats STR/WHL/ Steering Wheel Illumination ILLUM Memory Seat Module PWR/MIRRORS Power Mirrors DR/LCK Door Locks AIRBAG Airbag System LT/TRN/SIG Driver’s Side Turn Signal REAR WIPER Rear Window Wiper PassKey Module, Body Control PWR MOD Module...
Page 416 Fuses Power Mirrors, Liftgate Release DRL 2** Daytime Running Lamps 2 INFOTAINMENT Infotainment System Body Control Module SPARE Spare CTSY Dome Lamps INADV/PWR/LEDInterior Lamps ONSTR/VENT Emissions Audio Ampliﬁer Harness Connector BODY Harness Connector 5-102 Usage Usage Relay Side...
Page 417: Underhood Fuse Block
Relays Usage LT/PWR/SEAT Driver’s Side Power Seat Relay RT/PWR/SEAT Passenger’s Side Power Seat Relay PWR/WNDW Power Windows Relay PWR/COLUMN Power Steering Column Relay L/GATE Liftgate Relay Power Lock Relay REAR/WSW Rear Window Washer Relay UNLCK Power Unlock Relay DRL2 Daytime Running Lamps 2 Relay LT/UNLCK Driver’s Side Unlock Relay Daytime Running Lamps Relay...
Page 418 To remove fuses, hold the end of the fuse between your thumb and index ﬁnger and pull straight out. 5-104...
Page 419 Fuses Usage LT PRK Left Parking Lamp RT PRK Right Parking Lamp TRLR PRK Trailer Parking Lamps LAMP AIRBAG Airbag System PCM IGN Powertrain Control Module Ignition Adaptive Forward Lighting System TRANS Transmission REAR Rear Camera CAMERA EMISSION 1 Antilock Brakes System 2 TRLR BRK Trailer Brake All-Wheel-Drive System...
Page 420 Fuses FOG LAMP Fog Lamps HORN Horn A/C CLTCH Air Conditioning Clutch FUEL PUMP Fuel Pump SPARE Spare J-Case Fuses FAN 2 Cooling Fan 2 PWR L/GATE Power Liftgate FAN 1 Cooling Fan 1 HVAC BLWR Climate Control System Blower STRTR Starter BATT 2...
Page 421: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate capacities are given in English and metric conversions. See Recommended Fluids and Lubricants on page 6-12 for more information. Application Air Conditioning Refrigerant R134a Cooling System Engine Oil with Filter Fuel Tank Transmission Fluid Wheel Nut Torque All capacities are approximate.
Page 422 NOTES 5-108...
Page 423 Section 6 Maintenance Schedule ...6-2 Introduction ...6-2 Maintenance Requirements ...6-2 Your Vehicle and the Environment ...6-2 Using the Maintenance Schedule ...6-2 Scheduled Maintenance ...6-4 Additional Required Services ...6-6 Maintenance Footnotes ...6-7 Maintenance Schedule Owner Checks and Services ...6-8 At Each Fuel Fill ...6-8 At Least Once a Month ...6-9 At Least Once a Year ...6-9 Recommended Fluids and Lubricants ...6-12...
Page 424: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer/retailer for details. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts, and recommended ﬂuids and...
Page 425 This schedule is for vehicles that: • carry passengers and cargo within recommended limits. You will ﬁnd these limits on the Tire and Loading Information label. See Loading Your Vehicle on page 4-21. • are driven on reasonable road surfaces within legal driving limits.
Page 426: Scheduled Maintenance
Scheduled Maintenance When the CHANGE ENGINE OIL SOON message comes on, it means that service is required for your vehicle. Have your vehicle serviced as soon as possible within the next 600 miles (1 000 km). It is possible that, if you are driving under the best conditions, the engine oil life system might not indicate that vehicle service is necessary for over a year.
Page 427 Change engine oil and ﬁlter. See Engine Oil on page 5-15. Reset oil life system. See Engine Oil Life System on page 5-18. An Emission Control Service. Visually check for any leaks or damage. See footnote (g). Inspect engine air cleaner ﬁlter. If necessary, replace ﬁlter. See Engine Air Cleaner/Filter on page 5-20.
Page 428: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 429: Maintenance Footnotes
Maintenance Footnotes (a) Visually inspect brake lines and hoses for proper hook-up, binding, leaks, cracks, chaﬁng, etc. Inspect disc brake pads for wear and rotors for surface condition. Inspect other brake parts, including calipers, parking brake, etc. Check parking brake adjustment. (b) Visually inspect front and rear suspension and steering system for damaged, loose, or missing parts or signs of wear.
Page 430: Owner Checks And Services
(i) Drain, ﬂush, and reﬁll cooling system. This service can be complex; you should have your dealer/retailer perform this service. See Engine Coolant on page 5-22 for what to use. Inspect hoses. Clean radiator, condenser, pressure cap, and ﬁller neck. Pressure test the cooling system and pressure cap.
Page 431: At Least Once A Month
At Least Once a Month Tire Inﬂation Check Inspect your vehicle’s tires and make sure they are inﬂated to the correct pressures. Do not forget to check the spare tire. See Inﬂation - Tire Pressure on page 5-55. Check to make sure the spare tire is stored securely.
Page 432: Ignition Transmission Lock Check
Automatic Transmission Shift Lock Control System Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle. It should be parked on a level surface.
Page 433: Underbody Flushing Service
Parking Brake and Automatic Transmission Park (P) Mechanism Check CAUTION: When you are doing this check, your vehicle could begin to move. You or others could be injured and property could be damaged. Make sure there is room in front of your vehicle in case it begins to roll.
Page 434: Recommended Fluids And Lubricants
Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number, or speciﬁcation can be obtained from your dealer/retailer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Certiﬁed for Gasoline Engines Engine Oil starburst symbol.
Page 435 Usage Fluid/Lubricant Carrier Assembly — Differential SAE 75W-90 Synthetic Axle (Rear Drive Lubricant (GM Part No. U.S. Module) 89021677, in Canada 89021678) and Transfer meeting GM Speciﬁcation 9986115. Case (Power Transfer Unit) Hood Latch Assembly, Lubriplate Lubricant Aerosol (GM Secondary Part No.
Page 436: Maintenance Replacement Parts
Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your dealer/retailer. Part Engine Air Cleaner/Filter Engine Oil Filter Spark Plugs Windshield Wiper Blades Right – 20.8 inches (53.0 cm) Left – 24.6 inches (62.5 cm) Rea –...
Page 437: Engine Drive Belt Routing
Engine Drive Belt Routing 3.6L V6 Engine 6-15...
Page 438: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. See Maintenance Requirements on page 6-2. Any additional information from Owner Checks and Services on page 6-8 can be added on the following record pages. You should retain all maintenance receipts.
Page 439 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-17...
Page 440 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-18...
Page 441: Customer Assistance Information
Section 7 Customer Assistance and Information ...7-2 Customer Satisfaction Procedure ...7-2 Online Owner Center ...7-4 Customer Assistance for Text Telephone (TTY) Users ...7-4 Customer Assistance Offices ...7-5 GM Mobility Reimbursement Program ...7-6 Roadside Assistance Program ...7-6 Scheduling Service Appointments ...7-8 Courtesy Transportation ...7-9 Collision Damage Repair ...7-10 Customer Assistance Information...
Page 442: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to GMC. Normally, any concerns with the sales transaction or the operation of the vehicle will be resolved by your dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 443 Although you may be required to resort to this informal dispute resolution program prior to ﬁlling out a court action, use of the program is free of charge and your case will generally be heard within 40 days. If you do not agree with the decision given in your case, you may reject it and proceed with any other venue for relief available to you.
Page 444: Online Owner Center
Telephone (TTY) Users To assist customers who are deaf, hard of hearing, or speech-impaired and who use the Text Telephones (TTYs), GMC has TTY equipment available at its Customer Assistance Center. Any TTY user can communicate with GMC by dialing: 1-800-GMC-8583 (462-8583).
Page 445: Customer Assistance Offices
Customer Assistance Offices GMC encourages customers to call the toll-free number for assistance. However, if a customer wishes to write or e-mail GMC, the letter should be addressed to: United States GMC Customer Assistance Center P.O. Box 33172 Detroit, MI 48232-5172 www.GMC.com...
Page 446: Gm Mobility Reimbursement Program
(TTY): 1-888-889-2438). For vehicles purchased in Canada, call 1-800-268-6800. Service is available 24 hours a day, 365 days a year. As the owner of a new GMC vehicle, you are automatically enrolled in the GMC Roadside Assistance program. Who is Covered? Roadside Assistance coverage is for the vehicle operator, regardless of ownership.
Page 447 • Lock-out Service: Lock-out service will be covered at no charge if you are unable to gain entry into your vehicle. A remote unlock may be available if ® you have an active OnStar subscription. To ensure security, the driver must present personal identiﬁcation before lock-out service is provided.
Page 448: Calling For Assistance
However, when other services are utilized, our Roadside Assistance Representatives will explain any payment obligations you might incur. GMC and General Motors of Canada Limited reserve the right to limit services or reimbursement to an owner or driver when, in their sole discretion, the claims become excessive in frequency or type of occurrence.
Page 449: Courtesy Transportation
If your vehicle cannot be scheduled into the service department immediately, keep driving it until it can be scheduled for service, unless, of course, the problem is safety-related. If it is, please call your dealership/retailer, let them know this, and ask for instructions. If the dealer/retailer requests that you simply drop the vehicle off for service, you are urged to do so as early in the work day as possible to allow for the same...
Page 450: Collision Damage Repair
Claim amounts should reﬂect actual costs and be supported by original receipts. See your dealer for information regarding the allowance amounts for reimbursement of fuel or other transportation costs. Courtesy Rental Vehicle Your dealer may arrange to provide you with a courtesy rental vehicle or reimburse you for a rental vehicle that you obtain if your vehicle is kept for an overnight warranty repair.
Page 451: Repair Facility
A recycled original equipment GM part, may be an acceptable choice to maintain your vehicle’s originally designed appearance and safety performance, however, the history of these parts is not known. Such parts are not covered by your GM New Vehicle Limited Warranty, and any related failures are not covered by that warranty.
Page 452: If A Crash Occurs
If a Crash Occurs Here is what to do if you are involved in a crash. • Try to relax and then check to make sure you are all right. If you are uninjured, make sure that no one else in your vehicle, or the other vehicle, is injured.
Page 453: Managing The Vehicle Damage Repair Process
Managing the Vehicle Damage Repair Process In the event that your vehicle requires damage repairs, GM recommends that you take an active role in its repair. If you have a pre-determined repair facility of choice, take your vehicle there, or have it towed there. Specify to the facility that any required replacement collision parts be original equipment parts, either new Genuine GM parts or recycled original GM parts.
Page 454: Service Publications Ordering Information
Reporting Safety Defects to General Motors In addition to notifying NHTSA (or Transport Canada) in a situation like this, please notify General Motors. Call 1-800-GMC-8782 (1-800-462-8782), or write: GMC Customer Assistance Center P.O. Box 33172 Detroit, MI 48232-5172 In Canada, call 1-800-263-3777 (English) or...
Page 455: Current And Past Model Order Forms
Current and Past Model Order Forms Technical Service Bulletins and Manuals are available for current and past model GM vehicles. To request an order form, specify year and model name of the vehicle. ORDER TOLL FREE: 1-800-551-4123 Monday-Friday 8:00 AM - 6:00 PM Eastern Time For Credit Card Orders Only (VISA-MasterCard-Discover), visit Helm, Inc.
Page 456: Event Data Recorders
Event Data Recorders This vehicle has an Event Data Recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an airbag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed.
Page 457: Onstar
® OnStar If your vehicle has OnStar and you subscribe to the OnStar services, please refer to the OnStar Terms and Conditions for information on data collection ® and use. See also OnStar System on page 2-47 in this manual for more information. Navigation System If your vehicle has a navigation system, use of the system may result in the storage of destinations,...
Page 458 NOTES 7-18...
Page 459 Accessories and Modiﬁcations ... 5-4 Adding Equipment to Your Airbag-Equipped Vehicle ... 1-76 Additives, Fuel ... 5-7 Add-On Electrical Equipment ... 5-99 Air Cleaner/Filter, Engine ... 5-20 Air Conditioning ... 3-26, 3-29 Airbag Passenger Status Indicator ... 3-43 Readiness Light ... 3-42 Airbag System ...
Page 460 Audio System (cont.) Setting the Time ... 3-85 Theft-Deterrent Feature ... 3-127 Audio System(s) ... 3-87 Automatic Transmission Fluid ... 5-21 Operation ... 2-30 Battery ... 5-38 Electric Power Management ... 3-19 Run-Down Protection ... 3-20 Brake Emergencies ... 4-6 Brakes ...
Page 461 Child Restraints (cont.) Securing a Child Restraint in a Rear Seat Position ... 1-55 Securing a Child Restraint in the Right Front Seat Position ... 1-58 Where to Put the Restraint ... 1-46 Cleaning Aluminum or Chrome-Plated Wheels ... 5-94 Exterior Lamps/Lenses ...
Page 462 Customer Assistance Information (cont.) Reporting Safety Defects to the United States Government ... 7-13 Roadside Assistance Program ... 7-6 Service Publications Ordering Information ... 7-14 Daytime Running Lamps/Automatic Headlamp System ... 3-16 Defensive Driving ... 4-2 Delayed Entry Lighting ... 3-18 Delayed Exit Lighting ...
Page 463 Engine Air Cleaner/Filter ... 5-20 Check and Service Engine Soon Light ... 3-50 Coolant ... 5-22 Coolant Heater ... 2-29 Coolant Temperature Gage ... 3-49 Coolant Temperature Warning Light ... 3-49 Drive Belt Routing ... 6-15 Engine Compartment Overview ... 5-14 Exhaust ...
Page 464 Gage Engine Coolant Temperature ... 3-49 Fuel ... 3-56 Speedometer ... 3-41 Tachometer ... 3-41 Voltmeter Gage ... 3-46 Garage Door Opener ... 2-50 Gasoline Octane ... 5-6 Speciﬁcations ... 5-6 Glove Box ... 2-55 GM Mobility Reimbursement Program ... 7-6 Hazard Warning Flashers ...
Page 465 Jump Starting ... 5-39 Keyless Entry System ... 2-4 Keys ... 2-3 Labeling, Tire Sidewall ... 5-49 Lamps Courtesy ... 3-17 Dome ... 3-17 Dome Lamp Override ... 3-17 Reading ... 3-19 Lap-Shoulder Belt ... 1-30 LATCH System Child Restraints ... 1-47 License Plate Lamps ...
Page 466 Locks Delayed Locking ... 2-11 Door ... 2-10 Lockout Protection ... 2-12 Power Door ... 2-11 Programmable Automatic Door Locks ... 2-11 Rear Door Security Locks ... 2-11 Loss of Control ... 4-12 Luggage Carrier ... 2-58 Lumbar Manual Controls ... 1-4 Power Controls ...
Page 467 Odometer ... 3-41 Off-Road Recovery ... 4-11 Engine ... 5-15 Pressure Light ... 3-54 Oil, Engine Oil Life System ... 5-18 Older Children, Restraints ... 1-36 Online Owner Center ... 7-4 OnStar, Privacy ... 7-17 ® ® OnStar System, see OnStar Manual ...
Page 468 Power (cont.) Steering Fluid ... 5-33 Tilt Wheel and Telescopic Steering Column ... 3-7 Windows ... 2-19 Privacy ... 7-15 Event Data Recorders ... 7-16 Navigation System ... 7-17 OnStar ... 7-17 Radio Frequency Identiﬁcation ... 7-17 Programmable Automatic Door Locks ... 2-11 Radiator Pressure Cap ...
Page 469 Restraint System Check Checking the Restraint Systems ... 1-77 Replacing Restraint System Parts After a Crash ... 1-78 Retained Accessory Power (RAP) ... 2-27 Roadside Assistance Program ... 7-6 Rocking Your Vehicle to Get it Out ... 4-21 Routing, Engine Drive Belt ... 6-15 Running the Engine While Parked ...
Page 470 Shifting Into Park (P) ... 2-36 Shifting Out of Park (P) ... 2-37 Signals, Turn and Lane-Change ... 3-8 Spare Tire Compact ... 5-88 Installing ... 5-76 Removing ... 5-73 Storing ... 5-84 Speciﬁcations, Capacities ... 5-107 Speedometer ... 3-41 ®...
Page 471 Tires (cont.) Changing a Flat Tire ... 5-72 Cleaning ... 5-95 Compact Spare Tire ... 5-88 Different Size ... 5-66 If a Tire Goes Flat ... 5-71 Inﬂation - Tire Pressure ... 5-55 Inspection and Rotation ... 5-62 Installing the Spare Tire ... 5-76 Pressure Monitor Operation ...
Page 472 Vehicle Identiﬁcation Number (VIN) ... 5-98 Service Parts Identiﬁcation Label ... 5-98 Vehicle, Remote Start ... 2-7 Ventilation Adjustment ... 3-36 Visors ... 2-21 Voltage Devices, High and Wiring ... 5-99 Voltmeter Gage ... 3-46 Warning Lights, Gages and Indicators ... 3-39 Warnings DIC Warnings and Messages ...
