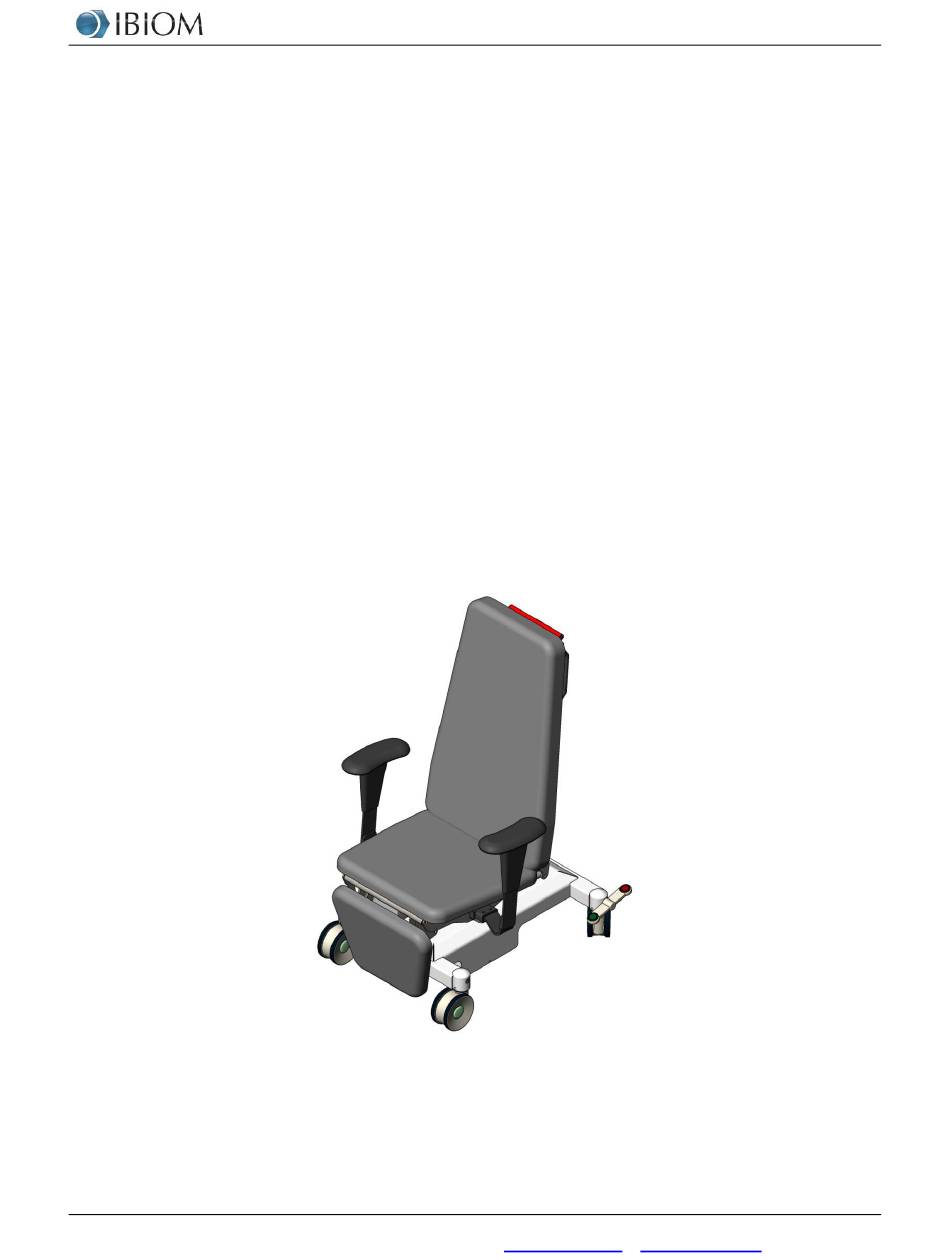

- Page 1 OPERATION MANUAL-HEMA+ OPERATION MANUAL Revision: December 2020 TREATMENT CHAIR HEMA+ IBIOM Instruments Ltd, 670 Joseph-Louis-Mathieu Street, Sherbrooke, Quebec, J1R 0X3 Tel.: 1-877-563-5777 ● Fax: 450-445-9837 ● ● www.ibiom.com info@ibiom.com...
-
Page 2: Table Of Contents
8.4 C .......................22 ERTIFICATION LIMITED LIFETIME WARRANTY ..................23 10. WASTE DISPOSAL ......................24 11. MAINTENANCE ........................25 12. TROUBLESHOOTING ......................26 13. SPARE PARTS .........................27 IBIOM Instruments Ltd, 670 Joseph-Louis-Mathieu Street, Sherbrooke, Quebec, J1R 0X3 Tel.: 1-877-563-5777 ● Fax: 450-445-9837 ● ● www.ibiom.com info@ibiom.com... -
Page 3: Contact Us
This information is available on label located on base of the chair. Phone 1-877-563-5777 450-445-9837 Email info@ibiom.com www.ibiom.com Address IBIOM Instruments Ltd 670 Joseph-Louis-Mathieu Street Sherbrooke, Quebec J1R 0X3 Canada © Copyright IBIOM Instruments ltd 2020 Page 3 of 28 Revision: December 2020... -
Page 4: Intended Use
In accordance with directive on waste electrical and electronic equipment (WEEE), HEMA+ electrical system and accessories should not be disposed as unsorted municipal waste. Consult your instructional policies and local regulations regarding disposal. © Copyright IBIOM Instruments ltd 2020 Page 4 of 28 Revision: December 2020... -
Page 5: Warnings
WARNING. Keep all cables out of reach of children. WARNING. Keep all cables away from moving parts. WARNING. Do not move chair by pulling hand control, power cable or any other cable. © Copyright IBIOM Instruments ltd 2020 Page 5 of 28 Revision: December 2020... - Page 6 WARNING. Defective or damaged batteries may leak acid and adequate precautions must be taken during handling and transportation. WARNING. Do not open the battery case as damage to the cell or circuitry may develop excessive heat. © Copyright IBIOM Instruments ltd 2020 Page 6 of 28 Revision: December 2020...
-
Page 7: Label
Double electrical insulation Obligation to read the operation manual Required voltage (120V), alternating current Frequency (60Hz), max amperage (3.9A) Maximum activation time followed by minimum deactivation time © Copyright IBIOM Instruments ltd 2020 Page 7 of 28 Revision: December 2020... -
Page 8: Operation Instructions
1. Once unpacked and put in desired location, install all accessories (arms, side table if applicable). © Copyright IBIOM Instruments ltd 2020 Page 8 of 28 Revision: December 2020... - Page 9 4. Remove any remaining packaging from the product. Example: Protective plastic on the hand control cable. 5. Connect the power cord. 6. Perform an operation test to ensure that everything is working properly. © Copyright IBIOM Instruments ltd 2020 Page 9 of 28 Revision: December 2020...
-
Page 10: Central And Direction Lock
• Red : all 4 casters are locked; • Neutral : all casters unlocked and free to roll; • Green : 1 caster at foot end locks in direction and 3 others remain free. © Copyright IBIOM Instruments ltd 2020 Page 10 of 28 Revision: December 2020... -
Page 11: Chair Functions
Commande à main Bouton Fonction Simultaneous movements : raise backrest and lower leg section. Simultaneous movements : lower backrest and raise leg section. Raise chair Lower chair © Copyright IBIOM Instruments ltd 2020 Page 11 of 28 Revision: December 2020... -
Page 12: Armrest
WARNING. Take appropriate precautions to avoid injury when handling accessories (side table, arms, etc.). Use trigger located underneath arm cushion to adjust height. Trigger located underneath arm cushion. © Copyright IBIOM Instruments ltd 2020 Page 12 of 28 Revision: December 2020... - Page 13 OPERATION MANUAL-HEMA+ To remove arm, unlock rotating lever located underneath metal base of arm. Remove arm. Lever used to lock/unlock arm. © Copyright IBIOM Instruments ltd 2020 Page 13 of 28 Revision: December 2020...
-
Page 14: Emergency Position - Electrical
To activate emergency position, use corresponding buttons on hand control device. This function moves simultaneously backrest and leg section. © Copyright IBIOM Instruments ltd 2020 Page 14 of 28 Revision: December 2020... -
Page 15: Emergency Position - Quick Release
To activate emergency position, use red lever located at rear of backrest and lower slowly backrest to Trendelenburg position. This function moves simultaneously backrest and leg section. Emergency lever © Copyright IBIOM Instruments ltd 2020 Page 15 of 28 Revision: December 2020... -
Page 16: Retractable Side Table
WARNING. Never exceed safe working load of 10lb or 4.5kg on retractable side table installed on armrests. 1. Slightly lift side table. 2. Fold side table gently. © Copyright IBIOM Instruments ltd 2020 Page 16 of 28 Revision: December 2020... -
Page 17: Rechargeable Battery
It is possible to use battery while it is plugged to wall outlet without any risk of damage. • When battery level is low and needs to be charged, it will emit audible signal. © Copyright IBIOM Instruments ltd 2020 Page 17 of 28 Revision: December 2020... -
Page 18: Cleaning Instructions
• Always follow manufacturer’s cleaning products instructions. • Clean spill as soon as possible to prevent penetration and becoming a permanent stain. © Copyright IBIOM Instruments ltd 2020 Page 18 of 28 Revision: December 2020... -
Page 19: Cleaning Procedure
3. Clean the armrests. 4. Clean all parts that may be contaminated and/or that are in contact with the patient, such as side table, handles, chair base, etc. © Copyright IBIOM Instruments ltd 2020 Page 19 of 28 Revision: December 2020... -
Page 20: Specifications
• NFPA 260 • UFAC Class 1 IBIOM Instruments Ltd. reserves the right to change specifications without notice. 1 May vary depending on options. 2 If cleaning instructions are followed. © Copyright IBIOM Instruments ltd 2020 Page 20 of 28... -
Page 21: Electrical Specifications
Lifting column : IPX6 Hand control : IPX4 Battery : IPX6 Duty cycle Intermittent 2/18 Max 2 minutes on 18 minutes off IBIOM Instruments Ltd. reserves the right to change specifications without notice. 8.3 Environmental conditions Conditions Temperature Relative humidity Pressure Normal condition... -
Page 22: Certification
All IBIOM's treatment chairs are certified according to CSA standard for electrical medical device except contrary indication. Sticker is located at the base of the chair. Serial number © Copyright IBIOM Instruments ltd 2020 Page 22 of 28 Revision: December 2020... -
Page 23: Limited Lifetime Warranty
OPERATION MANUAL-HEMA+ 9. LIMITED LIFETIME WARRANTY IBIOM instruments ltd has a lifetime warranty for all their products against all manufacturing defects under normal operating conditions as described in manual. These following components are excluded from this lifetime warranty: mattresses, retractable rod mechanisms, brake mechanisms, armrest mechanisms, wheels and all mobile parts. -
Page 24: Waste Disposal
MATERIAL GROUP Actuators, lifting column, control box, controls, cables and other Electronic electronic components Metal structure Metal Battery pack Batteries Plastic parts Plastic Mattress Foam, textiles, wood © Copyright IBIOM Instruments ltd 2020 Page 24 of 28 Revision: December 2020... -
Page 25: Maintenance
OPERATION MANUAL-HEMA+ 11. MAINTENANCE See service manual. © Copyright IBIOM Instruments ltd 2020 Page 25 of 28 Revision: December 2020... -
Page 26: Troubleshooting
Make sure there is power in control box. the electrical outlet. If the Wall outlet is defective. problem persists, control box is defective. © Copyright IBIOM Instruments ltd 2020 Page 26 of 28 Revision: December 2020... -
Page 27: Spare Parts
OPERATION MANUAL-HEMA+ 13. SPARE PARTS See service manual. © Copyright IBIOM Instruments ltd 2020 Page 27 of 28 Revision: December 2020... - Page 28 OPERATION MANUAL-HEMA+ IBIOM INSTRUMENTS LTD 670 JOSEPH-LOUIS-MATHIEU STREET SHERBROOKE, QUEBEC J1R 0X3 CANADA www.ibiom.com © Copyright IBIOM Instruments ltd 2020 Page 28 of 28 Revision: December 2020...
