Product Description - Fracarro MOD-DVB-TC Operating Instructions Manual

Modulator MOD-DVB-TC is intended to modulate base band signals into digital TV channels (DVB-T), in the
band VHF (111-300MHz) and in the UHF band (470-862MHz) with COFDM and QAM modulation.
LED
power ON
RJ45
(TPE)
Audio L / R :
audio inputs (RCA connectors, white and red)
Video:
video input (RCA connectors, yellow)
OUT:
RF output (F connector)
IN MIX:
RF loopthrough input (F connector, 47÷2400MHz)
ENT,+,-:
control buttons (basic settings)
RJ45:
port for TPE connection (to change advanced settings)

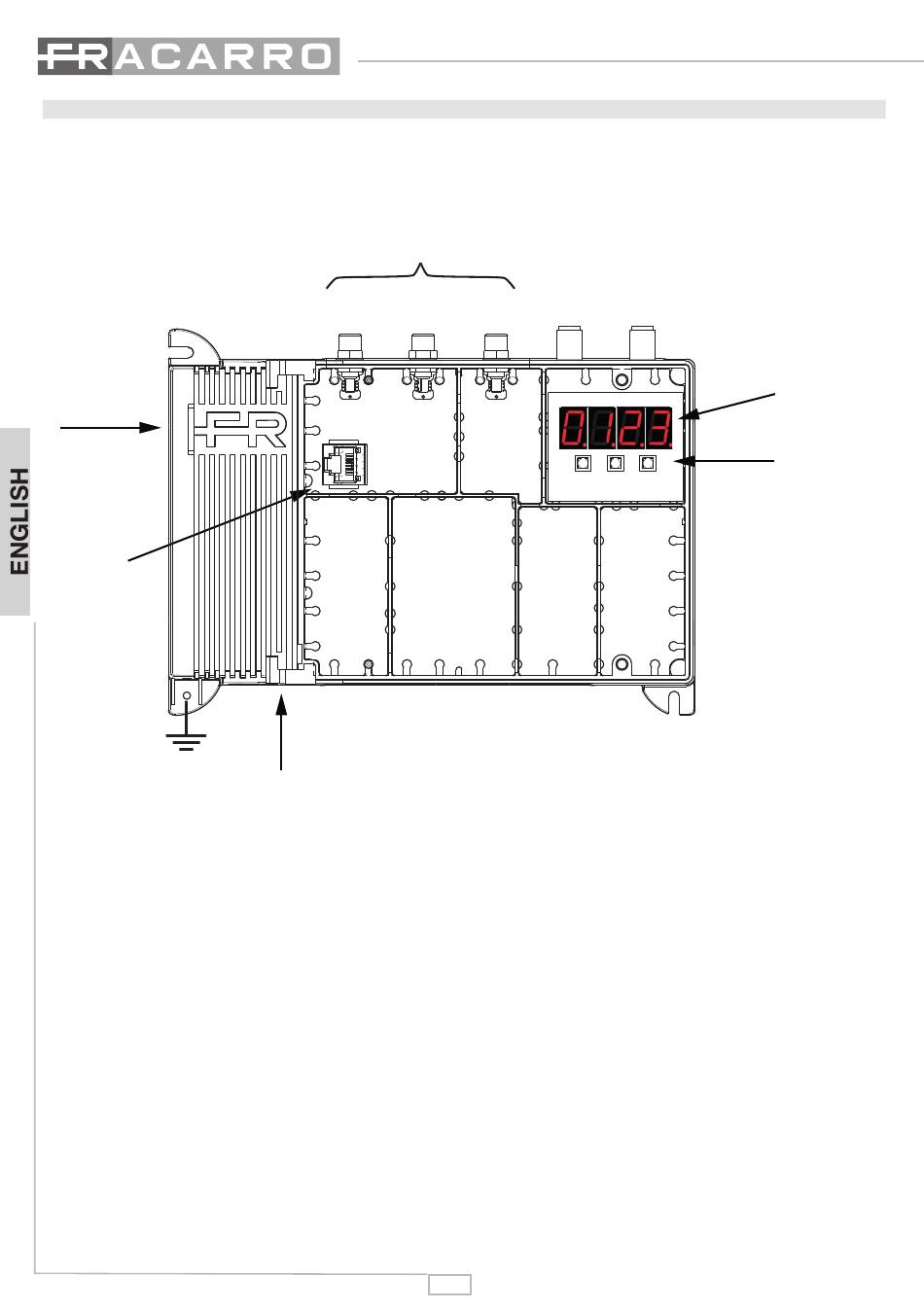

2. PRODUCT DESCRIPTION

RCA INPUT
Audio Audio
Video
L R
Connettore cavo
Power cord
di alimentazione
connector
10
IN
MIX
OUT
Tasti per
ENT - +
Programming keys
programmazione
Display
