- Page 1 Installation, Operation & Maintenance Manual GPS-FC-3/3T-BAS NOTICE: This product is to be used only as directed. Read entire manual before use. Do not use unless properly installed.

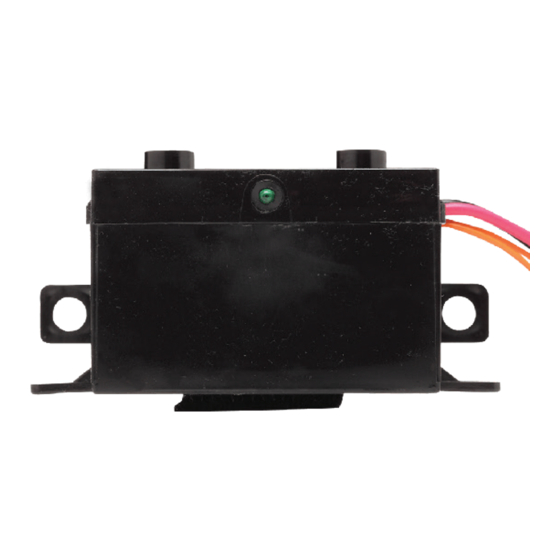

- Page 2 For technical product queries, please reach out to techsupport@globalplasmasolutions.com The GPS FC-3 is an air ionization system designed to be mounted inside of fan coils, heat pumps, ductless mini splits, and air handlers up to 3,200 CFM or 8 tons. There are Build Automation System (BAS) alarm contacts provided (orange wires) with the FC-3.
- Page 3 MECHANICAL INSTALLATION 1. Select a location for installation. The FC-3 needs to be perpendicular to the air flow (air should flow past ion emitters like a football through the goal posts). The FC-3 should be mounted so that the ion emitters are exposed to airstream.
- Page 4 CAUTION: IF VOLTAGE OTHER THAN 24VAC IS BEING SUPPLIED, USE APV-12-24 POWER SUPPLY INCLUDED WITH FC-3T 240VAC installation 1. Find a suitable location for the APV-12-24. Secure the APV-12-24 with self-tapping screws or double-sided tape. 2. Route the wires so that they will not short, abrade, or damage other components 3.
- Page 5 Figure 6: Example assembly with crimp connectors. Figure 7: Example assembly with twist-on wire connectors. Verification of Operation Verify the FC-3 and wiring are secure and wired for the correct voltage. Restore power to the HVAC equipment. The green indicator light on the FC-3 will illuminate. The BAS alarm contacts will close. To verify output, take a non-contact voltage reader and place it near the ion emitters it should indicate voltage.
- Page 6 Charlotte, NC 28208 980-279-5622 © 2021 Global Plasma Solutions Inc. • ZERO OZONE EMISSIONS MEASURED OZONE EMISSIONS FROM GPS FC BAS™ DURING USE PHASE DOES NOT EXCEED . AS TESTED BY UL UL.COM/ECV To access a list of applicable patents, please visit www.gpspatents.com...
