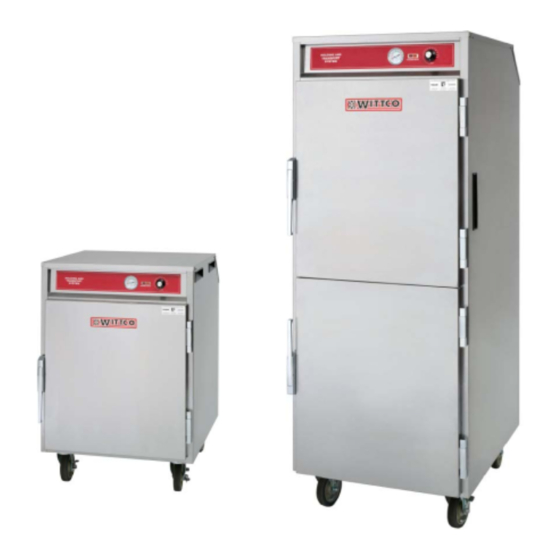

- Page 1 O P E R A T I O N S M A I N T E N A N C E MANUAL FOOD HOLDING & TRANSPORT CABINETS WITTCO MODEL NUMBERS 1220-3 1220-15-BC 1220-3-PT 1220-20-BC 1220-7 1220-7-BC 1220-8 1220-8-BC 1220-8-IHD...
-
Page 2: Limited Warranty
Products, as defined by Wittco, shall be delivered by Buyer, at its sole expense, to the nearest Wittco authorized service agency for replacement or repair. Wittco reserves the right to accept or reject any such claim in whole or in part. Wittco will not accept the return of any Product without prior written approval from Wittco, and all such approved returns shall be made at Buyer's sole expense. - Page 3 Wittco model number indicated on the equipment serial data plate located at the electrical connection. Wittco serial number indicated on the equipment serial data plate. The equipment serial number will also have two (2) alpha characters immediately following the serial number. These alpha characters are part of the serial number.
- Page 4 It is our sincere desire that you obtain the maximum benefit from your Wittco heated holding and transport cabinet. If at any time questions arise or additional information is required, contact Wittco at 800 367-8413.
-
Page 5: Unpacking The Cabinet
It is very important that any evidence of damage be noted on the Bill of Lading at the time of receipt. UNPACKING THE CABINET Remove the banding material holding the carton to the pallet. Remove the cardboard carton and the plastic bag covering the cabinet. Carefully lift the cabinet off the carton bottom and pallet and place it on the floor or a table, if it is a counter top unit. -
Page 6: Replacement Of Electrical Components
Never use harsh chemicals or abrasive pads to clean the cabinet. REPLACEMENT OF ELECTRICAL COMPONENTS It is highly recommended that only Wittco Foodservice Equipment replacement parts be used to insure compatibility of component parts in the operation of holding and transport cabinet. THERMOSTAT REPLACEMENT DISCONNECT THE CABINET FROM ITS POWER SOURCE. - Page 7 INDICATOR LIGHT REPLACEMENT 1. DISCONNECT THE CABINET FROM ITS POWER SOURCE. 2. Remove the top cover by removing the retaining screws and lifting the cover off the cabinet to expose the indicator light. 3. Notice the arrangement and connection of all electrical leads and refer to the wiring diagrams for reference. 4.
- Page 8 HEATING ELEMENT RPLACEMENT (CON'T) Reinstall the element retaining screws. 10. Reinstall the protective element cover. 11. Reconnect the cabinet to the power source and test. THERMOMETER REPLACEMENT Disconnect the cabinet from its power source. Remove the top cover by removing the retaining screws and lifting the top cover off the cabinet to expose the thermometer.
-
Page 11: Replacement Parts List
WITTCO FOODSERVICE EQUIPMENT INC. REPLACEMENT PARTS LIST WITTCO SERIES - HOLDING/TRANSPORT CABINETS 6/18/98 MODEL NUMBER AND QUANTITY REQUIRED WITTCO PART DESCRIPTION PART NO. 1220-3 1220-7 1220-8 1220-15 WP-114-E BUMPER, ALUMINUM EXTRUSION ONLY (NO VINYL) WP-114-V BUMPER, BLACK VINYL ONLY (NO EXTRUSION) WP-079 CARDHOLDER, 3"x5"... - Page 12 MODEL NUMBER AND QUANTITY REQUIRED WITTCO PART DESCRIPTION PART NO. 1220-3 1220-7 1220-8 1220-15 WP-092-7 GASKET, DOOR ALUMINUM EXTRUSION WP-092-8 GASKET, DOOR ALUMINUM EXTRUSION WP-092-15 GASKET, DOOR ALUMINUM EXTRUSION WP-302 GASKET, DOOR (BLACK) BY THE FT. WP-117 HANDLE, PUSH/PULL WP-310...
- Page 13 WITTCO FOODSERVICE EQUIPMENT INC. REPLACEMENT PARTS LIST WITTCO SERIES - HOLDING/TRANSPORT CABINETS 6/18/98 MODEL NUMBER AND QUANTITY REQUIRED WITTCO PART DESCRIPTION PART NO. 1220-20 WP-114-20-E BUMPER, ALUMINUM EXTRUSION ONLY (NO VINYL) WP-114-20-V BUMPER, BLACK VINYL ONLY (NO EXTRUSION) WP-114-4R CASTER 4" HEAVY DUTY RIGID WP-114-4S CASTER 4"...
-
Page 14: Part Description
MODEL NUMBER AND QUANTITY REQUIRED WITTCO PART DESCRIPTION PART NO. 1220-20 WP-106-2 LIGHT, INDICATOR DUAL 250 VOLT (AMBER/RED) WP-140 RACKS, SIDE UPRIGHT WP-305 RACK, SIDE RETAINING BOLTS WP-109 THERMOMETER, DIAL TYPE WP-093 THERMOMETER BULB HOLDER WP-110 THERMOSTAT W/OUT KNOB AD-242... - Page 15 WITTCO FOODSERVICE EQUIPMENT INC. REPLACEMENT PARTS LIST WITTCO SERIES - HOLDING/TRANSPORT UNIT 6/18/98 MODEL NUMBER AND QUANTITY REQUIRED WITTCO PART DESCRIPTION PART NO. 1220-8 IHD WP-113-EIHD BUMPER, ALUMINUM EXTRUSION ONLY (NO VINYL) WP-113-V1HD BUMPER, BLACK VINYL ONLY (NO EXTRUSION) WP-079...
-
Page 16: Thermostat Knob
MODEL NUMBER AND QUANTITY REQUIRED WITTCO PART DESCRIPTION PART NO. 1220-8 MD WP-242 THERMOSTAT KNOB WP-089 THERMOSTAT BULB HOLDER WP-308-C8 TOP COVER...
