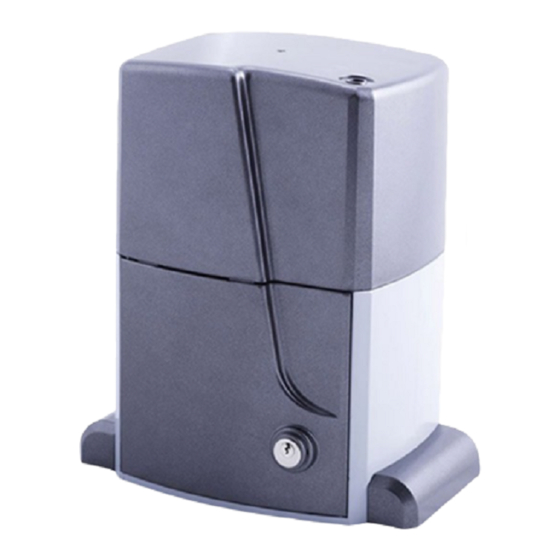

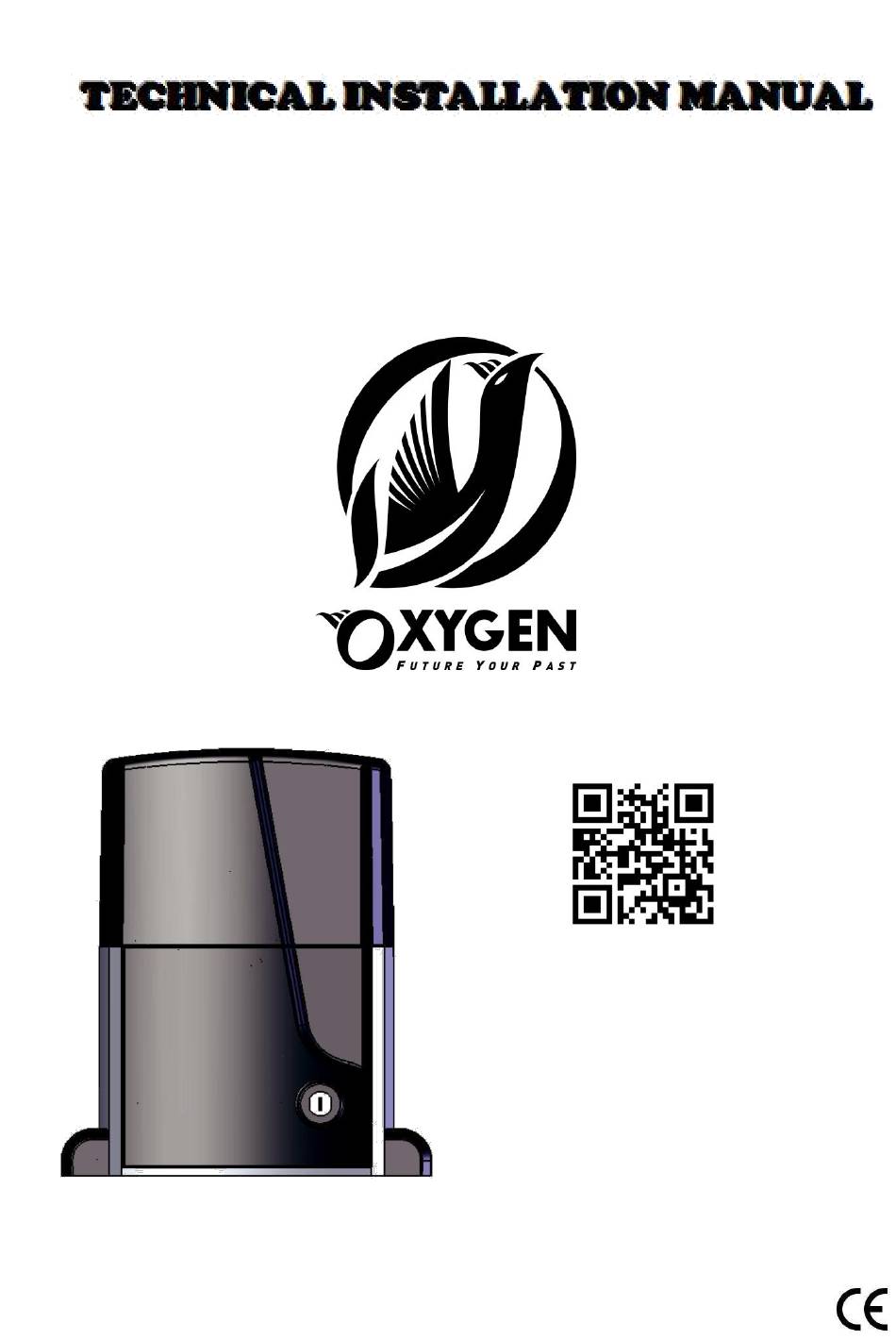

- Page 1 TYPHON 2000 ENGLISH Manual for the installation and maintenance of automations for sliding gates.
- Page 2 4) Store these instructions for future reference. safety devices. 5) This product was designed and manufactured 17) Oxygen Automation disclaims any liability for the exclusively indicated this documentation.
- Page 3 A convenient manual release with customised key makes it possible to move the gate in case of a power failure or operator malfunction. The TYPHON 2000 gear motor was designed and built for controlling vehicle access. AVOID ANY OTHER USE.
- Page 4 2. ELECTRICAL SET-UP (standard system) Fig. 3 1) Motor TYPHON 2000 Fig. 4 2) Photocells 3) Key selector 4) Flashing lamp 5) Radio receiver Fig. 2 3. INSTALLING THE AUTOMATISM 3.1. Preliminary checks To ensure safety and efficiency of the automated system, make...
- Page 5 NOTES ON RACK INSTALLATION 3.4. ASSEMBLING THE RACK • Make sure that, during the gate travel, all the rack 3.4.1. STEEL RACK TO WELD (fig.7) elements do not exit the pinion. • In no case weld the rack elements neither to the spacers 1) Fit the three threaded pawls on the rack element, nor to each other (only for steel rack).
-
Page 6: Maintenance
4.3. AUTOMATION SYSTEM TEST Once the installation of the operator has been completed, make a careful functional check of all accessories and safety devices connected. Give the Client the “User Guide” and demonstrate the correct operation and use of the gearmotor, highlighting the potentially dangerous zones of the automated system. - Page 7 Manual opening is, therefore, only possible by using the release system. MANUAL OPERATION The gear motor TYPHON 2000 has a mechanical clutch, so it doesn’t need any electronic clutch. If it is necessary to manually activate the gate due to lack...
- Page 8 (DIRECTIVE 98/37 CEE) Manufactured under CE regulation and directive in ITALIA and Distributed in THE EUROPEAN UNION and OVERSEAS by OXYGEN AUTOMATION Srl, via Marzabotto, 40133 Bologna ITALIA. Declares that the electromechanical operator for sliding gates mod. Typhon 2000: 1) is designed to be incorporated into machinery or to be assembled with other machinery to constitute machinery under the Directive 98/37 CEE and subsequent amendments;...
- Page 9 TYPHON 2000KG SPARE PARTS LIST SPARE PARTS Body reducer Bearing 6303 Crankshaft Bearing 6303 Motor cover Screw TCEI 6 x 12 Register clutch cap Electronic box hinge 9 Support spring limit switch Limit switch box base Limit switch cover Electric box base Electric box cover External cover MSC lock...
