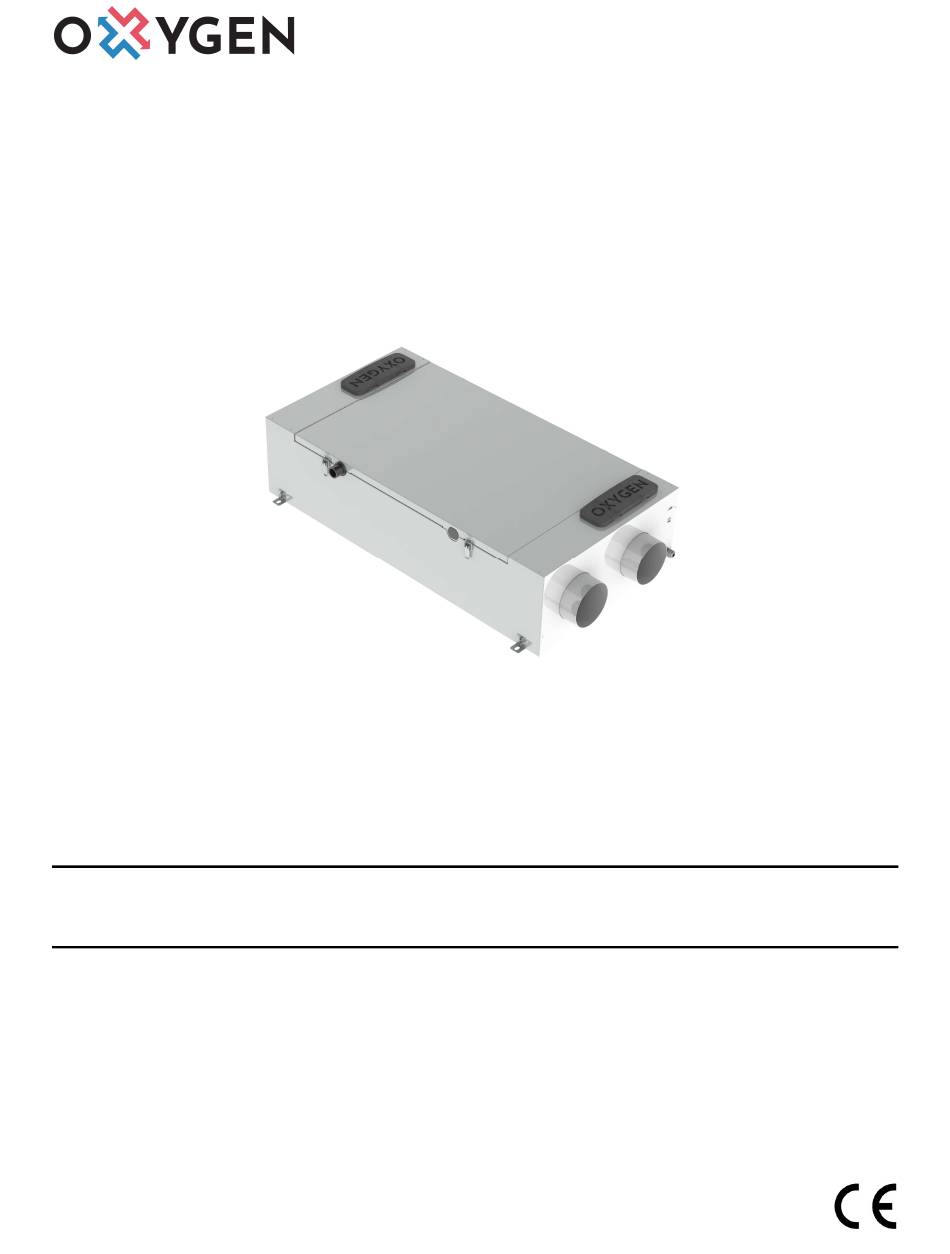

INSTALLATION AND OPERATION MANUAL
OXYGEN X-Air C200
Heat Recovery Unit
Rev 1.6 2019.06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-Air C200 and is the answer not in the manual?

Questions and answers

Related Manuals for Oxygen X-Air C200

Summary of Contents for Oxygen X-Air C200

  • Page 1 INSTALLATION AND OPERATION MANUAL OXYGEN X-Air C200 Heat Recovery Unit Rev 1.6 2019.06...

  • Page 3: Table Of Contents

    CONTENTS TRANSPORTATION AND STORAGE OF EQUIPEMENT ..................3 UNIT PACKAGE ..............................4 SAFETY REQUIREMENTS ...........................5 EU DECLARATION OF CONFORMITY .........................6 TECHNICAL DATA ..............................7 5.1. Performance characteristics .........................8 5.2. Performance and power consumption ....................8 5.3. Sound characteristics ..........................9 5.4. Dimensions and weight ........................10 FUNCTIONALITY .............................

  • Page 4: Transportation And Storage Of Equipement

    1. TRANSPORTATION AND STORAGE OF EQUIPEMENT Heat Recovery Unit (hereinafter – the Unit) is prepared for transportation and storage. Packaging materials ensure protection against exposure to environment, dust and humidity. The Unit must be properly secured during transportation to protect it against possible housing deformation or other mechanical damage.

  • Page 5: Unit Package

    2. UNIT PACKAGE Heat Recovery Unit Oxygen X-Air C200 1 pc. Control panel 1 pc. Contol panel connection cable, 10m 1 pc. Fastening elements: L-shaped horizontal installation bracket 4 pcs. Bolt (type M5), 8 mm 8 pcs. Spring washer (type M5) 8 pcs.

  • Page 6: Safety Requirements

    3. SAFETY REQUIREMENTS Carefully read and follow safety requirements provided below before installing and while operating the Unit: Do not discard the Installation and operation manual, keep it for future reference.  The Unit should be installed and operated in compliance with this Installation and operation ...

  • Page 7: Eu Declaration Of Conformity

    Sviezias oras, JSC Birzelio 23-osios g. 23G 50220 Kaunas LITHUANIA confirm, that heat recovery ventilation device Oxygen X-Air C200 conforms to Europe Union standarts, directives and regulations: 2009/125/EC – eco-design requirements for energy-related products ES 1253/2014 2010/30/EU – labelling and standard product information of the consumption of energy and other...

  • Page 8: Technical Data

    5. TECHNICAL DATA Supplier's name or trade mark OXYGEN Model identifier X-Air C200 Specific energy consumption (SEC), SEC class Warm climate kWh/m -15.7 Average climate kWh/m -40.0 Cold climate kWh/m -77.7 Declared typology Bi-directional, residential ventilation Type of drive installed or intended to be installed...

  • Page 9: Performance Characteristics

    5.1. Performance characteristics Performance curves 100% Air flow, m Graph. 1. Ventilation power dependence on the resistance of the installed ventilation system 5.2. Performance and power consumption Power setting Resistance, Pa Air flow, m El. outlay, W 100% According to EN13141-7, with G4 class filters installed.

  • Page 10: Sound Characteristics

    5.3. Sound characteristics Sound power level (L Power Air duct Octave band, Hz Total setting 1000 2000 4000 8000 Suppply 34.1 42.8 42.2 41.7 40.9 30.6 17.5 48.2 Extract 13.3 35.6 26.8 22.4 14.8 12.6 38.8 Outside 15.1 36.7 32.1 26.9 21.8 14.4...

  • Page 11: Dimensions And Weight

    5.4. Dimensions and weight OXYGEN X-Air C200 – left-side version OXYGEN X-Air C200 – right-side version Figure 1. Unit dimensions Body dimensions and weight Length, mm Width, mm Height, mm Weight, kg OXYGEN X-Air C200 1010...

  • Page 12: Functionality

    6. FUNCTIONALITY Function Control Control panel with panel with rotary a LCD switch Ventilation  Silent and efficient EC fans   Stepless power setting adjustment 30-100%   Power setting at 5% steps within 30-100% range   Weekly operation program, up to 4 different modes for every week day ...

  • Page 13: Installation Of The Unit

    7. INSTALLATION OF THE UNIT 7.1. Selecting the mounting location It is recommended to install the Unit in a heated room such as bath, storage room, boiler room or an attic. Make sure, that there is sufficient space to install not only the Unit itself, but also auxiliary ventilation system components –...

  • Page 14: Connecting Ducts

    OXYGEN X-Air C200 – left-side version OXYGEN X-Air C200 – right-side version „ Figure 2. Horizontal installation diagram 7.3. Connecting ducts It is recommended to install outside air supply and exhaust ducts as far as possible from each other to prevent the ingress of contaminated air back to premises.

  • Page 15: Installing The Maintenance And Servicing Hatch

    IMPORTANT! Both outside air intake and exhaust ducts should be covered with a layer of thermal insulation of sufficient thickness to prevent condensation of humidity on their walls due to different outdoor and indoor air temperatures. 7.4. Installing the maintenance and servicing hatch When installing the Unit ensure enough space for its maintenance.

  • Page 16: Connecting The Condensate Drain

    7.5. Connecting the condensate drain The Unit condensate drain should be connected to indoor or outdoor wastewater network. If condensate drain is installed in non-heated premises or directed outdoors, it must be thermally insulated or equipped with electric heater. Install a round rubber gasket into the condensate drain socket, then firmly screw the condensate drain nozzle in by hand.

  • Page 17: Connection Of The Unit

    8. CONNECTION OF THE UNIT Mains supply, control panel cable and, if necessary, comfort function connector should be connected to the Unit, according to the following diagram: - Control panel connector (USB) - Comfort functions connector (RJ-45) - Mains cable (230V, 3x1.5mm L+N+PE) Figure 7.

  • Page 18: Connecting The Control Panel

    Power supply 230V, 50Hz, 5A Maximum electric power consumption – fans 106W Maximum electric power consumption – preheater 500W IP protection class 8.2. Connecting the control panel It is recommended to install the control panel in residential premises (e.g., corridor or lounge) for convenient access.

  • Page 19: Connector Of Comfort Functions

    8.3. Connector of comfort functions The Oxygen X-Air C200 device supports the following external functionality: Fire alarm – emergency shutdown of the Unit upon activation of fire alarm;  WC boost – ventilation boost activation upon switching on the light in the bathroom;...

  • Page 20: Control Board Electrical Wiring Diagram

    8.4. Control board electrical wiring diagram Figure 11. Control board electrical wiring diagram IMPORTANT! Make sure that the Unit is disconnected from mains supply before connecting or disconnecting system components.

  • Page 21: Description Of Control Board Contacts

    8.5. Description of control board contacts Exhaust fan control 0-10V Not used Supply fan control 0-10V Not used Exhaust air temperature sensor Supply air temperature sensor Outside air temperature sensor Inside air temperature/ humidity sensor DI2 function – „Away″ DI3 function – „CO2 sensor″ Not used DI1 function –...

  • Page 22: Operation Of The Unit

    9. OPERATION OF THE UNIT 9.1. Control panel with a knob Control panel with a knob makes it possible to gradually control the ventilation power. Colored LEDs indicate status of the Unit. Operating state - - Ventilation power setting control knob Air filter replacing indicator - Failure indicator - Figure 12.

  • Page 23: Failure Indicator

    Control panel will indicate the necessity to replace filters after 6 months of uninterruptable Unit operation by consistent flashing of yellow led. Disconnection of the Unit from mains supply does not reset the counter. IMPORTANT! Filters may need to be replaced more frequently – refer to section 11.1. Replacing of air filters for more information.

  • Page 24: Additional System Settings

    - Reset button S1 Figure 13. Reset button IMPORTANT! If red failure indicator led starts flashing again after the Unit reset procedure has been performed, contact manufacturer of the Unit or its local representative. If both red and yellow leds are on (no flashing) – connection between control panel and the Unit was lost, the Unit is operating in safe mode.
  • Page 25 Figure 14. Additional settings for control panel with a knob You may get access to enhanced Unit functionality, by purchasing control panel with touchscreen display.

  • Page 26: Control Panel With Touchscreen Display

    9.2. Control panel with touchscreen display Control panel with touchscreen display screen makes it possible to use the enhanced Unit functionality. Figure 15. Control panel with touchscreen display 9.2.1. Standby mode Touchscreen display of control panel will only display the time of day in standby mode if the Unit is switched off.

  • Page 27: Main Screen

    9.2.2. Main screen Date TIme ON / OFF button Preferred room temperature Settings menu Preferred ventilation intensity Ventilation boost button Bypass valve state Outside air temperature Extract air temperature and relative humidity Preheater state indicator Extract filter lifetime Supply air filter lifetime Exhaust air temperature Supply air temperature Exhaust fan state...

  • Page 28: Settings Menu

    9.2.3. Settings menu Date and time setting Language selection: LT, EN, RU, PL Weekly program settings, program activation Boost mode settings Filter lifetime counter reset Figure 18. Settings menu Control panel settings menu enables to: Set the system date and time ...

  • Page 29: Failure Indication

    Weekly program will be saved by clicking “Back” button. IMPORTANT! Click on the round button next to schedule button in main menu to activate a weekly program. Green color of button means the program is active. 9.2.5. Failure indication In case of Unit component failure, the RESET button will appear in main menu. Failed component will turn red, the Unit operation will stop.

  • Page 30: Replacing Of Air Filters

    Replacing of air filters: Shut down the Unit by control panel, make sure that fans have completely stopped  Open the lid of the filter, that you intend to change, marked by „OXYGEN″ by firmly gripping it  and pulling out Use fabric handle to remove a filter ...
  • Page 31 IMPORTANT! Only original, manufacturer recommended filters should be used. The use of low quality third party filters can result in damage to sensitive device components due to excess dust or humidity. Failure of the Unit caused by the use of non-original components, will void the warranty. Replacement filters can be ordered at: www.oxygen.lt.

  • Page 32: Mainteinance And Warranty

    MAINTEINANCE AND WARRANTY Heat recovery Unit Oxygen X-Air C200 is granted 24 months warranty. Make sure to have the section below properly filled in to confirm the installation date. Otherwise, have the proof of purchase handy before contacting service department.

  • Page 33: Contacts

    UAB “Šviežias oras Company code: 304288834 VAT code: LT100010366918 Bank account: LT42 7044 0600 0810 3886 SWIFT: CBVILT2X ″ bank AB „SEB Address: Birzelio 23-osios g. 23G 50220 Kaunas Lithuania Phone No.: Administration +370 687 81111 Sales +370 627 26666 www.oxygen.lt Notes:...
