Page 1: Table Of Contents

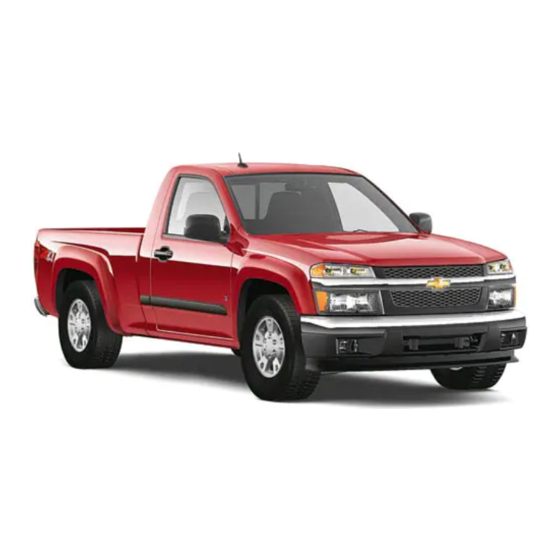

2007 Chevrolet Colorado Owner Manual Seats and Restraint Systems ... 7 Front Seats ... 9 Rear Seats ... 17 Safety Belts ... 20 Child Restraints ... 43 Airbag System ... 76 Restraint System Check Features and Controls ... 97 Keys ...
Page 2 Service and Appearance Care ... 319 Service ... 322 Fuel ... 325 Checking Things Under the Hood Rear Axle ... 368 Four-Wheel Drive ... 368 Front Axle ... 369 Bulb Replacement ... 370 Windshield Wiper Blade Replacement Tires ... 377 Appearance Care ...
Page 3: Canadian Owners
For vehicles ﬁrst sold in Canada, substitute the name “General Motors of Canada Limited” for Chevrolet Motor Division whenever it appears in this manual. Litho in U.S.A. Part No. 15866155 A First Printing...
Page 4: How To Use This Manual
How to Use This Manual Many people read the owner manual from beginning to end when they ﬁrst receive their new vehicle. If this is done, it can help you learn about the features and controls for the vehicle. Pictures and words work together in the owner manual to explain things.
Page 5: Vehicle Symbols
Vehicle Damage Warnings Also, in this manual you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
Page 6 These are some examples of symbols that may be found on the vehicle:...
Page 7: Seats And Restraint Systems
Section 1 Front Seats ... 9 Manual Seats ... 9 Power Seats ... 10 Manual Lumbar ... 10 Power Lumbar ... 11 Heated Seats ... 11 Reclining Seatbacks ... 12 Head Restraints ... 15 Seatback Latches ... 16 Rear Seats ... 17 Rear Seat Operation (Extended Cab) ...
Page 8 Section 1 Airbag System ... 76 Where Are the Airbags? ... 79 When Should an Airbag Inﬂate? ... 82 What Makes an Airbag Inﬂate? ... 84 How Does an Airbag Restrain? ... 84 What Will You See After an Airbag Inﬂates? ... 85 Passenger Sensing System ...
Page 9: Front Seats
Front Seats Manual Seats CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 10: Power Seats
Power Seats If the vehicle has power seats, the controls used to operate them are located on the outboard side of the seats. To adjust the seat, do any of the following: • Move the seat forward or rearward by sliding the horizontal control forward or rearward.
Page 11: Power Lumbar
Power Lumbar If your vehicle has this feature, the control is located on the outboard side of the seat(s). Press and hold the front of the control until you have the desired lumbar support. To decrease lumbar support, press and hold the rear of the control.
Page 12: Reclining Seatbacks
Reclining Seatbacks Manual Reclining Seatbacks CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 13 To return the seatback to an upright position, do the following: 1. Lift the lever fully without applying pressure to the seatback and the seatback will return to the upright position. 2. Push and pull on the seatback to make sure it is locked.
Page 14 CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this. The shoulder belt cannot do its job because it will not be against your body.
Page 15: Head Restraints
Head Restraints Your front seats may have adjustable head restraints. If your vehicle has rear seats, they may have adjustable head restraints. Adjust the head restraint so that the top of the restraint is at the same height as the top of the occupant’s head.
Page 16: Seatback Latches
Seatback Latches Your vehicle may have front seatbacks that fold forward for easy access to the rear seats or the storage area behind the seats. To fold the seatback forward, push the lever on the side of the seat rearward and pull the seatback forward.
Page 17: Rear Seats
Rear Seats Rear Seat Operation (Extended Cab) If your vehicle has an extended cab, there may be forward folding seats in the rear area. To fold the rear seat cushion(s) from the stored position to the sitting position, pull the front of the seat cushion down completely.
Page 18: Rear Seat Operation (Crew Cab)
Rear Seat Operation (Crew Cab) The rear seatback(s) in the crew cab can be folded forward. Notice: Folding a rear seat with the safety belts still fastened may cause damage to the seat or the safety belts. Always unbuckle the safety belts and return them to their normal stowed position before folding a rear seat.
Page 19 2. Pull the loop, 3. Fold the seatback(s) forward. To return the seatback(s) to the upright position, do the following: 1. Lift the seatback(s) and push it into place. CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there.
Page 20: Safety Belts
Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. CAUTION: Do not let anyone ride where he or she cannot wear a safety belt properly.
Page 21 In most states and in all Canadian provinces, the law says to wear safety belts. Here is why: They work. You never know if you will be in a crash. If you do have a crash, you do not know if it will be a bad one.
Page 22 Put someone on it. Get it up to speed. Then stop the vehicle. The rider does not stop.
Page 23 The person keeps going until stopped by or the instrument panel... something. In a real vehicle, it could be the windshield...
Page 24: Questions And Answers About Safety Belts
or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. Questions and Answers About Safety Belts Will I be trapped in the vehicle after an...
Page 25: How To Wear Safety Belts Properly
If I am a good driver, and I never drive far from home, why should I wear safety belts? You may be an excellent driver, but if you are in an accident — even one that is not your fault — you and your passengers can be hurt. Being a good driver does not protect you from things beyond your control, such as bad drivers.
Page 26 3. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The lap-shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.
Page 27 6. To make the lap part tight, pull up on the shoulder belt. It may be necessary to pull stitching on the safety belt through the latch plate to fully tighten the lap belt on smaller occupants. The lap part of the belt should be worn low and snug on the hips, just touching the thighs.
Page 28 What is wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 29 What is wrong with this? The lap belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your lap belt is too loose. In a crash, you could slide under the lap belt and apply force at your abdomen.
Page 30 What is wrong with this? The belt is buckled in the wrong place. CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen.
Page 31 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 32 What is wrong with this? The belt is twisted across the body. CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to ﬁx it.
Page 33: Shoulder Belt Height Adjustment
To unlatch the belt, push the button on the buckle. The belt should go back out of the way. When the safety belt is not in use, slide the latch plate up the safety belt webbing. The latch plate should rest on the stitching on the safety belt, near the guide loop on the side wall.
Page 34: Safety Belt Use During Pregnancy
Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
Page 35: Center Front Passenger Position
Center Front Passenger Position Lap Belt If your vehicle has a 60/40 split front seat, someone can sit in the center position. When you sit in the center front seating position, you have a lap safety belt, which has no retractor. To make the belt longer, tilt the latch plate and pull it along the belt.
Page 36: Rear Seat Passengers
Rear Seat Passengers It is very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts. Rear passengers who are not safety belted can be thrown out of the vehicle in a crash.
Page 37 2. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. When the shoulder belt is pulled out all the way, it will lock. If it does, let it go back all the way and start again.
Page 38 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 39: Rear Safety Belt Comfort Guides
To unlatch the belt, just push the button on the buckle. For outboard seating positions, when the safety belt is not in use, slide the latch plate up the safety belt webbing. The latch plate should rest on the stitching on the safety belt, near the guide loop on the side wall.
Page 40 2. Slide the guide under and past the belt. The elastic cord must be under the belt. Then, place the guide over the belt and insert the two edges of the belt into the slots of the guide. 3. Be sure that the belt is not twisted and it lies ﬂat.
Page 41 CAUTION: A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.
Page 42: Safety Belt Pretensioners
Safety Belt Pretensioners Your vehicle has safety belt pretensioners for the driver and right front passenger. Although you cannot see them, they are part of the safety belt assembly. They help tighten the safety belts during the early stages of a moderate to severe frontal or near frontal crash if the threshold conditions for pretensioner activation are met.
Page 43: Child Restraints
Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. What is the proper way to wear safety belts? An older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide.
Page 44 CAUTION: Never do this. Here two children are wearing the same belt. The belt can not properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time.
Page 45 CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt.
Page 46: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 47 CAUTION: Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. CAUTION: (Continued) CAUTION: (Continued) Neither the vehicle’s safety belt system nor its airbag system is designed for...
Page 48 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height, and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
Page 49: Child Restraint Systems
CAUTION: The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should.
Page 50 A rear-facing infant seat (B) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint. A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields.
Page 51 A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness. A booster seat can also help a child to see out the window.
Page 52 Securing an Add-on Child Restraint in the Vehicle CAUTION: A child can be seriously injured or killed in a crash if the child restraint is not properly secured in the vehicle. Make sure the child restraint is properly installed in the vehicle using the vehicle’s safety belt or LATCH system, following the instructions that came with that restraint, and also the instructions in...
Page 53: Where To Put The Restraint
Securing the Child Within the Child Restraint There are several systems for securing the child within the child restraint. One system, the three-point harness, has straps that come down over each of the infant’s shoulders and buckle together at the crotch. The ﬁve-point harness system has two shoulder straps, two hip straps, and a crotch strap.
Page 54 There is a label on your sun visor that says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great if the airbag deploys. CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inﬂates.
Page 55 CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inﬂates. This is because the back of the rear-facing child restraint would be very close to the inﬂating airbag. Be sure the airbag is off before using a rear-facing child restraint in the right front seat position.
Page 56: Lower Anchors And Tethers For Children (Latch)
Keep in mind that an unsecured child restraint can move around in a collision or sudden stop and injure people in the vehicle. Be sure to properly secure any child restraint in your vehicle — even when no child is in it. Lower Anchors and Tethers for Children (LATCH) The LATCH system holds a child restraint during...
Page 57 Lower Anchors Lower anchors (A) are metal bars built into the vehicle. There are two lower anchors for each LATCH seating position that will accommodate a child restraint with lower attachments (B). Top Tether Anchor A top tether (A, C) anchors the top of the child restraint to the vehicle.
Page 58 Some child restraints that have a top tether are designed for use with or without the top tether being attached. Others require the top tether always to be attached. In Canada, the law requires that forward-facing child restraints have a top tether, and that the tether be attached.
Page 59 Seating positions with top tether anchors. Front Seat — Regular and Extended Cab without Rear Seats For crew cab models, there are exposed metal lower anchors for each rear outboard seating position, located where the seatback meets the back of the seat cushion. For extended cab models with rear seats, there (Top Tether Anchor): are exposed metal lower anchors for each...
Page 60 Crew Cab The top tether anchors in a crew cab model are located on the back wall behind each rear seating position. Be sure to use an anchor located on the same side of the vehicle as the seating position where the child restraint will be placed. Extended Cab —...
Page 61 Regular and Extended Cab without Rear Seats For regular and extended cab models without rear seats, there is a top tether anchor located behind a removable cover on the back wall behind the right front passenger seat. You may have to pull the seatback forward to access the anchor.
Page 62 Securing a Child Restraint Designed for the LATCH System CAUTION: If a LATCH-type child restraint is not attached to anchors, the restraint will not be able to protect the child correctly. In a crash, the child could be seriously injured or killed.
Page 63 CAUTION: Children can be seriously injured or strangled if a shoulder belt is wrapped around their neck and the safety belt continues to tighten. Secure any unused safety belts behind the child restraint so children cannot reach them. Pull the shoulder belt all the way out of the retractor to set the lock, if your vehicle has one, after the child restraint has...
Page 64 Crew Cab — Rear Seat 1. Put the child restraint on the seat. 2. If the child restraint manufacturer’s instructions recommends that the top tether be attached, attach the top tether to the top tether anchor (A). Refer to the child restraint instructions and the following steps: 2.1.
Page 65 If the position you are using has a ﬁxed or adjustable head restraint and you are using a dual tether, route the tether around the head restraint. 2.3. Attach the top tether to the anchor (A). Make sure that you secure the top tether to the top tether anchor and not to the seatback latch (B).
Page 66 Extended Cab — Rear Seat 1. Attach and tighten the lower attachments to the lower anchors. If the child restraint does not have lower attachments or the desired seating position does not have lower anchors, secure the child restraint with the top tether and the safety belts.
Page 67 3. Tighten the lower anchor attachments and the top tether. The child restraint instructions will show you how. 4. Push and pull the child restraint in different directions to be sure it is secure. Front Seat — Regular/Extended Cab without Rear Seats Your vehicle has a right front passenger’s airbag and a passenger sensing system.
Page 68: Securing A Child Restraint In A Rear Seat Position
If the position you are using has an adjustable head restraint and you are using a single tether, raise the head restraint and route the tether under the head restraint and in between the head restraint posts. If the position you are using has a ﬁxed or adjustable head restraint and you are using a...
Page 69 3. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. 4. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 5.
Page 70 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt, and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 71: Securing A Child Restraint In The Right Front Seat Position
Securing a Child Restraint in the Center Front Seat Position CAUTION: A child in a child restraint in the center front seat can be badly injured or killed by the right front passenger’s airbag if it inﬂates. Never secure a child restraint in the center front seat.
Page 72 There is a label on your sun visor that says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys. CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inﬂates.
Page 73 CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inﬂates. This is because the back of the rear-facing child restraint would be very close to the inﬂating airbag. Be sure the airbag is off before using a rear-facing child restraint in the right front seat position.
Page 74 You will be using the lap-shoulder belt to secure the child restraint in this position. Be sure to follow the instructions that came with the child restraint. Secure the child in the child restraint when and as the instructions say. 1.
Page 75 5. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 6. If your vehicle does not have rear seats and if your child restraint has a top tether, attach the top tether to the top tether anchor. See Lower Anchors and Tethers for Children (LATCH) on page 56.
Page 76: Airbag System
9. Push and pull the child restraint in different directions to be sure it is secure. 10. If the airbag is off, the off indicator on the instrument panel will be lit and stay lit when the key is turned to ON or START. If a child restraint has been installed and the on indicator is lit, turn the vehicle off.
Page 77 Airbags are designed to supplement the protection provided by safety belts. Even though today’s airbags are also designed to help reduce the risk of injury from the force of an inﬂating bag, all airbags must inﬂate very quickly to do their job. Here are the most important things to know about the airbag system: CAUTION:...
Page 78 CAUTION: Both frontal and side impact airbags inﬂate with great force, faster than the blink of an eye. If you are too close to an inﬂating airbag, as you would be if you were leaning forward, it could seriously injure you. Safety belts help keep you in position for airbag inﬂation before and during a crash.
Page 79: Where Are The Airbags
There is an airbag readiness light on the instrument panel cluster, which shows the airbag symbol. The system checks the airbag electrical system for malfunctions. The light tells you if there is an electrical problem. See Airbag Readiness Light on page 183 for more information. Where Are the Airbags? The driver’s airbag is in the middle of the steering wheel.
Page 80 The right front passenger’s airbag is in the instrument panel on the passenger’s side. If your vehicle has a roof-mounted side impact airbag for the driver and the person seated directly behind the driver, it is located in the ceiling above the side windows.
Page 81 If your vehicle has a roof-mounted side impact airbag for the right front passenger and the person seated directly behind that passenger, it is located in the ceiling above the side windows. CAUTION: If something is between an occupant and an airbag, the bag might not inﬂate properly or it might force the object into that person causing severe injury or even...
Page 82: When Should An Airbag Inﬂate
When Should an Airbag Inﬂate? The driver’s and right front passenger’s frontal airbags are designed to inﬂate in moderate to severe frontal or near-frontal crashes. But they are designed to inﬂate only if the impact exceeds a predetermined deployment threshold. Deployment thresholds take into account a variety of desired deployment and non-deployment events and are used to predict how severe a crash is likely to be in...
Page 83 Frontal airbags (driver and right front passenger) are not intended to inﬂate during vehicle rollovers, rear impacts, or in many side impacts. If your vehicle has side impact airbags, it has electronic side sensors. The side impact airbags are intended to inﬂate in moderate to severe side crashes.
Page 84: What Makes An Airbag Inﬂate
What Makes an Airbag Inﬂate? In an impact of sufficient severity, the airbag sensing system detects that the vehicle is in a crash. The sensing system triggers a release of gas from the inﬂator, which inﬂates the airbag. The inﬂator, airbag, and related hardware are all part of the airbag modules inside the steering wheel and in the instrument panel in front of the right front passenger.
Page 85: What Will You See After An Airbag Inﬂates
What Will You See After an Airbag Inﬂates? After a frontal airbag inﬂates, it quickly deﬂates, so quickly that some people may not even realize the airbag inﬂated. Roof-mounted side impact airbags may still be at least partially inﬂated minutes after the vehicle comes to rest.
Page 86: Passenger Sensing System
In many crashes severe enough to inﬂate an airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger airbag. • Airbags are designed to inﬂate only once. After an airbag inﬂates, you will need some new parts for the airbag system.
Page 87 The passenger sensing system works with sensors that are part of the right front passenger’s seat and safety belt. The sensors are designed to detect the presence of a properly seated occupant and determine if the passenger’s frontal airbag should be enabled (may inﬂate) or not. Accident statistics show that children are safer if they are restrained in the rear rather than the front seat.
Page 88 If your vehicle does not have a rear seat that will accommodate a rear-facing child restraint, never put a child in a rear-facing child restraint in the right front passenger seat unless the passenger airbag status indicator shows off and the airbag is off.
Page 89 The passenger sensing system is designed to turn off the right front passenger’s frontal airbag if: • The right front passenger seat is unoccupied. • The system determines that an infant is present in a rear-facing infant seat. • The system determines that a small child is present in a forward-facing child restraint.
Page 90 The passenger sensing system is designed to enable (may inﬂate) the right front passenger’s frontal airbag anytime the system senses that a person of adult size is sitting properly in the right front passenger’s seat. When the passenger sensing system has allowed the airbag to be enabled, the on indicator will light and stay lit to remind you that the airbag is active.
Page 91 CAUTION: If the airbag readiness light in the instrument panel cluster ever comes on and stays on, it means that something may be wrong with the airbag system. If this ever happens, have the vehicle serviced promptly, because an adult-size person sitting in the right front passenger’s seat may not have the protection of the frontal airbag.
Page 92: Servicing Your Airbag-Equipped Vehicle
Servicing Your Airbag-Equipped Vehicle Airbags affect how your vehicle should be serviced. There are parts of the airbag system in several places around your vehicle. You do not want the system to inﬂate while someone is working on your vehicle. Your dealer and the service manual have information about servicing your vehicle and the airbag system.
Page 93: Adding Equipment To Your
Adding Equipment to Your Airbag-Equipped Vehicle Is there anything I might add to the front or sides of the vehicle that could keep the airbags from working properly? Yes. If you add things that change your vehicle’s frame, bumper system, height, front end or side sheet metal, they may keep the airbag system from working properly.
Page 94: Restraint System Check
Restraint System Check Checking the Restraint Systems Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired.
Page 95: Replacing Restraint System Parts
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as...
Page 96 NOTES...
Page 97: Features And Controls
Section 2 Keys ... 99 Remote Keyless Entry (RKE) System ... 101 Remote Keyless Entry (RKE) System Operation ... 102 Doors and Locks ... 104 Door Locks ... 104 Power Door Locks ... 105 Programmable Automatic Door Locks ... 106 Rear Door Security Locks (Crew Cab) ...
Page 98 Section 2 Mirrors ... 138 Manual Rearview Mirror ... 138 Manual Rearview Mirror with OnStar Automatic Dimming Rearview Mirror ® with OnStar , Compass and Temperature Display ... 139 Automatic Dimming Rearview Mirror with Compass and Temperature Display ... 142 Outside Manual Mirrors ...
Page 99: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed. Do not leave the keys in a vehicle with children.
Page 100 There is a double-sided key that can be used for the ignition, all door locks, and the tailgate. When a new vehicle is delivered, the dealer provides the owner with a pair of identical keys and a key code number. The key code number tells your dealer or a qualiﬁed locksmith how to make extra keys.
Page 101: Remote Keyless Entry (Rke) System
Remote Keyless Entry (RKE) System If the vehicle has the Remote Keyless Entry (RKE) system, it operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules.
Page 102: System Operation
Remote Keyless Entry (RKE) System Operation If your vehicle has this feature you can lock and unlock your doors and disarm or arm your theft-deterrent system from about 3 feet (1 m) up to 30 feet (9 m) away using the remote keyless entry transmitter.
Page 103 Matching Transmitter(s) to Your Vehicle Each remote keyless entry transmitter is coded to prevent another transmitter from unlocking your vehicle. If a transmitter is lost or stolen, a replacement can be purchased through your dealer. Remember to bring any remaining transmitters with you when you go to your dealer.
Page 104: Doors And Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers, especially children, can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
Page 105: Power Door Locks
To lock a door from the inside, push the manual lever on the door forward. To unlock a door from the inside, push the lever on the door rearward. You will see a colored area on the lever when the door is unlocked.
Page 106: Programmable Automatic Door Locks
Programmable Automatic Door Locks If your vehicle has power door locks and the remote keyless entry system, it has an automatic lock/unlock feature. If your vehicle has an automatic transmission, it is programmed from the factory to lock all doors automatically when the shift lever is moved out of PARK (P).
Page 107: Lockout Protection
To engage the security locks, do the following: 1. Open one of the rear doors. 2. Using your ignition key, turn the lock to the horizontal position. 3. Close the door. 4. Repeat these steps on the other rear door. If you want to open a rear door when the security lock is on, unlock the door and open the door from the outside.
Page 108: Tailgate
Tailgate You can open the tailgate by pulling up on the outside handle while pulling the tailgate down. When you put the tailgate back up, be sure it latches securely. You can lock the tailgate using your ignition key. Turn the key counterclockwise to lock the tailgate.
Page 109 To partially lower the tailgate do the following: 1. With the tailgate fully open, lift up slightly on the entire tailgate assembly. 2. Remove the Tailgate Partially Down When the larger part of the hole on the bracket is over the bolt, slide the bracket off of the bolt.
Page 110: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 111: Power Windows
Power Windows The power window switches for all windows are located on the driver’s door armrest. In addition, each passenger’s door has its own switch. Crew Cab Switches Shown The power windows will work when the ignition is in ACC (Accessory) or ON or while Retained Accessory Power (RAP) is active.
Page 112: Theft-Deterrent Systems
Sliding Rear Window If your vehicle has this feature, squeeze the latch in the center of the window and slide the glass to open it. When you close the window, be sure the latch is engaged. Sun Visors To block glare, pull the sun visor down. It can also be detached from the center mount and moved to the side to block glare from that direction.
Page 113: Content Theft-Deterrent
Content Theft-Deterrent If your vehicle has the remote keyless entry system, the vehicle has a content theft-deterrent alarm system. To activate the content theft-deterrent system, do the following: 1. Close all the doors. 2. Lock the doors with the remote keyless entry transmitter.
Page 114: Passlock
Testing the Alarm The alarm can be tested by following these steps: 1. From inside the vehicle, activate the system by locking the doors with the remote keyless entry transmitter. 2. Unlock the door with the manual door lock and open the door.
Page 115: Starting And Operating Your Vehicle
Starting and Operating Your Vehicle New Vehicle Break-In Notice: Your vehicle does not need an elaborate break-in. But it will perform better in the long run if you follow these guidelines: • Keep your speed at 55 mph (88 km/h) or less for the ﬁrst 500 miles (805 km).
Page 116: Ignition Positions
Ignition Positions With the key in the ignition switch, you can turn to four different positions. LOCK (A): This position locks the ignition. It also locks the transmission on automatic transmission vehicles. It will locks the steering wheel on manual transmission vehicles when the key is removed.
Page 117: Retained Accessory Power (Rap)
ON (C): This is the position that the switch returns to after you start your engine and release the switch. The switch stays in ON when the engine is running. But even when the engine is not running, you can use ON to operate the electrical accessories and to display some instrument panel cluster warning and indicator lights.
Page 118: Starting The Engine
Starting the Engine Place the transmission in the proper gear. Automatic Transmission Move your shift lever to PARK (P) or NEUTRAL (N). Your engine will not start in any other position -- this is a safety feature. To restart when you are already moving, use NEUTRAL (N) only.
Page 119: Engine Coolant Heater
Notice: Cranking the engine for long periods of time, by returning the key to the START position immediately after cranking has ended, can overheat and damage the cranking motor, and drain the battery. Wait at least 15 seconds between each try, to allow the cranking motor to cool down.
Page 120: Automatic Transmission Operation
To Use the Engine Coolant Heater 1. Turn off the engine. 2. Open the hood and unwrap the electrical cord. The cord is located in the engine compartment behind the underhood fuse block on the driver’s side of the vehicle. 3.
Page 121 If you need to leave your key in the ignition but not in LOCK for an extended period, it is recommended that you disconnect the battery cable from the battery to prevent discharging your battery. There are several different positions for your shift lever.
Page 122 REVERSE (R): Use this gear to back up. Notice: Shifting to REVERSE (R) while your vehicle is moving forward could damage the transmission. The repairs would not be covered by your warranty. Shift to REVERSE (R) only after your vehicle is stopped.
Page 123 DRIVE (D): This position is for normal driving. If provides the best fuel economy for your vehicle. If you need more power for passing, and you are: • Going less than about 35 mph (55 km/h), push your accelerator pedal about halfway down. •...
Page 124: Manual Transmission Operation
Manual Transmission Operation This is your shift pattern. Here is how to operate your manual transmission: FIRST (1): Press the clutch pedal and shift into FIRST (1). Then, slowly let up on the clutch pedal as you slowly press down on the accelerator pedal. You can shift into FIRST (1) when you are going less than 20 mph (30 km/h).
Page 125 Notice: Shifting to REVERSE (R) while your vehicle is moving forward could damage the transmission. The repairs would not be covered by your warranty. Shift to REVERSE (R) only after your vehicle is stopped. Use REVERSE (R), along with the parking brake, for parking your vehicle.
Page 126: Four-Wheel Drive
Four-Wheel Drive If your vehicle has four-wheel drive, you can send your engine’s driving power to all four wheels for extra traction. To get the best performance out of four-wheel drive, you must be familiar with its operation. Read the part that follows before using four-wheel drive.
Page 127 Use these buttons to shift into and out of four-wheel drive. You can choose from the following: (Two-Wheel High): This setting is for driving in most street and highway situations. Your front axle is not engaged in two-wheel drive. CAUTION: Shifting the transfer case to NEUTRAL can cause your vehicle to roll even if the transmission is in PARK (P), or if you...
Page 128 Shifting from Two-Wheel High to Four-Wheel High Press and release the Four-Wheel High button. This can be done at any speed, and the front axle will lock automatically. Shifting from Four-Wheel High to Two-Wheel High Press and release the Two-Wheel High button. This can be done at any speed, and the front axle will unlock automatically.
Page 129 Shifting from Four-Wheel Low to Two-Wheel High or Four-Wheel High To shift from Four-Wheel Low to Two-Wheel High or Four-Wheel High, your vehicle must be stopped or moving less than 3 mph (5 km/h) with the transmission in NEUTRAL (N) for an automatic transmission or the clutch pedal engaged for a manual transmission.
Page 130: Parking Brake
7. Turn the engine off by turning the key to ACC (Accessory). 8. Place the transmission shift lever in PARK (P), or FIRST (1) for vehicles that have a manual transmission. 9. Turn the ignition to LOCK. Shifting Out of NEUTRAL After towing your vehicle, you will have to shift out of NEUTRAL in order to drive.
Page 131 A chime will activate and the brake warning light, located on the instrument panel, will ﬂash when the parking brake is applied and the vehicle is moving at least 3 mph (5 km/h) for at least three seconds. The chime will deactivate and the light will turn off when the parking brake is set and the vehicle is moving below 3 mph (5 km/h).
Page 132: Shifting Into Park (P)
Shifting Into Park (P) (Automatic Transmission) CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 133 Leaving Your Vehicle With the Engine Running (Automatic Transmission) CAUTION: It can be dangerous to leave your vehicle with the engine running. Your vehicle could move suddenly if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set.
Page 134: Shifting Out Of Park (P)
Shifting Out of Park (P) (Automatic Transmission) Your vehicle has an automatic transmission shift lock control system which locks the shift lever in PARK (P) when the ignition is in the LOCK position. In addition, you have to fully apply the regular brakes before you can shift from PARK (P) when the ignition is in ON.
Page 135: Parking Over Things That Burn
Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Do not park over papers, leaves, dry grass, or other things that can burn.
Page 136: Engine Exhaust
Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell. It can cause unconsciousness and death. You might have exhaust coming in if: • Your exhaust system sounds strange or different. •...
Page 137: Running The Engine While Parked
Running the Engine While Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle.
Page 138: Mirrors
CAUTION: Four-wheel drive vehicles with the transfer case in NEUTRAL will allow the vehicle to roll, even if your automatic transmission shift lever is in PARK (P). So, be sure the transfer case is in a drive gear — not in NEUTRAL.
Page 139: Automatic Dimming Rearview Mirror With Onstar
Cleaning the Mirror When cleaning the mirror, use a paper towel or similar material dampened with glass cleaner. Do not spray glass cleaner directly on the mirror housing. Automatic Dimming Rearview Mirror ® with OnStar , Compass and Temperature Display Your vehicle may have this feature.
Page 140 Automatic Dimming Mirror Operation The automatic dimming mirror function is turned on automatically each time the ignition is started. To operate the automatic dimming mirror, do the following: 1. Make sure the green indicator light, located to the left of the on/off button, is lit. If it is not, press and hold the on/off button for approximately six seconds until the green light comes on, indicating that the mirror is in...
Page 141 Compass Variance The mirror is set in zone eight upon leaving the factory. It will be necessary to adjust the compass to compensate for compass variance if the vehicle is outside of zone eight. Under certain circumstances, as during a long distance cross-country trip, it will be necessary to adjust for compass variance.
Page 142: Temperature Display
Cleaning the Mirror When cleaning the mirror, use a paper towel or similar material dampened with glass cleaner. Do not spray glass cleaner directly on the mirror as that may cause the liquid cleaner to enter the mirror housing. Automatic Dimming Rearview Mirror with Compass and Temperature Display Your vehicle may have this mirror.
Page 143 Automatic Dimming Mirror Operation : Press this button to turn the automatic dimming feature on or off. The indicator light to the left of the button will turn on to indicate when the feature is on. Once the mirror is turned off, it will remain off until it is turned back on, or until the vehicle is restarted.
Page 144 Compass Variance The mirror is set in zone eight upon leaving the factory. It will be necessary to adjust the compass to compensate for compass variance if the vehicle is outside zone eight. Under certain circumstances, as during a long distance cross-country trip, it will be necessary to adjust for compass variance.
Page 145: Outside Manual Mirrors
Cleaning the Mirror Use a paper towel or similar material dampened with glass cleaner. Do not spray glass cleaner directly on the mirror as that may cause the liquid cleaner to enter the mirror housing. Outside Manual Mirrors If the vehicle has manual outside mirrors, adjust them by hand so that the side of the vehicle can be seen while you are sitting in a comfortable driving position.
Page 146: Outside Convex Mirror
If the mirror begins making a ratcheting sound, the mirror has reached the end of its travel and can go no farther in that direction. To stop the sound, reverse the mirror direction using the control pad. The mirrors can be manually folded inward to prevent damage when going through an automatic car wash.
Page 147: Onstar ® System
® OnStar System ® OnStar uses several innovative technologies and live advisors to provide you with a wide range of safety, security, information, and convenience services. If your airbags deploy, the system is designed to make an automatic call to OnStar Emergency advisors who can request emergency services be sent to your location.
Page 148 Available Services with Safe & Sound • Automatic Notiﬁcation of Airbag Deployment • Advanced Automatic Crash Notiﬁcation (AACN) (If equipped) • Link to Emergency Services • Roadside Assistance • Stolen Vehicle Location Assistance • AccidentAssist • Remote Door Unlock/Vehicle Alert ®...
Page 149 ® OnStar Steering Wheel Controls Your vehicle may be equipped with a Talk/Mute button that can be used to interact with OnStar Hands-Free Calling. On some vehicles, you may have to hold the button for a few seconds and give the command “ONSTAR”...
Page 150: Storage Areas
Your vehicle must have a working electrical system (including adequate battery power) for the ® OnStar equipment to operate. There are other ® problems OnStar cannot control that may prevent ® OnStar from providing OnStar at any particular time or place. Some examples are damage to important parts of your vehicle in an accident, hills, tall buildings, tunnels, weather or wireless phone network congestion.
Page 151: Front Armrest Storage Area
Front Armrest Storage Area For vehicles with bench seats, you may have a center armrest storage area. Lift up on the upper tab located at the front of the armrest to release the latch. Lift the lid to open the storage area. For vehicles with bucket seats or uplevel packages, your vehicle may have a two-tiered center armrest storage area.
Page 152 To access the storage compartments, lift the cushion on the bottom of the rear seats. This exposes the storage boxes under the seat. To open a storage box, unhook the bottom and lift the two latches on each side of the storage box.
Page 153: Sunroof
Lift the lid from the center area to access the storage box. Sunroof Your vehicle may have a sunroof. The sunroof control buttons are located on the headliner. (Open/Vent): Press and hold this button to vent, and open the sunroof. Release the button when the desired position is reached.
Page 154 NOTES...
Page 155: Instrument Panel
Section 3 Instrument Panel Overview ... 158 Hazard Warning Flashers ... 160 Other Warning Devices ... 160 Horn ... 160 Tilt Wheel ... 161 Turn Signal/Multifunction Lever ... 161 Turn and Lane-Change Signals ... 162 Headlamp High/Low-Beam Changer ... 163 Flash-to-Pass ...
Page 156 Section 3 Security Light ... 194 Cruise Control Light ... 194 Highbeam On Light ... 194 Daytime Running Lamps (DRL) Indicator Light ... 195 Fuel Gage ... 195 Driver Information Center (DIC) ... 196 DIC Controls and Displays ... 196 DIC Warnings and Messages ...
Page 157 NOTES...
Page 158: Instrument Panel Overview
Instrument Panel Overview Manual Transmission shown, Automatic Transmission similar...
Page 159 The main components of your vehicle’s instrument panel are the following: A. Air Outlets. See Outlet Adjustment on page 178. B. Turn Signal/Multifunction Lever. See Turn Signal/Multifunction Lever on page 161. C. Instrument Panel Cluster. See Instrument Panel Cluster on page 180. D.
Page 160: Hazard Warning Flashers
Hazard Warning Flashers The hazard warning ﬂashers let you warn the police and others that you have a problem. The front and rear turn signal lamps will ﬂash on and off. The hazard warning ﬂasher button is located on the instrument panel, between the two air vents in the center.
Page 161: Tilt Wheel
Tilt Wheel A tilt wheel allows you to adjust the steering wheel before you drive. The tilt steering wheel can be raised to the highest level to allow more room for the driver to enter and exit the vehicle. The tilt lever is located on the left side of the steering column, under the turn signal lever.
Page 162: Turn And Lane-Change Signals
Turn and Lane-Change Signals The turn signal has two upward (for right) and two downward (for left) positions. These positions allow you to signal a turn or a lane change. To signal a turn, move the lever all the way up or down.
Page 163: Headlamp High/Low-Beam Changer
Headlamp High/Low-Beam Changer (Headlamp High/Low Beam Changer): To change the headlamps from low to high beam, push the lever toward the instrument panel. To return to low-beam headlamps, pull the multifunction lever toward you. Then release it. When the high beams are on, this indicator light on the instrument panel cluster will also be on.
Page 164: Windshield Washer
(Low Speed): For steady wiping at low speed, turn the band away from you to the ﬁrst solid position past the delay settings. (High Speed): For high-speed wiping, turn the band to the second solid position past the delay settings. (Off): To stop the wipers, move the band to off.
Page 165 + (Resume/Accelerate): Move the lever to this position to make the vehicle accelerate or resume to a previously set speed. (Set): Press this button to set the speed. With cruise control, the vehicle can maintain a speed of about 25 mph (40 km/h) or more without keeping your foot on the accelerator.
Page 166 Setting Cruise Control CAUTION: If you leave your cruise control on when you are not using cruise, you might hit a button and go into cruise when you do not want to. You could be startled and even lose control. Keep the cruise control switch off until you want to use cruise control.
Page 167 Increasing Speed While Using Cruise Control There are two ways to go to a higher speed: • Use the accelerator pedal to get to the higher speed. Press the set button at the end of the lever, then release the button and the accelerator pedal.
Page 168: Exterior Lamps
Ending Cruise Control To turn off the cruise control, do one of the following: • Step lightly on the brake pedal. • Move the cruise control lever to off. • Lightly tap or press the clutch, if you have a manual transmission.
Page 169: Headlamps On Reminder
(Exterior Lamps): Turn the knob, located to the right of this symbol, to choose one of the four exterior lamp positions. (Off): Turn the knob to this position to turn off all exterior lamps including the Daytime Running Lamps (DRL). AUTO: Turn the knob to this position to automatically turn on the headlamps at normal brightness, together with the following:...
Page 170: Daytime Running Lamps (Drl)
Daytime Running Lamps (DRL) Daytime Running Lamps (DRL) can make it easier for others to see the front of your vehicle during the day. DRL can be helpful in many different driving conditions, but they can be especially helpful in the short periods after dawn and before sunset.
Page 171: Fog Lamps
There is a delay in the transition between the daytime and nighttime operation of the Daytime Running Lamps (DRL) and the automatic headlamp system so that driving under bridges or bright overhead street lights does not affect the system. The DRL and automatic headlamp system will only be affected when the light sensor detects a change in lighting lasting longer than the delay.
Page 172: Exterior Cargo Lamps
Exterior Cargo Lamps The cargo lamps can be used if more light is needed in the cargo area of the vehicle or in the top-box storage units. Press this button, located on the driver side of the instrument panel near the exterior lamp control, to turn the cargo lamps on and off.
Page 173: Dome Lamp
Dome Lamp The dome lamp will come on when a door is opened. They will shut off several seconds after all doors are closed. You can also turn the dome lamp on manually by turning the interior lamps thumbwheel all the way up.
Page 174: Battery Run-Down Protection
The battery can be discharged at idle if the electrical loads are very high. This is true for all vehicles. This is because the generator (alternator) may not be spinning fast enough at idle to produce all the power that is needed for very high electrical loads.
Page 175: Ashtray(S) And Cigarette Lighter
Notice: Adding any electrical equipment to your vehicle may damage it or keep other components from working as they should. The repairs would not be covered by your warranty. Do not use equipment exceeding maximum amperage rating of 20 amperes. Check with your dealer before adding electrical equipment.
Page 176: Climate Controls
Climate Controls Climate Control System With this system you can control the heating, cooling, and ventilation for your vehicle. Temperature Knob The left knob on the control panel is used to adjust the temperature of the air in the vehicle. Turn the knob clockwise or counterclockwise to increase or decrease the temperature.
Page 177 (Floor): Select this mode to direct air to the ﬂoor outlets. Recirculation is disabled in this mode because interior window could fog under some conditions. If this occurs, see “Defogging and Defrosting” following. Mode Buttons (Recirculation): This mode recirculates air inside the cabin, and prevents outside air from coming in the vehicle.
Page 178: Outlet Adjustment
Turn the mode knob on the climate control panel clockwise to select the defog or defrost modes. (Floor/Defog): This mode directs the air to the windshield, the side window outlets, and to the ﬂoor outlets. When you select this mode, the system runs the air conditioning compressor unless the outside temperature is near freezing or below.
Page 179: Warning Lights, Gages, And Indicators
Warning Lights, Gages, and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
Page 180: Instrument Panel Cluster
Instrument Panel Cluster Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You will know how fast you are going, about how much fuel you have used, and many other things you will need to know to drive safely and economically.
Page 181: Speedometer And Odometer
Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your odometer shows how far your vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada). The odometer mileage can be checked without the vehicle running.
Page 182: Safety Belt Reminder Light
Safety Belt Reminder Light When the key is turned to ON or START, a chime will be provided for several seconds to remind people to buckle their safety belts. The driver safety belt light will also be provided and stay on for several seconds, then it will ﬂash for several more.
Page 183: Airbag Readiness Light
Airbag Readiness Light There is an airbag readiness light on the instrument panel, which shows the airbag symbol. The system checks the airbag’s electrical system for malfunctions. The light tells you if there is an electrical problem. The system check includes the airbag sensors, the airbag modules, the wiring and the crash sensing and diagnostic module.
Page 184: Passenger Airbag Status Indicator
Passenger Airbag Status Indicator Your vehicle has the passenger sensing system. Your instrument panel has a passenger airbag status indicator. United States When the ignition key is turned to ON or START, the passenger airbag status indicator will light ON and OFF, or the symbol for on and off, for several seconds as a system check.
Page 185 If your vehicle does not have a rear seat that will accommodate a rear-facing child restraint, never put a child in a rear-facing child restraint in the right front passenger seat unless the passenger airbag status indicator shows off and the airbag is off.
Page 186: Battery Warning Light
If the word OFF or the off symbol is lit on the airbag status indicator, it means that the passenger sensing system has turned off the right front passenger’s frontal airbag. See Passenger Sensing System on page 86 for more on this, including important safety information.
Page 187: Up-Shift Light (Manual Transmission)
Up-Shift Light (Manual Transmission) This light appears when you need to shift to the next higher gear on a manual transmission vehicle. Shifting when the indicator light is on will help you get the best fuel economy. See “Up-Shift Light” under Manual Transmission Operation on page 124 for more information.
Page 188: Anti-Lock Brake System Warning Light
If the light comes on while you are driving, pull off the road and stop carefully. You may notice that the pedal is harder to push, or the pedal may go closer to the ﬂoor. It may take longer to stop.
Page 189: Engine Coolant Temperature Gage
Engine Coolant Temperature Gage This gage shows the engine coolant temperature. If the gage pointer is near the top of the gage, the engine is too hot. It means that your engine coolant has overheated. If you have been operating your vehicle under normal driving conditions, you should pull off the road, stop your vehicle and turn off the engine as soon as possible.
Page 190: Malfunction Indicator Lamp
Malfunction Indicator Lamp Check Engine Light Your vehicle has a computer which monitors operation of the fuel, ignition, and emission control systems. This system is called OBD II (On-Board Diagnostics-Second Generation) and is intended to assure that emissions are at acceptable levels for the life of the vehicle, helping to produce a cleaner environment.
Page 191 This light should come on, as a check to show you it is working, when the ignition is on and the engine is not running. If the light does not come on, have it repaired. This light will also come on during a malfunction in one of two ways: •...
Page 192 Did you just drive through a deep puddle of water? If so, your electrical system may be wet. The condition will usually be corrected when the electrical system dries out. A few driving trips should turn the light off. Have you recently changed brands of fuel? If so, be sure to fuel your vehicle with quality fuel.
Page 193: Oil Pressure Light
Oil Pressure Light CAUTION: Do not keep driving if the oil pressure is low. If you do, your engine can become so hot that it catches ﬁre. You or others could be burned. Check your oil as soon as possible and have your vehicle serviced. Notice: Lack of proper engine oil maintenance may damage the engine.
Page 194: Security Light
Security Light This light will come on brieﬂy when you turn the key to START. The light will stay on until the engine starts. If the ignition is turned on, and the light ﬂashes, ® the Passlock system has entered a tamper mode. If the vehicle fails to start, see Passlock page 114.
Page 195: Daytime Running Lamps (Drl)
Daytime Running Lamps (DRL) Indicator Light This light turns on whenever the Daytime Running Lamps are on. See Daytime Running Lamps (DRL) on page 170 for more information. Fuel Gage When the ignition is on, the fuel gage tells you about how much fuel you have remaining in the fuel tank.
Page 196: Warning Lights, Gages, And Indicators Driver Information Center (Dic)
Driver Information Center (DIC) The Driver Information Center (DIC) displays information such as the trip odometer, personalization features, and warning messages. The DIC display is located on the instrument panel cluster. DIC Controls and Displays The Driver Information Center (DIC) comes on when the ignition is on.
Page 197 Engine Oil Life System With the engine off, turn the key to ON and then press the reset stem until OIL LIFE RESET appears — alternating between OIL LIFE and RESET — on the DIC display. The CHANGE OIL message will alert you to change your oil on a schedule consistent with your driving conditions.
Page 198 Automatic Door Locks This feature allows you to program your door locks to a preferred setting. To set your choice for this feature, perform the following steps: 1. With the engine off, turn the key to LOCK. Do not remove the key from the ignition. 2.
Page 199 Remote Keyless Entry (RKE) Feedback This feature allows you to program your Remote Keyless Entry (RKE) feedback to a preferred setting. To set your choice for this feature, perform the following steps: 1. With the engine off, turn the key to LOCK. Do not remove the key from the ignition.
Page 200: Dic Warnings And Messages
DIC Warnings and Messages Messages are displayed on the DIC to notify the driver that the status of the vehicle has changed and that some action may be needed by the driver to correct the condition. Multiple messages may appear one after another. The messages are displayed for four seconds each.
Page 201 BRAKES This message displays if there is a problem with the brakes. Check the brakes as soon as possible and have your vehicle serviced by your dealer. See Brakes on page 357 and Brake System Warning Light on page 187 for more information. Press and release the reset stem to acknowledge the message and clear it from the display.
Page 202 FUEL CAP This message displays if the vehicle’s fuel cap is either off or loose. Pull over as soon as possible and check to see if the fuel cap is secure. You may also see the check engine light on the instrument panel cluster.
Page 203 PARK BRK (Brake) This message displays when the parking brake is set. See Parking Brake on page 130 and Brake System Warning Light on page 187 for more information. The message clears from the display after the parking brake is released or by pressing and releasing the reset stem.
Page 204 SERV (Service) VEH (Vehicle) This message displays if your vehicle needs service. Have your vehicle serviced by your dealer as soon as possible. SERVICE CHARG (Charge) SYS (System) This message displays if there is a problem with the battery charging system. Under certain conditions, the battery warning light may also turn on in the instrument panel cluster.
Page 205: Audio System(S)
Audio System(s) Determine which radio your vehicle has and then read the pages following to familiarize yourself with its features. Driving without distraction is a necessity for a safer driving experience. See Defensive Driving on page 246. By taking a few moments to read this manual and get familiar with your vehicle’s audio system, you can use it with less effort, as well as take advantage of its features.
Page 206: Setting The Time For Radios Without Radio Data Systems (Rds)
Here are some ways in which you can help avoid distraction while driving. While your vehicle is parked: • Familiarize yourself with all of its controls. • Familiarize yourself with its operation. • Set up your audio system by presetting your favorite radio stations, setting the tone, and adjusting the speakers.
Page 207: Setting The Time For Radios With Radio Data Systems (Rds)
Setting the Time for Radios with Radio Data Systems (RDS) The radio may have a button marked with an H or HR to represent hours and an M or MN to represent minutes. Press and hold the hour button until the correct hour appears on the display.
Page 208: Finding A Station
Finding a Station AM FM: Press this button to switch between FM1, FM2, or AM. The selection displays. TUNE: Turn this knob to select radio stations. SEEK : Press the right or the left arrow to go to the next or to the previous station and stay there. To scan stations, press and hold either SEEK arrow for two seconds until a beep sounds.
Page 209 Setting the Tone (Bass/Treble) AUDIO: To adjust bass or treble, press and release AUDIO until BAS (bass) or TRE (treble) displays. Then press and hold the up or the down arrow to increase or to decrease the tone. If a station is weak or has static, decrease the treble.
Page 210: Radio With Cd (Mp3)
Radio Messages CAL (Calibrated): The audio system has been calibrated for your vehicle from the factory. If CAL displays it means that the radio has not been conﬁgured properly for your vehicle and must be returned to your dealer for service. LOC (Locked): This message is displayed when ®...
Page 211 With RDS, the radio can do the following: • Seek to stations broadcasting the selected type of programming • Receive announcements concerning local and national emergencies • Display messages from radio stations • Seek to stations with traffic announcements This system relies upon receiving speciﬁc information from these stations and only works when the information is available.
Page 212 Playing the Radio PWR (Power): Press this knob to turn the system on and off. (Volume): Turn this knob to increase or to decrease the volume. DISPL (Display): When the ignition is turned off, press this knob to display the time. For RDS, press the DISPL knob to change what appears on the display while using RDS.
Page 213 SEEK : Press the right or the left arrow to go to the next or to the previous station and stay there. The radio only seeks stations with a strong signal that are in the selected band. SCAN : Press and hold either arrow for more than two seconds.
Page 214: Adjusting The Speakers (Balance/Fade
Setting the Tone (Bass/Treble) AUDIO: Push and release the AUDIO knob until BASS or TREB appears on the display. Turn the knob to increase or to decrease. The tone display shows the bass or the treble level. If a station is weak or has static, decrease the treble.
Page 215 Finding a Program Type (PTY) Station (RDS and XM™) To select and ﬁnd a desired PTY perform the following: 1. Turn the P-TYPE knob to activate program type select mode. TYPE and a PTY appears on the display. 2. Turn the P-TYPE knob again, to select a PTY. 3.
Page 216 RDS Messages ALERT!: Alert warns of local or national emergencies. When an alert announcement comes on the current radio station, ALERT! appears on the display. You will hear the announcement, even if the volume is low or a CD is playing. If a CD is playing, play stops during the announcement.
Page 217 TRAF (Traffic): If TRAF appears on the display, the tuned station broadcasts traffic announcements. When a traffic announcement is broadcast on this station you will hear it. If the station does not broadcast traffic announcements, press the TRAF button and the radio seeks to a station that does.
Page 218: Playing A Cd
Playing a CD Insert a CD partway into the slot, label side up. The player pulls it in, and READING appears on the display. The CD should begin playing. If you want to insert a CD with the ignition off, ﬁrst press the eject button or the DISPL knob.
Page 219 1 FLD (Previous): This button is inactive when playing a CD. 2 FLD (Next): This button is inactive when playing a CD. 3 REV (Reverse): Press and hold this pushbutton to reverse quickly within a track. Press and hold this pushbutton for less than two seconds to reverse at 10 times the normal playing speed.
Page 220 BAND: Press this button to listen to the radio when a CD is playing. The inactive CD remains safely inside the radio for future listening. CD AUX (Auxiliary): Press this button to play a CD when listening to the radio. The CD symbol appears on the display when a CD is loaded.
Page 221: Radio With Six-Disc Cd
Radio with Six-Disc CD Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, the radio can do the following: • Seek to stations broadcasting the selected type of programming •...
Page 222 XM™ Satellite Radio Service XM™ is a satellite radio service that is based in the 48 contiguous United States and Canada. XM™ offers a large variety of coast-to-coast channels including music, news, sports, talk, traffic/weather (U.S. subscribers), and children’s programming. XM™ provides digital quality audio and text information that includes song title and artist name.
Page 223 AUTO VOL (Automatic Volume): With automatic volume, the audio system adjusts automatically to make up for road and wind noise as you drive by increasing the volume as vehicle speed increases. Set the volume at the desired level. Press this button to select MIN (minimum), MED (medium), or MAX.
Page 224 Setting Preset Stations Up to 30 stations (six FM1, six FM2, and six AM, six XM1 and six XM2 (if equipped)), can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Turn the radio on. 2. Press BAND to select FM1, FM2, AM, or XM1 or XM2 (if equipped).
Page 225 Setting the Tone (Bass/Midrange/Treble) AUDIO: Push and release the AUDIO knob until BASS, MID, or TREB appears on the display. Turn the knob to increase or to decrease. The display shows the bass, midrange, or treble level. If a station is weak or has static, decrease the treble. To adjust the bass, midrange, and treble to the middle position, push and hold the AUDIO knob.
Page 226 Finding a Program Type (PTY) Station (RDS and XM™) To select and ﬁnd a desired PTY perform the following: 1. Press the TYPE button to activate program type select mode. P-TYPE and the last selected PTY appears on the display. 2.
Page 227 Setting Preset PTYs (RDS Only) These pushbuttons have factory PTY presets. Up to 12 PTYs (six FM1 and six FM2), can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Press BAND to select FM1 or FM2. 2.
Page 228 Radio Messages CAL ERR (Calibration Error): The audio system has been calibrated for your vehicle from the factory. If CAL ERR appears on the display, it means that the radio has not been conﬁgured properly for the vehicle and must be returned to your dealer for service.
Page 229 Do not add any label to a CD, it could get caught in the CD player. If a CD is recorded on a personal computer and a description label is needed, try labeling the top of the recorded CD with a marking pen. Notice: If you add any label to a CD, insert more than one CD into the slot at a time, or attempt to play scratched or damaged CDs, you...
Page 230 Playing a Speciﬁc Loaded CD For every CD loaded, a number appears on the display. To play a speciﬁc CD, ﬁrst press the CD AUX button (if not already in CD mode), then press the numbered pushbutton that corresponds to the CD. A small bar appears under the CD number that is playing and the track number appears on the display.
Page 231 RPT (Repeat): With repeat, one track or an entire CD can be repeated. To use repeat, do the following: • To repeat the track you are listening to, press and release the RPT button. RPT appears on the display. Press RPT again to turn off repeat play.
Page 232 INFO (Information): Press this knob to see how long the current track has been playing. To change the default on the display, track or elapsed time, press the knob until you see the desired display, then press and hold the knob until the radio beeps. The selected display becomes the default.
Page 233 To delete tracks from the song list, perform the following steps: 1. Turn the CD player on. 2. Press the SONG LIST button to turn song list on. S-LIST appears on the display. 3. Press either SEEK or TYPE arrow to select the desired track to be deleted.
Page 234: Using An Mp3
CD Messages CHECK CD: If this message appears on the display and/or the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. •...
Page 235 The player is able to read and play a maximum of 50 folders, 50 playlists, 10 sessions, and 255 ﬁles. Long ﬁle names, folder names, or playlist names may use more disc memory space than necessary. To conserve space on the disc, minimize the length of the ﬁle, folder, or playlist names.
Page 236 Order of Play Tracks are played in the following order: • Play begins from the ﬁrst track in the ﬁrst playlist and continues sequentially through all tracks in each playlist. When the last track of the last playlist has played, play continues from the ﬁrst track of the ﬁrst playlist.
Page 237 If the ignition or radio is turned off with a CD in the player it stays in the player. When the ignition or radio is turned on, the CD starts to play where it stopped, if it was the last selected audio source. As each new track starts to play, the track number appears on the display.
Page 238 3 REV (Reverse): Press and hold this pushbutton to reverse quickly within a track. Press and hold this pushbutton for less than two seconds to reverse at 10 times the normal playing speed. Press and hold it for more than two seconds to reverse at 20 times the normal playing speed.
Page 239 DISPL (Display): Press this knob to switch between track mode, folder/playlist mode, and time of day mode. The display shows only eight characters, but there can be up to four pages of text. If there are more than eight characters in the song, folder, or playlist name, pressing this knob within two seconds takes you to the next page of text.
Page 240: Xm Radio Messages
XM Radio Messages Radio Display Message XL (Explicit Language XL on the radio display, Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code The encryption code in the receiver is being updated, and No Signl Loss of signal Loading Acquiring channel audio...
Page 241 Radio Display Message No Info Category Name not available No Info No Text/Informational message available NotFound No channel available for the chosen category XM Lock Theft lock active Radio ID Radio ID label (channel 0) If tuned to channel 0, this message alternates with the Unknown Radio ID not known (should only be if...
Page 242: Theft-Deterrent Feature (Non-Rds Radios)
Theft-Deterrent Feature (Non-RDS Radios) ® THEFTLOCK is designed to discourage theft of your vehicle’s radio. The feature works automatically by learning a portion of the Vehicle Identiﬁcation Number (VIN). If the radio is moved to a different vehicle, it will not operate and LOC will appear on the display.
Page 243: Care Of Your Cds
FM Stereo FM stereo will give the best sound, but FM signals will reach only about 10 to 40 miles (16 to 65 km). Tall buildings or hills can interfere with FM signals, causing the sound to fade in and out. XM™...
Page 244: Fixed Mast Antenna
Fixed Mast Antenna The ﬁxed mast antenna can withstand most car washes without being damaged. If the mast should ever become slightly bent, straighten it out by hand. If the mast is badly bent, replace it. Check occasionally to make sure the mast is still tightened to the fender.
Page 245: Driving Your Vehicle
Section 4 Your Driving, the Road, and Your Vehicle ... 246 Defensive Driving ... 246 Drunken Driving ... 247 Control of a Vehicle ... 250 Braking ... 250 Anti-Lock Brake System (ABS) ... 251 Braking in Emergencies ... 253 Traction Control System (TCS) ... 253 Limited-Slip Rear Axle ...
Page 246: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See Safety Belts: They Are for Everyone on page 20. CAUTION: Defensive driving really means “Be ready for anything.”...
Page 247: Drunken Driving
Drunken Driving Death and injury associated with drinking and driving is a national tragedy. It is the number one contributor to the highway death toll, claiming thousands of victims every year. Alcohol affects four things that anyone needs to drive a vehicle: •...
Page 248 According to the American Medical Association, a 180 lb (82 kg) person who drinks three 12 ounce (355 ml) bottles of beer in an hour will end up with a BAC of about 0.06 percent. The person would reach the same BAC by drinking three 4 ounce (120 ml) glasses of wine or three mixed drinks if each had 1-1/2 ounces (45 ml) of liquors like whiskey, gin, or vodka.
Page 249 But the ability to drive is affected well below a BAC of 0.10 percent. Research shows that the driving skills of many people are impaired at a BAC approaching 0.05 percent, and that the effects are worse at night. All drivers are impaired at BAC levels above 0.05 percent.
Page 250: Control Of A Vehicle
Control of a Vehicle You have three systems that make your vehicle go where you want it to go. They are the brakes, the steering, and the accelerator. All three systems have to do their work at the places where the tires meet the road. Sometimes, as when you are driving on snow or ice, it is easy to ask more of those control systems than the tires and road can provide.
Page 251: Anti-Lock Brake System (Abs)
Avoid needless heavy braking. Some people drive in spurts — heavy acceleration followed by heavy braking — rather than keeping pace with traffic. This is a mistake. The brakes may not have time to cool between hard stops. The brakes will wear out much faster if you do a lot of heavy braking.
Page 252 Let us say the road is wet and you are driving safely. Suddenly, an animal jumps out in front of you. You slam on the brakes and continue braking. Here is what happens with ABS: A computer senses that wheels are slowing down. If one of the wheels is about to stop rolling, the computer will separately work the brakes at each front wheel and at both rear wheels.
Page 253: Braking In Emergencies
Remember: ABS does not change the time you need to get your foot up to the brake pedal or always decrease stopping distance. If you get too close to the vehicle in front of you, you will not have time to apply your brakes if that vehicle suddenly slows or stops.
Page 254: Limited-Slip Rear Axle
If your vehicle is in cruise control when the traction control system begins to limit wheel spin, the cruise control will automatically disengage. When road conditions allow you to safely use it again, you may re-engage the cruise control. See Cruise Control on page 164.
Page 255: Steering
Steering Power Steering If you lose power steering assist because the engine stops or the system is not functioning, you can steer but it will take much more effort. Steering Tips It is important to take curves at a reasonable speed.
Page 256 Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and ﬁnd a truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
Page 257: Off-Road Recovery
Off-Road Recovery You may ﬁnd that your right wheels have dropped off the edge of a road onto the shoulder while you are driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 258 • Watch for traffic signs, pavement markings, and lines. If you can see a sign up ahead that might indicate a turn or an intersection, delay your pass. A broken center line usually indicates it is all right to pass, providing the road ahead is clear.
Page 259: Loss Of Control
Loss of Control Let us review what driving experts say about what happens when the three control systems — brakes, steering, and acceleration — do not have enough friction where the tires meet the road to do what the driver has asked. In any emergency, do not give up.
Page 260: Off-Road Driving
Off-Road Driving This off-road guide is for vehicles that have four-wheel drive. Also, see Braking on page 250 and Anti-Lock Brake System (ABS) on page 251. If your vehicle does not have four-wheel drive, you should not drive off-road unless you are on a level, solid surface.
Page 261 Loading Your Vehicle for Off-Road Driving CAUTION: • Cargo on the load ﬂoor piled higher than the seatbacks can be thrown forward during a sudden stop. You or your passengers could be injured. Keep cargo below the top of the seatbacks.
Page 262 Environmental Concerns Off-road driving can provide wholesome and satisfying recreation. However, it also raises environmental concerns. We recognize these concerns and urge every off-roader to follow these basic rules for protecting the environment: • Always use established trails, roads, and areas that have been specially set aside for public off-road recreational driving;...
Page 263 Controlling your vehicle is the key to successful off-road driving. One of the best ways to control your vehicle is to control your speed. Here are some things to keep in mind. At higher speeds: • You approach things faster and you have less time to scan the terrain for obstacles.
Page 264 Surface Obstacles: Unseen or hidden obstacles can be hazardous. A rock, log, hole, rut, or bump can startle you if you are not prepared for them. Often these obstacles are hidden by grass, bushes, snow, or even the rise and fall of the terrain itself.
Page 265: Approaching A Hill
Driving on Off-Road Hills Off-road driving often takes you up, down, or across a hill. Driving safely on hills requires good judgment and an understanding of what your vehicle can and cannot do. There are some hills that simply cannot be driven, no matter how well built the vehicle.
Page 266 Driving Uphill Once you decide you can safely drive up the hill, you need to take some special steps. • Use a low gear and get a ﬁrm grip on the steering wheel. • Get a smooth start up the hill and try to maintain your speed.
Page 267 What should I do if my vehicle stalls, or is about to stall, and I cannot make it up the hill? If this happens, there are some things you should do, and there are some things you must not do. First, here is what you should do: •...
Page 268 Suppose, after stalling, I try to back down the hill and decide I just cannot do it. What should I do? Set the parking brake, put the automatic transmission in PARK (P), or the manual transmission in FIRST (1), and turn off the engine.
Page 269 Are there some things I should not do when driving down a hill? Yes! These are important because if you ignore them you could lose control and have a serious accident. • When driving downhill, avoid turns that take you across the incline of the hill. A hill that is not too steep to drive down may be too steep to drive across.
Page 270: Driving Across An Incline
Driving Across an Incline Sooner or later, an off-road trail will probably go across the incline of a hill. If this happens, you have to decide whether to try to drive across the incline. Here are some things to consider: •...
Page 271 What if I am driving across an incline that is not too steep, but I hit some loose gravel and start to slide downhill. What should I do? If you feel your vehicle starting to slide sideways, turn downhill. This should help straighten out the vehicle and prevent the side slipping.
Page 272 Driving in Mud, Sand, Snow, or Ice When you drive in mud, snow, or sand, your wheels will not get good traction. You cannot accelerate as quickly, turning is more difficult, and you will need longer braking distances. It is best to use a low gear when you are in mud —...
Page 273 If the water is not too deep, drive slowly through it. At faster speeds, water splashes on the ignition system and your vehicle can stall. Stalling can also occur if you get the tailpipe under water. And, as long as the tailpipe is under water, you will never be able to start the engine.
Page 274: Driving At Night
Driving at Night Night driving is more dangerous than day driving. One reason is that some drivers are likely to be impaired — by alcohol or drugs, with night vision problems, or by fatigue. Here are some tips on night driving. •...
Page 275: Driving In Rain And On Wet Roads
Keep the windshield and all the glass on your vehicle clean — inside and out. Glare at night is made much worse by dirt on the glass. Even the inside of the glass can build up a ﬁlm caused by dust. Dirty glass makes lights dazzle and ﬂash more than clean glass would, making the pupils of your eyes contract repeatedly.
Page 276 The heavier the rain, the harder it is to see. Even if your windshield wiper blades are in good shape, a heavy rain can make it harder to see road signs and traffic signals, pavement markings, the edge of the road, and even people walking.
Page 277 Driving Through Deep Standing Water Notice: If you drive too quickly through deep puddles or standing water, water can come in through your engine’s air intake and badly damage your engine. Never drive through water that is slightly lower than the underbody of your vehicle.
Page 278: City Driving
City Driving One of the biggest problems with city streets is the amount of traffic on them. You will want to watch out for what the other drivers are doing and pay attention to traffic signals. Here are ways to increase your safety in city driving: •...
Page 279: Freeway Driving
Freeway Driving Mile for mile, freeways — also called thruways, parkways, expressways, turnpikes, or superhighways — are the safest of all roads. But they have their own special rules. The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
Page 280: Before Leaving On A Long Trip
Before changing lanes, check your mirrors. Then use your turn signal. Just before you leave the lane, glance quickly over your shoulder to make sure there is not another vehicle in your blind spot. Once you are moving on the freeway, make certain you allow a reasonable following distance.
Page 281: Highway Hypnosis
Here are some things you can check before a trip: • Windshield Washer Fluid: Is the reservoir full? Are all windows clean inside and outside? • Wiper Blades: Are they in good shape? • Fuel, Engine Oil, Other Fluids: Have you checked all levels? •...
Page 282: Hill And Mountain Roads
Hill and Mountain Roads Driving on steep hills or mountains is different from driving in ﬂat or rolling terrain. If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable. See Off-Road Driving on page 260 for information about driving off-road.
Page 283 CAUTION: Coasting downhill in NEUTRAL (N) or with the ignition off is dangerous. Your brakes will have to do all the work of slowing down. They could get so hot that they would not work well. You would then have poor braking or even none going down a hill.
Page 284: Winter Driving
Winter Driving Here are some tips for winter driving: • Have your vehicle in good shape for winter. • You may want to put winter emergency supplies in your vehicle. Also see Tires on page 377. Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth, and a couple of reﬂective...
Page 285 What is the worst time for this? Wet ice. Very cold snow or ice can be slick and hard to drive on. But wet ice can be even more trouble because it may offer the least traction of all. You can get wet ice when it is about freezing, 32°F (0°C), and freezing rain begins to fall.
Page 286 If You Are Caught in a Blizzard If you are stopped by heavy snow, you could be in a serious situation. You should probably stay with your vehicle unless you know for sure that you are near help and you can hike through the snow.
Page 287 CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle. Clear away snow from around the base of your vehicle, especially any that is blocking your exhaust pipe.
Page 288: If Your Vehicle Is Stuck In Sand
If Your Vehicle is Stuck in Sand, Mud, Ice, or Snow In order to free your vehicle when it is stuck, you will need to spin the wheels, but you do not want to spin your wheels too fast. The method known as rocking can help you get out when you are stuck, but you must use caution.
Page 289: Recovery Hooks
By slowly spinning the wheels in the forward and reverse directions, you will cause a rocking motion that may free your vehicle. If that does not get your vehicle out after a few tries, it may need to be towed out.Or, you can use the recovery hooks if your vehicle has them.
Page 290: Loading Your Vehicle
Loading Your Vehicle It is very important to know how much weight your vehicle can carry. This weight is called the vehicle capacity weight and includes the weight of all occupants, cargo, and all nonfactory-installed options. Two labels on your vehicle show how much weight it may properly carry, the Tire and Loading Information label and the Certiﬁcation/Tire label.
Page 291 The Tire and Loading Information label shows the number of occupant seating positions (A), and the maximum vehicle capacity weight (B) in kilograms and pounds. The Tire and Loading Information label also shows the size of the original equipment tires (C) and the recommended cold tire inﬂation pressures (D).
Page 292 Example 1 Item Description Vehicle Capacity Weight for Example 1 Subtract Occupant Weight 150 lbs (68 kg) x 2 Available Cargo Weight = 700 lbs (317 kg) Total Item 1,000 lbs (453 kg) 300 lbs (136 kg) Example 2 Description Vehicle Capacity 1,000 lbs (453 kg) Weight for Example 2...
Page 293 Example 3 Item Description Vehicle Capacity Weight for Example 3 Subtract Occupant Weight 200 lbs (91 kg) x 5 = Available Cargo Weight = 0 lbs (0 kg) Refer to your vehicle’s Tire and Loading Information label for speciﬁc information about your vehicle’s capacity weight and seating positions.
Page 294 The GVWR includes the weight of the vehicle, all occupants, fuel, cargo, and trailer tongue weight, if pulling a trailer. The Certiﬁcation/Tire label also tells you the maximum weights for the front and rear axles, called Gross Axle Weight Rating (GAWR). To ﬁnd out the actual loads on your front and rear axles, you need to go to a weigh station and weigh your vehicle.
Page 295 If you put things inside your vehicle — like suitcases, tools, packages, or anything else — they will go as fast as the vehicle goes. If you have to stop or turn quickly, or if there is a crash, they will keep going. CAUTION: Things you put inside your vehicle can strike and injure people in a sudden stop...
Page 296: Truck-Camper Loading Information
Add-On Equipment When you carry removable items, you may need to put a limit on how many people you carry inside your vehicle. Be sure to weigh your vehicle before you buy and install the new equipment. Notice: Overloading your vehicle may cause damage.
Page 297: Towing
Towing Towing Your Vehicle Consult your dealer or a professional towing service if you need to have your disabled vehicle towed. See Roadside Assistance Program on page 470. If you want to tow your vehicle behind another vehicle for recreational purposes (such as behind a motorhome), see “Recreational Vehicle Towing”...
Page 298 Dinghy Towing Two-Wheel Drive Vehicles Notice: If you tow your vehicle with all four wheels on the ground, the drivetrain components could be damaged. The repairs would not be covered by your warranty. Do not tow your vehicle with all four wheels on the ground.
Page 299 3. Put an automatic transmission in PARK (P) or a manual transmission in FIRST (1). 4. Securely attach the vehicle being towed to the tow vehicle. CAUTION: Shifting a four-wheel-drive vehicle’s transfer case into NEUTRAL can cause your vehicle to roll even if the transmission is in PARK (P) for an automatic transmission, or if your vehicle is in gear, for a manual transmission.
Page 300 Dolly Towing Front Towing (Front Wheels Off the Ground) Two-Wheel-Drive Vehicles Notice: If you tow a two-wheel-drive vehicle with the rear wheels on the ground, the transmission could be damaged. The repairs would not be covered by your warranty. Never tow your vehicle with the rear wheels on the ground.
Page 301 3. Put an automatic transmission in PARK (P) or a manual transmission in FIRST (1). 4. Follow the dolly manufacturer’s instructions to attach and secure the vehicle being towed to the dolly and then the loaded dolly to the tow vehicle. CAUTION: Shifting a four-wheel-drive vehicle’s transfer case into NEUTRAL can cause...
Page 302 Rear Towing (Rear Wheels Off the Ground) Two-Wheel-Drive Vehicles Use the following procedure to tow your vehicle from the rear: 1. Drive the vehicle onto the dolly. 2. Firmly set the parking brake. See Parking Brake on page 130 for more information. 3.
Page 303 5. Release the parking brake only after the vehicle being towed is ﬁrmly attached to the tow vehicle. 6. Turn the ignition to LOCK. If the tow vehicle will not be started or driven for six weeks or more, remove the battery cable from the negative terminal (post) of the battery to prevent your battery from draining while towing.
Page 304 4. Follow the dolly manufacturer’s instructions to attach and secure the vehicle being towed to the dolly and then the loaded dolly to the tow vehicle. For manual transmission vehicles, make sure the wheels are straight before proceeding to the next steps. On automatic transmission vehicles, use an adequate clamping device to ensure that the front wheels are locked into the straight position.
Page 305: Towing A Trailer
Towing a Trailer CAUTION: If you do not use the correct equipment and drive properly, you can lose control when you pull a trailer. For example, if the trailer is too heavy, the brakes may not work well — or even at all. You and your passengers could be seriously injured.
Page 306 If You Do Decide To Pull A Trailer If you do, here are some important points: • There are many different laws, including speed limit restrictions, having to do with trailering. Make sure your rig will be legal, not only where you live but also where you’ll be driving.
Page 307: Weight Of The Trailer
Weight of the Trailer How heavy can a trailer safely be? It depends on how you plan to use your rig. For example, speed, altitude, road grades, outside temperature and how much your vehicle is used to pull a trailer are all important. It can also depend on any special equipment that you have on your vehicle, and the amount of The following charts show how much your trailer can weigh, based upon your vehicle model and options.
Page 308 2WD Extended Cab Axle Ratio Automatic Transmission, 3.73 2.9L Engine Automatic Transmission, 3.73 3.7L Engine Manual Transmission, 3.73 2.9L Engine 2WD Crew Cab Axle Ratio Automatic Transmission, 3.73 2.9L Engine Automatic Transmission, 3.73 3.7L Engine Manual Transmission, 3.73 2.9L Engine 4WD Regular Cab Axle Ratio Automatic Transmission,...
Page 309 4WD Extended Cab Axle Ratio Automatic Transmission, 3.73 2.9L Engine Automatic Transmission, 4.10 2.9L Engine Automatic Transmission, 3.73 3.7L Engine Manual Transmission, 3.73 2.9L Engine Manual Transmission, 4.10 2.9L Engine 4WD Crew Cab Axle Ratio Automatic Transmission, 3.73 3.7L Engine *The Gross Combination Weight Rating (GCWR) is the total allowable weight of the completely loaded vehicle and trailer including any passengers, cargo, equipment and conversions.
Page 310 Weight of the Trailer Tongue The tongue load (A) of any trailer is an important weight to measure because it affects the total or gross weight of your vehicle. The Gross Vehicle Weight (GVW) includes the curb weight of the vehicle, any cargo you may carry in it, and the people who will be riding in the vehicle.
Page 311 After you’ve loaded your trailer, weigh the trailer and then the tongue, separately, to see if the weights are proper. If they aren’t you may be able to get them right simply by moving some of the items around in the trailer. Trailering may be limited by the vehicle’s ability to carry tongue weight.
Page 312 But let’s say your speciﬁc vehicle is equipped with some of the latest options and you have a front seat passenger and two rear seat passengers with some luggage and gear in the vehicle as well. You may add 300 lbs (136 kg) to the front axle weight and 400 lbs (181 kg) to the rear axle weight.
Page 313 Total Weight on Your Vehicle’s Tires Be sure your vehicle’s tires are inﬂated to the upper limit for cold tires. You’ll ﬁnd these numbers on the Certiﬁcation/Tire label located at the bottom of the center pillar on the driver’s side of the vehicle, or see Loading Your Vehicle on page 290.
Page 314 Safety Chains You should always attach chains between your vehicle and your trailer. Cross the safety chains under the tongue of the trailer to help prevent the tongue from contacting the road if it becomes separated from the hitch. Instructions about safety chains may be provided by the hitch manufacturer or by the trailer manufacturer.
Page 315 Driving with a Trailer Towing a trailer requires a certain amount of experience. Before setting out for the open road, you’ll want to get to know your rig. Acquaint yourself with the feel of handling and braking with the added weight of the trailer. And always keep in mind that the vehicle you are driving is now a good deal longer and not nearly as responsive as your vehicle is by itself.
Page 316 Making Turns Notice: Making very sharp turns while trailering could cause the trailer to come in contact with the vehicle. Your vehicle could be damaged. Avoid making very sharp turns while trailering. When you’re turning with a trailer, make wider turns than normal.
Page 317 Parking on Hills CAUTION: You really should not park your vehicle, with a trailer attached, on a hill. If something goes wrong, your rig could start to move. People can be injured, and both your vehicle and the trailer can be damaged.
Page 318: Trailer Recommendations
Maintenance When Trailer Towing Your vehicle will need service more often when you’re pulling a trailer. See Scheduled Maintenance on page 445 for more on this. Things that are especially important in trailer operation are automatic transmission ﬂuid (don’t overﬁll), engine oil, axle lubricant, belt, cooling system and brake system.
Page 319: Service And Appearance Care
Section 5 Service ... 322 Accessories and Modiﬁcations ... 323 California Proposition 65 Warning ... 323 Doing Your Own Service Work ... 324 Adding Equipment to the Outside of Your Vehicle ... 325 Fuel ... 325 Gasoline Octane ... 325 Gasoline Speciﬁcations ...
Page 320 Section 5 Bulb Replacement ... 370 Halogen Bulbs ... 370 Headlamps ... 371 Front Turn Signal, Parking and Daytime Running Lamps (DRL) ... 372 Center High-Mounted Stoplamp (CHMSL) ... 372 Taillamps, Turn Signal, Stoplamps and Back-up Lamps ... 373 License Plate Lamp ... 374 Replacement Bulbs ...
Page 321 Section 5 Appearance Care ... 424 Cleaning the Inside of Your Vehicle ... 424 Fabric/Carpet ... 425 Leather ... 426 Instrument Panel, Vinyl, and Other Plastic Surfaces ... 427 Care of Safety Belts ... 427 Weatherstrips ... 427 Washing Your Vehicle ... 428 Cleaning Exterior Lamps/Lenses ...
Page 322: Service
Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you will go to your dealer for all your service needs. You will get genuine GM parts and GM-trained and supported service people. We hope you will want to keep your GM vehicle all GM.
Page 323: Accessories And Modiﬁcations
Accessories and Modiﬁcations When you add non-GM accessories to your vehicle they can affect your vehicle’s performance and safety, including such things as, airbags, braking, stability, ride and handling, emissions systems, aerodynamics, durability, and electronic systems like anti-lock brakes, traction control and stability control.
Page 324: Doing Your Own Service Work
Doing Your Own Service Work CAUTION: You can be injured and your vehicle could be damaged if you try to do service work on a vehicle without knowing enough about it. • Be sure you have sufficient knowledge, experience, the proper replacement parts, and tools before you attempt any vehicle maintenance task.
Page 325: Adding Equipment To The Outside
Adding Equipment to the Outside of Your Vehicle Things you might add to the outside of your vehicle can affect the airﬂow around it. This may cause wind noise and affect windshield washer performance. Check with your dealer before adding equipment to the outside of your vehicle. Fuel Use of the recommended fuel is an important part of the proper maintenance of your vehicle.
Page 326: California Fuel
California Fuel If your vehicle is certiﬁed to meet California Emissions Standards, it is designed to operate on fuels that meet California speciﬁcations. See the underhood emission control label. If this fuel is not available in states adopting California emissions standards, your vehicle will operate satisfactorily on fuels meeting federal speciﬁcations, but emission control system performance may be affected.
Page 327: Fuels In Foreign Countries
Notice: Your vehicle was not designed for fuel that contains methanol. Do not use fuel containing methanol. It can corrode metal parts in your fuel system and also damage the plastic and rubber parts. That damage would not be covered under your warranty. Some gasolines that are not reformulated for low emissions may contain an octane-enhancing additive called methylcyclopentadienyl manganese...
Page 328: Filling The Tank
Filling the Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off your engine when you are refueling.
Page 329 CAUTION: If you spill fuel and then something ignites it, you could be badly burned. Fuel can spray out on you if you open the fuel cap too quickly. This spray can happen if your tank is nearly full, and is more likely in hot weather.
Page 330: Filling A Portable Fuel Container
Filling a Portable Fuel Container CAUTION: Never ﬁll a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the gasoline vapor. You can be badly burned and your vehicle damaged if this occurs. To help avoid injury to you and others: •...
Page 331: Hood Release
Hood Release To open the hood, do the following: 1. Pull the handle 2. Release the secondary latch on the hood. It is located below the front center of the hood. 3. Lift the hood. 4. Release the hood prop from its retainer and put the hood prop into the slot in the hood.
Page 332: Engine Compartment Overview
Engine Compartment Overview When you open the hood on the 2.9L engine (3.7L engine similar), you will see the following:...
Page 333: Engine Oil
A. Windshield Washer Fluid. See “Adding Washer Fluid” under Windshield Washer Fluid on page 356. B. Engine Coolant Recovery Tank. See Engine Coolant on page 345. C. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on page 338. D. Power Steering Fluid Reservoir (low in engine compartment).
Page 334 When to Add Engine Oil If the oil is below the cross-hatched area (L), you will need to add at least one quart/liter of oil. But you must use the right kind. This section explains what kind of oil to use. For engine oil crankcase capacity, see Capacities and Speciﬁcations on page 439.
Page 335 What Kind of Engine Oil to Use Look or two things: • GM6094M Your vehicle’s engine requires oil meeting GM Standard GM6094M. You should look for and use only an oil that meets GM Standard GM6094M. • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle.
Page 336: Engine Oil Life System
If you are in an area of extreme cold, where the temperature falls below 20°F ( 29°C), it is recommended that you use either an SAE 5W-30 synthetic oil or an SAE 0W-30 oil. Both will provide easier cold starting and better protection for the engine at extremely low temperatures.
Page 337 How to Reset the Engine Oil Life System The Engine Oil Life System calculates when to change your engine oil and ﬁlter based on vehicle use. Anytime your oil is changed, reset the system so it can calculate when the next oil change is required.
Page 338: Engine Air Cleaner/Filter
Engine Air Cleaner/Filter The engine air cleaner/ﬁlter is located in the engine compartment on the passenger’s side of the vehicle. See Engine Compartment Overview on page 332 for more information on location. When to Inspect the Engine Air Cleaner/Filter Inspect the air cleaner/ﬁlter at the Maintenance II intervals and replace it at the ﬁrst oil change after each 50,000 mile (83 000 km) interval.
Page 339: Automatic Transmission Fluid
CAUTION: Operating the engine with the air cleaner/ ﬁlter off can cause you or others to be burned. The air cleaner not only cleans the air; it helps to stop ﬂames if the engine backﬁres. If it is not there and the engine backﬁres, you could be burned.
Page 340 Notice: Too much or too little ﬂuid can damage your transmission. Too much can mean that some of the ﬂuid could come out and fall on hot engine parts or exhaust system parts, starting a ﬁre. Too little ﬂuid could cause the transmission to overheat.
Page 341 Then, without shutting off the engine, follow these steps: 1. Flip the handle up and then pull out the dipstick and wipe it with a clean rag or paper towel. The automatic transmission dipstick handle with this symbol on it is located in the engine compartment on the passenger’s side of the vehicle.
Page 342: Manual Transmission Fluid
How to Add Automatic Transmission Fluid Refer to the Maintenance Schedule to determine what kind of transmission ﬂuid to use. See Recommended Fluids and Lubricants on page 455. Add ﬂuid only after checking the transmission ﬂuid while it is hot. A cold check is used only as a reference.
Page 343 Then, follow these steps: 1. Remove the ﬁller plug. 2. Check that the lubricant level is up to the bottom of the ﬁller plug hole. 3. If the ﬂuid level is good, install the plug and be sure it is fully seated. If the ﬂuid level is low, add more ﬂuid as described in the next steps.
Page 344: Hydraulic Clutch
Hydraulic Clutch The hydraulic clutch linkage in your vehicle is self-adjusting. The clutch master cylinder reservoir is ﬁlled with hydraulic clutch ﬂuid. The hydraulic clutch ﬂuid reservoir cap has this symbol on it. See Engine Compartment Overview on page 332 for reservoir location.
Page 345: Engine Coolant
How to Check and Add Fluid The proper ﬂuid should be added if the level does not reach the bottom of the diaphragm when it is in place in the reservoir. See the instructions on the reservoir cap. Engine Coolant The cooling system in your vehicle is ﬁlled with ®...
Page 346 What to Use Use a mixture of one-half clean, drinkable water ® and one-half DEX-COOL coolant which will not damage aluminum parts. If you use this coolant mixture, you do not need to add anything else. CAUTION: Adding only plain water to your cooling system can be dangerous.
Page 347 Checking Coolant The coolant recovery tank cap has this symbol on it. It is located toward the rear of the engine compartment on the passenger’s side of the vehicle. See Engine Compartment Overview on page 332 for more information on location. The vehicle must be on a level surface.
Page 348: Radiator Pressure Cap
Add coolant mixture at the recovery tank, but be careful not to spill it. CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol, and it will burn if the engine parts are hot enough. Do not spill coolant on a hot engine.
Page 349 CAUTION: (Continued) If you keep driving when your engine is overheated, the liquids in it can catch ﬁre. You or others could be badly burned. Stop your engine if it overheats, and get out of the vehicle until the engine is cool. Notice: If your engine catches ﬁre because you keep driving with no coolant, your vehicle can be badly damaged.
Page 350: Cooling System
Cooling System When you decide it is safe to lift the hood, here is what you will see: A. Coolant Recovery Tank B. Engine Cooling Fan C. Radiator Pressure Cap If the coolant inside the coolant recovery tank is boiling, do not do anything else until it cools down. The vehicle should be parked on a level surface.
Page 351 CAUTION: Heater and radiator hoses, and other engine parts, can be very hot. Do not touch them. If you do, you can be burned. Do not run the engine if there is a leak. If you run the engine, it could lose all coolant.
Page 352 How to Add Coolant to the Coolant Recovery Tank If you have not found a problem yet, but the coolant level is not at the FULL COLD mark, add a 50/50 mixture of clean, drinkable water and ® DEX-COOL engine coolant at the coolant recovery tank.
Page 353 CAUTION: Steam and scalding liquids from a hot cooling system can blow out and burn you badly. They are under pressure, and if you turn the radiator pressure cap — even a little — they can come out at high speed.
Page 354 3. Fill the radiator with the proper DEX-COOL coolant mixture, up to the base of the ﬁller neck. See Engine Coolant on page 345 for more information about the proper coolant mixture. 4. Fill the coolant recovery tank to the FULL COLD mark.
Page 355: Engine Fan Noise
Engine Fan Noise This vehicle has a clutched engine cooling fan. When the clutch is engaged, the fan spins faster to provide more air to cool the engine. In most everyday driving conditions, the clutch is not engaged. This improves fuel economy and reduces fan noise.
Page 356: Windshield Washer Fluid
How to Check Power Steering Fluid 1. Turn the key off and let the engine compartment cool down. 2. Wipe the cap and the top of the reservoir clean. 3. Unscrew the cap and wipe the dipstick with a clean rag. 4.
Page 357: Brakes
Notice: • When using concentrated washer ﬂuid, follow the manufacturer’s instructions for adding water. • Do not mix water with ready-to-use washer ﬂuid. Water can cause the solution to freeze and damage your washer ﬂuid tank and other parts of the washer system. Also, water does not clean as well as washer ﬂuid.
Page 358 So, it is not a good idea to top off the brake ﬂuid. Adding brake ﬂuid will not correct a leak. If you add ﬂuid when your linings are worn, then you will have too much ﬂuid when you get new brake linings.
Page 359 What to Add When you do need brake ﬂuid, use only DOT-3 brake ﬂuid. Use new brake ﬂuid from a sealed container only. See Recommended Fluids and Lubricants on page 455. Always clean the brake ﬂuid reservoir cap and the area around the cap before removing it. This will help keep dirt from entering the reservoir.
Page 360 Brake Wear Your vehicle has front disc brakes and rear drum brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound may come and go or be heard all the time your vehicle is moving, except when you are pushing on the brake pedal ﬁrmly.
Page 361: Battery
Brake Pedal Travel See your dealer if the brake pedal does not return to normal height, or if there is a rapid increase in pedal travel. This could be a sign of brake trouble. Brake Adjustment Every time you make a brake stop, the brakes adjust for wear.
Page 362: Jump Starting
Vehicle Storage If you are not going to drive your vehicle for 25 days or more, remove the black, negative ( ) cable from the battery. This will help keep your battery from running down. CAUTION: Batteries have acid that can burn you and gas that can explode.
Page 363 Notice: Ignoring these steps could result in costly damage to your vehicle that would not be covered by your warranty. Trying to start your vehicle by pushing or pulling it will not work, and it could damage your vehicle. 1. Check the other vehicle. It must have a 12-volt battery with a negative ground system.
Page 364 4. Open the hoods and locate the positive (+) and negative ( ) terminal locations on the other vehicle. Your vehicle has a remote positive (+) and a remote negative ( ) jump starting terminal. See Engine Compartment Overview on page 332 for more information on the terminal locations.
Page 365 CAUTION: Fans or other moving engine parts can injure you badly. Keep your hands away from moving parts once the engine is running. 5. Check that the jumper cables do not have loose or missing insulation. If they do, you could get a shock.
Page 366 7. Do not let the other end touch metal. Connect it to the positive (+) terminal of the good battery. Use a remote positive (+) terminal if the vehicle has one. 8. Now connect the black negative ( ) cable to the negative ( ) terminal of the good battery.
Page 367 Jumper Cable Removal A. Heavy, Unpainted Metal Engine Part or Remote Negative ( ) Terminal B. Good Battery or Remote Positive (+) and Remote Negative ( ) Terminals C. Dead Battery or Remote Positive (+) Terminal To disconnect the jumper cables from both vehicles, do the following: 1.
Page 368: Rear Axle
Rear Axle When to Check and Change Lubricant It is not necessary to regularly check rear axle ﬂuid unless you suspect there is a leak or you hear an unusual noise. A ﬂuid loss could indicate a problem. Have it inspected and repaired. How to Check Lubricant To get an accurate reading, the vehicle should be on a level surface.
Page 369: Front Axle
A. Drain Plug B. Filler Plug If the level is below the bottom of the ﬁller plug hole, located on the transfer case, you’ll need to add some lubricant. Remove the plug and add enough lubricant to raise the level to the bottom of the ﬁller plug hole.
Page 370: Bulb Replacement
If the level is below the bottom of the ﬁller plug hole, located on the front axle, you may need to add some lubricant. When the differential is cold, add enough lubricant to raise the level to 1/2 inch (12 mm) below the ﬁller plug hole.
Page 371: Headlamps
Headlamps A. Low-Beam Headlamp/Daytime Running Lamps (DRL) B. High-Beam Headlamp To replace one of these bulbs, do the following: 1. Open the hood. See Hood Release on page 331 for more information. 2. Reach in and access the bulb sockets from inside the engine compartment.
Page 372: Front Turn Signal, Parking And Daytime
Front Turn Signal, Parking and Daytime Running Lamps (DRL) To replace one of these bulbs, do the following: 1. Open the hood. See Hood Release on page 331 for more information. 2. Reach in to access either one of the bulb sockets in the engine compartment.
Page 373: Taillamps, Turn Signal, Stoplamps
4. Push the new bulb into the socket until it clicks. 5. Insert the bulb socket into the lamp assembly and turn it clockwise to secure. 6. Reinstall the lamp assembly and tighten the screws. Taillamps, Turn Signal, Stoplamps and Back-up Lamps A.
Page 374: License Plate Lamp
License Plate Lamp To replace one of these bulbs, do the following: 1. Reach under the rear bumper for the bulb socket. 2. Turn the bulb socket counterclockwise and pull the bulb socket out of the connector. 3. Pull the old bulb straight out from the bulb socket.
Page 375: Windshield Wiper Blade Replacement
Windshield Wiper Blade Replacement Windshield wiper blades should be inspected for wear and cracking. See Scheduled Maintenance on page 445 for more information. Replacement blades come in different types and are removed in different ways. For proper type and length, see Normal Maintenance Replacement Parts on page 458.
Page 376 4. To install the new wiper insert, slide the insert (D), notched end last, into the end with two blade claws (A). Slide the insert all the way through the blade claws at the opposite end (B). The plastic caps (C) will be forced off as the insert is fully inserted.
Page 377: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your GM Warranty booklet for details. For additional information refer to the tire manufacturer’s booklet included with your vehicle.
Page 378: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into its sidewall. The examples below show a typical passenger vehicle tire and a compact spare tire sidewall. Passenger Vehicle Tire Example (A) Tire Size: The tire size is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type and service description.
Page 379 (D) Tire Identiﬁcation Number (TIN): The letters and numbers following DOT code are the Tire Identiﬁcation Number (TIN). The TIN shows the manufacturer and plant code, tire size, and date the tire was manufactured. The TIN is molded onto both sides of the tire, although only one side may have the date of manufacture.
Page 380 (B) Tire Ply Material: The type of cord and number of plies in the sidewall and under the tread. (C) Tire Identiﬁcation Number (TIN): The Tire Identiﬁcation Number (TIN). The TIN shows the manufacturer and plant code, tire size, and date the tire was manufactured. The TIN is molded onto both sides of the tire, although only one side may have the date of manufacture.
Page 381 Tire Size The following illustration shows an example of a typical passenger vehicle tire size. (A) P-Metric Tire: The United States version of a metric tire sizing system. The letter P as the ﬁrst character in the tire size means a passenger vehicle tire engineered to standards set by the U.S.
Page 382: Tire Terminology And Deﬁnitions
Tire Terminology and Deﬁnitions Air Pressure: The amount of air inside the tire pressing outward on each square inch of the tire. Air pressure is expressed in pounds per square inch (psi) or kilopascal (kPa). Accessory Weight: This means the combined weight of optional accessories.
Page 383 GAWR RR: Gross Axle Weight Rating for the rear axle. See Loading Your Vehicle on page 290. Intended Outboard Sidewall: The side of an asymmetrical tire, that must always face outward when mounted on a vehicle. Kilopascal (kPa): The metric unit for air pressure. Light Truck (LT-Metric) Tire: A tire used on light duty trucks and some multipurpose passenger vehicles.
Page 384 Radial Ply Tire: A pneumatic tire in which the ply cords that extend to the beads are laid at 90 degrees to the centerline of the tread. Rim: A metal support for a tire and upon which the tire beads are seated. Sidewall: The portion of a tire between the tread and the bead.
Page 385: Inﬂation - Tire Pressure
Inﬂation - Tire Pressure Tires need the correct amount of air pressure to operate effectively. Notice: Do not let anyone tell you that under-inﬂation or over-inﬂation is all right. It is not. If your tires do not have enough air (under-inﬂation), you can get the following: •...
Page 386: Tire Pressure Monitor System
How to Check Use a good quality pocket-type gage to check tire pressure. You cannot tell if your tires are properly inﬂated simply by looking at them. Radial tires may look properly inﬂated even when they are underinﬂated. Check the tire’s inﬂation pressure when the tires are cold.
Page 387 For additional information and details about the DIC operation and displays see DIC Controls and Displays on page 196 and DIC Warnings and Messages on page 200. You may notice, during cooler weather conditions, that the low tire pressure warning light and the DIC LOW TIRE message may come on when the vehicle is ﬁrst started, and then turn off as you start to drive.
Page 388 Please note that the TPMS is not a substitute for proper tire maintenance, and it is the driver’s responsibility to maintain correct tire pressure, even if under-inﬂation has not reached the level to trigger illumination of the TPMS low tire pressure telltale. Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the system is not operating properly.
Page 389 TPMS Sensor Identiﬁcation Codes Each TPMS sensor has a unique identiﬁcation code. Any time you replace one or more of the TPMS sensors or rotate your vehicle’s tires, the identiﬁcation codes will need to be matched to the new tire/wheel position. The sensors are matched to the tire/wheel positions in the following order: driver’s side front tire, passenger’s side front tire, passenger’s side rear tire, and...
Page 390 5. Remove the valve cap from the valve cap stem. Activate the TPMS sensor by increasing or decreasing the tire’s air pressure for 10 seconds, then stop and listen for a single horn chirp. The single horn chirp should sound within 15 seconds, conﬁrming that the sensor identiﬁcation code has been matched to this tire and wheel position.
Page 391: Tire Inspection And Rotation
Federal Communications Commission (FCC) and Industry and Science Canada The Tire Pressure Monitor System (TPMS) operates on a radio frequency and complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference.
Page 392 When rotating your tires, always use one of the correct rotation patterns shown here. If your vehicle has a compact spare tire or a spare tire that does not match your vehicle’s road tires and wheels, in size and type, do not include the spare in the tire rotation.
Page 393: When It Is Time For New Tires
When It Is Time for New Tires One way to tell when it is time for new tires is to check the treadwear indicators, which will appear when your tires have only 1/16 inch (1.6 mm) or less of tread remaining.
Page 394: Buying New Tires
Buying New Tires GM has developed and matched speciﬁc tires for your vehicle. The original equipment tires installed on your vehicle, when it was new, were designed to meet General Motors Tire Performance Criteria Speciﬁcation (TPC spec) system rating. If you need replacement tires, GM strongly recommends that you get tires with the same TPC Spec rating.
Page 395 CAUTION: (Continued) Your vehicle may have a compact spare tire and wheel assembly. If the vehicle has a compact spare tire and wheel, they have the same overall diameter as your vehicle’s full-size tires and wheels. Because they were designed and developed for use on your vehicle, it is all right to drive your vehicle with the compact spare installed properly.
Page 396: Different Size Tires And Wheels
Different Size Tires and Wheels If you add wheels or tires that are a different size than your original equipment wheels and tires, this may affect the way your vehicle performs, including its braking, ride and handling characteristics, stability, and resistance to rollover.
Page 397: Uniform Tire Quality Grading
Uniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example: Treadwear 200 Traction AA Temperature A The following information relates to the system developed by the United States National Highway Traffic Safety Administration (NHTSA), which grades tires by treadwear, traction, and temperature performance.
Page 398: Wheel Alignment And Tire Balance
Temperature – A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a speciﬁed indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire...
Page 399 Your dealer will know the kind of wheel you need. Each new wheel should have the same load-carrying capacity, diameter, width, offset and be mounted the same way as the one it replaces. If you need to replace any of your wheels, wheel bolts, or wheel nuts, replace them only with new GM original equipment parts.
Page 400: Tire Chains
Tire Chains CAUTION: If your vehicle has P225/75R15, P265/ 75R15, P235/75R15, or P235/50R18 size tires, do not use tire chains. They can damage your vehicle because there is not enough clearance. Tire chains used on a vehicle without the proper amount of clearance can cause damage to the brakes, suspension, or other vehicle parts.
Page 401: If A Tire Goes Flat
If a Tire Goes Flat It is unusual for a tire to blowout while you are driving, especially if you maintain your vehicle’s tires properly. If air goes out of a tire, it is much more likely to leak out slowly. But if you should ever have a blowout, here are a few tips about what to expect and what to do: If a front tire fails, the ﬂat tire will create a drag...
Page 402: Changing A Flat Tire
Changing a Flat Tire If a tire goes ﬂat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your hazard warning ﬂashers. See Hazard Warning Flashers on page 160 for more information. CAUTION: Changing a tire can be dangerous. The vehicle can slip off the jack and roll over or fall on you or other people.
Page 403: Removing The Spare Tire And Tools
When your vehicle has a ﬂat tire, use the following example as a guide to assist you in the placement of the wheel blocks. The following information will tell you next how to use the jack and change a tire. Removing the Spare Tire and Tools The tools you will need are located under the passenger’s seat.
Page 404 To access the tools, do the following: 1. Move the seats Extended/Regular Cab 2. Turn the wing nut on the cover counterclockwise to remove it. For crew cab models, reach under the rear seat to access the jack and wheel blocks. To reinstall the jack and wheel block assembly in the mounting bracket, insert the tabs into the jack base by pushing the blocks up into...
Page 405 A. Jack Handle C. Extension Tool Extensions D. Wheel Wrench B. Jack E. Wheel Blocks 1. Assemble the wheel wrench (D) and the jack handle extensions (A). 2. Insert the hoist end (chiseled end) of the extension tool (C) through the hole in the rear bumper and into the funnel-shaped guide.
Page 406: Removing The Flat Tire And Installing The Spare Tire
3. Turn the wheel wrench (D) counterclockwise to lower the spare tire to the ground. Continue to turn the wheel wrench until the spare tire can be pulled out from under the vehicle. If the spare tire does not lower to the ground, the secondary latch is engaged causing the tire not to lower.
Page 407 1. Remove the center cap by placing the chisel end of the wheel wrench (E) into one of the slots on the wheel and gently prying the cap out. If your vehicle has the Xtreme package, remove each wheel nut cap with the wheel wrench and remove the center cap by hand.
Page 408 CAUTION: Getting under a vehicle when it is jacked up is dangerous. If the vehicle slips off the jack you could be badly injured or killed. Never get under a vehicle when it is supported only by a jack. CAUTION: Raising your vehicle with the jack improperly positioned can damage the vehicle and even make the vehicle fall.
Page 409 Front Position If the ﬂat tire is on the front of the vehicle, position the jack to the rear of the front tire in the pocket off of the frame. Rear Position If the ﬂat tire is on the rear, position the jack under the rear axle and get as close as possible to the shock absorber.
Page 410 6. Remove all the CAUTION: Rust or dirt on the wheel, or on the parts to which it is fastened, can make the wheel nuts become loose after time. The wheel could come off and cause an accident. When you change a wheel, remove any rust or dirt from the places where the wheel attaches to the vehicle.
Page 411 CAUTION: Never use oil or grease on studs or nuts. If you do, the nuts might come loose. Your wheel could fall off, causing a serious accident. 9. Put the wheel nuts back on with the rounded end of the nuts toward the wheel.
Page 412 Rear Position 10. Turn the wheel wrench counterclockwise to lower the vehicle. Lower the jack completely. CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to an accident. Be sure to use the correct wheel nuts.
Page 413 Notice: Improperly tightened wheel nuts can lead to brake pulsation and rotor damage. To avoid expensive brake repairs, evenly tighten the wheel nuts in the proper sequence and to the proper torque speciﬁcation. See Capacities and Speciﬁcations on page 439 for the wheel nut torque speciﬁcation.
Page 414: Secondary Latch System
Secondary Latch System Your vehicle has an underbody-mounted tire hoist assembly that has a secondary latch system. It is designed to stop the spare tire from suddenly falling off your vehicle. For the secondary latch to work, the spare must be installed with the valve stem pointing down.
Page 415 3. Loosen the cable by turning the wheel wrench counterclockwise three or four turns. 4. Repeat this procedure at least two times. If the spare tire lowers to the ground, continue with Step 5 under Removing the Spare Tire and Tools on page 403. 5.
Page 416 8. Attach the jack handle, extension, and wheel wrench to the jack and place it (with the wheel blocks) under the vehicle towards the front of the rear bumper. Position the center lift point of the jack under the wheel. 9.
Page 417 CAUTION: Someone standing too close during the procedure could be injured by the jack. If the spare tire does not slide off the jack completely, make sure no one is behind you or on either side of you as you pull the jack out from the under spare.
Page 418: Storing A Flat Or Spare Tire And Tools
Storing a Flat or Spare Tire and Tools CAUTION: Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place.
Page 419 3. Attach the wheel wrench and extensions together as shown. 4. Insert the hoist end of the extension through the hole in the rear bumper and into the funnel-shaped guide. 5. Turn the wheel wrench clockwise to raise the tire part way up. Make sure the retainer is seated in the wheel opening and the valve stem is pointed down.
Page 420 7. Make sure the tire is stored securely. Push, pull (A), and then try to turn (B) the tire. If the tire moves, check to make sure the tire valve stem is pointing down, then use the wheel wrench to loosen and then tighten the cable.
Page 421 Crew Cab A. Jack B. Wheel Blocks C. Wing Nut A. Jack B. Wheel Blocks C. Wing Nut Regular/Extended Cab...
Page 422: Spare Tire
Spare Tire Compact Spare Tire Your vehicle may have a compact spare tire. Although the compact spare tire was fully inﬂated when your vehicle was new, it can lose air over time. Check the inﬂation pressure regularly. It should be 60 psi (420 kPa). Notice: If your vehicle has four-wheel drive and the compact spare tire is installed on your vehicle, do not drive in four-wheel drive until...
Page 423 Full-Size Spare Tire Your vehicle may have a full-size spare tire, which, when new, was fully inﬂated. A spare tire may lose air over time, so check its inﬂation pressure regularly. See Inﬂation - Tire Pressure on page 385 and Loading Your Vehicle on page 290 for information regarding proper tire inﬂation and loading your vehicle.
Page 424: Appearance Care
Appearance Care Cleaning the Inside of Your Vehicle Your vehicle’s interior will continue to look its best if it is cleaned often. Although not always visible, dust and dirt can accumulate on your upholstery. Dirt can damage carpet, fabric, leather, and plastic surfaces.
Page 425: Fabric/Carpet
Do not clean your vehicle using the following cleaners or techniques: • Never use a knife or any other sharp object to remove a soil from any interior surface. • Never use a stiff brush. It can cause damage to your vehicle’s interior surfaces. •...
Page 426: Leather
4. Continue to gently rub the soiled area until the cleaning cloth remains clean. 5. If the soil is not completely removed, use a mild soap solution and repeat the cleaning process that was used with plain water. If any of the soil remains, a commercial fabric cleaner or spot lifter may be necessary.
Page 427: Instrument Panel, Vinyl, And Other Plastic Surfaces
Instrument Panel, Vinyl, and Other Plastic Surfaces A soft cloth dampened with water may be used to remove dust. If a more thorough cleaning is necessary, a clean soft cloth dampened with a mild soap solution can be used to gently remove dust and dirt.
Page 428: Washing Your Vehicle
Washing Your Vehicle The paint ﬁnish on the vehicle provides beauty, depth of color, gloss retention, and durability. The best way to preserve the vehicle’s ﬁnish is to keep it clean by washing it often with lukewarm or cold water. Do not wash the vehicle in the direct rays of the sun.
Page 429: Windshield And Wiper Blades
Foreign materials such as calcium chloride and other salts, ice melting agents, road oil and tar, tree sap, bird droppings, chemicals from industrial chimneys, etc., can damage your vehicle’s ﬁnish if they remain on painted surfaces. Wash the vehicle as soon as possible. If necessary, use non-abrasive cleaners that are marked safe for painted surfaces to remove foreign matter.
Page 430: Aluminum Or Chrome-Plated Wheels
Aluminum or Chrome-Plated Wheels Your vehicle may have either aluminum or chrome-plated wheels. Keep the wheels clean using a soft clean cloth with mild soap and water. Rinse with clean water. After rinsing thoroughly, dry with a soft clean towel. A wax may then be applied. Notice: If you use strong soaps, chemicals, abrasive polishes, cleaners, brushes, or cleaners that contain acid on aluminum or...
Page 431: Tires
Tires To clean the tires, use a stiff brush with tire cleaner. Notice: Using petroleum-based tire dressing products on your vehicle may damage the paint ﬁnish and/or tires. When applying a tire dressing, always wipe off any overspray from all painted surfaces on your vehicle. Sheet Metal Damage If the vehicle is damaged and requires sheet metal repair or replacement, make sure the body...
Page 432: Underbody Maintenance
Underbody Maintenance Chemicals used for ice and snow removal and dust control can collect on the underbody. If these are not removed, corrosion and rust can develop on the underbody parts such as fuel lines, frame, ﬂoor pan, and exhaust system even though they have corrosion protection.
Page 433: Vehicle Care/Appearance Materials
Vehicle Care/Appearance Materials Description Polishing Cloth Interior and exterior Wax-Treated polishing cloth. Tar and Road Oil Removes tar, road oil, Remover and asphalt. Chrome Cleaner Use on chrome or and Polish stainless steel. White Sidewall Removes soil and black Tire Cleaner marks from whitewalls.
Page 434: Vehicle Identiﬁcation
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This is the legal identiﬁer for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle.
Page 435: Windshield Wiper Fuses
Windshield Wiper Fuses The windshield wiper motor is protected by a circuit breaker and a fuse. If the motor overheats due to heavy snow or ice, the wiper will stop until the motor cools. If the overload is caused by some electrical problem, be sure to get it ﬁxed.
Page 436 Fuses Daylight Running Lamps AUX PWR 1 Accessory Power 1 STOP Brake Switch, Stoplamps BLWR Climate Control Fan S/ROOF Sunroof (If Equipped) Usage PWR/SEAT RT HDLP Fuses Usage Air Conditioning Control Head, Power Seats Power Seat Circuit Breaker (If Equipped) Passenger’s Side Headlamp...
Page 437 Fuses Usage LT HDLP Driver’s Side Headlamp AUX PWR 2 Accessory Power 2 FOG/LAMP Fog Lamps (If Equipped) A/C CMPRSR Air Conditioning Compressor Wiper/Washer Switch Regulated Voltage Control PWR/WNDW Power Windows (If Equipped) FUEL/PUMP Fuel Pump STRTR Starter Solenoid Relay Wiper Anti-lock Brake System 2 ABS 2...
Page 438 Fuses Driver’s Side Rear Taillamp, REAR PRK Passenger Side Airbag Indicator LAMP 2 Lighting, Instrument Panel Dimming Power (2WD/4WD switch lighting) CLSTR Cluster TRN/HAZRD Turn/Hazard/Courtesy/ Cargo Lamps/Mirrors TCCM Transfer Case Control Module HORN Horn Truck Body Controller IGN TRNSD Ignition Transducers Radio ®...
Page 439: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate conversion capacities are given in English and metric conversions. See Recommended Fluids and Lubricants on page 455 for more information. Application Air Conditioning Refrigerant R134a Cooling System 2.9L Engine 3.7L Engine Engine Oil with Filter 2.9L Engine 3.7L Engine Fuel Tank...
Page 440 Application Transmission (Drain and Reﬁll) Automatic Manual – Two-Wheel Drive Manual – Four-Wheel Drive Wheel Nut Torque All capacities are approximate. When adding, be sure to ﬁll to the appropriate level or as recommended in this manual. Recheck ﬂuid level after ﬁlling. Type 2.9L 3.7L...
Page 441: Maintenance Schedule
Section 6 Maintenance Schedule ... 442 Introduction ... 442 Maintenance Requirements ... 442 Your Vehicle and the Environment ... 442 Using the Maintenance Schedule ... 443 Scheduled Maintenance ... 445 Additional Required Services ... 448 Maintenance Footnotes ... 449 Maintenance Schedule Owner Checks and Services ...
Page 442: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer for details. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts, and...
Page 443: Using The Maintenance Schedule
Using the Maintenance Schedule We at General Motors want to help you keep your vehicle in good working condition. But we do not know exactly how you will drive it. You may drive very short distances only a few times a week. Or you may drive long distances all the time in very hot, dusty weather.
Page 444 The services in Scheduled Maintenance on page 445 should be performed when indicated. See Additional Required Services on page 448 and Maintenance Footnotes on page 449 for further information. CAUTION: Performing maintenance work on a vehicle can be dangerous. In trying to do some jobs, you can be seriously injured.
Page 445: Scheduled Maintenance
Scheduled Maintenance When the CHANGE OIL message comes on, it means that service is required for your vehicle. See DIC Warnings and Messages on page 200. Have your vehicle serviced as soon as possible within the next 600 miles (1 000 km). It is possible that, if you are driving under the best conditions, the engine oil life system may not indicate that vehicle service is necessary for over a year.
Page 446 Maintenance I — Use Maintenance I if the CHANGE OIL message comes on within 10 months since the vehicle was purchased or Maintenance II was performed. Change engine oil and ﬁlter. See Engine Oil on page 333. Reset oil life system. See Engine Oil Life System on page 336.
Page 447 Scheduled Maintenance (cont’d) Service Maintenance I Maintenance II Check engine coolant and windshield washer ﬂuid levels and add ﬂuid as needed. Perform any needed additional services. See “Additional Required Services” in this section. Inspect suspension and steering components. See footnote (b). Inspect engine cooling system.
Page 448: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 449: Maintenance Footnotes
Service and Miles (Kilometers) Engine cooling system service (or every ﬁve years, whichever occurs ﬁrst). An Emission Control Service. See footnote (i). Inspect engine accessory drive belt. An Emission Control Service. See footnote (k). Maintenance Footnotes (a) Visually inspect brake lines and hoses for proper hook-up, binding, leaks, cracks, chaﬁng, etc.
Page 450 (d) Visually inspect wiper blades for wear or cracking. Replace wiper blades that appear worn or damaged or that streak or miss areas of the windshield. (e) Make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors, and anchorages are working properly.
Page 451: Owner Checks And Services
Owner Checks and Services These owner checks and services should be performed at the intervals speciﬁed to help ensure the safety, dependability, and emission control performance of your vehicle. Your GM ® Goodwrench dealer can assist you with these checks and services. Be sure any necessary repairs are completed at once.
Page 452: At Least Once A Month
At Least Once a Month Tire Inﬂation Check Visually inspect your vehicle’s tires and make sure they are inﬂated to the correct pressures. Do not forget to check the spare tire. See Inﬂation - Tire Pressure on page 385. Check to make sure the spare tire is stored securely.
Page 453 3. On automatic transmission vehicles, try to start the engine in each gear. The vehicle should start only in PARK (P) or NEUTRAL (N). If the vehicle starts in any other position, contact ® your GM Goodwrench dealer for service. On manual transmission vehicles, put the shift lever in NEUTRAL (N), push the clutch pedal down halfway, and try to start the engine.
Page 454 Ignition Transmission Lock Check While parked, and with the parking brake set, try to turn the ignition to LOCK in each shift lever position. • With an automatic transmission, the ignition should turn to LOCK only when the shift lever is in PARK (P). The ignition key should come out only in LOCK.
Page 455: Recommended Fluids And Lubricants
Park on a fairly steep hill, with the vehicle facing downhill. Keeping your foot on the regular brake, set the parking brake. • To check the parking brake’s holding ability: With the engine running and transmission in NEUTRAL (N), slowly remove foot pressure from the regular brake pedal.
Page 456 Usage Fluid/Lubricant Chassis Lubricant (GM Part No. U.S. 12377985, in Parking Brake Canada 88901242) or lubricant Cable Guides meeting requirements of NLGI #2, Category LB or GC-LB. GM Power Steering Fluid Power Steering (GM Part No. U.S. 89021184, in System Canada 89021186).
Page 457 Usage Fluid/Lubricant Hood and Door Hinges, Body Door Hinge Pins, Liftgate Multi-Purpose Lubricant, Superlube Hinge and (GM Part No. U.S. 12346241, in Linkage, Canada 10953474). Folding Seats, and Fuel Door Hinge Outer Tailgate Multi-Purpose Lubricant, Superlube Handle Pivot (GM Part No. U.S. 12346241, in Points and Canada 10953474).
Page 458: Normal Maintenance Replacement Parts
Normal Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your GM dealer. Part Engine Air Cleaner/Filter Engine Oil Filter 2.9L Engine 3.7L Engine Spark Plugs Windshield Wiper Blades Driver’s Side — 22 inches (55 cm) Passenger’s Side —...
Page 459: Engine Drive Belt Routing
Engine Drive Belt Routing 2.9L and 3.7L Engine without air 2.9L and 3.7L Engines with air...
Page 460: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. See Maintenance Requirements on page 442. Any additional information from Owner Checks and Services on page 451 can be added on the following record pages.
Page 461 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II...
Page 462 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II...
Page 463: Customer Assistance Information
Section 7 Customer Assistance and Information ... 464 Customer Satisfaction Procedure ... 464 Online Owner Center ... 467 Customer Assistance for Text Telephone (TTY) Users ... 468 Customer Assistance Offices ... 468 GM Mobility Reimbursement Program ... 469 Roadside Assistance Program ... 470 Courtesy Transportation ...
Page 464: Customer Assistance And Information
STEP TWO: If after contacting a member of dealership management, it appears your concern cannot be resolved by the dealership without further help, in the U.S., contact the Chevrolet Customer Assistance Center by calling 1-800-222-1020. In Canada, contact General Motors of Canada Customer Communication Centre by calling 1-800-263-3777 (English) or 1-800-263-7854 (French).
Page 465 STEP THREE — U.S. Owners: Both General Motors and your dealer are committed to making sure you are completely satisﬁed with your new vehicle. However, if you continue to remain unsatisﬁed after following the procedure outlined in Steps 1 and 2, you should ﬁle with the BBB Auto Line Program to enforce your rights.
Page 466 STEP THREE — Canadian Owners: In the event that you do not feel your concerns have been addressed after following the procedure outlined in Steps 1 and 2, General Motors of Canada Limited wants you to be aware of its participation in a no-charge Mediation/Arbitration Program.
Page 467: Online Owner Center
Online Owner Center Online Owner Center (United States only) The Owner Center is a resource for your GM ownership needs. Speciﬁc vehicle information can be found in one place. The Online Owner Center allows you to: • Get e-mail service reminders. •...
Page 468: Customer Assistance For Text
(TTY users in Canada can dial 1-800-263-3830.) Customer Assistance Offices Chevrolet encourages customers to call the toll-free number for assistance. However, if a customer wishes to write or e-mail Chevrolet, the letter should be addressed to: United States — Customer Assistance Chevrolet Motor Division Chevrolet Customer Assistance Center P.O.
Page 469: Gm Mobility Reimbursement Program
Overseas — Customer Assistance Please contact the local General Motors Business Unit. Mexico, Central America and Caribbean Islands/Countries (Except Puerto Rico and U.S. Virgin Islands) — Customer Assistance General Motors de Mexico, S. de R.L. de C.V. Customer Assistance Center Paseo de la Reforma # 2740 Col.
Page 470: Roadside Assistance Program
(1-800-243-8872) In Canada, call 1-800-268-6800 Service available 24 hours a day, 365 days a year. As the owner of a new Chevrolet vehicle, you are automatically enrolled in the Chevrolet Roadside Assistance program. This value-added service is intended to provide you with peace of mind as you drive in the city or travel the open road.
Page 471 • Emergency Tow From a Public Roadway or Highway: Tow to the nearest dealership for warranty service or in the event of a vehicle-disabling accident. Winch-out assistance when the vehicle is mired in sand, mud, or snow. • Flat Tire Change: If your vehicle has a spare tire, installation of the tire in good condition will be covered at no charge.
Page 472 While we hope you never have the occasion to use our service, it is added security while traveling for you and your family. Remember, we are only a phone call away. U.S. customers call Chevrolet Roadside Assistance: 1-800-CHEV-USA (1-800-243-8872), text telephone (TTY) users, call 1-888-889-2438, Canadian customers call 1-800-268-6800.
Page 473: Courtesy Transportation
Chevrolet and General Motors of Canada Limited reserve the right to limit services or reimbursement to an owner or driver when, in their sole discretion, the claims become excessive in frequency or type of occurrence. Roadside Assistance is not part of or included in the coverage provided by the New Vehicle Limited Warranty.
Page 474 Scheduling Service Appointments When your vehicle requires warranty service, you should contact your dealer and request an appointment. By scheduling a service appointment and advising your service consultant of your transportation needs, your dealer can help minimize your inconvenience. If your vehicle cannot be scheduled into the service department immediately, keep driving it until it can be scheduled for service, unless, of course, the problem is safety-related.
Page 475 Public Transportation or Fuel Reimbursement If your vehicle requires overnight warranty repairs, and public transportation is used as ‘shuttle service,’ the reimbursement is limited to the associated shuttle allowance and must be supported by original receipts. In addition, for U.S. customers, should you arrange transportation through a friend or relative, limited reimbursement for reasonable fuel expenses may be available.
Page 476: Vehicle Data Collection And Event
Vehicle Data Collection and Event Data Recorders Your vehicle, like other modern motor vehicles, has a number of sophisticated computer systems that monitor and control several aspects of the vehicle’s performance. Your vehicle uses on-board vehicle computers to monitor emission control components to optimize fuel economy, to monitor conditions for airbag deployment and, if the vehicle has the Anti-lock Brake System (ABS), to provide anti-lock...
Page 477: Collision Damage Repair
In addition, once GM collects or receives data, GM may: • use the data for GM research needs, • make it available for research where appropriate conﬁdentiality is to be maintained and need is shown, or • share summary data which is not tied to a speciﬁc vehicle with non-GM organizations for research purposes.
Page 478 A recycled original equipment GM part, may be an acceptable choice to maintain your vehicle’s originally designed appearance and safety performance, however, the history of these parts is not known. Such parts are not covered by your GM New Vehicle Limited Warranty, and any related failures are not covered by that warranty.
Page 479 If an Accident Occurs Here is what to do if you are involved in an accident. • Try to relax and then check to make sure you are all right. If you are uninjured, make sure that no one else in your vehicle, or the other vehicle, is injured.
Page 480 • Choose a reputable collision repair facility for your vehicle. Whether you select a GM dealer or a private collision repair facility to ﬁx the damage, make sure you are comfortable with them. Remember, you will have to feel comfortable with their work for a long time. •...
Page 481: Reporting Safety Defects
General Motors In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you will notify General Motors. Please call the Chevrolet Customer Assistance Center at 1-800-222-1020, or write: Chevrolet Motor Division Chevrolet Customer Assistance Center P.O.
Page 482: Service Publications Ordering Information
In Canada, please call us at 1-800-263-3777 (English) or 1-800-263-7854 (French). Or, write: General Motors of Canada Limited Customer Communication Centre, CA1-163-005 1908 Colonel Sam Drive Oshawa, Ontario L1H 8P7 Service Publications Ordering Information Service Manuals Service Manuals have the diagnosis and repair information on engines, transmission, axle suspension, brakes, electrical, steering, body, etc.
Page 483 Owner Information Owner publications are written speciﬁcally for owners and intended to provide basic operational information about the vehicle. The owner manual will include the Maintenance Schedule for all models. In-Portfolio: Includes a Portfolio, Owner Manual, and Warranty Booklet. RETAIL SELL PRICE: $35.00 US + Processing Fee Without Portfolio: Owner’s Manual only.
Page 484 NOTES...
Page 485 Accessories and Modiﬁcations ... 323 Accessory Power Outlet(s) ... 174 Adding Equipment to Your Airbag- Equipped Vehicle ... 93 Additives, Fuel ... 326 Add-On Electrical Equipment ... 434 Air Cleaner/Filter, Engine ... 338 Air Conditioning ... 176 Airbag Passenger Status Indicator ... 184 Readiness Light ...
Page 486 Appearance Care (cont.) Underbody Maintenance ... 432 Vehicle Care/Appearance Materials ... 433 Washing Your Vehicle ... 428 Weatherstrips ... 427 Windshield and Wiper Blades ... 429 Ashtray(s) ... 175 Assist Handles ... 151 Audio System(s) ... 205 AM-FM Radio ... 207 Care of Your CD Player ...
Page 487 Bulb Replacement ... 370 Center High-Mounted Stoplamp (CHMSL) ... 372 Front Turn Signal, Parking and Daytime Running Lamps ... 372 Halogen Bulbs ... 370 Headlamps ... 371 License Plate Lamps ... 374 Replacement Bulbs ... 374 Taillamps, Turn Signal, Stoplamps and Back-up Lamps ...
Page 488 Cleaning Aluminum or Chrome-Plated Wheels ... 430 Exterior Lamps/Lenses ... 428 Fabric/Carpet ... 425 Finish Care ... 428 Inside of Your Vehicle ... 424 Instrument Panel, Vinyl, and Other Plastic Surfaces ... 427 Leather ... 426 Tires ... 431 Underbody Maintenance ... 432 Washing Your Vehicle ...
Page 489 Daytime Running Lamps ... 170 Daytime Running Lamps Indicator Light ... 195 Defensive Driving ... 246 Disc, MP3 ... 234 Doing Your Own Service Work ... 324 Dome Lamp ... 173 Dome Lamp Override ... 173 Door Locks ... 104 Power Door Locks ...
Page 490 Engine (cont.) Coolant Temperature Gage ... 189 Drive Belt Routing ... 459 Engine Compartment Overview ... 332 Exhaust ... 136 Fan Noise ... 355 Oil ... 333 Oil Life System ... 336 Overheating ... 348 Starting ... 118 Event Data Recorders (EDR) ... 476 Exit Lighting ...
Page 491 Gage Engine Coolant Temperature ... 189 Fuel ... 195 Speedometer ... 181 Tachometer ... 181 Gasoline Octane ... 325 Speciﬁcations ... 325 Glove Box ... 150 GM Mobility Reimbursement Program ... 469 Hazard Warning Flashers ... 160 Head Restraints ... 15 Headlamps ...
Page 492 Jump Starting ... 362 Keyless Entry System ... 101 Keys ... 99 Labeling, Tire Sidewall ... 378 Lamps Battery Run-Down Protection ... 174 Dome ... 173 Dome Lamp Override ... 173 Electric Power Management ... 173 Exterior ... 168 Exterior Cargo ... 172 Fog ...
Page 493 Lighting Exit ... 173 Limited-Slip Rear Axle ... 254 Loading Your Vehicle ... 290 Lockout Protection ... 107 Locks Door ... 104 Lockout Protection ... 107 Power Door ... 105 Programmable Automatic Door Locks ... 106 Rear Door Security Locks ... 106 Loss of Control ...
Page 494 Mirrors Automatic Dimming Rearview with Compass and Temperature Display ... 142 Automatic Dimming Rearview with ® OnStar , Compass and Temperature Display ... 139 Manual Rearview Mirror ... 138 Manual Rearview Mirror with OnStar Outside Convex Mirror ... 146 Outside Manual Mirrors ... 145 Outside Power Mirrors ...
Page 495 Parking Brake ... 130 Over Things That Burn ... 135 Parking Your Vehicle ... 134 Passenger Airbag Status Indicator ... 184 Passenger Sensing System ... 86 Passing ... 257 ® Passlock ... 114 Pickup Conversion to Chassis Cab ... 296 Power Accessory Outlet(s) ...
Page 496 Rearview Mirror, Automatic Dimming with ® OnStar , Compass and Temperature Display ... 139 ® Rearview Mirror with OnStar Rearview Mirrors ... 138 Reclining Seatbacks ... 12 Recommended Fluids and Lubricants ... 455 Recovery Hooks ... 289 Recreational Vehicle Towing ... 297 Remote Keyless Entry (RKE) System ...
Page 497 Safety Belts (cont.) Right Front Passenger Position ... 34 Safety Belt Extender ... 42 Safety Belt Use During Pregnancy ... 34 Safety Belts Are for Everyone ... 20 Shoulder Belt Height Adjuster ... 33 Safety Warnings and Symbols ... 4 Scheduled Maintenance ...
Page 498 Speciﬁcations, Capacities ... 439 Speedometer ... 181 Starting Your Engine ... 118 Steering ... 255 Steering Wheel, Tilt Wheel ... 161 Storage Areas Cupholder(s) ... 150 Front Armrest Storage Area ... 151 Glove Box ... 150 Rear Storage Area ... 151 Stuck in Sand, Mud, Ice, or Snow ...
Page 499 Tires (cont.) Wheel Replacement ... 398 When It Is Time for New Tires ... 393 Towing Recreational Vehicle ... 297 Towing a Trailer ... 305 Your Vehicle ... 297 Traction Control System (TCS) ... 253 Limited-Slip Rear Axle ... 254 Trailer Recommendations ...
Page 500 Warning Lights, Gages and Indicators ... 179 Warnings DIC Warnings and Messages ... 200 Hazard Warning Flashers ... 160 Other Warning Devices ... 160 Safety and Symbols ... 4 Vehicle Damage ... 5 Wheels Alignment and Tire Balance ... 398 Different Size ...
