Nittan EV-2I1O Installation Instructions

EV-2I1O (-EU) – Dual Input
EN 54-17: 2005 / AC: 2007 – Short Circuit Isolators
Single Output Module with
EN 54-18: 2005 / AC: 2007 – Input / Output Devices
Isolator
For use with Nittan Evolution Protocol Only.
19
0359
Max sw close voltage (Vsc max): 10 Vdc
Max switching current (Is max): 1500 mA
DoP Number: 00641
Max switch resistance (Zc max): 150 mΩ
Max. relative humidity: 95%RH, non-condensing

RoHS Compliance Statement

This product complies with the European Union RoHS (Restriction of Hazardous Substances)
directive 2011/65/EU which restricts the use of the following six hazardous materials in the
manufacture of electronic and electrical equipment.
• Lead (Pb)
• Hexavalent Chromium
• Mercury (Hg)
• Cadmium (Cd)
• Polybrominated biphenyls (PBB's)
• Polybrominated diphenyl ethers (PBDE's)
Page 8
www.acornfiresecurity.com
Loop Voltage: 20 to 38 Vdc
Quiescent Current: 720µA
Alarm Current: 5.5mA
Loop resistance : : : : < 50 ohm/ km
Input line resistance : : : : < 50 ohm/ km
EOL resistor: 10k ohm
Input resistance: 470 ohm or 680 ohm
Input threshold level: ON ： ： ： ： < 680 ohm,
Short ： ： ： ： < 50 ohm,
Open > 20k ohm
： ： ： ：
Relay Contact rating: 5A at 240Vac
Or 5A at 30 Vdc
Min sw open voltage (Vso min): 11 Vdc
Max sw open voltage (Vso max): 14 Vdc
Min sw close voltage (Vsc min): 3 Vdc
Max line current (Ic max): 500 mA
Max leakage current (Il max): 15 mA
2
Wire size: Min. 0.75mm
2
Max. 2.5mm
Operating temperature: -10°C to 55°C
Storage temperature: -40°C to 80°C
Mass EV-2I1O: 175g
Mass EV-2I1O-EU: 140g
Technical Data Sheet: TD-EV-2I1O(-EU)
www.acornfiresecurity.com
EV-2I1O (-EU) Installation instructions
NOTE: Please read these instructions carefully and keep for future reference. The
information in this document is subject to change without notice. For updates please refer
to our website.
NOTE: Follow the requirements for the installation of the product in accordance with the
Specifications. Otherwise it may cause malfunction
NOTE: Do not install the product in any location where oil, dust, iron powder, chemicals, or
hydrogen sulphide may occur or affect the product. It may cause malfunction.
This package contains the following items:
Main unit: x 1
EOL resistor: 10k ohm x 2
Alarm Resistor: 680 ohm x 2
Jumper: x 1
Allen Key x 1
Mounting Screws M3.5 x 25mm x 2 (EV-2I1O Only)
Manual: (this document) x 1

General Description

The EV-2I1O (-EU) Dual Input / Single Output Module is an addressable input/output
module with short circuit isolator. The module provides two supervised inputs (Class B) and
one dry contact relay output rated at 5A@240Vac. The EV-2I1O uses UK 2-gang box with
surface and flush mount options, and the EV-2I1O-EU uses European 503 electrical box
flush-mounted.
Two inputs are monitored to detect normal/input/open/short state, which can be used as
general purpose inputs.
The relay output is used for the control of equipment such as dampers and extractors for
ventilation or smoke control system. The relay contact is monitored to detect the
condition (on /off /relay stuck).

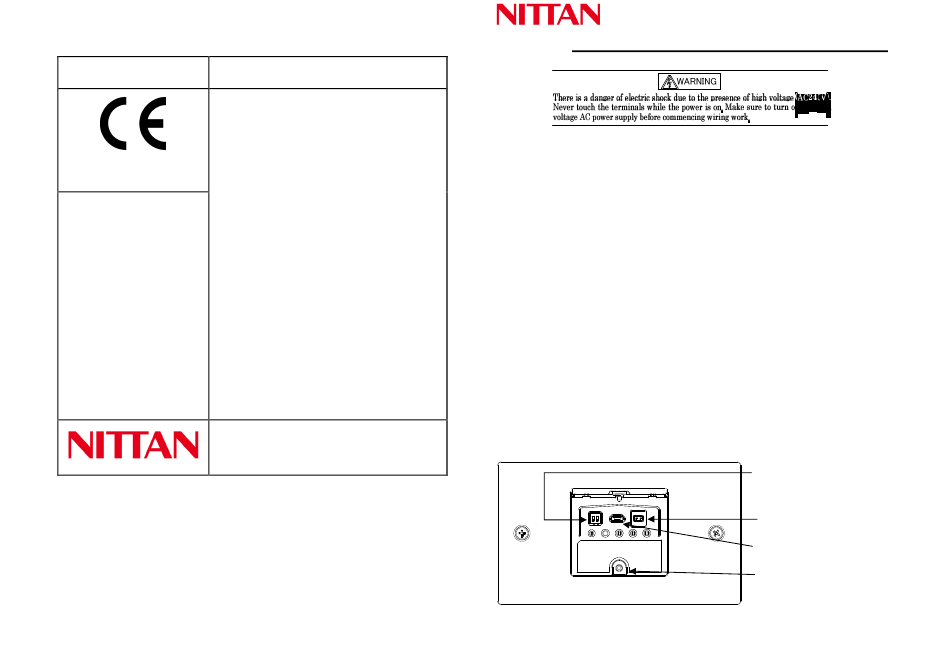

Figure 1
Page 1
DIP Switch:
1: Output: Normal/Failsafe
2: Input 1: N.O. / N.C.
SCI Disable Jumper
Address Setting Port
Allen Key Cover Screw
IIS-EV-2I1O (-EU) Issue 4 04/03/2019
