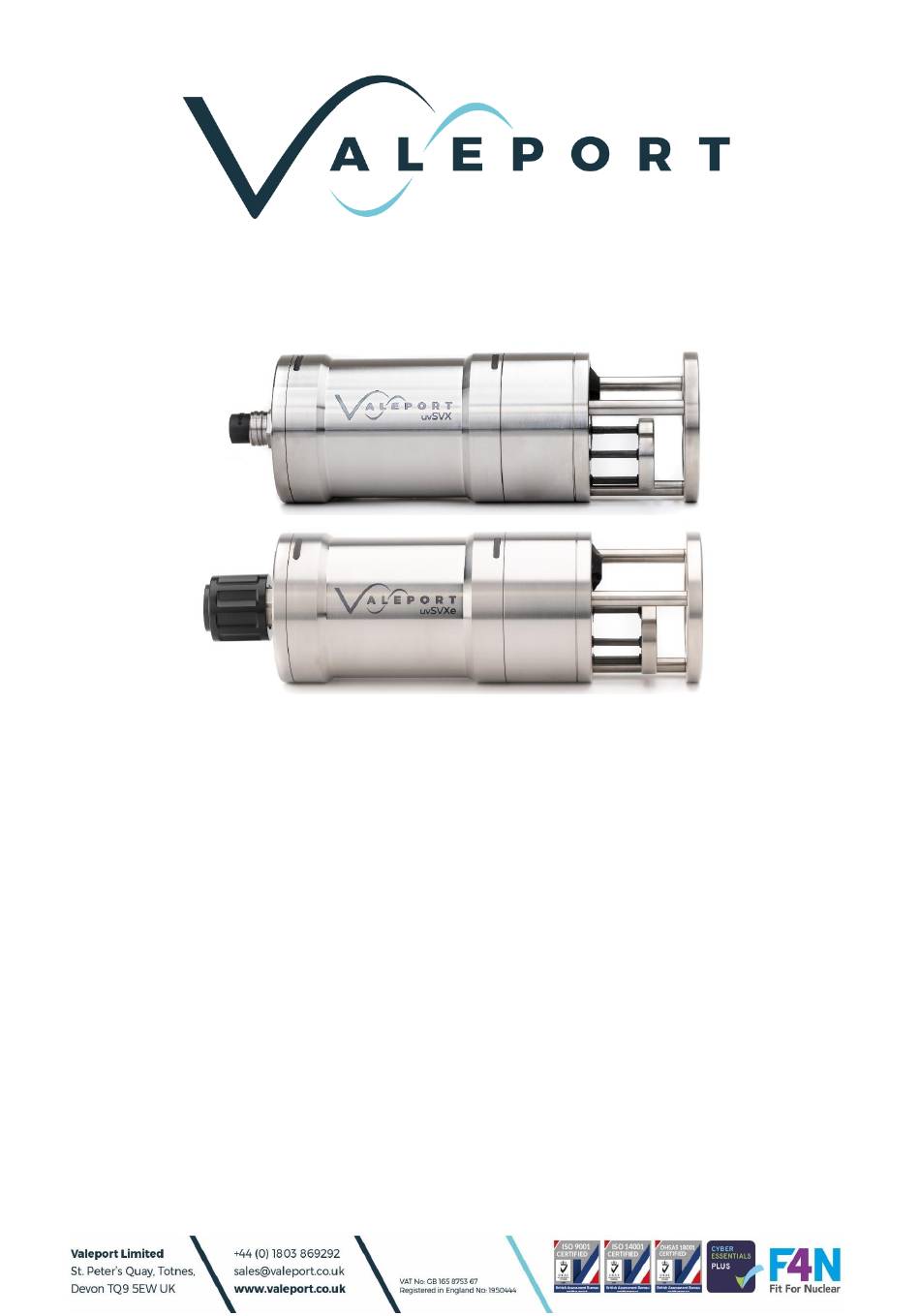

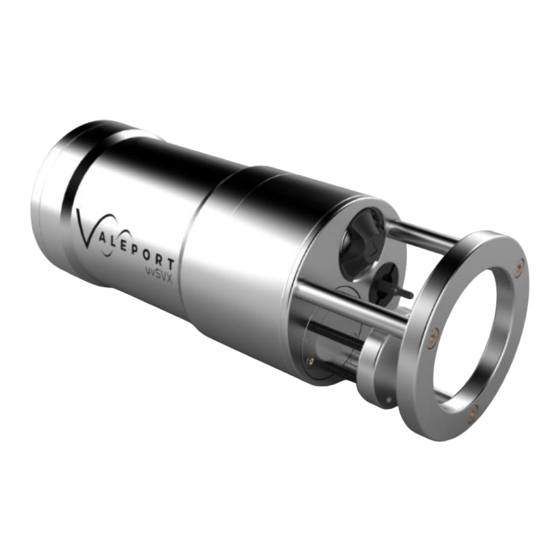

uvSVX and uvSVXe Operating Manual
Document ID
MANUAL-857569191-11 | issue: 1.7
Date:
July 2021
This confidential document was prepared by the staff of Valeport Limited, the Company, and is the
property of the Company, which also owns the copyright therein. All rights conferred by the law of
the copyright and by virtue of international copyright conventions are reserved to the Company.
This document must not be copied, reprinted or reproduced in any material form, either wholly or in
part, and the contents of this document, and any method or technique available there from, must
not be disclosed to any other person whatsoever without the prior written consent of the Company.
© 2021 Valeport Ltd
Valeport Ltd
St Peter's Quay
Totnes TQ9 5EW
United Kingdom
As part of our policy of continuous development, we reserve the right to alter, without prior notice,
all specifications, designs, prices and conditions of supply for all our equipment
Phone:
+44 1803 869292
email:
sales@valeport.co.uk
Web:
www.valeport.co.uk
Advertisement
Table of Contents
Related Manuals for Valeport uvSVX
Summary of Contents for Valeport uvSVX
- Page 1 Date: July 2021 This confidential document was prepared by the staff of Valeport Limited, the Company, and is the property of the Company, which also owns the copyright therein. All rights conferred by the law of the copyright and by virtue of international copyright conventions are reserved to the Company.
-
Page 2: Table Of Contents
4.2.2 Operation with Valeport Configure ................12 4.2.3 Operation with DataLog x2 ..................13 uvSVX Communications Setup ..................14 Setting Up the uvSVX ....................... 15 Start / Stop.......................... 15 5.1.1 Output Last Measured Reading ................15 Information #Codes ......................16 Sampling Modes......................... - Page 3 Contents Software ............................ 27 Setup Using the Valeport Configure App ................27 Interface to the uvSVX – Serial Data ................ 27 8.1.1 Interface to the uvSVXe – Ethernet................28 8.1.2 8.1.3 Configure the Instrument ................... 29 Care & Maintenance ......................... 33 Calibration ..........................
-
Page 5: Introduction
- cost, maintenance and operationally specific pressure ratings. Valeport's DASH equations are included in the uvSVX, as standard and provide a real-time water density output. • Interchangeable Pressure Sensor Module... -
Page 6: Sensors
-5°C to +35°C Resolution: 0.001°C Accuracy: ±0.01°C 2.3 Pressure The uvSVX is fitted with a high accuracy, 0.01% of full scale, temperature compensated piezo- resistive pressure transducer. The Pressure Module is interchangeable Type: Strain Gauge Range: 10, 30, 50, 100, 200, 300, 400 or 600 Bar... -
Page 7: Interchangeable Pressure Sensor Modules
0.40 6000 0.60 Prior to changing out a Pressure Module the uvSVX should be thoroughly rinsed in fresh water and dried. A Pressure Module should ideally be changed in dry lab conditions but if this is not possible every effort must be made to keep water out of the module socket. Check the module and socket for any water and if found dry everything thoroughly before fitting. -
Page 8: Calculated Parameters
Inside the transit case an additional transit case is provided for the Pressure module to allow it to be returned to Valeport for calibration without the need to send the whole instrument. 2.4 Calculated Parameters From directly measured sound velocity, temperature and pressure, SWiFT calculates Salinity using a proprietary Valeport algorithm developed from extensive laboratory and field work. -
Page 9: Physical Characteristics
Operating Manual: MANUAL-857569191-11 | issue 1.7 3 Physical Characteristics 3.1 Materials Housing & Bulkhead: Titanium Screw Cap: Acetal Pressure Transducer Titanium Diaphragm Connector: uvSVX: Standard is SubConn type MCBH6F (titanium) uvSVXe: Standard is SubConn type DBH13F (titanium) -
Page 10: Dimensions - Uvsvxe
Section 3 | Physical Characteristics 3.3 Dimensions - uvSVXe © 2021 – Valeport Ltd Page | 6... -
Page 11: Communications
Operating Manual: MANUAL-857569191-11 | issue 1.7 4 Communications Control of the uvSVX is achieved through the use of “# codes”, as described below. All commands must be “sent” by pressing the Enter key with the exception of the single ‘#’ character required to enter set up mode 4.1 Serial Comms - RS 232 and RS485... -
Page 12: Ethernet Connectivity
Click on the IP Address in the left-hand panel to reveal more information in the right-hand panel Select Web Configuration Select the green arrow to reveal the password entry dialogue Do not enter a Username or Password - simply select OK © 2021 – Valeport Ltd Page | 8... - Page 13 Operating Manual: MANUAL-857569191-11 | issue 1.7 Select: Connection ensure settings are similar to below Protocol: TCP The Local Port number should be less than 10000. Do not select or accept a Local Port number 23 Local Port number 23 is reserved for TelNet...
- Page 14 Options button: and check that you have the correct network adaptor selected. Once a new network adaptor has been selected, click on the Search button: to locate and interface to the uvSVXe. © 2021 – Valeport Ltd Page | 10...
- Page 15 Operating Manual: MANUAL-857569191-11 | issue 1.7 4.2.1.2 Fixed IP To set a fixed IP address for the unit follow the wizard in the Lantronix App © 2021 – Valeport Ltd Page | 11...
-
Page 16: Operation With Valeport Configure
Section 4 | Communications 4.2.2 Operation with Valeport Configure Valeport Configure is now the program of choice to configure a uv instrument. Available from https://Valeport.download download the latest version: © 2021 – Valeport Ltd Page | 12... -
Page 17: Operation With Datalog X2
Operating Manual: MANUAL-857569191-11 | issue 1.7 4.2.3 Operation with DataLog x2 If you prefer you can continue to set the uvSVX up using DataLog X2: Load the latest version of Valeport's configuration software DataLog x2. It can be downloaded from https://Valeport.download. -
Page 18: Uvsvx Communications Setup
All uvSVX addresses begin sampling this function is password protected #006 Read address mode activation status #033;nn Set uvSVX RS485 | Modbus address to any number from 01 to 99 this function is password protected #034 Read address #059;nnnnnn Set the baud rate in the Instrument - factory set to 115200 where nnnnnn = 2400, .., 230400... -
Page 19: Setting Up The Uvsvx
5 Setting Up the uvSVX 5.1 Start / Stop When power is applied to the uvSVX, it will immediately begin to operate according to the settings already programmed. The most basic level of Start / Stop control is, therefore, by switching power on and off. -
Page 20: Information #Codes
The following commands will cause the sensor to report back various pieces of information, as described. You can use Valeport Configure, DataLog X2 or your own terminal program to send # commands to the instrument. #nnn to be followed by <CR><LF>:... -
Page 21: Sampling Modes
#701 Read Modbus activation status and parity status 5.3 Sampling Modes The uvSVX will operate in a number of different modes, only one is for regular use – Continuous Contact Valeport if you have a special requirement # Code Sampling Mode Description #039;1... -
Page 22: Error Flag
Read the Error Flag 5.6 Warning Message If a Pressure Module is not fitted and the uvSVX is deployed, damage can be caused to the instrument. In order to bring this situation to your notice a warning is transmitted on power up and putting the uvSVX into run mode: #028 or the watch dog. -
Page 23: Pressure / Depth Units
Operating Manual: MANUAL-857569191-11 | issue 1.7 5.7 Pressure / Depth Units It is also possible to present the data in units of metres or feet of seawater calculated using the TEOS 10 Simple Pressure / Depth relationship, which assumes “standard”... -
Page 24: Dash Formula
#120;1 enables the equation and includes the fields in the output data strings #121 Read DASH equations activation status: 1 (Enabled) | 0 (Disabled) 5.10 User Calibration It is possible to include a user calibration in the uvSVX. Please contact Valeport for more information how this can be achieved. Code Description #225;... -
Page 25: Data Output Formats
Operating Manual: MANUAL-857569191-11 | issue 1.7 6 Data Output Formats The uvSVX has a selection of different data output formats allowing easy interface to software packages and third-party instrumentation. 6.1 Data String Formatting Code Description #026;n Set the string delimiter Where n = "ASCII character"... -
Page 26: Csv Format
Pressure / Depth (d | M | f) x.xxx Temperature (°C) t.tttt Sound Speed (ms cccc.ccc Salinity (PSU) ssss.sss Density ( dddd.ddd kg/m Output String Examples with DASH disabled 09.812,20.571,1504.164 09.821,20.572,1504.164 with DASH enabled 09.812,20.571,1504.164,0017.811,1011.610 09.821,20.572,1504.164,0017.810,1011.609 © 2021 – Valeport Ltd Page | 22... -
Page 27: Valeport Nmea ($Pvsvx)
Operating Manual: MANUAL-857569191-11 | issue 1.7 6.3 Valeport NMEA ($PVSVX) Command: #082;8 Format: $PVSVX,aa,bbbbb,p.ppp,d.ddd,y,t.ttt,cccc.ccc,ss.sss,dddd.ddd*zz Notes: Field Format NMEA Identifier Instrument address Serial number bbbbb Absolute Pressure (dBar) p.ppp Depth d.ddd Depth type (d | M | f) Temperature (°C) -
Page 28: Svx2 With Salinity
Conductivity CCCC.CCC units MS/CM Output String Examples 1483.576 M/SEC 0010.122 M 0021.291 C 0000.142 MS/CM 1483.578 M/SEC 0010.122 M 0021.293 C 0000.140 MS/CM 1483.578 M/SEC 0010.121 M 0021.284 C 0000.142 MS/CM © 2021 – Valeport Ltd Page | 24... -
Page 29: Data String #1
0009.829 1504131 $PSGDS,ADSVP,0009.829,1504.131,21.964,1130.85*14 6.7 Modbus RTU Modbus RTU as implemented in the uvSVX is an industry standard interface protocol that will run over RS232 or RS485. The Baud rate is variable 4800 to 19200 with 8N1 or 8E1 framing. This conforms to the minimum requirements of the MODBUS standard of 9600 and 19200 baud with 8E1 framing. -
Page 30: Electrical
6 Way Male SubConn (MCIL6M) FUNCTION RS232 GND RS232 Tx (Out of sensor) or RS485A RS232 Rx (Into sensor) or RS485B Link to Pin 1 for RS485 N/C for RS232 Power GND © 2021 – Valeport Ltd Page | 26... -
Page 31: Software
8.1 Setup Using the Valeport Configure App 8.1.1 Interface to the uvSVX – Serial Data Connect the uvSVX to a suitable COM port and power using the provided Y lead. Use the drop-down lists to select your port, baud rate and Instrument Configure file as required. -
Page 32: Interface To The Uvsvxe - Ethernet
You can look up the IP Address and Port that the uvSVXe is configured with using the Landtronix DeviceInstaller as described in section 4.2 Ethernet Connectivity Click the button. recycling the power may cause the IP Address to be re-assigned © 2021 – Valeport Ltd Page | 28... -
Page 33: Configure The Instrument
Operating Manual: MANUAL-857569191-11 | issue 1.7 8.1.2.1 Valeport Configure App Without an Instrument If you do not have an instrument or would like to setup a configuration file to load into another instrument in preparation for a future deployment, select the tick box on the opening dialogue –... - Page 34 Click on the other Tabs to see relevant information and fine tune your set up, for example Communication: If you are using a uvSVXe baud rate is not available. Hover over the label with your mouse to see the pop-up information window on a particular field: © 2021 – Valeport Ltd Page | 30...
- Page 35 Operating Manual: MANUAL-857569191-11 | issue 1.7 In the example below select a new Sampling Rate and the field label and Tab title will be bold to indicate the change. Hover over the field you have just updated to see what the current setting is and what is set in the instrument (Device): ©...
- Page 36 If you would like to save the configuration for future use click on the File menu (top left) and save the Profile, file. You will use the same menu to open the file into the Configure App to load into an instrument at a later time. © 2021 – Valeport Ltd Page | 32...
-
Page 37: Care & Maintenance
Do not attempt to remove the acetal Lock Screw Cap from the Pressure Module. If debris is caught under the cover attempt to remove it under slowly flowing water, use no tools. If this fails contact Valeport for further advice. If the sensor diaphragm is damaged in any way it will have to be replaced. -
Page 38: Ordering And Part Numbers
Section 10 | Ordering and Part Numbers 10 Ordering and Part Numbers Part No. Description 0650030-XX uvSVX - RS232, RS485, Modbus Fitted with: 25mm Carbon composite time of flight SV sensor 0.01% accuracy Interchangeable piezo-resistive pressure sensor PRT Temperature Sensor... -
Page 39: Declaration Of Conformity
Any changes or modifications to the product or accessories supplied, that are not authorised by Valeport Ltd, could void the compliance of the product and negate your authority to operate it. This product has demonstrated compliance under conditions that include the use of shielded cables. -
Page 40: Uvsvx
Section 11 | Declaration of Conformity 11.1 uvSVX 11.1.1 UK Declaration of Conformity © 2021 – Valeport Ltd Page | 36... -
Page 41: Eu Declaration Of Conformity
Operating Manual: MANUAL-857569191-11 | issue 1.7 11.1.2 EU Declaration of Conformity © 2021 – Valeport Ltd Page | 37... -
Page 42: Interchangeable Pressure Module
Section 11 | Declaration of Conformity 11.2 Interchangeable Pressure Module 11.2.1 UK Declaration of Conformity © 2021 – Valeport Ltd Page | 38... -
Page 43: Eu Declaration Of Conformity
Operating Manual: MANUAL-857569191-11 | issue 1.7 11.2.2 EU Declaration of Conformity © 2021 – Valeport Ltd Page | 39...
