Terra SD-910 Safety Instructions

PARAMETRY TECHNICZNE
Nazwa
Kod
Pasmo pracy [MHz] SAT
DVB-T/Radio
Tłumienie przelotowe [dB] SAT
DVB-T/Radio
Tłumienie w torze odgałęźnym [dB] SAT
DVB-T/Radio
Separacja wejść [dB] SAT/SAT
DVB-T/SAT
Przejście DC
Zakres temperatur pracy [°C]
Wymiary [mm]
Masa [kg]
Draugystes str. 22, LT-51256 Kaunas, Lithuania, tel.: +370 37 - 31 34 44, fax: +370 37 - 31 35 55
E-mail: sales@terraelectronics.com, http://www.terraelectronics.com
SD-910 SD-915 SD-920
R70524 R70525 R70526
950-2400 MHz
5-862 MHz
1.5 1.1 0.8
1.8 1.3 1.1
12...8 17...13 22...18
10 15...16 20
30
30
2 A max.
-20 ÷ + 50
126x135x52
0.82
TAPS SD910, SD915, SD920

PRODUCT DESCRIPTION

This series of taps SD910, SD915 SD920 is intended for use in 9 cables cascaded type satellite and terrestrial TV distribution
networks. Each tap has different tap loss parameter and their proper arrangement in network allows to equalize signal strength
on every tap output.
The taps meet shielding requirements of class A according standard EN 50083-2.
The taps are intended for indoor use only.
SAFETY INSTRUCTIONS
Installation of the taps must be done according IEC60728-11 and national safety standards.
Any repairs must be done by a qualified personnel.
No naked flame sources, such as lighted candles, should be placed on tap.

MOUNTING

The taps must be fixed with steel screws Ø 4-5 mm. The screws are not included in a package.

OPERATING

Every tap SD910, SD915, SD920 consists of 9 separate highly isolated taps for 8 SAT TV and 1 terrestrial TV lines.
Connectors on taps can accept cables with central pin diameter up to 1.2 mm.
Terrestrial TV tap has DC through pass.
All paths of SAT TV trunk lines have DC through pass.
Horizontal polarization lines can be used for feeding multiswitches connected to the tap outputs. Voltage for this purpose
can be directed by switch on the side of tap.

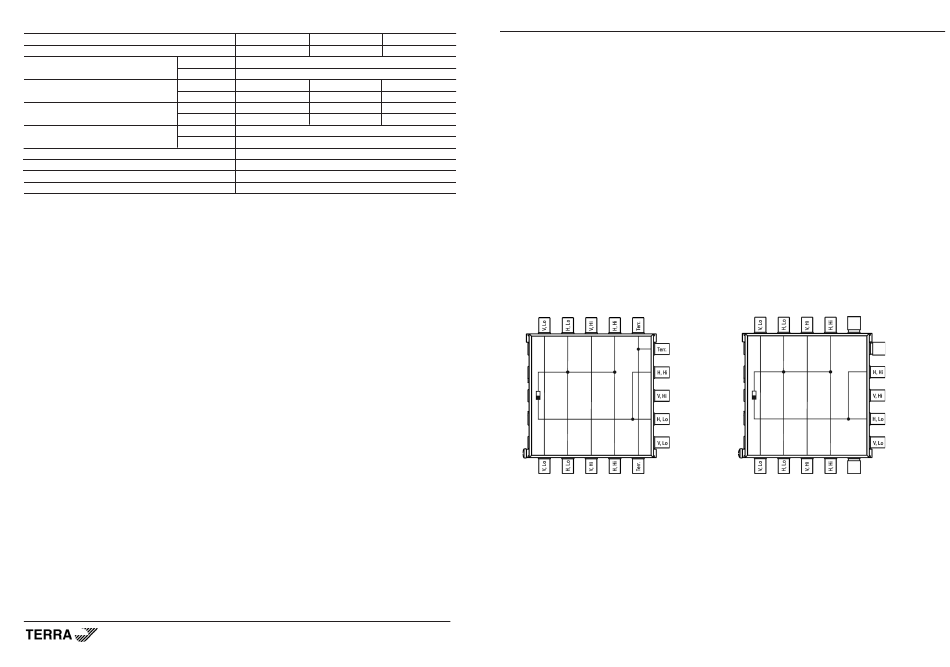

Vertical polarization lines have no pass to the tap outputs. Below are diagrams demonstrating DC pass through taps.
For upper part (SAT A)
Figure 1. DC pass diagrams
Vers. 1.02
For lower part (SAT B)
