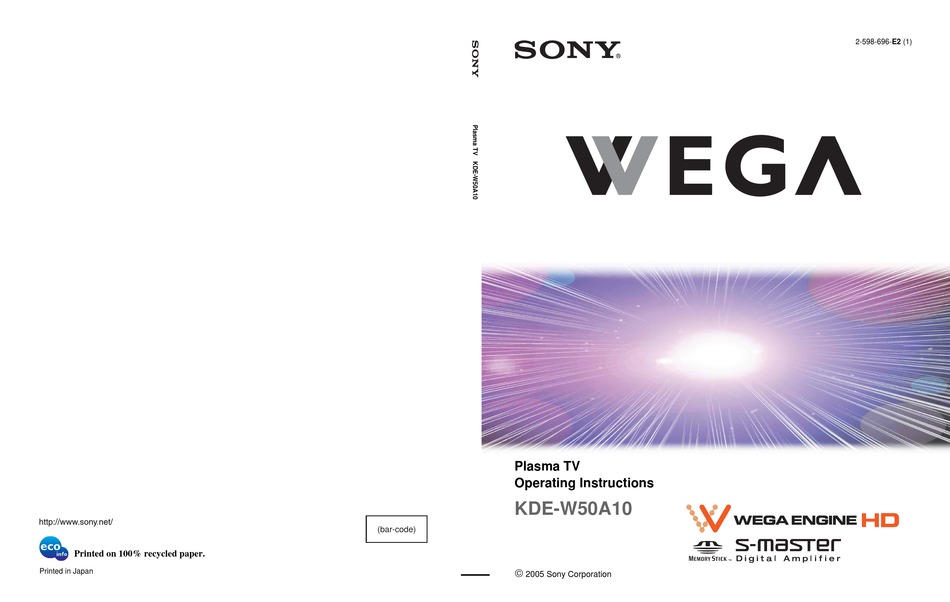

2-598-696-E2 (1)
Plasma TV
Operating Instructions
KDE-W50A10
(bar-code)
Printed on 100% recycled paper.
Printed in Japan
2005 Sony Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WEGA KDE-W50A10 and is the answer not in the manual?

Questions and answers

Related Manuals for Sony WEGA KDE-W50A10

Summary of Contents for Sony WEGA KDE-W50A10

  • Page 1 2-598-696-E2 (1) Plasma TV Operating Instructions KDE-W50A10 (bar-code) Printed on 100% recycled paper.  Printed in Japan 2005 Sony Corporation...
  • Page 3 Be sure to grasp the plug when disconnecting the AC power cord. Wiring If the AC power cord is damaged, stop using it and ask your dealer or Sony service center to exchange it. Unplug the AC power cord when wiring cables.
  • Page 4 TV. Clean the cabinet of the TV with a dry soft cloth. To Use only a stand recommended by Sony for the remove the dust from the slots, the openings and the specific model of the TV.
  • Page 5 Ventilation Never install the unit as follows: The slots and openings in the TV are provided for necessary ventilation. To Air circulation is blocked. Air circulation is blocked. ensure reliable operation of the TV, and to protect it from overheating, these slots and openings must never be blocked or covered.
  • Page 6 Antennas Safety Check Upon completion of any service or repairs to the TV, Outdoor Antenna Grounding ask the service technician to perform routine safety checks (as specified by the manufacturer) to determine If an outdoor antenna is installed, follow the precautions below. An that the TV is in safe operating condition, and to so outdoor antenna system should not be located in the vicinity of overhead certify.
  • Page 7 Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 8 The model and serial numbers are located at the rear of the TV, below the If the following images are displayed for an extended period of Sony logo, on the sticker, and also on the TV box (white label). Record time, image retention (afterimage) in areas of the screen may these numbers in the spaces provided below.

  • Page 9: Table Of Contents

    Contents Contents Introducing the TV Welcome....................13 Package Contents................13 Features ..................14 Setting Up the TV Overview ....................17 TV Controls and Connectors..............18 Front panel ..................18 Side panel ..................19 Rear panel..................20 Connecting the Power Cord ...............22 Preventing the TV from Toppling Over...........23 Bundling the Connecting Cables ............24 Basic Connections: Connecting a Cable or Antenna ......25 Cable or Antenna ................26 Cable Box and Cable ..............27...
  • Page 10 Operating a Satellite Receiver ............60 Operating a VCR ................61 Operating a DVD Player or DVD Changer ........61 Operating a 5.1ch DVD AV System (Sony DAV) ......62 Operating a DVD/VCR Combo Unit ..........62 Operating an AV Receiver .............62 Using the Features Overview ....................63...
  • Page 11 Using the Memory Stick Viewer About Memory Stick................75 Features ..................75 Memory Stick Compatibility ............76 Memory Stick Functionality ............76 File Compatibility ................77 Trademark Information..............77 Inserting and Removing a Memory Stick ..........78 Inserting a Memory Stick..............78 Inserting the Memory Stick DUO............79 Removing a Memory Stick .............80 Using the Memory Stick Index ............81 Using the Memory Stick Index ............82 Viewing Photos..................83...
  • Page 12 Other Information Overview ....................105 Glossary .....................106 Troubleshooting ................107 Twin View ..................107 Remote Control ................108 Channels ..................109 Memory Stick ................110 Audio ....................111 Video ....................112 General ..................113 Specifications ..................114 Optional Accessories................116 Index ....................117...

  • Page 13: Introducing The Tv

    Introducing the TV Welcome Thank you for purchasing the Sony Plasma TV. This manual is to be used with the following models: KDE-W50A10 Package Contents The package contains the following: Plasma TV Remote control (RM-KA002) and two size AA batteries...

  • Page 14: Features

    Cable, etc.), to create a picture that is precise and finer in detail, rivaling high definition resolution. Incoming HD signals (1080i) are also bitmapped, utilizing Sony’s proprietary algorithm to provide a crisp and clear picture; • IFP (Image Format Processor): The Digital Texture Enhancer function of this chip provides the optimal contrast by utilizing a wide dynamic range.
  • Page 15 Component Video Inputs: Offers the best video quality for DVD (480p and 480i), and digital set-top box (1080i, 720p, 480p and 480i) connections. HDMI (High-Definition Multimedia Interface): Provides an uncompressed, all-digital audio/video interface between this TV and any HDMI-equipped audio/video component, such as a set-top box, DVD player, and A/V receiver.

  • Page 17: Setting Up The Tv

    Setting Up the TV Overview This chapter includes illustrated instructions for setting up your TV. Topic Page(s) TV Controls and Connectors 18-20 Connecting the Power Cord 22-24 Basic Connections: Connecting a Cable or Antenna 25-29 Connecting Optional Equipment Making Video Connections About Using S VIDEO VCR and Cable VCR and Cable Box...

  • Page 18: Tv Controls And Connectors

    TV Controls and Connectors Front panel PICTURE OFF TIMER STANDBY POWER Item Description 1 Speakers Outputs audio signal. (Left/Right) 2 PICTURE OFF When lit, indicates that the Picture Off feature is activated. For details, see page 56. 3 TIMER LED When lit, indicates one of the timers is set.

  • Page 19: Side Panel

    Side panel Left side Right side STD/DUO CHANNEL VOLUME TV/VIDEO Item Description 1 Memory Stick When lit, indicates that the Memory Stick is being read. indicator (Do not remove the Memory Stick when the indicator is lit.) 2 Memory Stick Memory Stick insertion slot.

  • Page 20: Rear Panel

    Rear panel AC IN OPTICAL OUT VHF/UHF CABLE R-AUDIO -L VIDEO IN CENTER SPEAKER IN 180W ( 6 ) MAX R-AUDIO -L VIDEO S VIDEO ( MONO ) CONTROL S R-AUDIO -L R-AUDIO -L AUDIO OUT SUBWOOFER OUT HD/DVD IN ( VAR/FIX ) ( VAR ) ( 1080i/720p/480p/480i )
  • Page 21 IN 180W (6Ω) MAX use the TV speakers as a center speaker. 0 CONTROL S Allows the TV to receive (IN) and send (OUT) remote control signals to other Sony IN/OUT infrared-controlled audio or video equipment that has the CONTROL S function.

  • Page 22: Connecting The Power Cord

    Connecting the Power Cord Complete other connections prior to connecting the power cord. Connect the power cord to the AC IN connector of the TV. AC power cord AC IN Secure the AC power plug to the display’s AC IN jack. AC IN (Power AC plug holder supply input)

  • Page 23: Preventing The Tv From Toppling Over

    Connect the other end of the AC power cord to a wall outlet. AC power cord Be sure to use the supplied AC power cords. When connecting optional components, do not connect the AC power cords to wall outlets until you have completed making all connections.

  • Page 24: Bundling The Connecting Cables

    Bundling the You can bundle the connecting cables using the cord clamp with a cable Connecting Cables band at the rear of the TV. Bundle the connecting cables. Rear of TV Cord clamp Cable band (not supplied) Attach the cord clamp for the AC power cord. Remove the cable cover.

  • Page 25: Basic Connections: Connecting A Cable Or Antenna

    Basic Connections: Connecting a Cable or Antenna The way in which you will connect your TV varies, depending on how your home receives a signal (cable, cable box, antenna) and whether or not you plan to connect a VCR. If You Are Connecting See Page Cable or Antenna No cable box or VCR...

  • Page 26: Cable Or Antenna

    Cable or Antenna For best results, use this connection if you are connecting a cable or an antenna and you: Do not need a cable box to unscramble channels. (If you have a cable box, see page 28.) Do not intend to connect a VCR. (If you have a VCR, see pages 32 and 34.) For antenna connection, use the 75-ohm coaxial cable.

  • Page 27: Cable Box And Cable

    Cable Box and Cable For best results, use this connection if: Your cable company scrambles some channels, such as premium channels (which requires you to use a cable box), but does not scramble all channels. You do not have a VCR. (If you have a VCR, see pages 32 and 34.) With this connection you can: Use the remote control to change channels coming through the cable box to the TV’s VHF/UHF input jack.

  • Page 28: Cable Box

    Cable Box For best results, use this connection if: Your cable company scrambles all channels, which requires you to use a cable box. You do not have a VCR. (If you have a VCR, see pages 32 and 34.) With this connection you can: Use the remote control to change channels coming through the cable box to the TV’s VHF/UHF jack.
  • Page 29 Notes on Using This Connection To Do This ... Do This ... Use the cable box Tune the TV to the channel the cable box is set to (usually channel 3 or 4) and then use the cable box to switch channels. Set up the remote control to Program the remote control.

  • Page 30: Connecting Optional Equipment

    Connecting Optional Equipment Use the directions in this section to connect the following optional equipment: If You Are Connecting See Page About Using S VIDEO VCR and Cable VCR and Cable Box Two VCRs for Tape Editing Satellite Receiver Satellite Receiver and VCR DVD Player with Component Video Connectors DVD Player with S VIDEO and Audio Connectors Digital Satellite Receiver with HDMI Connector...

  • Page 31: About Using S Video

    About Using If the optional equipment you are connecting has an S VIDEO jack S VIDEO (shown at left), you can use an S VIDEO cable (not supplied) for improved picture quality (compared to an A/V cable). Because S VIDEO carries only the video signal, you also need to connect audio cables (not supplied) for sound, as shown below.

  • Page 32: Vcr And Cable

    VCR and Cable For best results, use this connection if: Your cable company does not require you to use a cable box. About Using This Connection with Dual Picture (Twin View, etc.) Features With this connection, you can use all the dual picture features. To connect the VCR and cable Connect the CATV cable (not supplied) to the VCR’s VHF/UHF input jack.
  • Page 33 Press repeatedly to select the cable input (CABLE in the illustration). Set up the remote control to If you have a non-Sony VCR, you must program the remote control. See operate the VCR “Programming the Remote Control” on page 58.

  • Page 34: Vcr And Cable Box

    VCR and Cable Box For best results, use this connection if: Your cable company scrambles some channels, such as premium channels (which requires you to use a cable box), but does not scramble all channels. About Using This Connection with Dual Picture (Twin View, etc.) Features With this connection, you can use all the dual picture features.
  • Page 35 VCR input (VIDEO 1 in the illustration). Set up the remote control to If you have a non-Sony VCR, you must program the remote control. See operate the cable box or VCR “Programming the Remote Control” on page 58.

  • Page 36: Two Vcrs For Tape Editing

    Two VCRs for Tape Connecting two VCRs lets you record from one VCR to the other. By Editing connecting them as shown below, you can view (monitor) what is being recorded. To connect two VCRs for tape editing Use an A/V cable (not supplied) to connect the playback VCR’s A/V output jacks to the recording VCR’s A/V input jacks.
  • Page 37 VCR input (VIDEO 1 in the illustration). recorded Set up the remote control to If you have a non-Sony VCR, you must program the remote control. See operate the VCR(s) “Programming the Remote Control” on page 58.

  • Page 38: Satellite Receiver

    Satellite Receiver To connect a satellite receiver Connect the satellite antenna cable (not supplied) to the satellite receiver’s satellite input jack. Use an A/V cable (not supplied) to connect the satellite receiver’s A/V output jacks to the TV’s A/V input jacks (VIDEO 1 or 3). Connect the 75-ohm coaxial cable from your cable or antenna to the TV’s CABLE or VHF/UHF input jack.
  • Page 39 (VIDEO 1 in the illustration). Set up the remote control to operate the satellite If you have a non-Sony satellite receiver, you must program the receiver remote control. See “Programming the Remote Control” on page 58.

  • Page 40: Satellite Receiver And Vcr

    Satellite Receiver To connect a satellite receiver and VCR and VCR Connect the CATV cable (not supplied) to the single (input) jack of the splitter. Use the 75-ohm coaxial cable to connect one of the splitter’s two output jacks to the TV’s CABLE jack. Use the 75-ohm coaxial cable (not supplied) to connect the splitter’s other output jack to the satellite receiver’s VHF/UHF input jack.
  • Page 41 Rear of TV VIDEO IN CABLE 75-ohm R-AUDIO -L VIDEO S VIDEO S VIDEO CATV ( MONO ) coaxial cable cable Splitter (not Satellite Receiver supplied) Satellite antenna cable 75-ohm (not coaxial cable 75-ohm supplied) (not supplied) coaxial cable A/V cable (not supplied) (not supplied) A/V cable...
  • Page 42 VCR is connected (VIDEO 1 in the illustration). Set up the remote control to If you have a non-Sony VCR or satellite receiver, you must program the remote operate the satellite receiver or control. See “Programming the Remote Control” on page 58.

  • Page 43: Dvd Player With Component Video Connectors

    DVD Player with For best results, use this connection if your DVD player has component Component video (Y, P ) jacks. Video Connectors To connect a DVD player with component video connectors Use a component video cable (not supplied) to connect the DVD player’s Y, P and P output jacks to the Y, P...
  • Page 44 DVD input (VIDEO 4 in the illustration). Set up the remote control to If you have a non-Sony DVD player, you must program the remote control. See operate the DVD player “Programming the Remote Control” on page 58.

  • Page 45: Dvd Player With S Video And Audio Connectors

    DVD input (VIDEO 1 in the illustration). Set up the remote control to If you have a non-Sony DVD player, you must program the remote control. See operate the DVD player “Programming the Remote Control” on page 58.

  • Page 46: Digital Satellite Receiver With Hdmi Connector

    Digital Satellite To connect a Digital Satellite Receiver with HDMI connector Receiver with HDMI Use a HDMI cable (not supplied) to connect the Digital Satellite Connector Receiver’s HDMI output connector to the TV’s HDMI IN connector (VIDEO 6). HDMI cables transmit both audio and video signals. (Separate audio cables are not necessary.) You can purchase HDMI cables at your local electronics store.
  • Page 47 Use an Audio cable (not supplied) to connect the Digital Satellite Receiver’s AUDIO OUT jacks to the TV’s AUDIO IN jacks (VIDEO 6). Rear of TV R-AUDIO -L Digital Satellite Receiver HDMI to DVI-HDTV adapter or cable (not supplied) Audio cable (not supplied) Notes on Using This Connection To Do This ...

  • Page 48: Dvd Player Or Digital Satellite Receiver Via Av Receiver With

    DVD Player or Use this connection if you have a digital audio device that is PCM/Dolby Digital Satellite Digital compatible, such as an AV Receiver with a Dolby Pro Logic system decoder. Receiver via AV Receiver with To connect a DVD player or digital satellite receiver via AV receiver with CENTER SPEAKER CENTER SPEAKER IN terminals IN Terminals...
  • Page 49 Rear of TV CENTER SPEAKER IN 180W ( 6 ) MAX R-AUDIO -L HD/DVD IN ( 1080i/720p/480p/480i ) Audio cable SPEAKER cord Component (not supplied) (not supplied) video cable (not supplied) SCAN SELECT FRONT R CENTER FRONT L MONITOR OUT VIDEO 1 VIDEO 2 S VIDEO...

  • Page 50: Camcorder

    Camcorder For easy connection of a camcorder, the TV has side A/V input jacks. If you prefer, you can connect the camcorder to the TV’s rear A/V input jacks. To connect a camcorder Use an A/V cable (not supplied) to connect the camcorder’s A/V output jacks to the TV’s A/V input jacks (VIDEO 2).

  • Page 51: Audio Receiver

    Audio Receiver For improved sound quality, you may want to play the TV’s audio through your stereo system. To connect an audio system Use an audio cable (not supplied) to connect the TV’s AUDIO OUT jacks to the audio receiver’s line input jacks. Rear of TV R-AUDIO -L AUDIO OUT...

  • Page 52: Device With An Optical (Digital Audio) Connector

    OPTICAL LINE Using the CONTROL CONTROL S allows you to control your system and other Sony equipment S Feature with a single remote control. In addition, the CONTROL S feature allows you to always point your remote control at your TV, instead of having to point it at the other equipment, which might be hidden or out of direct line of sight.

  • Page 53: Setting Up The Channel List

    Setting Up the Channel List After you finish connecting your TV, you need to run Initial Setup, which automatically sets up available analog and digital channels. The Initial Setup screen appears when you turn on your TV for the first time after hooking it up.

  • Page 55: Overview

    Using the Remote Control Overview This chapter describes how to set up, program, and use the remote control. Topic Page Inserting Batteries Button Descriptions Programming the Remote Control Using Other Equipment with Your Remote Control Inserting Batteries Insert two size AA batteries by matching the on the batteries to the diagram inside the remote control’s battery compartment.

  • Page 56: Button Descriptions

    Button Descriptions Button Description 1 DVD/VCR, Press to turn on and off the equipment you have programmed SAT/CABLE into the remote control. For details, see “Programming the Power Buttons Remote Control” on page 58. DVD/VCR: Press to turn on and off the video equipment. SAT/CABLE: Press to turn on and off the satellite receiver or cable box.
  • Page 57 Button Description qd RESET Press to reset the settings to the factory defaults. See pages 92 and 95. Also used to clear Label Channels. (Twin View) Press to turn on and off Twin View. For details, see page 69. qg 1 (Power) Press to turn on and off the TV.

  • Page 58: Programming The Remote Control

    601 (Sony Dream System) SAT/Cable 801 (Sony Satellite Receiver) If you have video equipment other than Sony brand that you want to control with the TV’s remote control, use the following procedures to program the remote control. The equipment must have infrared (IR) remote capability in order to be used with this remote control.
  • Page 59 Satellite Receivers Optimus Manufacturer Code 5.1ch DVD AV System Orion Sony Manufacturer Code Panasonic 308, 309, 306, 307 Dish Network Sony (DAV) 601, 602, 603, Pentax 305, 304 Echostar Philco 308, 309 General Electric Philips 308, 309, 310 AV Receivers Hitachi...

  • Page 60: Using Other Equipment With Your Remote Control

    Using Other Equipment with Your Remote Control To operate other connected equipment with your TV, first turn to page 59 and program the necessary code. For operating video equipment, press TV/VIDEO repeatedly until you see the video input on the screen for your connected equipment.

  • Page 61: Operating A Vcr

    Operating a VCR To Do This ... Press Activate the remote control to DVD/VCR (FUNCTION) operate the VCR Turn on/off DVD/VCR (POWER) Change channels CH +/– Record simultaneously Play Stop Fast forward Rewind the tape Pause (press again to resume normal playback) Search the picture forward or during playback backward...

  • Page 62: Operating A 5.1Ch Dvd Av System (Sony Dav)

    Operating a 5.1ch DVD AV System To Do This ... Press Activate the remote control to DVD/VCR (FUNCTION) (Sony DAV) operate the DVD Turn on/off DVD/VCR (POWER) Select other equipment connected to the DAV Skip a disk TOP MENU Display the DVD menu...

  • Page 63: Overview

    Using the Features Overview This chapter describes how to use the features of your TV. Topic Page Watching TV Using the Program Guide Using Wide Screen Mode Using Twin View Using Favorite Channels...

  • Page 64: Watching Tv

    Watching TV z For a complete list of all To Do This ... Do This ... the functions of the (FUNCTION). Activate the remote control to Press remote control, see page operate the TV Press 1. Turn on/off the TV Tune directly to a channel To tune to analog channels, press and then...

  • Page 65: Using The Program Guide

    Using the Program Guide Displaying the The program guide lets you review program information and select both Program Guide analog and digital channels. The Program Guide cannot be displayed when the TV is tuned to one of the video inputs or if the Channel Fix option is set to anything other than Off (see page 99).

  • Page 66: Using Additional Program Guide Options

    Using Additional Press while in the program guide’s channel list to display the following Program Guide options, which allow you to customize the settings of the program on the currently tuned channel. Options C23.1 Make Way for Ducks! Series follows the aquatic misadventures of Henry and Riley, two wayward ducks on a unique mission.

  • Page 67: Using Wide Screen Mode

    Using Wide Screen Mode Wide screen mode lets you watch 4:3 normal broadcasts in several wide z You can also access the screen modes (16:9 aspect ratio). screen mode settings in Press WIDE repeatedly to toggle through the following screen mode the Screen menu.
  • Page 68 Changing the Wide Screen Mode for 16:9 Source (High definition source) original source Upconverted 4:3 Native 16:9 Example Description Wide Zoom enlarges the center portion of the picture. The left and right edges of the picture are stretched to fill the 16:9 screen. Wide Zoom Normal (This mode is not available.)

  • Page 69: Using Twin View

    Using Twin View Twin View lets you see two pictures from two sources — from an antenna, VCR, DVD, etc. — on the screen at the same time. You hear the sound from only one of the sources at a time, but you can choose which source’s sound is selected.

  • Page 70: Activating The Picture

    Activating the You can use the buttons to activate the left and right pictures while Picture using Twin View. To Do This ... Do This ... To activate the picture in the right C35.3 Modern architectural movement Video 1 window The city is regarded as a showcase for modern architecture, and is home WHD-TV to a host of architects who have inspired international architectural styles.

  • Page 71: Changing The Picture Size

    Changing the The zoom feature lets you vary the relative size of the left and right pictures. Picture Size To Do This ... Do This ... Enlarge the active picture Press V. Make the active picture smaller Press v. When you adjust the picture sizes, the TV memorizes the change.

  • Page 72: Using Favorite Channels

    Using Favorite Channels The Favorite Channels feature lets you select programs from a list of up to 16 favorite channels that you specify. You can create a list using the Favorite Channels option in the Channel Menu, or by using the Add to Favorites feature in the Favorite Channels guide.

  • Page 73: Using The Favorite Channels Guide

    Using the Favorite Press FAVORITES. The Favorite Channels list appears. Channels Guide Favorite Channels Add to Favorites 8.14 15.8 Favorite HGTV Channels 45.12 112.3 ESPN NICK Press to highlight the channel you want to watch. To add the current channel to the list of Favorite Channels, highlight Add to Favorites and press Press...

  • Page 75: Using The Memory Stick Viewer

    Using the Memory Stick Viewer About Memory Stick Memory Stick (sold separately) is a compact, portable, and versatile Integrated Circuit recording medium with a data capacity that makes it perfect for portable applications, such as digital photography. Memory Stick is specially designed for sharing digital data among Memory Stick compatible products such as digital cameras and digital video cameras.

  • Page 76: Memory Stick Compatibility

    The Memory Stick has been formatted on a personal computer. Sony recommends that you back up all data stored on Memory Stick media to avoid potential data loss. In the above two cases, in order to avoid potential data corruption that may occur, be sure to back up data prior to use with the TV’s Memory Stick Viewer.

  • Page 77: File Compatibility

    File Compatibility The Memory Stick Viewer is compatible with JPEG images taken with Sony digital still cameras and MPEG1 movies taken with Sony digital cameras and camcorders. In order to be viewable in the Memory Stick Viewer, the files must have the following file name extensions:...

  • Page 78: Inserting And Removing A Memory Stick

    Inserting and Removing a Memory Stick Inserting a Memory Stick CAUTION: If you are using a Memory Stick DUO or Memory Stick PRO DUO with your TV, do not use the Memory Stick with its adaptor. Remove the adaptor before you insert it into the TV's Memory Stick slot.

  • Page 79: Inserting The Memory Stick Duo

    Inserting the Memory Stick DUO is a new, compact version of the standard-sized Memory Stick DUO Memory Stick recording medium. CAUTION: The Memory Stick slot on your TV has been designed to accommodate standard and compact versions of Memory Stick. It is not necessary to use an adaptor for Memory Stick DUO and Memory Stick PRO DUO.

  • Page 80: Removing A Memory Stick

    Removing a Memory To remove a Memory Stick Stick Check that the Memory Stick indicator is off. (When the light is on, this indicates that the TV is reading data from the Memory Stick.) Removing the Memory Stick while a file is being accessed (when the Memory Stick LED on the TV’s side panel is lit) may damage the Memory Stick or its contents.

  • Page 81: Using The Memory Stick Index

    Using the Memory Stick Index Turn on the TV and insert a Memory Stick that contains the photo or movie files you want to view. For details, see page 78. If the Memory Stick Index does not appear, press F1 button on the remote control.

  • Page 82: Using The Memory Stick Index

    Using the Memory The following describes how to use the Memory Stick Index. Stick Index To Do This ... Do This ... Move the highlight to Press V v B a photo, voice memo ), or movie ( thumbnail Display the Press .

  • Page 83: Viewing Photos

    Viewing Photos When you select a photo from the Memory Stick Index (described on page 81), it displays as shown below, with the following controls. Information about Summer 2004 / DSC00012 Jul 30, 2004 12:59PM 640x480 12 of 25 selected photo Selected photo Previous/next buttons Photo Menu bar...

  • Page 84: Photo Menu Bar Options

    Photo Menu The Photo Menu bar lets you access additional photo viewing options. Bar Options To access the Photo Menu bar Press to select Slide Show, View, or File. Press to select the desired option. Option Description Index Displays the Memory Stick Index, with the highlight on the thumbnail of the currently displayed photo.

  • Page 85: Using Zoom And Pan

    Using Zoom To Zoom and Pan a photo and Pan In the Photo Menu bar, highlight View. Highlight Zoom/Pan and press Specify the zoom center point by using V v B b; then press to set the center. The Zoom and Pan controls are displayed. Summer 2004 / DSC00012 Jul 30, 2004 12:59PM 640x480...

  • Page 86: Playing Movies

    Previous/next buttons Movie Menu bar Index Slide Show File MPEG movies recorded in VX Fine mode with Sony digital cameras cannot be played back with the Memory Stick Viewer. Movie Controls To Do This ... Do This ... z The quality of the movie...

  • Page 87: Movie Menu Bar Options

    Movie Menu To access the Movie Menu bar Bar Options Index ighlight in the Movie Menu bar Press to select Index, Slide Show, or File. Select the desired option. Option Description Index Displays the Memory Stick Index, with the highlight on the thumbnail z MPEG1 files that are of the currently displayed movie.

  • Page 88: Memory Stick Index Menu Bar Options

    Memory Stick Index Menu Bar Options Slide Show Menu The Slide Show Menu includes the following options: Options Option Description Start Starts the Slide Show. z The Slide Show Menu is Music Allows you to select background audio to play during the Slide the same whether you Show.

  • Page 89: Contents Menu Options

    Stick Viewer. Digital Camera Selects all folders within the directories Folders defined by the DCF rules used by Sony digital cameras (see page 90). JPEG and MPEG1 files in those directories are recognized even if they do not conform to the DCF file naming rules.

  • Page 90: Notes On Using Memory Stick Media

    Notes on Using Memory Stick Media About DCF File Most Sony brand digital still and video cameras automatically record still Names photo and movie files using DCF compliant directory and file names. If you selected the Digital Camera Folders option, as described on page 89, you might want to have your digital camera’s instruction manual...

  • Page 91: Using The Menus

    Using the Menus Overview The Menu gives you access to the following features: Menu Icon Description Page The Video Menu allows you to make adjustments to your picture settings. It also allows you to customize the Picture Mode based on the type of program you are viewing, select Advanced Video options, and more.

  • Page 92: Using The Video Menu

    Using the Video Menu To select the Video menu Press MENU. Antenna Video Press to highlight the Picture Mode Vivid Video icon and press Picture Brightness Color Press V v B b to highlight an Sharpness Color Temp. Cool option. Press to select an Noise Reduction High...
  • Page 93 Noise Reduction, Direct Option Description Mode Game Mode Noise Select to reduce the noise level of connected equipment. It is also are not available when Reduction effective on the signal from the VHF/UHF jack. Select from High, Vivid Standard Medium, and Off.
  • Page 94 Option Description BN Smoother is not Advanced BN Smoother Select to reduce the block noise caused by digital available when video encoding and decoding process. It is Video watching 480p, 720p, especially effective for watching a DVD or digital (continued) TV pictures.

  • Page 95: Using The Audio Menu

    Using the Audio Menu To select the Audio menu Press MENU. Antenna Audio Press to highlight the Sound Mode Dynamic Audio icon and press Treble Bass Woofer Level Press V v B b to highlight an Balance Steady Sound option. Press to select an Effect Auto Stereo...
  • Page 96 Option Description BILINGUAL Main+Sub Select for both main and sub sounds when viewing a bilingual broadcast. Main Select for a main sound when viewing a bilingual broadcast. Select for a sub sound when viewing a bilingual broadcast. Audio Out This option can be set only when the Speaker option is set to Off.

  • Page 97: Using The Screen Menu

    Using the Screen Menu To select the Screen menu Press MENU. Antenna Screen Press to move to the Wide Mode Wide Zoom Screen icon and press Game Picture 4:3 Default Overscan Normal Press to move to an Vertical Center Vertical Size Screen Saver option.
  • Page 98 Option Description 4:3 Default Wide Zoom Select to enlarge the 4:3 picture to fill the 16:9 Select the default screen, keeping the original image as much as Screen Mode to possible. use for 4:3 sources Normal Select to return the 4:3 picture to its original 4:3 Default functions size.

  • Page 99: Using The Channel Menu

    Using the Channel Menu To select the Channel menu Press MENU. Antenna Channel Press to highlight the Favorite Channels Channel icon and press Channel Fix Digital Channels Auto Program Press V v B b to highlight an Show/Hide Channels Label Channels option.
  • Page 100 Option Description Label Channels Allows you to assign labels (such as station call letters) to channel numbers. Press to scroll through the channel numbers. Then press to select the channel number that you want to assign a label. V v B b Label Press to highlight...

  • Page 101: Using The Setup Menu

    Using the Setup Menu To select the Setup menu Press MENU. Antenna Setup Press to highlight the Label Video Inputs Setup icon and press Language English Menu Color Gray Illuminated V v B b Press to highlight an Power Saving Standard option.
  • Page 102 Option Description Illuminated Allows you to illuminate the Sony logo on the front panel of the Illuminates the Sony logo while the power is turned on. Illuminates the Sony logo when you switch the power to on or off. Power Saving...

  • Page 103: Using The Applications Menu

    Using the Applications Menu To select the Applications menu Press MENU. Antenna Applications Press to highlight the Memory Stick Applications icon and press Clock/Timers Diagnostics Press V v B b to highlight an option. Press to select an option. V v B b Press to change settings.
  • Page 104 Option Description If you selected Program in step 2, press to set the day(s), hour, minute, duration, and channel number. Press to confirm each setting and move to the next z To return to the Timer setting. Press to go back to the previous setting. Menu after programming Press MENU...

  • Page 105: Overview

    Other Information Overview This chapter includes the following topics: Topic Page Glossary Troubleshooting Specifications Optional Accessories Index...

  • Page 106: Glossary

    Glossary analog signal A signaling method that uses continuous changes in the amplitude or frequency of an electronic transmission to convey information. aspect ratio Refers to the ratio between the width and height of the screen. This TV has a 16:9 (widescreen) aspect ratio, as opposed to a 4:3 aspect ratio.

  • Page 107: Troubleshooting

    1080i Provides 1080 lines of resolution. Displays images using interlaced scanning, which first transmits all the odd lines on the TV screen and then the even lines. 1080i is one of the formats used by HDTV (High Definition TV). Troubleshooting Twin View Problem Possible Remedies...

  • Page 108: Remote Control

    There may be more than one code for the equipment that you are attempting to operate. There is a possibility that some non-Sony equipment cannot be operated by your Sony TV remote.You may need to use the equipment’s original remote control.

  • Page 109: Channels

    Channels Problem Possible Remedies Cannot receive upper channels Press to select the VHF/UHF input (see page 57). (UHF) when using an antenna Auto Program in the Channel Menu to add receivable channels that are not presently in the TV’s memory (see page 99). TV is fixed to one channel Auto Program in the Channel Menu to add receivable channels that are not...

  • Page 110: Memory Stick

    MPEG1 movie does not play Some variations of MPEG1 movies may not be compatible with the Memory Stick back correctly Viewer. MPEG movies recorded in VX Fine mode with Sony digital cameras cannot be played back with the Memory Stick Viewer.

  • Page 111: Audio

    Problem Possible Remedies MPEG1 quality is poor when The quality of the movie when enlarged depends on the resolution of the MPEG1 enlarged (page 86) file. See your camera’s instruction manual for details. Error message is displayed No Memory Stick There is no Memory Stick in the slot.

  • Page 112: Video

    No picture (screen not lit), no If your TV does not turn on, and a red light keeps flashing, your TV may need sound service. Call your local Sony Service Center. Make sure the power cord is plugged in. Press the 1 (Main power) button on the right side of the TV.

  • Page 113: General

    General Problem Possible Remedies RESET How to reset TV to factory Turn on the TV. While holding down the button on the remote control, settings press the 1 (Main power) button on the right side of the TV. (The TV will turn itself off, then back on again.) Release the RESET button.

  • Page 114: Specifications

    Specifications Panel System Plasma Display panel 1365 pixels (horizontal) × 768 pixels (vertical) Display resolution KDE-W50A10 Antenna 75-ohm external terminal for VHF/UHF Television System NTSC American TV Standard ATSC (8VSB terrestrial) ATSC compliant 8VSB QAM on cable ITU-T J.83 Annex B compliant 64/256 QAM Channel Coverage Terrestrial (analog) 2-69...
  • Page 115 Supplied Accessories Remote Control (1) RM-KA002 AA (R6) Batteries (2) AC power cord (1) AC plug holder (1) 75-ohm coaxial RF cable (1) AC cord clamp (1) Cleaning Cloth (1) Operating Instructions (1) Quick Setup Guide (1) Warranty Card (1) Design and specifications are subject to change without notice.

  • Page 116: Optional Accessories

    Optional Accessories HDMI cable Component video cable S video cable A/V cable Audio cable Optical cable Control S cable: RK-G69 Tabletop Stand: SU-PT3M Wall-Mount Bracket: SU-PW3M...

  • Page 117: Index

    Index 4:3 Default settings 98 Clock/Timers 103 closed caption modes 91 F1 button 57 Color Corrector 94 F2 button 57 Alternate Audio 66 color, adjusting 92 Favorite Channels Alternate Video 66 CONTROL S 52 clearing 72 ANT button 57 CONTROL S IN/OUT jack, in Channel menu 99 using 72, 73 Applications menu 91, 103...
  • Page 118 Power Saving 102 troubleshooting 107 using 69–71 POWER SAVING button 56 Memory Stick Pro (Video) mode 92 DUO 79 features 75 problems, troubleshooting 107– Variable audio setting 96 Index 81 indicator 19 inserting 78 using with remote control 61 panning photos 85 with cable box, connecting 34 remote control photo options 84...

Table of Contents
