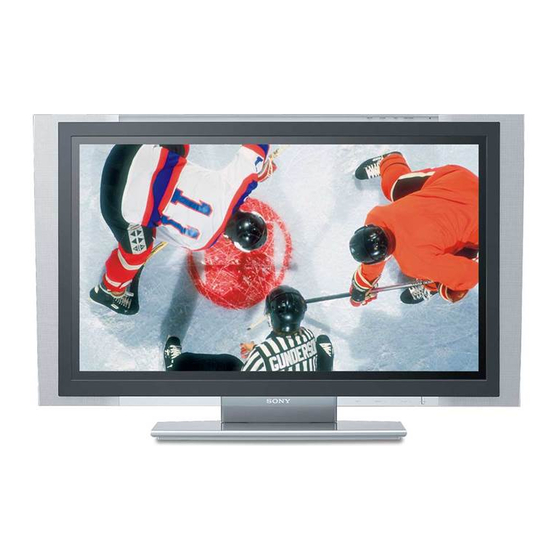

Sony KDE-37XS955 Quick Setup Manual

KDE-37XS955
KDE-42XS955
KDE-50XS955
Quick Set up Guide
Please follow the steps to setup your TV:
1 2
zzzzzzzz
Checking the Connecting Your TV
Supplied Accessories (See reverse side)
If your product is not w orking properly
DO NOT RETURN TO THE STORE.
For service and t echnical assist ance
Call our Cust omer Inf ormat ion Service Cent er (Toll Free):
1-800-222-SONY (7669) f or US resident s.
1-877-899-SONY (7669) f or Canadian resident s.
Sony Corporation © 2004
Printed in Japan
1 Checking the
Supplied Accessories
Remote control (RM -Y1004) (1)
and size AA batteries (2)
AC pow er cord (1)
• AC plug holder (1) • Cleaning cloth (1)
• Cable band (1) • Operating Instructions (1)
• Cable band screw (1) • Quick Setup Guide (1)
• AC cord clamp (1) • Warranty Card (1)
Inserting Batteries into the Remote Control
Insert two size AA batteries (supplied) by matching the
the batteries to the diagram inside the remote control's battery
compartment.
Downloaded from: https://www.usersmanualguide.com/
2-189-525-12 (1)
3
zzzzzzzz zzzzzzzz
Running Initial
Setup
2 Connecting Your TV
• Review the following chart to determine which diagram to use to
connect the components in your system:
For these components
or
or
or
e and E on
or
• See the "Cables Required" chart that appears with the diagram to
determine which cables you'll need. You may need to purchase
extra accessories, such as cables and splitters, depending on the
components you plan to connect.
• Turn off and unplug all components before making connections.
• If you are connecting a digital cable box, you'll need a special bi-
directional splitter that's compatible with your cable box. Contact
your cable provider for details.
M aking Video Connections
Your TV includes Best Video
Performance
several types of video
inputs. Use the inputs
that are available on
your components that
provide the best
video performance, as
described in right.
Additional Connections
For best audio performance, connect your digital audio components
using either digital optical or digital coaxial audio connections.
4
Depending on which components are in your system, you may need
to complete additional connections. For example, if you have a
satellite receiver, you'll need to connect the satellite antenna. If you
have an AV receiver, you'll need to connect speakers.
Note
Programming
The connection diagrams shown in the reverse side are recommendations only; other
the Remote Control
possible solutions may exist. Connections that include an AV receiver can often be very
complex, so check your AV receiver's instruction manual for additional details.
Activating CableCARD™ Service
Before you can use
CableCARD™ service,
you need to insert the
CableCARD™ (supplied
by your cable provider)
and activate the service,
as described in right.
KDE-37/ 42XS955
Note
Inserting the CableCARD™ incorrectly may result in permanent damage to the card and the
TV.
3 Running Initial Setup
1
Press POWER to turn on the TV.
The Initial Setup screen appears.
See reverse
2
Press V or v to select the on-screen display language. Then press
side
The message "Start auto program now?" appears.
3
A
Press V or v to select "Yes", then press
Auto Program automatically creates a list of receivable channels.
When finished, the lowest numbered channel is displayed.
B
To run Auto Program again at a later time
s Use the Auto Program feature in the operating instructions.
C
To add individual digital channels
s Use the Digital Channels feature in the operating instructions.
D
Note
Auto Program may take up to 50 minutes or more to complete.
E
A progress bar is displayed while the channel list is being created.
F
4 Programming the
Connector type
Remote Control
HDM I
(High-Def init ion
M ult imedia Int erf ace)
Component video The remote control is preset to operate Sony brand video equipment.
S VIDEO
Sony Equipment
DVD/VCR
Composit e video
SAT/Cable
RF/Coaxial
If you have video equipment other than Sony brand that you want to
control with the TV's remote control, use the following procedures to
program the remote control.
Note
The equipment must have infrared (IR) remote capability in order to be used with this
remote control.
Using the code list below, find the three-digit code number for the
manufacturer of your equipment. (If more than one code number is
listed, use the number listed first.)
5
DVD/ SAT/ POWER
MUTING VCR CABLE
TV/
MODE
VIDEO
PICTURE WIDE DISPLAY
3
4
R-AUDIO -L VIDEO S VIDEO
(MONO)
GUIDE FAVORITES MENU
4
R-AUDIO -L Y
HD/DVD
(1080i/720p/48
TOP MENU
5
CableCARD
R-AUDIO -L Y P B P R
HD/DVD IN
(1080i/720p/480p/480i)
1, 2
POWER SOUND
SAVING MODE /TV/SAT ANT
GUIDE
KDE-50XS955
RESET MTS/SAP JUMP
1
Manufacturer's Codes
DVD Players
M anufacturer Code
Sony 751
General Elect ric 755
Hit achi 758
.
JVC 756
M agnavox 757
M it subishi 761
Panasonic 753
.
Philips 757
Pioneer 752
RCA/PROSCAN 755
Samsung 758
Toshiba 754
Zenit h 760
DVD Changers
M anufacturer Code
Sony 765
Panasonic 766
DVD/ VCR Combo Units
M anufacturer Code
Sony 767
Zenit h 768
Toshiba 773
Samsung 774
JVC 775
Broksonic 776
Panasonic 777
HDD/ DVD Combo Units
M anufacturer Code
Sony 770, 771, 772
5.1ch DVD AV System
M anufacturer Code
Sony (DAV) 601, 602, 603, 604
AV Receivers
M anufacturer Code
Sony 764
VCRs
M anufacturer Code
Sony 301, 302, 303
Admiral (M . Ward) 327
Programmable Code Number
601 (Sony Dream Syst em)
801 (Sony Sat ellit e Receiver)
1
Press the DVD/VCR (FUNCTION) and RESET
buttons simultaneously, or press the SAT/CABLE
(FUNCTION) and RESET buttons simultaneously.
DVD/VCR and SAT/CABLE buttons flash.
2
Press the function button you want to program.
To program a cable box or a satellite receiver
Press SAT/CABLE (FUNCTION).
To program video equipment
Press DVD/VCR (FUNCTION).
3
Enter the three-digit manufacturer's code number
using the 0-9 buttons.
4
Press ENT (enter).
5 To check if the code number works, aim the TV's
remote control at the equipment and press DVD/
VCR and/or SAT/CABLE (POWER) that corre-
sponds with that equipment. If it responds, the
programming is completed. If not, try using the
other codes listed for that manufacturer.
Tips
• If more than one code number is listed, try entering them one by
one until you come to the correct code for your equipment.
• If you enter a new code number, the code number you
previously entered at that setting is erased.
M anufacturer Code M anufacturer Code
Aiw a* 338, 344 Scot t 312, 313, 321, 335,
323, 324, 325, 326
Audio Dynamic 314, 337
Sharp 327, 328
Broksonic 319, 317
Signature 2000 (M.Ward) 338, 327
Canon 309, 308
SV 2000 338
Cit izen 332
Sylvania 308, 309, 338, 310
Craig 302, 332
Symphonic 338
Curt is M at hes 304, 338, 309
Tashiro 332
Daew oo 341, 312, 309
Tat ung 314, 336, 337
DBX 314, 336, 337
Teac 314, 336, 338, 337
Dimensia 304
Technics 309, 308
Emerson 319, 320, 316, 317,
318, 341 Toshiba 312, 311
Fisher 330, 335 Wards 327, 328, 335, 331,
332
Funai 338
Yamaha 314, 330, 336, 337
General Elect ric 329, 304, 309
Zenit h 331
Go Video 322, 339, 340
Goldst ar 332
Cable Boxes
Hit achi 306, 304, 305, 338
Inst ant Replay 309, 308 M anufacturer Code
JC Penney 309, 305, 304, 330,
Sony 230
314, 336, 337
Hamlin/Regal 222, 223, 224, 225,
JVC 314, 336, 337, 345,
226
346, 347
Jerrold, G.I. 201, 202, 203, 204,
Kenw ood 314, 336, 332, 337
205, 206, 207, 208,
218, 222
LG 332
LXI (SEARS) 332, 305, 330, 335, Oak 227, 228, 229
338
Panasonic 219, 220, 221
M agnavox 308, 309, 310
Pioneer 214, 215
M arant z 314, 336, 337
Scient if ic At lant a 209, 210, 211
M art a 332
Tocom 216, 217
M emorex 309, 335
Zenit h 212, 213
M inolt a 305, 304
M it subishi/M GA 323, 324, 325, 326
Satellite Receivers
M ult it ech 325, 338, 321
M anufacturer Code
NEC 314, 336, 337
Sony 801
Olympic 309, 308
Dish Net w ork 810
Opt imus 327
Echost ar 810
Orion 317
General Elect ric 802
Panasonic 308, 309, 306, 307
Hit achi 805
Pent ax 305, 304
Hughes 804
Philco 308, 309
M it subishi 809
Philips 308, 309, 310
Panasonic 803
Pioneer 308
RCA/PROSCAN 802, 808
Quasar 308, 309, 306
Toshiba 806, 807
RCA/PROSCAN 304, 305, 308, 309,
311, 312, 313, 310,
* If an Aiwa VCR does not
329
Realist ic 309, 330, 328, 335, work even though you enter
324, 338
the code for Aiwa, enter the
Sansui 314
code for Sony instead.
Samsung 322, 313, 321
