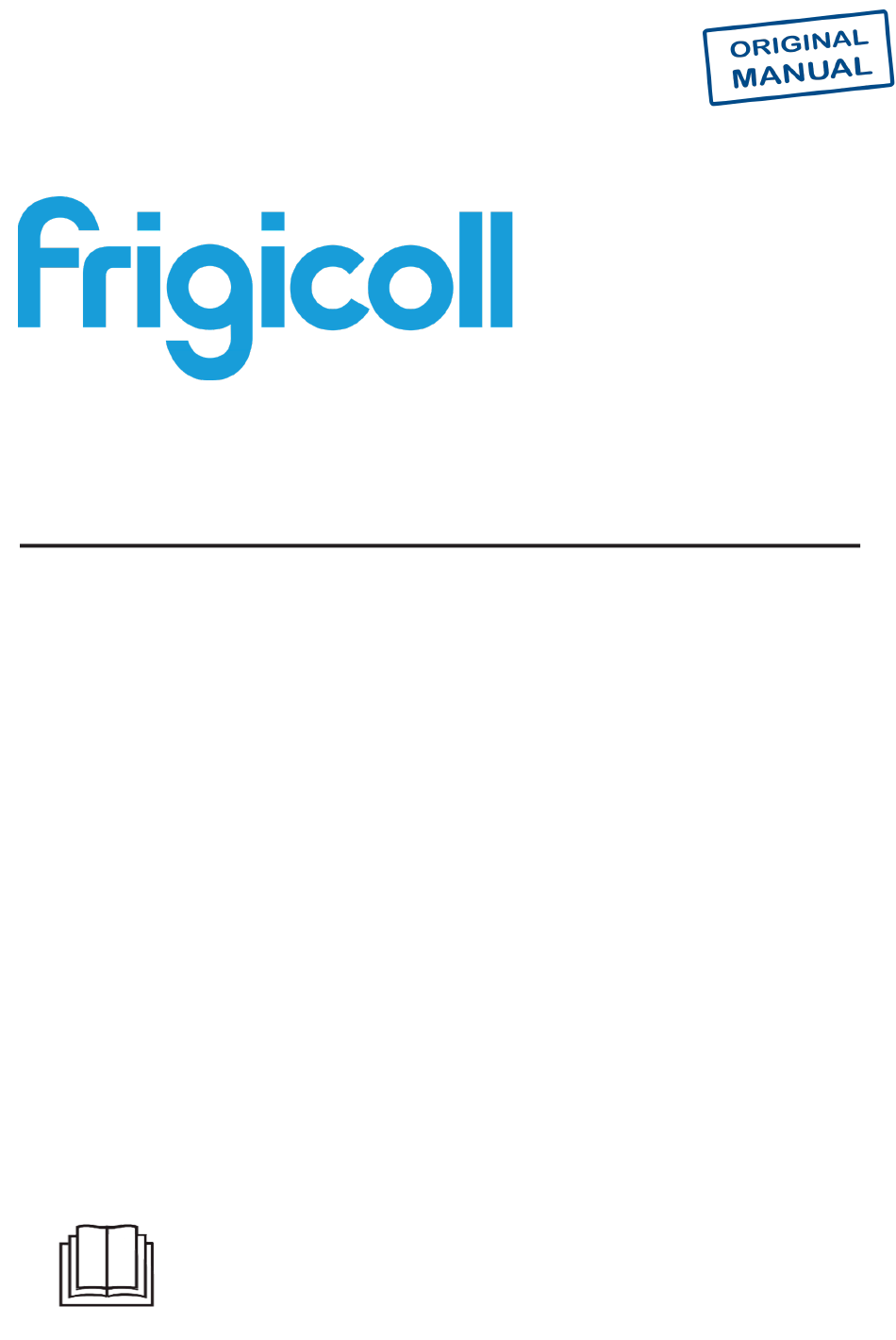

INSTALLATION & OWNER'S
MANUAL

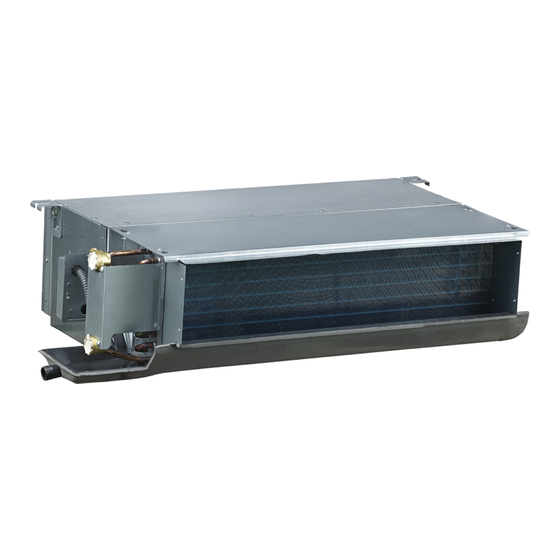

Fancoil Unit of Duct Type
MKT3-V200 (KFC-PD-2T-200D)
MKT3-V300 (KFC-PD-2T-300D)
MKT3-V400 (KFC-PD-2T-400D)
MKT3-V600 (KFC-PD-2T-600D)
MKT3-V800 (KFC-PD-2T-800D)
MKT3-V1000 (KFC-PD-2T-1000D)
MKT3-V1200 (KFC-PD-2T-1200D)
MKT3-V200F (KFC-PD-4T-200D)
MKT3-V300F (KFC-PD-4T-300D)
MKT3-V500F (KFC-PD-4T-500D)
MKT3-V600F (KFC-PD-4T-600D)
MKT3-V800F (KFC-PD-4T-800D)
Thank you very much for purchasing our air conditioner. Before using your air
conditioner, please read this manual carefully and keep it for future reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Frigicoll MKT3-V200
Summary of Contents for Frigicoll MKT3-V200
- Page 1 INSTALLATION & OWNER’S MANUAL Fancoil Unit of Duct Type MKT3-V200 (KFC-PD-2T-200D) MKT3-V300 (KFC-PD-2T-300D) MKT3-V400 (KFC-PD-2T-400D) MKT3-V600 (KFC-PD-2T-600D) MKT3-V800 (KFC-PD-2T-800D) MKT3-V1000 (KFC-PD-2T-1000D) MKT3-V1200 (KFC-PD-2T-1200D) MKT3-V200F (KFC-PD-4T-200D) MKT3-V300F (KFC-PD-4T-300D) MKT3-V500F (KFC-PD-4T-500D) MKT3-V600F (KFC-PD-4T-600D) MKT3-V800F (KFC-PD-4T-800D) Thank you very much for purchasing our air conditioner. Before using your air...
- Page 2 This manual refers to equipment with installation on both sides (right and left) whit these references: MKT3-V200 (KFC-PD-2T-200D) RIGHT MKT3-V400 (KFC-PD-2T-400D) RIGHT MKT3-V200F (KFC-PD-4T-200D) RIGHT MKT3-V300F (KFC-PD-4T-300D) RIGHT MKT3-V500F (KFC-PD-4T-500D) RIGHT MKT3-V300 (KFC-PD-2T-300D) RIGHT MKT3-V800 (KFC-PD-2T-800D) RIGHT...
-
Page 3: Table Of Contents
Install according to this installation instructions strictly. CONTENTS PAGE If installation is defective, it will cause water leakage, electrical shock and fire. PRECAUTIONS..................1 When installing the unit in a small room, take measures INSTALLATION INFORMATION..............2 against to keep refrigerant concentration from exceeding FUNCTIONS &... -
Page 4: Installation Information
2. INSTALLATION INFORMATION CAUTION To install properly, please read this "Owner’s & Installation manual" at first. Ground the air conditioner. Do not connect the ground wire to gas or water pipes, The air conditioner must be installed by qualified persons. lightning rod or a telephone ground wire. -
Page 5: Parts Names
6. PARTS NAMES Precautions before installation Decide the correct way of conveying the equipment. The above figures is an instance models, which would be different from the one that you purchase. Try to transport this equipment with the original package. If the air conditioner needs to be installed on a metal part of air return cabinet the building, electric insulation must be performed, and the... - Page 6 Concrete iron Embedded bolt (With embedded Gasket bolt in pipe) Pendant Pendant bolt assembly Fig.7-6 Suspending the indoor unit Fig.7-4 Use tools such as pulleys to hoist the indoor unit to the pendant bolt. New concrete roughcast Use tools such as gradienter to settle the indoor unit Set it with embedded bushes or embedded bolts.
- Page 7 Four pipe type (unit:mm) The quantities of the fans and motors are only for reference, please prevail in kind! B (Air return port) Electric control box Hot water outlet RC3/4” C ondensation water draining port 4-10X16Hoisting hole Cold water outlet RC3/4” Air release valve Condensation...
-
Page 8: Pipe Connection
8. PIPES CONNECTION Bend With air release valve, the other side is water inlet pipe. S-shape When connect water collector, set the tightening torque to 6180~7540N.cm(630~770kgf.cm) and use a spanner to tighten it as shown in Figure. Fig.9-2 The diameter of connective junction in water inlet pipe and water outlet pipe is RC3/4 tapper pipe thread inside. -
Page 9: Wiring
10. WIRING CAUTION The air conditioner should use separate power supply with rated voltage. The external power supply to the air conditioner should have ground wiring, which is linked to the ground wiring of the indoor and outdoor unit. The wiring work should be done by qualified persons according to circuit drawing. An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be connected in fixed wiring. - Page 10 10.1 Wiring Diagram S8S 7 S6 S5 S4 OF F OF F SW1 SW2 C N3 LE D 4 MAIN BOAD A L ARM EARTH MOTOR1 MOTOR2 HI MID LOW YELLOW/GREEN POWER IN Ground wire Nuetral wire POWER IN Three-speed switch Live wire Owner’s &...
- Page 11 10.2 The default model of DC fan coil is set as 12Pa when leaving the factory. Clients can dial to the responding position to choose the model and static pressure according to the nameplate and actual static pressure requirements of the models and static dial code table. Models and static dial code table: Static pres sure...
